KIM LIGHTING

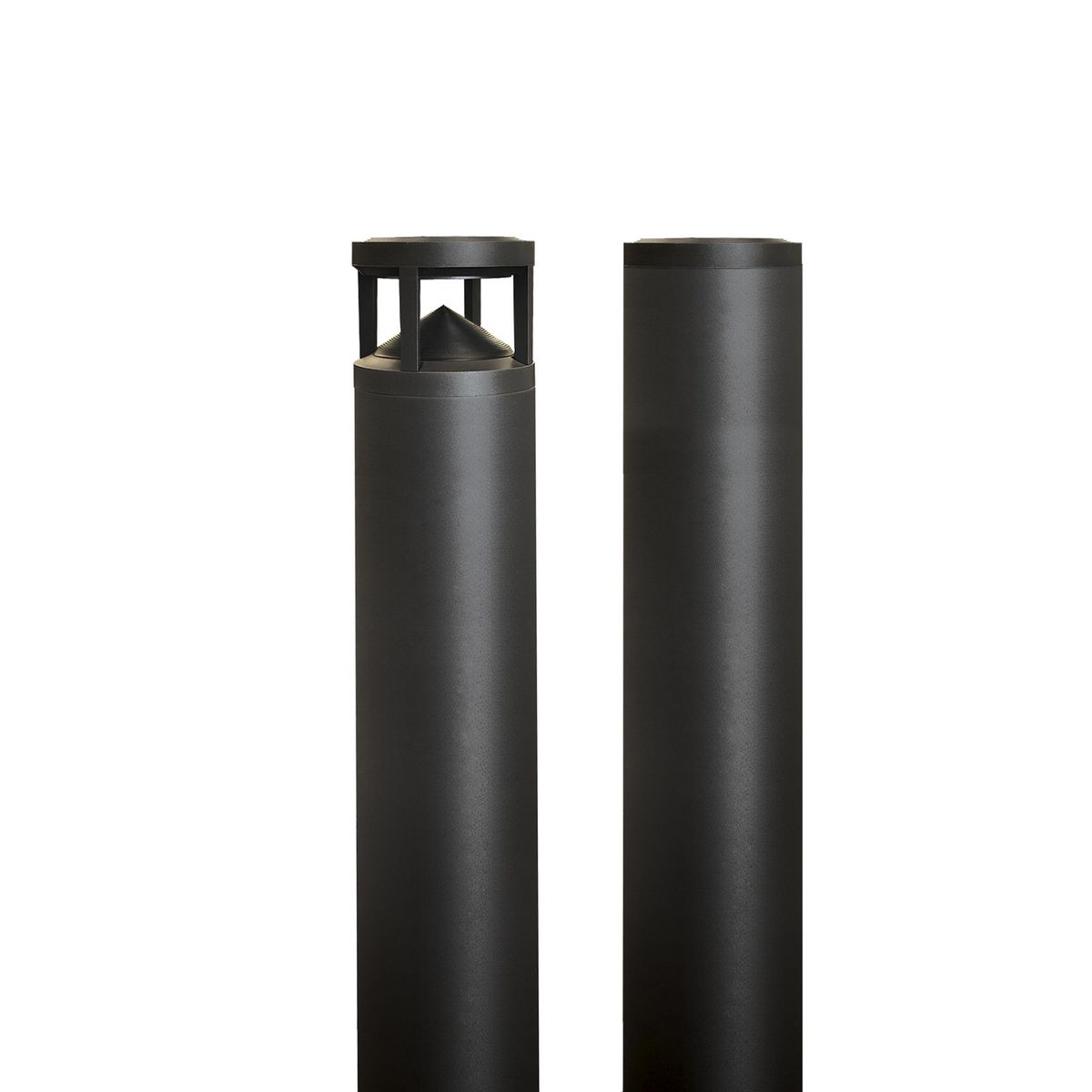

Pavilion Impact Bollard

The Pavilion Impact Bollards are designed to protect pedestrians and property from the impact of errant or passing vehicles and are ASTM F3016 S20 rated

Features & Benefits

  • 44" OAH S20 Impact Rated Illuminated and Non-Illuminated Bollards
  • U0, True IES, or diffused symmetric or asymmetric distributions
  • IDA Dark Sky Compliant, No Up-light configuration
  • Optional Bluetooth enabled RGBW color luminous accent
  • NX Lighting Controls
  • Integral Power Station functionality enables optional electrical and USB charging, speaker integration or even a disabled persons actuator button
Where To Buy
SPEC SHEET

Specifications

Lumen Range
397 - 2,350
Dimming Protocol
0-10V Dimming
Wattage Range
14 - 22
Color Offering
BLS - Black Gloss Smooth, BLT - Black Matte Textured, DBS - Dark Bronze Gloss Smooth, DBT- Dark Bronze Matte Textured, GTT - Graphite Matte Textured, LG - Light Grey Matte Textured, LGS - Light Grey Gloss Smooth, PSS - Platinum Silver Gloss Smooth, VGT - Verde Green Matte Textured, WHS - White Gloss Smooth, WHT - White Matte Textured, CC – Custom Color
Certifications
UL 1598, CSA C22.2 No. 250.0
Ratings
IP65, IK10
Lumen Range
397 - 2,350
Wattage
14 - 22

Product Documents

Impact Bollard Spec
3268 KB
2024-04-25

Brochures / Catalogs

Impact Bollard Application Guide
13692 KB
2023-08-03
Impact Bollard Brochure
33368 KB
2024-09-26

Technical Documents

Photometry(0)

Clear Filters

Product Name Color Temp CRI Lumens LM/W Watts Dist. Type Resources
PA7R-CH1-12L-010-3K73000 K70 CRI1184 lm8514.0 WType I
PA7R-CH1-12L-010-4K74000 K70 CRI1288 lm9214.0 WType I
PA7R-CH1-12L-010-5K75000 K70 CRI1319 lm9514.0 WType I
PA7R-CH1-12L-020-3K73000 K70 CRI1778 lm8222.0 WType I
PA7R-CH1-12L-020-4K74000 K70 CRI1935 lm8922.0 WType I
PA7R-CH1-12L-020-5K75000 K70 CRI1981 lm9122.0 WType I
PA7R-CH2-12L-010-3K73000 K70 CRI1139 lm8214.0 WType II
PA7R-CH2-12L-010-4K74000 K70 CRI1239 lm8914.0 WType II
PA7R-CH2-12L-010-5K75000 K70 CRI1269 lm9114.0 WType II
PA7R-CH2-12L-020-3K73000 K70 CRI1711 lm7922.0 WType II
PA7R-CH2-12L-020-4K74000 K70 CRI1862 lm8622.0 WType II
PA7R-CH2-12L-020-5K75000 K70 CRI1906 lm8822.0 WType II
PA7R-CH3-12L-010-3K73000 K70 CRI1094 lm7914.0 WType III
PA7R-CH3-12L-010-4K74000 K70 CRI1190 lm8514.0 WType III
PA7R-CH3-12L-010-5K75000 K70 CRI1219 lm8714.0 WType III
PA7R-CH3-12L-020-3K73000 K70 CRI1643 lm7622.0 WType III
PA7R-CH3-12L-020-4K74000 K70 CRI1788 lm8222.0 WType III
PA7R-CH3-12L-020-5K75000 K70 CRI1831 lm8422.0 WType III
PA7R-CH3HS-12L-010-3K73000 K70 CRI960 lm6914.0 WType III + House side shield
PA7R-CH3HS-12L-010-4K74000 K70 CRI1045 lm7514.0 WType III + House side shield
PA7R-CH3HS-12L-010-5K75000 K70 CRI1070 lm7714.0 WType III + House side shield
PA7R-CH3HS-12L-020-3K73000 K70 CRI1443 lm6622.0 WType III + House side shield
PA7R-CH3HS-12L-020-4K74000 K70 CRI1570 lm7222.0 WType III + House side shield
PA7R-CH3HS-12L-020-5K75000 K70 CRI1608 lm7422.0 WType III + House side shield
PA7R-CH4-12L-010-3K73000 K70 CRI1152 lm8314.0 WType IV
PA7R-CH4-12L-010-4K74000 K70 CRI1254 lm9014.0 WType IV
PA7R-CH4-12L-010-5K75000 K70 CRI1284 lm9214.0 WType IV
PA7R-CH4-12L-020-3K73000 K70 CRI1731 lm8022.0 WType IV
PA7R-CH4-12L-020-4K74000 K70 CRI1884 lm8722.0 WType IV
PA7R-CH4-12L-020-5K75000 K70 CRI1929 lm8922.0 WType IV
PA7R-CH5-12L-010-3K73000 K70 CRI1225 lm8814.0 WType V
PA7R-CH5-12L-010-4K74000 K70 CRI1333 lm9614.0 WType V
PA7R-CH5-12L-010-5K75000 K70 CRI1365 lm9814.0 WType V
PA7R-CH5-12L-020-3K73000 K70 CRI1841 lm8522.0 WType V
PA7R-CH5-12L-020-4K74000 K70 CRI2003 lm9222.0 WType V
PA7R-CH5-12L-020-5K75000 K70 CRI2051 lm9522.0 WType V
PA7R-CL1-12L-010-3K73000 K70 CRI1146 lm8214.0 WType I
PA7R-CL1-12L-010-4K74000 K70 CRI1247 lm9014.0 WType I
PA7R-CL1-12L-010-5K75000 K70 CRI1277 lm9214.0 WType I
PA7R-CL1-12L-020-3K73000 K70 CRI1852 lm8522.0 WType I
PA7R-CL1-12L-020-4K74000 K70 CRI2016 lm9322.0 WType I
PA7R-CL1-12L-020-5K75000 K70 CRI2064 lm9522.0 WType I
PA7R-CL2-12L-010-3K73000 K70 CRI1228 lm8814.0 WType II
PA7R-CL2-12L-010-4K74000 K70 CRI1336 lm9614.0 WType II
PA7R-CL2-12L-010-5K75000 K70 CRI1368 lm9814.0 WType II
PA7R-CL2-12L-020-3K73000 K70 CRI1984 lm9122.0 WType II
PA7R-CL2-12L-020-4K74000 K70 CRI2159 lm9922.0 WType II
PA7R-CL2-12L-020-5K75000 K70 CRI2211 lm10222.0 WType II
PA7R-CL3-12L-010-3K73000 K70 CRI1276 lm9214.0 WType III
PA7R-CL3-12L-010-4K74000 K70 CRI1389 lm10014.0 WType III
PA7R-CL3-12L-010-5K75000 K70 CRI1422 lm10214.0 WType III
PA7R-CL3-12L-020-3K73000 K70 CRI2062 lm9522.0 WType III
PA7R-CL3-12L-020-4K74000 K70 CRI2244 lm10322.0 WType III
PA7R-CL3-12L-020-5K75000 K70 CRI2298 lm10622.0 WType III
PA7R-CL3HS-12L-010-3K73000 K70 CRI1030 lm7414.0 WType III + House side shield
PA7R-CL3HS-12L-010-4K74000 K70 CRI1121 lm8014.0 WType III + House side shield
PA7R-CL3HS-12L-010-5K75000 K70 CRI1148 lm8214.0 WType III + House side shield
PA7R-CL3HS-12L-020-3K73000 K70 CRI1665 lm7722.0 WType III + House side shield
PA7R-CL3HS-12L-020-4K74000 K70 CRI1811 lm8322.0 WType III + House side shield
PA7R-CL3HS-12L-020-5K75000 K70 CRI1855 lm8522.0 WType III + House side shield
PA7R-CL4-12L-010-3K73000 K70 CRI1272 lm9114.0 WType IV
PA7R-CL4-12L-010-4K74000 K70 CRI1384 lm9914.0 WType IV
PA7R-CL4-12L-010-5K75000 K70 CRI1417 lm10214.0 WType IV
PA7R-CL4-12L-020-3K73000 K70 CRI2055 lm9522.0 WType IV
PA7R-CL4-12L-020-4K74000 K70 CRI2236 lm10322.0 WType IV
PA7R-CL4-12L-020-5K75000 K70 CRI2290 lm10622.0 WType IV
PA7R-CL5-12L-010-3K73000 K70 CRI1305 lm9414.0 WType V
PA7R-CL5-12L-010-4K74000 K70 CRI1420 lm10214.0 WType V
PA7R-CL5-12L-010-5K75000 K70 CRI1454 lm10414.0 WType V
PA7R-CL5-12L-020-3K73000 K70 CRI2109 lm9722.0 WType V
PA7R-CL5-12L-020-4K74000 K70 CRI2295 lm10622.0 WType V
PA7R-CL5-12L-020-5K75000 K70 CRI2350 lm10822.0 WType V
PA7R-DL1-12L-010-3K73000 K70 CRI1086 lm7814.0 WType I
PA7R-DL1-12L-010-4K74000 K70 CRI1182 lm8514.0 WType I
PA7R-DL1-12L-010-5K75000 K70 CRI1210 lm8714.0 WType I
PA7R-DL1-12L-020-3K73000 K70 CRI1639 lm7622.0 WType I
PA7R-DL1-12L-020-4K74000 K70 CRI1783 lm8222.0 WType I
PA7R-DL1-12L-020-5K75000 K70 CRI1826 lm8422.0 WType I
PA7R-DL5-12L-010-3K73000 K70 CRI1141 lm8214.0 WType V
PA7R-DL5-12L-010-4K74000 K70 CRI1241 lm8914.0 WType V
PA7R-DL5-12L-010-5K75000 K70 CRI1271 lm9114.0 WType V
PA7R-DL5-12L-020-3K73000 K70 CRI1721 lm7922.0 WType V
PA7R-DL5-12L-020-4K74000 K70 CRI1873 lm8622.0 WType V
PA7R-DL5-12L-020-5K75000 K70 CRI1918 lm8822.0 WType V
PA7R-GC1-12L-010-3K73000 K70 CRI843 lm6114.0 WType I
PA7R-GC1-12L-010-4K74000 K70 CRI917 lm6614.0 WType I
PA7R-GC1-12L-010-5K75000 K70 CRI939 lm6714.0 WType I
PA7R-GC1-12L-020-3K73000 K70 CRI1038 lm4822.0 WType I
PA7R-GC1-12L-020-4K74000 K70 CRI1130 lm5222.0 WType I
PA7R-GC1-12L-020-5K75000 K70 CRI1157 lm5322.0 WType I
PA7R-GC2-12L-010-3K73000 K70 CRI829 lm6014.0 WType II
PA7R-GC2-12L-010-4K74000 K70 CRI903 lm6514.0 WType II
PA7R-GC2-12L-010-5K75000 K70 CRI924 lm6614.0 WType II
PA7R-GC2-12L-020-3K73000 K70 CRI1021 lm4722.0 WType II
PA7R-GC2-12L-020-4K74000 K70 CRI1111 lm5122.0 WType II
PA7R-GC2-12L-020-5K75000 K70 CRI1138 lm5222.0 WType II
PA7R-GC3-12L-010-3K73000 K70 CRI831 lm6014.0 WType III
PA7R-GC3-12L-010-4K74000 K70 CRI905 lm6514.0 WType III
PA7R-GC3-12L-010-5K75000 K70 CRI926 lm6714.0 WType III
PA7R-GC3-12L-020-3K73000 K70 CRI1024 lm4722.0 WType III
PA7R-GC3-12L-020-4K74000 K70 CRI1114 lm5122.0 WType III
PA7R-GC3-12L-020-5K75000 K70 CRI1141 lm5322.0 WType III
PA7R-GC3HS-12L-010-3K73000 K70 CRI694 lm5014.0 WType III + House side shield
PA7R-GC3HS-12L-010-4K74000 K70 CRI755 lm5414.0 WType III + House side shield
PA7R-GC3HS-12L-010-5K75000 K70 CRI773 lm5614.0 WType III + House side shield
PA7R-GC3HS-12L-020-3K73000 K70 CRI854 lm3922.0 WType III + House side shield
PA7R-GC3HS-12L-020-4K74000 K70 CRI930 lm4322.0 WType III + House side shield
PA7R-GC3HS-12L-020-5K75000 K70 CRI952 lm4422.0 WType III + House side shield
PA7R-GC4-12L-010-3K73000 K70 CRI901 lm6514.0 WType IV
PA7R-GC4-12L-010-4K74000 K70 CRI980 lm7014.0 WType IV
PA7R-GC4-12L-010-5K75000 K70 CRI1004 lm7214.0 WType IV
PA7R-GC4-12L-020-3K73000 K70 CRI1109 lm5122.0 WType IV
PA7R-GC4-12L-020-4K74000 K70 CRI1207 lm5622.0 WType IV
PA7R-GC4-12L-020-5K75000 K70 CRI1236 lm5722.0 WType IV
PA7R-GC5-12L-010-3K73000 K70 CRI842 lm6014.0 WType V
PA7R-GC5-12L-010-4K74000 K70 CRI916 lm6614.0 WType V
PA7R-GC5-12L-010-5K75000 K70 CRI938 lm6714.0 WType V
PA7R-GC5-12L-020-3K73000 K70 CRI1037 lm4822.0 WType V
PA7R-GC5-12L-020-4K74000 K70 CRI1128 lm5222.0 WType V
PA7R-GC5-12L-020-5K75000 K70 CRI1155 lm5322.0 WType V
PA7R-GD1-12L-010-3K73000 K70 CRI728 lm5214.0 WType I
PA7R-GD1-12L-010-4K74000 K70 CRI792 lm5714.0 WType I
PA7R-GD1-12L-010-5K75000 K70 CRI811 lm5814.0 WType I
PA7R-GD1-12L-020-3K73000 K70 CRI1036 lm4822.0 WType I
PA7R-GD1-12L-020-4K74000 K70 CRI1127 lm5222.0 WType I
PA7R-GD1-12L-020-5K75000 K70 CRI1154 lm5322.0 WType I
PA7R-GD5-12L-010-3K73000 K70 CRI782 lm5614.0 WType V
PA7R-GD5-12L-010-4K74000 K70 CRI851 lm6114.0 WType V
PA7R-GD5-12L-010-5K75000 K70 CRI872 lm6314.0 WType V
PA7R-GD5-12L-020-3K73000 K70 CRI953 lm4422.0 WType V
PA7R-GD5-12L-020-4K74000 K70 CRI1037 lm4822.0 WType V
PA7R-GD5-12L-020-5K75000 K70 CRI1062 lm4922.0 WType V
PA7R-LV1-12L-010-3K73000 K70 CRI489 lm3514.0 WType I
PA7R-LV1-12L-010-4K74000 K70 CRI533 lm3814.0 WType I
PA7R-LV1-12L-010-5K75000 K70 CRI545 lm3914.0 WType I
PA7R-LV1-12L-020-3K73000 K70 CRI746 lm3422.0 WType I
PA7R-LV1-12L-020-4K74000 K70 CRI811 lm3722.0 WType I
PA7R-LV1-12L-020-5K75000 K70 CRI831 lm3822.0 WType I
PA7R-LV2-12L-010-3K73000 K70 CRI534 lm3814.0 WType II
PA7R-LV2-12L-010-4K74000 K70 CRI581 lm4214.0 WType II
PA7R-LV2-12L-010-5K75000 K70 CRI595 lm4314.0 WType II
PA7R-LV2-12L-020-3K73000 K70 CRI814 lm3722.0 WType II
PA7R-LV2-12L-020-4K74000 K70 CRI885 lm4122.0 WType II
PA7R-LV2-12L-020-5K75000 K70 CRI907 lm4222.0 WType II
PA7R-LV3-12L-010-3K73000 K70 CRI550 lm4014.0 WType III
PA7R-LV3-12L-010-4K74000 K70 CRI599 lm4314.0 WType III
PA7R-LV3-12L-010-5K75000 K70 CRI613 lm4414.0 WType III
PA7R-LV3-12L-020-3K73000 K70 CRI838 lm3922.0 WType III
PA7R-LV3-12L-020-4K74000 K70 CRI912 lm4222.0 WType III
PA7R-LV3-12L-020-5K75000 K70 CRI934 lm4322.0 WType III
PA7R-LV3HS-12L-010-3K73000 K70 CRI397 lm2914.0 WType III + House side shield
PA7R-LV3HS-12L-010-4K74000 K70 CRI432 lm3114.0 WType III + House side shield
PA7R-LV3HS-12L-010-5K75000 K70 CRI442 lm3214.0 WType III + House side shield
PA7R-LV3HS-12L-020-3K73000 K70 CRI605 lm2822.0 WType III + House side shield
PA7R-LV3HS-12L-020-4K74000 K70 CRI658 lm3022.0 WType III + House side shield
PA7R-LV3HS-12L-020-5K75000 K70 CRI674 lm3122.0 WType III + House side shield
PA7R-LV4-12L-010-3K73000 K70 CRI577 lm4114.0 WType IV
PA7R-LV4-12L-010-4K74000 K70 CRI628 lm4514.0 WType IV
PA7R-LV4-12L-010-5K75000 K70 CRI643 lm4614.0 WType IV
PA7R-LV4-12L-020-3K73000 K70 CRI879 lm4022.0 WType IV
PA7R-LV4-12L-020-4K74000 K70 CRI956 lm4422.0 WType IV
PA7R-LV4-12L-020-5K75000 K70 CRI979 lm4522.0 WType IV
PA7R-LV5-12L-010-3K73000 K70 CRI583 lm4214.0 WType V
PA7R-LV5-12L-010-4K74000 K70 CRI634 lm4614.0 WType V
PA7R-LV5-12L-010-5K75000 K70 CRI649 lm4714.0 WType V
PA7R-LV5-12L-020-3K73000 K70 CRI888 lm4122.0 WType V
PA7R-LV5-12L-020-4K74000 K70 CRI966 lm4522.0 WType V
PA7R-LV5-12L-020-5K75000 K70 CRI989 lm4622.0 WType V
PA7R-NU1-12L-010-3K73000 K70 CRI749 lm5414.0 WType I
PA7R-NU1-12L-010-4K74000 K70 CRI815 lm5914.0 WType I
PA7R-NU1-12L-010-5K75000 K70 CRI835 lm6014.0 WType I
PA7R-NU1-12L-020-3K73000 K70 CRI1044 lm4822.0 WType I
PA7R-NU1-12L-020-4K74000 K70 CRI1136 lm5222.0 WType I
PA7R-NU1-12L-020-5K75000 K70 CRI1164 lm5422.0 WType I
PA7R-NU2-12L-010-3K73000 K70 CRI860 lm6214.0 WType II
PA7R-NU2-12L-010-4K74000 K70 CRI936 lm6714.0 WType II
PA7R-NU2-12L-010-5K75000 K70 CRI958 lm6914.0 WType II
PA7R-NU2-12L-020-3K73000 K70 CRI1199 lm5522.0 WType II
PA7R-NU2-12L-020-4K74000 K70 CRI1305 lm6022.0 WType II
PA7R-NU2-12L-020-5K75000 K70 CRI1336 lm6222.0 WType II
PA7R-NU3-12L-010-3K73000 K70 CRI809 lm5814.0 WType III
PA7R-NU3-12L-010-4K74000 K70 CRI881 lm6314.0 WType III
PA7R-NU3-12L-010-5K75000 K70 CRI902 lm6514.0 WType III
PA7R-NU3-12L-020-3K73000 K70 CRI1128 lm5222.0 WType III
PA7R-NU3-12L-020-4K74000 K70 CRI1228 lm5722.0 WType III
PA7R-NU3-12L-020-5K75000 K70 CRI1257 lm5822.0 WType III
PA7R-NU3HS-12L-010-3K73000 K70 CRI684 lm4914.0 WType III + House side shield
PA7R-NU3HS-12L-010-4K74000 K70 CRI744 lm5314.0 WType III + House side shield
PA7R-NU3HS-12L-010-5K75000 K70 CRI762 lm5514.0 WType III + House side shield
PA7R-NU3HS-12L-020-3K73000 K70 CRI953 lm4422.0 WType III + House side shield
PA7R-NU3HS-12L-020-4K74000 K70 CRI1037 lm4822.0 WType III + House side shield
PA7R-NU3HS-12L-020-5K75000 K70 CRI1062 lm4922.0 WType III + House side shield
PA7R-NU4-12L-010-3K73000 K70 CRI977 lm7014.0 WType IV
PA7R-NU4-12L-010-4K74000 K70 CRI1063 lm7614.0 WType IV
PA7R-NU4-12L-010-5K75000 K70 CRI1089 lm7814.0 WType IV
PA7R-NU4-12L-020-3K73000 K70 CRI1362 lm6322.0 WType IV
PA7R-NU4-12L-020-4K74000 K70 CRI1482 lm6822.0 WType IV
PA7R-NU4-12L-020-5K75000 K70 CRI1518 lm7022.0 WType IV
PA7R-NU5-12L-010-3K73000 K70 CRI908 lm6514.0 WType V
PA7R-NU5-12L-010-4K74000 K70 CRI988 lm7114.0 WType V
PA7R-NU5-12L-010-5K75000 K70 CRI1011 lm7314.0 WType V
PA7R-NU5-12L-020-3K73000 K70 CRI1265 lm5822.0 WType V
PA7R-NU5-12L-020-4K74000 K70 CRI1377 lm6322.0 WType V
PA7R-NU5-12L-020-5K75000 K70 CRI1410 lm6522.0 WType V
Show All

Application Photos

Related Products

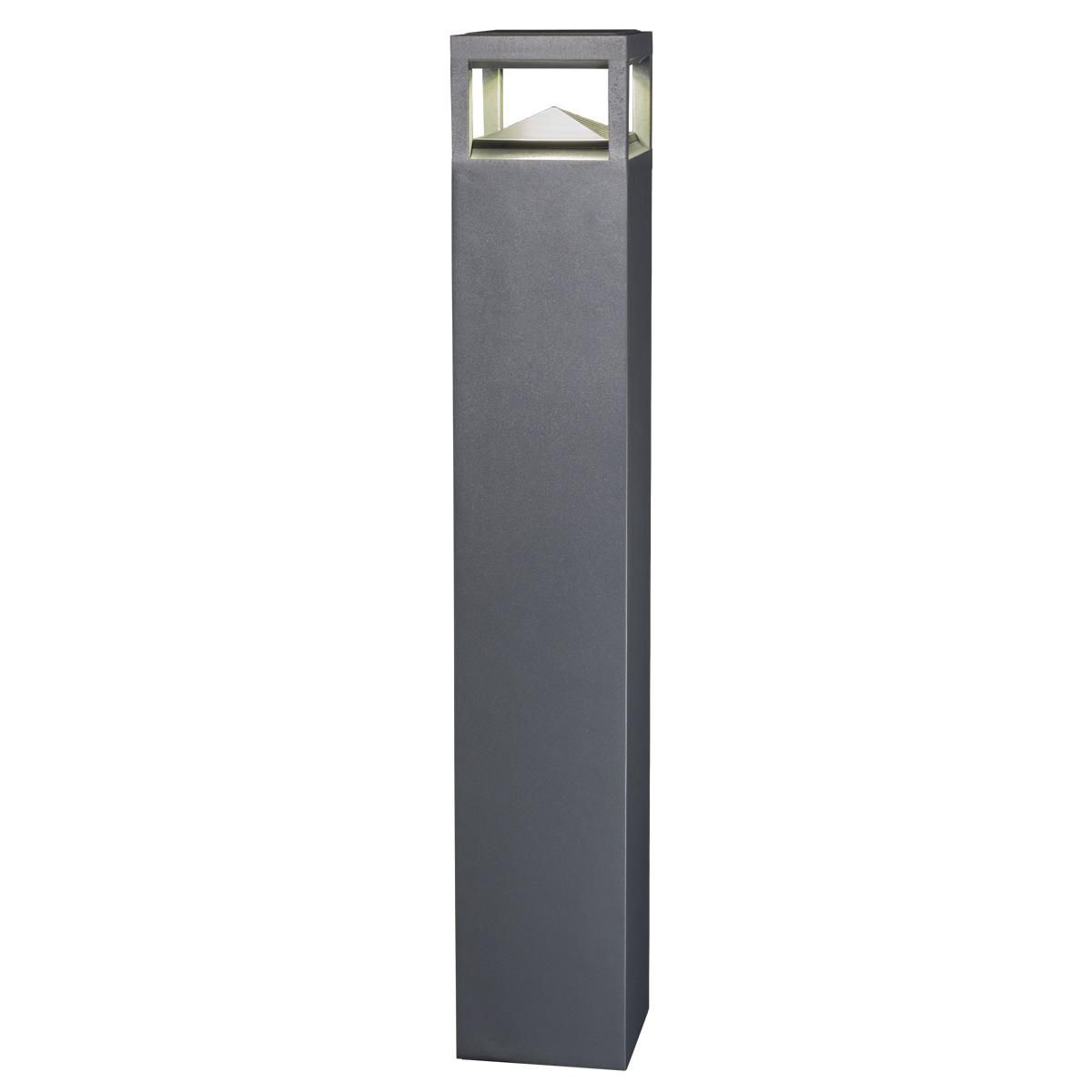

Pavilion redefines the bollard category with state of the art design, performance, and technology.
View Product

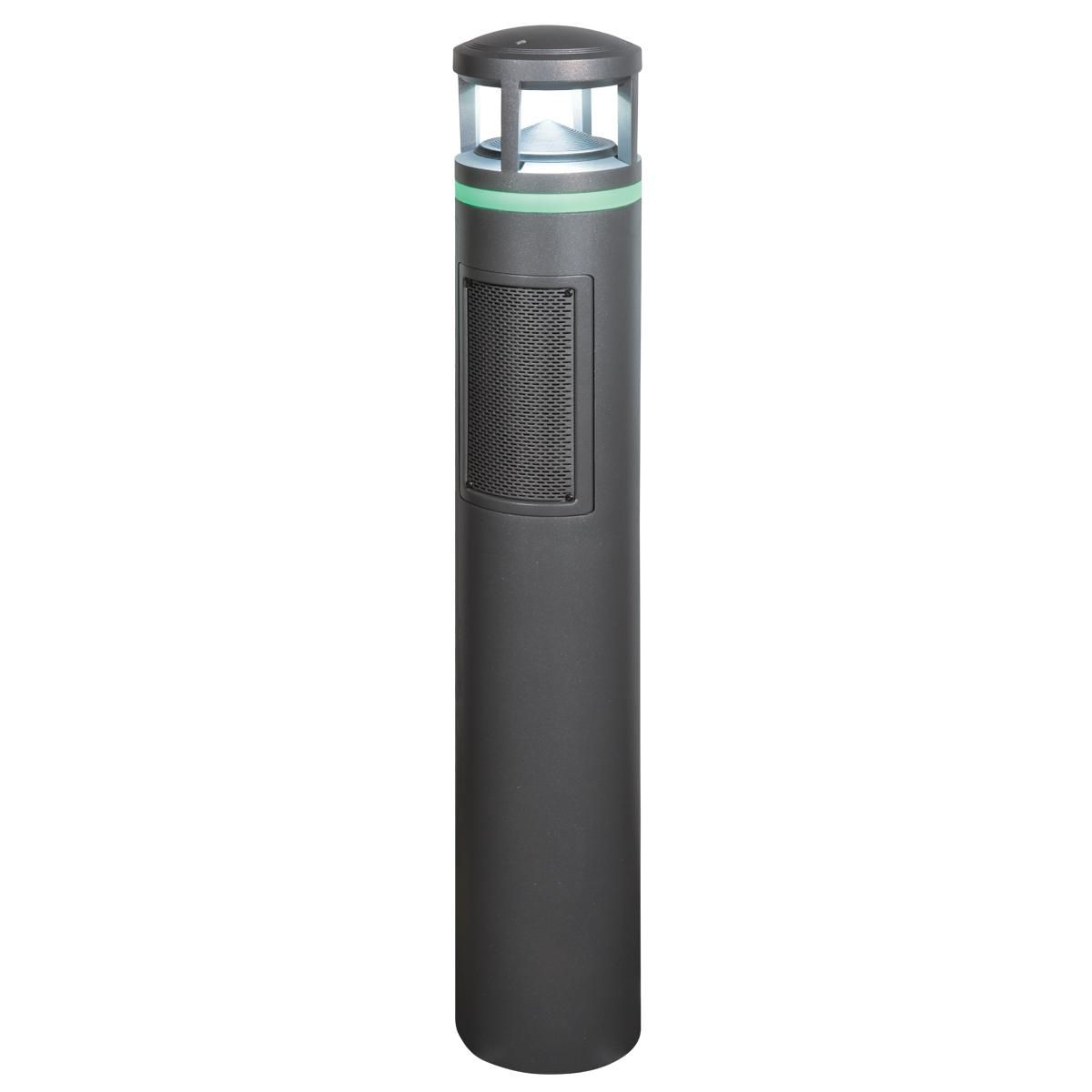

Pavilion redefines the bollard category with state of the art design, performance, and technology.
View Product

LOOKING TO PURCHASE?

Find an Agent


TALK TO AN EXPERT

Contact us
