NX LIGHTING CONTROLS
wiSCAPE® Wireless Gateway GW3

wiSCAPE® Gateway G3 (GW3) is a autonomous controller that combines wiSCAPE Fixture Modules into a single wireless network. The GW3 enables communications between fixture modules and wiSCAPE Enterprise Central Management Server or wiSCAPE Express software app.

Features & Benefits

  • Autonomously manages up to 1000 fixture modules (500 recommended)
  • Astronomical and fixed time scheduling
  • Uses Flash memory storage in order to withstand temperature, shock and vibrations
  • Supports network connectivity via Ethernet connection (Standard) or optional cellular modem
  • Surge protected
  • NEMA 4X (IP66) cabinet
  • Secure communication using AES-128 encryption
  • Optional cabinet heater for extreme cold environments
Where To Buy
SPEC SHEET

Specifications

Brand
NX LIGHTING CONTROLS
Connectivity
Wireless
Certifications
FCC, ETL, CE
Ratings
IP66

Product Documents

Brochures / Catalogs

wiSCAPE Brochure
10370 KB
2023-03-17

Design / BIM Files / 3D Models

WIR-GATEWAY3 BIM file
472 KB
2022-10-10

Warranties

NX Lighting Controls
138 KB
2022-08-30

Related Products

Low Voltage wall controls are designed for virtually any area. Switches are available in multiple button configurations making them the perfect switch solution for l...
View Product

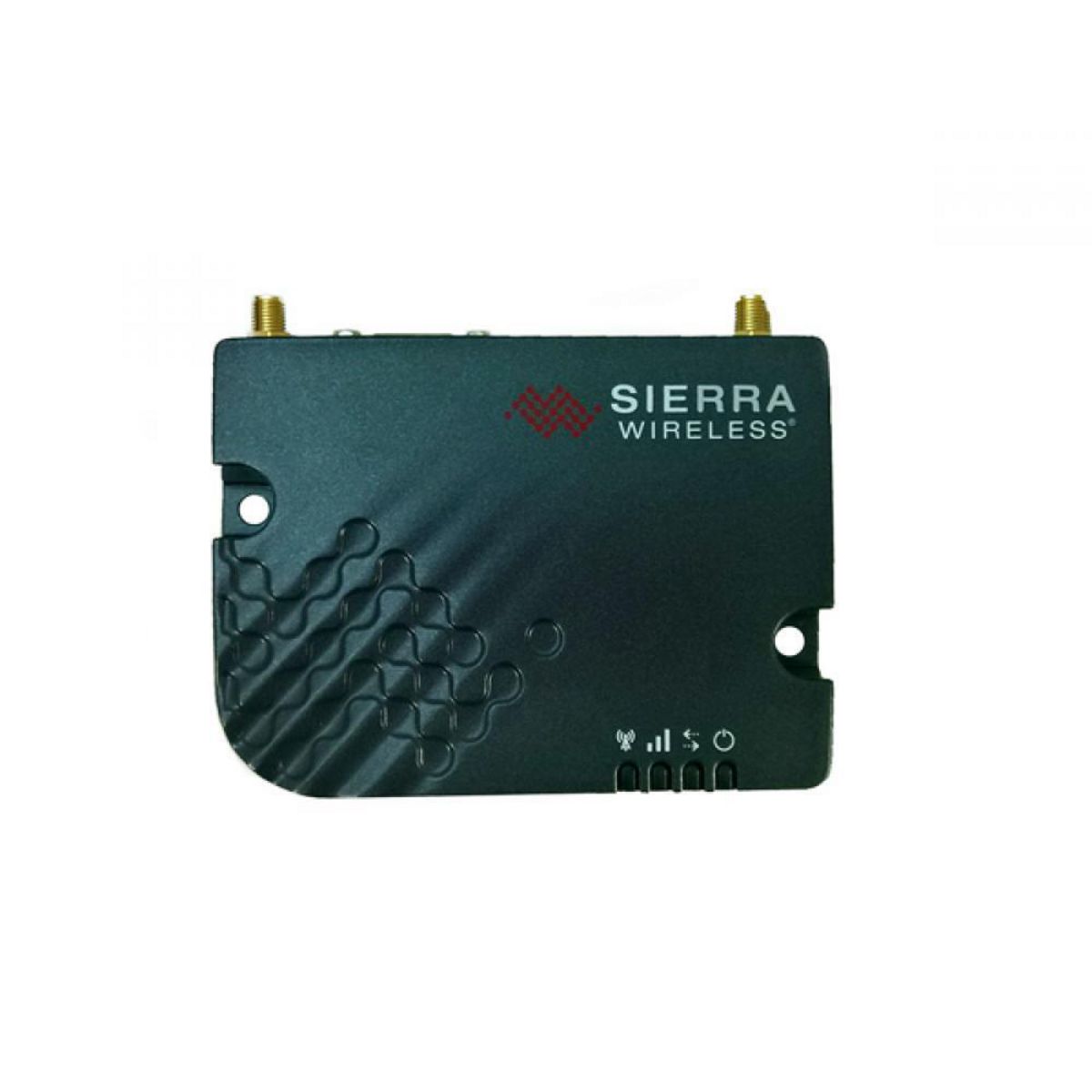

The wiSCAPE® Gateway Cellular Modem is a secure Ethernet modem ideal for customers requiring 24/7 broadband connectivity.
View Product
The wiSCAPE® External Fixture Module is a bidirectional wireless RF device that allows an individual fixture to be managed, monitored and metered.
View Product
The Lux Meter/Photo Sensor provides the necessary daylight-level information to the Fixture Module.
View Product

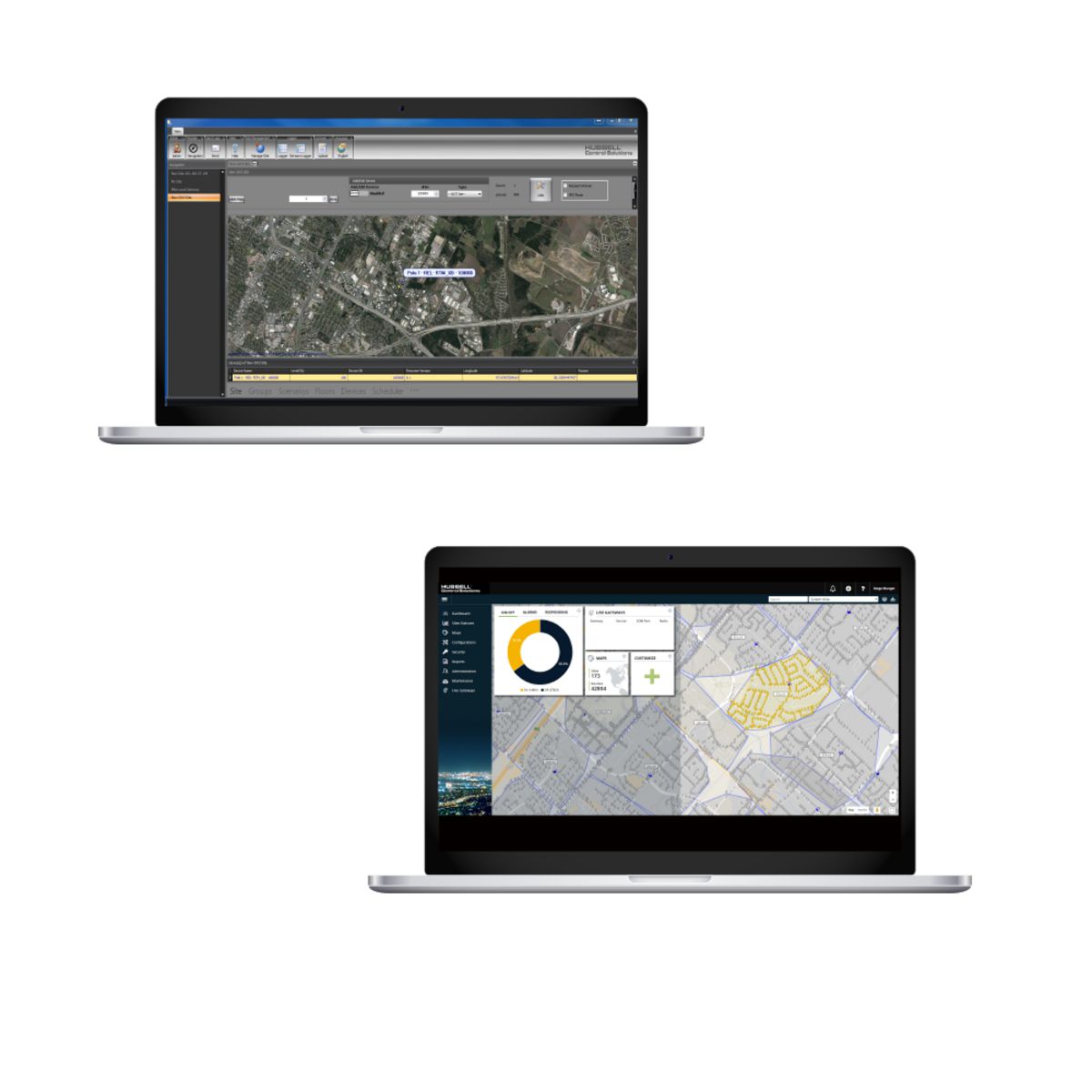

wiSCAPE Express is an intuitive, easy-to-use web app that can be used to configure, manage, monitor and meter wiSCAPE fixture modules. Users can remotely access mult...
