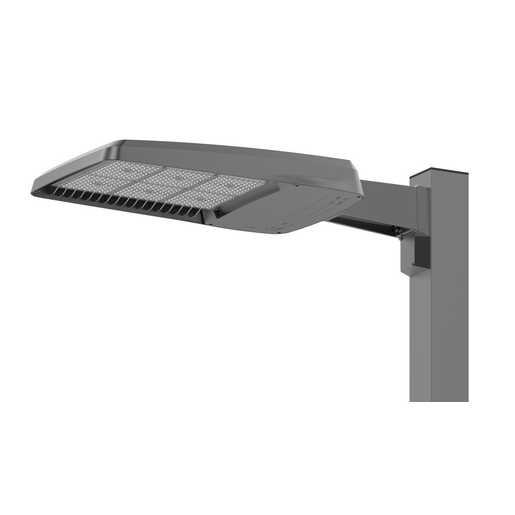

Viper Area Size 3
The Viper is an extremely versatile area/site luminaire which blends design, performance, and technology for a variety of applications.
Features & Benefits
- Featuring two different optical technologies, Micro Strike and Strike Optics, which provide the best distribution patterns for retrofit or new construction
- Vibration rated for high vibration applications including bridges and overpasses
- Control options including photo control, occupancy sensing, NX Lighting Controls, wiSCAPE and 7-Pin with networked controls
- Mounting options include: Arm, Universal Arm, Adjustable Arm, Mast Arm, Decorative Arm, Knuckle, Trunnion, Wall
- Distribution options include: Auto Front Row, Type 2, Type 3, Type 4 Forward, Type 4 Wide, Type 5 Narrow, Type 5 Medium, Type 5 Wide, Type 5 Rectangular, Corner Optic, and Tennis Court
Specifications
Dimming Protocol
0-10V Dimming
CCT
2700,
3000,
3500,
4000,
5000
CRI
70,
80,
90
Mounting Options
Pole,
Wall,
Knuckle,
Mast Arm Fitter,
Trunnion
Wattage Range
215 - 470
Color Offering
Black Gloss Smooth,
Black Matte Textured,
Dark Bronze Gloss Smooth,
Dark Bronze Matte Textured,
GTT - Graphite Matte Textured,
Light Grey Matte Textured,
Light Grey Gloss Smooth,
PSS - Platinum Silver Gloss Smooth,
VGT - Verde Green Matte Textured,
WHS - White Gloss Smooth,
WHT - White Matte Textured,
CC – Custom Color
Certifications
DLC Premium,
DLC Standard,
cULus
Ratings
BAA (Buy American 52.225-9),
TAA (Buy American 52.225-11)
Warranty
5 year limited
Controls Platform
LightGRIDPlus,
NX Networked - Wireless
Material
Die-Cast Aluminum
Size
Rectangular
Wattage
215 W- 470
Specifications
| Dimming Protocol | 0-10V Dimming |
| CCT | 2700, 3000, 3500, 4000, 5000 |
| CRI | 70, 80, 90 |
| Mounting Options | Pole, Wall, Knuckle, Mast Arm Fitter, Trunnion |
| Wattage Range | 215 - 470 |
| Color Offering | Black Gloss Smooth, Black Matte Textured, Dark Bronze Gloss Smooth, Dark Bronze Matte Textured, GTT - Graphite Matte Textured, Light Grey Matte Textured, Light Grey Gloss Smooth, PSS - Platinum Silver Gloss Smooth, VGT - Verde Green Matte Textured, WHS - White Gloss Smooth, WHT - White Matte Textured, CC – Custom Color |
| Certifications | DLC Premium, DLC Standard, cULus |
| Ratings | BAA (Buy American 52.225-9), TAA (Buy American 52.225-11) |
| Warranty | 5 year limited |
| Controls Platform | LightGRIDPlus, NX Networked - Wireless |
| Material | Die-Cast Aluminum |
| Size | Rectangular |
| Wattage | 215 W- 470 |
Product Documents
Spec Sheets
Brochures / Catalogs
Design / BIM Files / 3D Models
Technical Documents
Photometry(0)
Clear Filters| Product Name | Color Temp | CRI | Lumens | LM/W | Watts | Dist. Type | Resources |
|---|---|---|---|---|---|---|---|
| VP-ST-3-108L-365-5K7-CL | 5000 K | 70 CRI | 39816 lm | 111 | 365 W | CL | |
| VP-ST-3-108L-365-5K7-CL-BC | 5000 K | 70 CRI | 34365 lm | 94 | 365 W | CL | |
| VP-ST-3-108L-365-5K7-CR | 5000 K | 70 CRI | 39816 lm | 111 | 365 W | CR | |
| VP-ST-3-108L-365-5K7-CR-BC | 5000 K | 70 CRI | 34365 lm | 94 | 365 W | CR | |
| VP-ST-3-108L-365-5K7-FR | 5000 K | 70 CRI | 41377 lm | 116 | 365 W | FR | |
| VP-ST-3-108L-365-5K7-FR-BC | 5000 K | 70 CRI | 40358 lm | 111 | 365 W | FR | |
| VP-ST-3-108L-365-5K7-TC | 5000 K | 70 CRI | 41011 lm | 115 | 365 W | TC | |
| VP-3-480L-285-3K7-2 | 3000 K | 70 CRI | 38255 lm | 134 | 285 W | 2 | |
| VP-3-480L-285-3K7-2-BC | 3000 K | 70 CRI | 20031 lm | 70 | 285 W | 2 | |
| VP-3-480L-285-3K7-2-HSS-90-B | 3000 K | 70 CRI | 38002 lm | 133 | 285 W | 2 | |
| VP-3-480L-285-3K7-2-HSS-90-F | 3000 K | 70 CRI | 35145 lm | 123 | 285 W | 2 | |
| VP-3-480L-285-3K7-2-HSS-270-BSS | 3000 K | 70 CRI | 23471 lm | 82 | 285 W | 2 | |
| VP-3-480L-285-3K7-2-HSS-360 | 3000 K | 70 CRI | 21100 lm | 74 | 285 W | 2 | |
| VP-3-480L-285-3K7-3 | 3000 K | 70 CRI | 37977 lm | 133 | 285 W | 3 | |
| VP-3-480L-285-3K7-3-BC | 3000 K | 70 CRI | 22604 lm | 79 | 285 W | 3 | |
| VP-3-480L-285-3K7-3-HSS-90-B | 3000 K | 70 CRI | 37860 lm | 133 | 285 W | 3 | |
| VP-3-480L-285-3K7-3-HSS-90-F | 3000 K | 70 CRI | 34349 lm | 120 | 285 W | 3 | |
| VP-3-480L-285-3K7-3-HSS-270-BSS | 3000 K | 70 CRI | 22941 lm | 80 | 285 W | 3 | |
| VP-3-480L-285-3K7-3-HSS-360 | 3000 K | 70 CRI | 18797 lm | 66 | 285 W | 3 | |
| VP-3-480L-285-3K7-4-BC | 3000 K | 70 CRI | 21120 lm | 74 | 285 W | 4W | |
| VP-3-480L-285-3K7-4F | 3000 K | 70 CRI | 36967 lm | 129 | 285 W | 4F | |
| VP-3-480L-285-3K7-4F-HSS-90-B | 3000 K | 70 CRI | 38030 lm | 133 | 285 W | 4F | |
| VP-3-480L-285-3K7-4F-HSS-90-F | 3000 K | 70 CRI | 31376 lm | 110 | 285 W | 4F | |
| VP-3-480L-285-3K7-4F-HSS-270-BSS | 3000 K | 70 CRI | 28007 lm | 98 | 285 W | 4F | |
| VP-3-480L-285-3K7-4F-HSS-360 | 3000 K | 70 CRI | 21125 lm | 74 | 285 W | 4F | |
| VP-3-480L-285-3K7-4W | 3000 K | 70 CRI | 37739 lm | 132 | 285 W | 4W | |
| VP-3-480L-285-3K7-4W-HSS-90-B | 3000 K | 70 CRI | 37851 lm | 132 | 285 W | 4W | |
| VP-3-480L-285-3K7-4W-HSS-90-F | 3000 K | 70 CRI | 30253 lm | 106 | 285 W | 4W | |
| VP-3-480L-285-3K7-4W-HSS-270-BSS | 3000 K | 70 CRI | 22943 lm | 321 | 285 W | 4W | |
| VP-3-480L-285-3K7-4W-HSS-360 | 3000 K | 70 CRI | 16317 lm | 57 | 285 W | 4W | |
| VP-3-480L-285-3K7-5-HSS-360 | 3000 K | 70 CRI | 15731 lm | 55 | 285 W | 5QW | |
| VP-3-480L-285-3K7-5QW | 3000 K | 70 CRI | 39365 lm | 138 | 285 W | 5QW | |
| VP-3-480L-285-4K7-2 | 4000 K | 70 CRI | 39762 lm | 139 | 285 W | 2 | |
| VP-3-480L-285-4K7-2-BC | 4000 K | 70 CRI | 20814 lm | 73 | 285 W | 2 | |
| VP-3-480L-285-4K7-2-HSS-90-B | 4000 K | 70 CRI | 39017 lm | 137 | 285 W | 2 | |
| VP-3-480L-285-4K7-2-HSS-90-F | 4000 K | 70 CRI | 36083 lm | 126 | 285 W | 2 | |
| VP-3-480L-285-4K7-2-HSS-270-BSS | 4000 K | 70 CRI | 24397 lm | 85 | 285 W | 2 | |
| VP-3-480L-285-4K7-2-HSS-360 | 4000 K | 70 CRI | 21932 lm | 77 | 285 W | 2 | |
| VP-3-480L-285-4K7-3 | 4000 K | 70 CRI | 39473 lm | 138 | 285 W | 3 | |
| VP-3-480L-285-4K7-3-BC | 4000 K | 70 CRI | 23488 lm | 82 | 285 W | 3 | |
| VP-3-480L-285-4K7-3-HSS-90-B | 4000 K | 70 CRI | 38871 lm | 136 | 285 W | 3 | |
| VP-3-480L-285-4K7-3-HSS-90-F | 4000 K | 70 CRI | 35266 lm | 123 | 285 W | 3 | |
| VP-3-480L-285-4K7-3-HSS-270-BSS | 4000 K | 70 CRI | 23846 lm | 83 | 285 W | 3 | |
| VP-3-480L-285-4K7-3-HSS-360 | 4000 K | 70 CRI | 19538 lm | 68 | 285 W | 3 | |
| VP-3-480L-285-4K7-4-BC | 4000 K | 70 CRI | 21946 lm | 77 | 285 W | 4W | |
| VP-3-480L-285-4K7-4F | 4000 K | 70 CRI | 38423 lm | 134 | 285 W | 4F | |
| VP-3-480L-285-4K7-4F-HSS-90-B | 4000 K | 70 CRI | 39045 lm | 137 | 285 W | 4F | |
| VP-3-480L-285-4K7-4F-HSS-90-F | 4000 K | 70 CRI | 32214 lm | 113 | 285 W | 4F | |
| VP-3-480L-285-4K7-4F-HSS-270-BSS | 4000 K | 70 CRI | 29112 lm | 102 | 285 W | 4F | |
| VP-3-480L-285-4K7-4F-HSS-360 | 4000 K | 70 CRI | 21958 lm | 77 | 285 W | 4F | |
| VP-3-480L-285-4K7-4W | 4000 K | 70 CRI | 39226 lm | 137 | 285 W | 4W | |
| VP-3-480L-285-4K7-4W-HSS-90-B | 4000 K | 70 CRI | 38861 lm | 136 | 285 W | 4W | |
| VP-3-480L-285-4K7-4W-HSS-90-F | 4000 K | 70 CRI | 31060 lm | 109 | 285 W | 4W | |
| VP-3-480L-285-4K7-4W-HSS-270-BSS | 4000 K | 70 CRI | 23848 lm | 334 | 285 W | 4W | |
| VP-3-480L-285-4K7-4W-HSS-360 | 4000 K | 70 CRI | 16961 lm | 59 | 285 W | 4W | |
| VP-3-480L-285-4K7-5-HSS-360 | 4000 K | 70 CRI | 16351 lm | 57 | 285 W | 5QW | |
| VP-3-480L-285-4K7-5QW | 4000 K | 70 CRI | 40916 lm | 143 | 285 W | 5QW | |
| VP-3-480L-285-5K7-2 | 5000 K | 70 CRI | 39992 lm | 140 | 285 W | 2 | |
| VP-3-480L-285-5K7-2-BC | 5000 K | 70 CRI | 20940 lm | 73 | 285 W | 2 | |
| VP-3-480L-285-5K7-2-HSS-90-B | 5000 K | 70 CRI | 46954 lm | 164 | 285 W | 2 | |
| VP-3-480L-285-5K7-2-HSS-90-F | 5000 K | 70 CRI | 38157 lm | 134 | 285 W | 2 | |
| VP-3-480L-285-5K7-2-HSS-270-BSS | 5000 K | 70 CRI | 24537 lm | 86 | 285 W | 2 | |
| VP-3-480L-285-5K7-2-HSS-360 | 5000 K | 70 CRI | 22058 lm | 77 | 285 W | 2 | |
| VP-3-480L-285-5K7-3 | 5000 K | 70 CRI | 39701 lm | 139 | 285 W | 3 | |
| VP-3-480L-285-5K7-3-BC | 5000 K | 70 CRI | 23630 lm | 83 | 285 W | 3 | |
| VP-3-480L-285-5K7-3-HSS-90-B | 5000 K | 70 CRI | 46779 lm | 164 | 285 W | 3 | |
| VP-3-480L-285-5K7-3-HSS-90-F | 5000 K | 70 CRI | 37293 lm | 131 | 285 W | 3 | |
| VP-3-480L-285-5K7-3-HSS-270-BSS | 5000 K | 70 CRI | 23983 lm | 84 | 285 W | 3 | |
| VP-3-480L-285-5K7-3-HSS-360 | 5000 K | 70 CRI | 19650 lm | 69 | 285 W | 3 | |
| VP-3-480L-285-5K7-4-BC | 5000 K | 70 CRI | 22078 lm | 77 | 285 W | 4W | |
| VP-3-480L-285-5K7-4F | 5000 K | 70 CRI | 38645 lm | 135 | 285 W | 4F | |
| VP-3-480L-285-5K7-4F-HSS-90-B | 5000 K | 70 CRI | 46989 lm | 164 | 285 W | 4F | |
| VP-3-480L-285-5K7-4F-HSS-90-F | 5000 K | 70 CRI | 34065 lm | 119 | 285 W | 4F | |
| VP-3-480L-285-5K7-4F-HSS-270-BSS | 5000 K | 70 CRI | 29279 lm | 102 | 285 W | 4F | |
| VP-3-480L-285-5K7-4F-HSS-360 | 5000 K | 70 CRI | 22084 lm | 77 | 285 W | 4F | |
| VP-3-480L-285-5K7-4W | 5000 K | 70 CRI | 39452 lm | 138 | 285 W | 4W | |
| VP-3-480L-285-5K7-4W-HSS-90-B | 5000 K | 70 CRI | 46767 lm | 164 | 285 W | 4W | |
| VP-3-480L-285-5K7-4W-HSS-90-F | 5000 K | 70 CRI | 32845 lm | 115 | 285 W | 4W | |
| VP-3-480L-285-5K7-4W-HSS-270-BSS | 5000 K | 70 CRI | 23985 lm | 336 | 285 W | 4W | |
| VP-3-480L-285-5K7-4W-HSS-360 | 5000 K | 70 CRI | 17058 lm | 60 | 285 W | 4W | |
| VP-3-480L-285-5K7-5-HSS-360 | 5000 K | 70 CRI | 16445 lm | 58 | 285 W | 5QW | |
| VP-3-480L-285-5K7-5QW | 5000 K | 70 CRI | 41152 lm | 144 | 285 W | 5QW | |
| VP-3-480L-320-3K7-2 | 3000 K | 70 CRI | 41825 lm | 133 | 325 W | 2 | |
| VP-3-480L-320-3K7-2-BC | 3000 K | 70 CRI | 21900 lm | 69 | 325 W | 2 | |
| VP-3-480L-320-3K7-2-HSS-90-B | 3000 K | 70 CRI | 41547 lm | 132 | 325 W | 2 | |
| VP-3-480L-320-3K7-2-HSS-90-F | 3000 K | 70 CRI | 38429 lm | 120 | 320 W | 2 | |
| VP-3-480L-320-3K7-2-HSS-270-BSS | 3000 K | 70 CRI | 25664 lm | 81 | 320 W | 2 | |
| VP-3-480L-320-3K7-2-HSS-360 | 3000 K | 70 CRI | 19385 lm | 61 | 320 W | 2 | |
| VP-3-480L-320-3K7-3 | 3000 K | 70 CRI | 41521 lm | 132 | 325 W | 3 | |
| VP-3-480L-320-3K7-3-BC | 3000 K | 70 CRI | 24714 lm | 78 | 325 W | 3 | |
| VP-3-480L-320-3K7-3-HSS-90-B | 3000 K | 70 CRI | 41392 lm | 131 | 325 W | 3 | |
| VP-3-480L-320-3K7-3-HSS-90-F | 3000 K | 70 CRI | 37559 lm | 117 | 320 W | 3 | |
| VP-3-480L-320-3K7-3-HSS-270-BSS | 3000 K | 70 CRI | 25085 lm | 80 | 320 W | 3 | |
| VP-3-480L-320-3K7-3-HSS-360 | 3000 K | 70 CRI | 17269 lm | 55 | 320 W | 3 | |
| VP-3-480L-320-3K7-4-BC | 3000 K | 70 CRI | 23091 lm | 73 | 325 W | 4W | |
| VP-3-480L-320-3K7-4F | 3000 K | 70 CRI | 40417 lm | 128 | 325 W | 4F | |
| VP-3-480L-320-3K7-4F-HSS-90-B | 3000 K | 70 CRI | 41578 lm | 132 | 325 W | 4F | |
| VP-3-480L-320-3K7-4F-HSS-90-F | 3000 K | 70 CRI | 34308 lm | 107 | 320 W | 4F | |
| VP-3-480L-320-3K7-4F-HSS-270-BSS | 3000 K | 70 CRI | 30624 lm | 97 | 320 W | 4F | |
| VP-3-480L-320-3K7-4F-HSS-360 | 3000 K | 70 CRI | 19407 lm | 62 | 320 W | 4F | |
| VP-3-480L-320-3K7-4W | 3000 K | 70 CRI | 41261 lm | 131 | 325 W | 4W | |
| VP-3-480L-320-3K7-4W-HSS-90-B | 3000 K | 70 CRI | 41382 lm | 131 | 325 W | 4W | |
| VP-3-480L-320-3K7-4W-HSS-90-F | 3000 K | 70 CRI | 33080 lm | 103 | 320 W | 4W | |
| VP-3-480L-320-3K7-4W-HSS-270-BSS | 3000 K | 70 CRI | 25087 lm | 318 | 320 W | 4W | |
| VP-3-480L-320-3K7-4W-HSS-360 | 3000 K | 70 CRI | 14991 lm | 48 | 320 W | 4W | |
| VP-3-480L-320-3K7-5-HSS-360 | 3000 K | 70 CRI | 14452 lm | 46 | 320 W | 5QW | |
| VP-3-480L-320-3K7-5QW | 3000 K | 70 CRI | 43039 lm | 136 | 325 W | 5QW | |
| VP-3-480L-320-4K7-2 | 4000 K | 70 CRI | 43473 lm | 138 | 325 W | 2 | |
| VP-3-480L-320-4K7-2-BC | 4000 K | 70 CRI | 22757 lm | 72 | 325 W | 2 | |
| VP-3-480L-320-4K7-2-HSS-90-B | 4000 K | 70 CRI | 42656 lm | 135 | 325 W | 2 | |
| VP-3-480L-320-4K7-2-HSS-90-F | 4000 K | 70 CRI | 39455 lm | 123 | 320 W | 2 | |
| VP-3-480L-320-4K7-2-HSS-270-BSS | 4000 K | 70 CRI | 26677 lm | 85 | 320 W | 2 | |
| VP-3-480L-320-4K7-2-HSS-360 | 4000 K | 70 CRI | 20149 lm | 64 | 320 W | 2 | |
| VP-3-480L-320-4K7-3 | 4000 K | 70 CRI | 43157 lm | 137 | 325 W | 3 | |
| VP-3-480L-320-4K7-3-BC | 4000 K | 70 CRI | 25680 lm | 81 | 325 W | 3 | |
| VP-3-480L-320-4K7-3-HSS-90-B | 4000 K | 70 CRI | 42496 lm | 135 | 325 W | 3 | |
| VP-3-480L-320-4K7-3-HSS-90-F | 4000 K | 70 CRI | 38561 lm | 121 | 320 W | 3 | |
| VP-3-480L-320-4K7-3-HSS-270-BSS | 4000 K | 70 CRI | 26074 lm | 83 | 320 W | 3 | |
| VP-3-480L-320-4K7-3-HSS-360 | 4000 K | 70 CRI | 17950 lm | 57 | 320 W | 3 | |
| VP-3-480L-320-4K7-4-BC | 4000 K | 70 CRI | 23994 lm | 76 | 325 W | 4W | |
| VP-3-480L-320-4K7-4F | 4000 K | 70 CRI | 42009 lm | 133 | 325 W | 4F | |
| VP-3-480L-320-4K7-4F-HSS-90-B | 4000 K | 70 CRI | 42687 lm | 135 | 325 W | 4F | |
| VP-3-480L-320-4K7-4F-HSS-90-F | 4000 K | 70 CRI | 35224 lm | 110 | 320 W | 4F | |
| VP-3-480L-320-4K7-4F-HSS-270-BSS | 4000 K | 70 CRI | 31832 lm | 101 | 320 W | 4F | |
| VP-3-480L-320-4K7-4F-HSS-360 | 4000 K | 70 CRI | 20173 lm | 64 | 320 W | 4F | |
| VP-3-480L-320-4K7-4W | 4000 K | 70 CRI | 42887 lm | 136 | 325 W | 4W | |
| VP-3-480L-320-4K7-4W-HSS-90-B | 4000 K | 70 CRI | 42486 lm | 135 | 325 W | 4W | |
| VP-3-480L-320-4K7-4W-HSS-90-F | 4000 K | 70 CRI | 33962 lm | 106 | 320 W | 4W | |
| VP-3-480L-320-4K7-4W-HSS-270-BSS | 4000 K | 70 CRI | 26077 lm | 331 | 320 W | 4W | |
| VP-3-480L-320-4K7-4W-HSS-360 | 4000 K | 70 CRI | 15582 lm | 49 | 320 W | 4W | |
| VP-3-480L-320-4K7-5-HSS-360 | 4000 K | 70 CRI | 15022 lm | 48 | 320 W | 5QW | |
| VP-3-480L-320-4K7-5QW | 4000 K | 70 CRI | 44734 lm | 142 | 325 W | 5QW | |
| VP-3-480L-320-5K7-2 | 5000 K | 70 CRI | 43724 lm | 139 | 325 W | 2 | |
| VP-3-480L-320-5K7-2-BC | 5000 K | 70 CRI | 22894 lm | 73 | 325 W | 2 | |
| VP-3-480L-320-5K7-2-HSS-90-B | 5000 K | 70 CRI | 51334 lm | 163 | 325 W | 2 | |
| VP-3-480L-320-5K7-2-HSS-90-F | 5000 K | 70 CRI | 41723 lm | 130 | 320 W | 2 | |
| VP-3-480L-320-5K7-2-HSS-270-BSS | 5000 K | 70 CRI | 26829 lm | 85 | 320 W | 2 | |
| VP-3-480L-320-5K7-2-HSS-360 | 5000 K | 70 CRI | 20265 lm | 64 | 320 W | 2 | |
| VP-3-480L-320-5K7-3 | 5000 K | 70 CRI | 43406 lm | 138 | 325 W | 3 | |
| VP-3-480L-320-5K7-3-BC | 5000 K | 70 CRI | 25835 lm | 82 | 325 W | 3 | |
| VP-3-480L-320-5K7-3-HSS-90-B | 5000 K | 70 CRI | 51142 lm | 162 | 325 W | 3 | |
| VP-3-480L-320-5K7-3-HSS-90-F | 5000 K | 70 CRI | 40778 lm | 127 | 320 W | 3 | |
| VP-3-480L-320-5K7-3-HSS-270-BSS | 5000 K | 70 CRI | 26224 lm | 83 | 320 W | 3 | |
| VP-3-480L-320-5K7-3-HSS-360 | 5000 K | 70 CRI | 18053 lm | 57 | 320 W | 3 | |
| VP-3-480L-320-5K7-4-BC | 5000 K | 70 CRI | 24139 lm | 77 | 325 W | 4W | |
| VP-3-480L-320-5K7-4F | 5000 K | 70 CRI | 42252 lm | 134 | 325 W | 4F | |
| VP-3-480L-320-5K7-4F-HSS-90-B | 5000 K | 70 CRI | 51372 lm | 163 | 325 W | 4F | |
| VP-3-480L-320-5K7-4F-HSS-90-F | 5000 K | 70 CRI | 37248 lm | 116 | 320 W | 4F | |
| VP-3-480L-320-5K7-4F-HSS-270-BSS | 5000 K | 70 CRI | 32015 lm | 102 | 320 W | 4F | |
| VP-3-480L-320-5K7-4F-HSS-360 | 5000 K | 70 CRI | 20289 lm | 64 | 320 W | 4F | |
| VP-3-480L-320-5K7-4W | 5000 K | 70 CRI | 43134 lm | 137 | 325 W | 4W | |
| VP-3-480L-320-5K7-4W-HSS-90-B | 5000 K | 70 CRI | 51130 lm | 162 | 325 W | 4W | |
| VP-3-480L-320-5K7-4W-HSS-90-F | 5000 K | 70 CRI | 35915 lm | 112 | 320 W | 4W | |
| VP-3-480L-320-5K7-4W-HSS-270-BSS | 5000 K | 70 CRI | 26226 lm | 333 | 320 W | 4W | |
| VP-3-480L-320-5K7-4W-HSS-360 | 5000 K | 70 CRI | 15671 lm | 50 | 320 W | 4W | |
| VP-3-480L-320-5K7-5-HSS-360 | 5000 K | 70 CRI | 15108 lm | 48 | 320 W | 5QW | |
| VP-3-480L-320-5K7-5QW | 5000 K | 70 CRI | 44993 lm | 143 | 325 W | 5QW | |
| VP-3-480L-340-3K7-2 | 3000 K | 70 CRI | 43917 lm | 130 | 340 W | 2 | |
| VP-3-480L-340-3K7-2-BC | 3000 K | 70 CRI | 22995 lm | 68 | 340 W | 2 | |
| VP-3-480L-340-3K7-2-HSS-90-B | 3000 K | 70 CRI | 43624 lm | 129 | 340 W | 2 | |
| VP-3-480L-340-3K7-2-HSS-90-F | 3000 K | 70 CRI | 40350 lm | 120 | 340 W | 2 | |
| VP-3-480L-340-3K7-2-HSS-270-BSS | 3000 K | 70 CRI | 26947 lm | 80 | 340 W | 2 | |
| VP-3-480L-340-3K7-2-HSS-360 | 3000 K | 70 CRI | 24225 lm | 72 | 340 W | 2 | |
| VP-3-480L-340-3K7-3 | 3000 K | 70 CRI | 43597 lm | 129 | 340 W | 3 | |
| VP-3-480L-340-3K7-3-BC | 3000 K | 70 CRI | 25949 lm | 77 | 340 W | 3 | |
| VP-3-480L-340-3K7-3-HSS-90-B | 3000 K | 70 CRI | 43461 lm | 129 | 340 W | 3 | |
| VP-3-480L-340-3K7-3-HSS-90-F | 3000 K | 70 CRI | 39436 lm | 117 | 340 W | 3 | |
| VP-3-480L-340-3K7-3-HSS-270-BSS | 3000 K | 70 CRI | 26339 lm | 78 | 340 W | 3 | |
| VP-3-480L-340-3K7-3-HSS-360 | 3000 K | 70 CRI | 21581 lm | 64 | 340 W | 3 | |
| VP-3-480L-340-3K7-4-BC | 3000 K | 70 CRI | 24245 lm | 72 | 340 W | 4W | |
| VP-3-480L-340-3K7-4F | 3000 K | 70 CRI | 42438 lm | 126 | 340 W | 4F | |
| VP-3-480L-340-3K7-4F-HSS-90-B | 3000 K | 70 CRI | 43656 lm | 129 | 340 W | 4F | |
| VP-3-480L-340-3K7-4F-HSS-90-F | 3000 K | 70 CRI | 36023 lm | 107 | 340 W | 4F | |
| VP-3-480L-340-3K7-4F-HSS-270-BSS | 3000 K | 70 CRI | 32155 lm | 95 | 340 W | 4F | |
| VP-3-480L-340-3K7-4F-HSS-360 | 3000 K | 70 CRI | 24253 lm | 72 | 340 W | 4F | |
| VP-3-480L-340-3K7-4W | 3000 K | 70 CRI | 43324 lm | 128 | 340 W | 4W | |
| VP-3-480L-340-3K7-4W-HSS-90-B | 3000 K | 70 CRI | 43450 lm | 129 | 340 W | 4W | |
| VP-3-480L-340-3K7-4W-HSS-90-F | 3000 K | 70 CRI | 34733 lm | 103 | 340 W | 4W | |
| VP-3-480L-340-3K7-4W-HSS-270-BSS | 3000 K | 70 CRI | 26341 lm | 312 | 340 W | 4W | |
| VP-3-480L-340-3K7-4W-HSS-360 | 3000 K | 70 CRI | 18734 lm | 56 | 340 W | 4W | |
| VP-3-480L-340-3K7-5-HSS-360 | 3000 K | 70 CRI | 18060 lm | 54 | 340 W | 5QW | |
| VP-3-480L-340-3K7-5QW | 3000 K | 70 CRI | 45191 lm | 134 | 340 W | 5QW | |
| VP-3-480L-340-4K7-2 | 4000 K | 70 CRI | 45647 lm | 135 | 340 W | 2 | |
| VP-3-480L-340-4K7-2-BC | 4000 K | 70 CRI | 23894 lm | 71 | 340 W | 2 | |
| VP-3-480L-340-4K7-2-HSS-90-B | 4000 K | 70 CRI | 44788 lm | 133 | 340 W | 2 | |
| VP-3-480L-340-4K7-2-HSS-90-F | 4000 K | 70 CRI | 41427 lm | 123 | 340 W | 2 | |
| VP-3-480L-340-4K7-2-HSS-270-BSS | 4000 K | 70 CRI | 28010 lm | 83 | 340 W | 2 | |
| VP-3-480L-340-4K7-2-HSS-360 | 4000 K | 70 CRI | 25181 lm | 75 | 340 W | 2 | |
| VP-3-480L-340-4K7-3 | 4000 K | 70 CRI | 45315 lm | 134 | 340 W | 3 | |
| VP-3-480L-340-4K7-3-BC | 4000 K | 70 CRI | 26963 lm | 80 | 340 W | 3 | |
| VP-3-480L-340-4K7-3-HSS-90-B | 4000 K | 70 CRI | 44621 lm | 132 | 340 W | 3 | |
| VP-3-480L-340-4K7-3-HSS-90-F | 4000 K | 70 CRI | 40489 lm | 120 | 340 W | 3 | |
| VP-3-480L-340-4K7-3-HSS-270-BSS | 4000 K | 70 CRI | 27378 lm | 81 | 340 W | 3 | |
| VP-3-480L-340-4K7-3-HSS-360 | 4000 K | 70 CRI | 22432 lm | 66 | 340 W | 3 | |
| VP-3-480L-340-4K7-4-BC | 4000 K | 70 CRI | 25193 lm | 75 | 340 W | 4W | |
| VP-3-480L-340-4K7-4F | 4000 K | 70 CRI | 44110 lm | 131 | 340 W | 4F | |
| VP-3-480L-340-4K7-4F-HSS-90-B | 4000 K | 70 CRI | 44821 lm | 133 | 340 W | 4F | |
| VP-3-480L-340-4K7-4F-HSS-90-F | 4000 K | 70 CRI | 36984 lm | 110 | 340 W | 4F | |
| VP-3-480L-340-4K7-4F-HSS-270-BSS | 4000 K | 70 CRI | 33424 lm | 99 | 340 W | 4F | |
| VP-3-480L-340-4K7-4F-HSS-360 | 4000 K | 70 CRI | 25210 lm | 75 | 340 W | 4F | |
| VP-3-480L-340-4K7-4W | 4000 K | 70 CRI | 45031 lm | 133 | 340 W | 4W | |
| VP-3-480L-340-4K7-4W-HSS-90-B | 4000 K | 70 CRI | 44609 lm | 132 | 340 W | 4W | |
| VP-3-480L-340-4K7-4W-HSS-90-F | 4000 K | 70 CRI | 35660 lm | 106 | 340 W | 4W | |
| VP-3-480L-340-4K7-4W-HSS-270-BSS | 4000 K | 70 CRI | 27380 lm | 325 | 340 W | 4W | |
| VP-3-480L-340-4K7-4W-HSS-360 | 4000 K | 70 CRI | 19473 lm | 58 | 340 W | 4W | |
| VP-3-480L-340-4K7-5-HSS-360 | 4000 K | 70 CRI | 18773 lm | 56 | 340 W | 5QW | |
| VP-3-480L-340-4K7-5QW | 4000 K | 70 CRI | 46971 lm | 139 | 340 W | 5QW | |
| VP-3-480L-340-5K7-2 | 5000 K | 70 CRI | 45911 lm | 136 | 340 W | 2 | |
| VP-3-480L-340-5K7-2-BC | 5000 K | 70 CRI | 24038 lm | 71 | 340 W | 2 | |
| VP-3-480L-340-5K7-2-HSS-90-B | 5000 K | 70 CRI | 53900 lm | 160 | 340 W | 2 | |
| VP-3-480L-340-5K7-2-HSS-90-F | 5000 K | 70 CRI | 43808 lm | 130 | 340 W | 2 | |
| VP-3-480L-340-5K7-2-HSS-270-BSS | 5000 K | 70 CRI | 28171 lm | 83 | 340 W | 2 | |
| VP-3-480L-340-5K7-2-HSS-360 | 5000 K | 70 CRI | 25325 lm | 75 | 340 W | 2 | |
| VP-3-480L-340-5K7-3 | 5000 K | 70 CRI | 45577 lm | 135 | 340 W | 3 | |
| VP-3-480L-340-5K7-3-BC | 5000 K | 70 CRI | 27126 lm | 80 | 340 W | 3 | |
| VP-3-480L-340-5K7-3-HSS-90-B | 5000 K | 70 CRI | 53699 lm | 159 | 340 W | 3 | |
| VP-3-480L-340-5K7-3-HSS-90-F | 5000 K | 70 CRI | 42816 lm | 127 | 340 W | 3 | |
| VP-3-480L-340-5K7-3-HSS-270-BSS | 5000 K | 70 CRI | 27535 lm | 82 | 340 W | 3 | |
| VP-3-480L-340-5K7-3-HSS-360 | 5000 K | 70 CRI | 22561 lm | 67 | 340 W | 3 | |
| VP-3-480L-340-5K7-4-BC | 5000 K | 70 CRI | 25345 lm | 75 | 340 W | 4W | |
| VP-3-480L-340-5K7-4F | 5000 K | 70 CRI | 44364 lm | 131 | 340 W | 4F | |
| VP-3-480L-340-5K7-4F-HSS-90-B | 5000 K | 70 CRI | 53940 lm | 160 | 340 W | 4F | |
| VP-3-480L-340-5K7-4F-HSS-90-F | 5000 K | 70 CRI | 39110 lm | 116 | 340 W | 4F | |
| VP-3-480L-340-5K7-4F-HSS-270-BSS | 5000 K | 70 CRI | 33615 lm | 100 | 340 W | 4F | |
| VP-3-480L-340-5K7-4F-HSS-360 | 5000 K | 70 CRI | 25355 lm | 75 | 340 W | 4F | |
| VP-3-480L-340-5K7-4W | 5000 K | 70 CRI | 45291 lm | 134 | 340 W | 4W | |
| VP-3-480L-340-5K7-4W-HSS-90-B | 5000 K | 70 CRI | 53685 lm | 159 | 340 W | 4W | |
| VP-3-480L-340-5K7-4W-HSS-90-F | 5000 K | 70 CRI | 37710 lm | 112 | 340 W | 4W | |
| VP-3-480L-340-5K7-4W-HSS-270-BSS | 5000 K | 70 CRI | 27537 lm | 326 | 340 W | 4W | |
| VP-3-480L-340-5K7-4W-HSS-360 | 5000 K | 70 CRI | 19584 lm | 58 | 340 W | 4W | |
| VP-3-480L-340-5K7-5-HSS-360 | 5000 K | 70 CRI | 18880 lm | 56 | 340 W | 5QW | |
| VP-3-480L-340-5K7-5QW | 5000 K | 70 CRI | 47242 lm | 140 | 340 W | 5QW | |
| VP-3-480L-390-3K7-2 | 3000 K | 70 CRI | 49783 lm | 128 | 390 W | 2 | |
| VP-3-480L-390-3K7-2-BC | 3000 K | 70 CRI | 26067 lm | 67 | 390 W | 2 | |
| VP-3-480L-390-3K7-2-HSS-90-B | 3000 K | 70 CRI | 49450 lm | 127 | 390 W | 2 | |
| VP-3-480L-390-3K7-2-HSS-90-F | 3000 K | 70 CRI | 45738 lm | 117 | 390 W | 2 | |
| VP-3-480L-390-3K7-2-HSS-270-BSS | 3000 K | 70 CRI | 30545 lm | 79 | 390 W | 2 | |
| VP-3-480L-390-3K7-2-HSS-360 | 3000 K | 70 CRI | 27460 lm | 71 | 390 W | 2 | |
| VP-3-480L-390-3K7-3 | 3000 K | 70 CRI | 49421 lm | 127 | 390 W | 3 | |
| VP-3-480L-390-3K7-3-BC | 3000 K | 70 CRI | 29415 lm | 75 | 390 W | 3 | |
| VP-3-480L-390-3K7-3-HSS-90-B | 3000 K | 70 CRI | 49266 lm | 126 | 390 W | 3 | |
| VP-3-480L-390-3K7-3-HSS-90-F | 3000 K | 70 CRI | 44702 lm | 115 | 390 W | 3 | |
| VP-3-480L-390-3K7-3-HSS-270-BSS | 3000 K | 70 CRI | 29856 lm | 77 | 390 W | 3 | |
| VP-3-480L-390-3K7-3-HSS-360 | 3000 K | 70 CRI | 24462 lm | 64 | 390 W | 3 | |
| VP-3-480L-390-3K7-4-BC | 3000 K | 70 CRI | 27484 lm | 70 | 390 W | 4W | |
| VP-3-480L-390-3K7-4F | 3000 K | 70 CRI | 48106 lm | 123 | 390 W | 4F | |
| VP-3-480L-390-3K7-4F-HSS-90-B | 3000 K | 70 CRI | 49487 lm | 127 | 390 W | 4F | |
| VP-3-480L-390-3K7-4F-HSS-90-F | 3000 K | 70 CRI | 40833 lm | 105 | 390 W | 4F | |
| VP-3-480L-390-3K7-4F-HSS-270-BSS | 3000 K | 70 CRI | 36449 lm | 94 | 390 W | 4F | |
| VP-3-480L-390-3K7-4F-HSS-360 | 3000 K | 70 CRI | 27492 lm | 71 | 390 W | 4F | |
| VP-3-480L-390-3K7-4W | 3000 K | 70 CRI | 49111 lm | 126 | 390 W | 4W | |
| VP-3-480L-390-3K7-4W-HSS-90-B | 3000 K | 70 CRI | 49253 lm | 126 | 390 W | 4W | |
| VP-3-480L-390-3K7-4W-HSS-90-F | 3000 K | 70 CRI | 39371 lm | 101 | 390 W | 4W | |
| VP-3-480L-390-3K7-4W-HSS-270-BSS | 3000 K | 70 CRI | 29858 lm | 310 | 390 W | 4W | |
| VP-3-480L-390-3K7-4W-HSS-360 | 3000 K | 70 CRI | 21235 lm | 56 | 390 W | 4W | |
| VP-3-480L-390-3K7-5-HSS-360 | 3000 K | 70 CRI | 20472 lm | 53 | 390 W | 5QW | |
| VP-3-480L-390-3K7-5QW | 3000 K | 70 CRI | 51227 lm | 131 | 390 W | 5QW | |
| VP-3-480L-390-4K7-2 | 4000 K | 70 CRI | 51744 lm | 133 | 390 W | 2 | |
| VP-3-480L-390-4K7-2-BC | 4000 K | 70 CRI | 27086 lm | 69 | 390 W | 2 | |
| VP-3-480L-390-4K7-2-HSS-90-B | 4000 K | 70 CRI | 50770 lm | 130 | 390 W | 2 | |
| VP-3-480L-390-4K7-2-HSS-90-F | 4000 K | 70 CRI | 46959 lm | 120 | 390 W | 2 | |
| VP-3-480L-390-4K7-2-HSS-270-BSS | 4000 K | 70 CRI | 31750 lm | 82 | 390 W | 2 | |
| VP-3-480L-390-4K7-2-HSS-360 | 4000 K | 70 CRI | 28543 lm | 74 | 390 W | 2 | |
| VP-3-480L-390-4K7-3 | 4000 K | 70 CRI | 51368 lm | 132 | 390 W | 3 | |
| VP-3-480L-390-4K7-3-BC | 4000 K | 70 CRI | 30566 lm | 78 | 390 W | 3 | |
| VP-3-480L-390-4K7-3-HSS-90-B | 4000 K | 70 CRI | 50580 lm | 130 | 390 W | 3 | |
| VP-3-480L-390-4K7-3-HSS-90-F | 4000 K | 70 CRI | 45895 lm | 118 | 390 W | 3 | |
| VP-3-480L-390-4K7-3-HSS-270-BSS | 4000 K | 70 CRI | 31034 lm | 81 | 390 W | 3 | |
| VP-3-480L-390-4K7-3-HSS-360 | 4000 K | 70 CRI | 25427 lm | 66 | 390 W | 3 | |
| VP-3-480L-390-4K7-4-BC | 4000 K | 70 CRI | 28559 lm | 73 | 390 W | 4W | |
| VP-3-480L-390-4K7-4F | 4000 K | 70 CRI | 50001 lm | 128 | 390 W | 4F | |
| VP-3-480L-390-4K7-4F-HSS-90-B | 4000 K | 70 CRI | 50807 lm | 130 | 390 W | 4F | |
| VP-3-480L-390-4K7-4F-HSS-90-F | 4000 K | 70 CRI | 41923 lm | 107 | 390 W | 4F | |
| VP-3-480L-390-4K7-4F-HSS-270-BSS | 4000 K | 70 CRI | 37887 lm | 98 | 390 W | 4F | |
| VP-3-480L-390-4K7-4F-HSS-360 | 4000 K | 70 CRI | 28576 lm | 74 | 390 W | 4F | |
| VP-3-480L-390-4K7-4W | 4000 K | 70 CRI | 51046 lm | 131 | 390 W | 4W | |
| VP-3-480L-390-4K7-4W-HSS-90-B | 4000 K | 70 CRI | 50568 lm | 130 | 390 W | 4W | |
| VP-3-480L-390-4K7-4W-HSS-90-F | 4000 K | 70 CRI | 40422 lm | 104 | 390 W | 4W | |
| VP-3-480L-390-4K7-4W-HSS-270-BSS | 4000 K | 70 CRI | 31036 lm | 322 | 390 W | 4W | |
| VP-3-480L-390-4K7-4W-HSS-360 | 4000 K | 70 CRI | 22073 lm | 58 | 390 W | 4W | |
| VP-3-480L-390-4K7-5-HSS-360 | 4000 K | 70 CRI | 21280 lm | 55 | 390 W | 5QW | |
| VP-3-480L-390-4K7-5QW | 4000 K | 70 CRI | 53245 lm | 137 | 390 W | 5QW | |
| VP-3-480L-390-5K7-2 | 5000 K | 70 CRI | 52043 lm | 133 | 390 W | 2 | |
| VP-3-480L-390-5K7-2-BC | 5000 K | 70 CRI | 27249 lm | 70 | 390 W | 2 | |
| VP-3-480L-390-5K7-2-HSS-90-B | 5000 K | 70 CRI | 61099 lm | 157 | 390 W | 2 | |
| VP-3-480L-390-5K7-2-HSS-90-F | 5000 K | 70 CRI | 49658 lm | 127 | 390 W | 2 | |
| VP-3-480L-390-5K7-2-HSS-270-BSS | 5000 K | 70 CRI | 31932 lm | 83 | 390 W | 2 | |
| VP-3-480L-390-5K7-2-HSS-360 | 5000 K | 70 CRI | 28707 lm | 75 | 390 W | 2 | |
| VP-3-480L-390-5K7-3 | 5000 K | 70 CRI | 51664 lm | 132 | 390 W | 3 | |
| VP-3-480L-390-5K7-3-BC | 5000 K | 70 CRI | 30750 lm | 79 | 390 W | 3 | |
| VP-3-480L-390-5K7-3-HSS-90-B | 5000 K | 70 CRI | 60871 lm | 156 | 390 W | 3 | |
| VP-3-480L-390-5K7-3-HSS-90-F | 5000 K | 70 CRI | 48533 lm | 124 | 390 W | 3 | |
| VP-3-480L-390-5K7-3-HSS-270-BSS | 5000 K | 70 CRI | 31212 lm | 81 | 390 W | 3 | |
| VP-3-480L-390-5K7-3-HSS-360 | 5000 K | 70 CRI | 25573 lm | 66 | 390 W | 3 | |
| VP-3-480L-390-5K7-4-BC | 5000 K | 70 CRI | 28731 lm | 74 | 390 W | 4W | |
| VP-3-480L-390-5K7-4F | 5000 K | 70 CRI | 50290 lm | 129 | 390 W | 4F | |
| VP-3-480L-390-5K7-4F-HSS-90-B | 5000 K | 70 CRI | 61144 lm | 157 | 390 W | 4F | |
| VP-3-480L-390-5K7-4F-HSS-90-F | 5000 K | 70 CRI | 44333 lm | 114 | 390 W | 4F | |
| VP-3-480L-390-5K7-4F-HSS-270-BSS | 5000 K | 70 CRI | 38104 lm | 99 | 390 W | 4F | |
| VP-3-480L-390-5K7-4F-HSS-360 | 5000 K | 70 CRI | 28740 lm | 74 | 390 W | 4F | |
| VP-3-480L-390-5K7-4W | 5000 K | 70 CRI | 51341 lm | 132 | 390 W | 4W | |
| VP-3-480L-390-5K7-4W-HSS-90-B | 5000 K | 70 CRI | 60855 lm | 156 | 390 W | 4W | |
| VP-3-480L-390-5K7-4W-HSS-90-F | 5000 K | 70 CRI | 42745 lm | 110 | 390 W | 4W | |
| VP-3-480L-390-5K7-4W-HSS-270-BSS | 5000 K | 70 CRI | 31214 lm | 324 | 390 W | 4W | |
| VP-3-480L-390-5K7-4W-HSS-360 | 5000 K | 70 CRI | 22199 lm | 58 | 390 W | 4W | |
| VP-3-480L-390-5K7-5-HSS-360 | 5000 K | 70 CRI | 21402 lm | 56 | 390 W | 5QW | |
| VP-3-480L-390-5K7-5QW | 5000 K | 70 CRI | 53552 lm | 137 | 390 W | 5QW | |
| VP-3-480L-425-3K7-2 | 3000 K | 70 CRI | 53047 lm | 125 | 425 W | 2 | |
| VP-3-480L-425-3K7-2-BC | 3000 K | 70 CRI | 27776 lm | 66 | 425 W | 2 | |
| VP-3-480L-425-3K7-2-HSS-90-B | 3000 K | 70 CRI | 52694 lm | 125 | 425 W | 2 | |
| VP-3-480L-425-3K7-2-HSS-90-F | 3000 K | 70 CRI | 48739 lm | 115 | 425 W | 2 | |
| VP-3-480L-425-3K7-2-HSS-270-BSS | 3000 K | 70 CRI | 32549 lm | 77 | 425 W | 2 | |
| VP-3-480L-425-3K7-2-HSS-360 | 3000 K | 70 CRI | 29261 lm | 69 | 425 W | 2 | |
| VP-3-480L-425-3K7-3 | 3000 K | 70 CRI | 52661 lm | 124 | 425 W | 3 | |
| VP-3-480L-425-3K7-3-BC | 3000 K | 70 CRI | 31344 lm | 74 | 425 W | 3 | |
| VP-3-480L-425-3K7-3-HSS-90-B | 3000 K | 70 CRI | 52497 lm | 124 | 425 W | 3 | |
| VP-3-480L-425-3K7-3-HSS-90-F | 3000 K | 70 CRI | 47635 lm | 113 | 425 W | 3 | |
| VP-3-480L-425-3K7-3-HSS-270-BSS | 3000 K | 70 CRI | 31814 lm | 75 | 425 W | 3 | |
| VP-3-480L-425-3K7-3-HSS-360 | 3000 K | 70 CRI | 26067 lm | 62 | 425 W | 3 | |
| VP-3-480L-425-3K7-4-BC | 3000 K | 70 CRI | 29286 lm | 69 | 425 W | 4W | |
| VP-3-480L-425-3K7-4F | 3000 K | 70 CRI | 51260 lm | 121 | 425 W | 4F | |
| VP-3-480L-425-3K7-4F-HSS-90-B | 3000 K | 70 CRI | 52732 lm | 125 | 425 W | 4F | |
| VP-3-480L-425-3K7-4F-HSS-90-F | 3000 K | 70 CRI | 43512 lm | 103 | 425 W | 4F | |
| VP-3-480L-425-3K7-4F-HSS-270-BSS | 3000 K | 70 CRI | 38840 lm | 92 | 425 W | 4F | |
| VP-3-480L-425-3K7-4F-HSS-360 | 3000 K | 70 CRI | 29295 lm | 69 | 425 W | 4F | |
| VP-3-480L-425-3K7-4W | 3000 K | 70 CRI | 52331 lm | 124 | 425 W | 4W | |
| VP-3-480L-425-3K7-4W-HSS-90-B | 3000 K | 70 CRI | 52484 lm | 124 | 425 W | 4W | |
| VP-3-480L-425-3K7-4W-HSS-90-F | 3000 K | 70 CRI | 41954 lm | 99 | 425 W | 4W | |
| VP-3-480L-425-3K7-4W-HSS-270-BSS | 3000 K | 70 CRI | 31817 lm | 301 | 425 W | 4W | |
| VP-3-480L-425-3K7-4W-HSS-360 | 3000 K | 70 CRI | 22628 lm | 53 | 425 W | 4W | |
| VP-3-480L-425-3K7-5-HSS-360 | 3000 K | 70 CRI | 21815 lm | 52 | 425 W | 5QW | |
| VP-3-480L-425-3K7-5QW | 3000 K | 70 CRI | 54586 lm | 129 | 425 W | 5QW | |
| VP-3-480L-425-4K7-2 | 4000 K | 70 CRI | 55137 lm | 130 | 425 W | 2 | |
| VP-3-480L-425-4K7-2-BC | 4000 K | 70 CRI | 28862 lm | 68 | 425 W | 2 | |
| VP-3-480L-425-4K7-2-HSS-90-B | 4000 K | 70 CRI | 54100 lm | 128 | 425 W | 2 | |
| VP-3-480L-425-4K7-2-HSS-90-F | 4000 K | 70 CRI | 50039 lm | 118 | 425 W | 2 | |
| VP-3-480L-425-4K7-2-HSS-270-BSS | 4000 K | 70 CRI | 33833 lm | 80 | 425 W | 2 | |
| VP-3-480L-425-4K7-2-HSS-360 | 4000 K | 70 CRI | 30415 lm | 72 | 425 W | 2 | |
| VP-3-480L-425-4K7-3 | 4000 K | 70 CRI | 54736 lm | 129 | 425 W | 3 | |
| VP-3-480L-425-4K7-3-BC | 4000 K | 70 CRI | 32570 lm | 77 | 425 W | 3 | |
| VP-3-480L-425-4K7-3-HSS-90-B | 4000 K | 70 CRI | 53898 lm | 127 | 425 W | 3 | |
| VP-3-480L-425-4K7-3-HSS-90-F | 4000 K | 70 CRI | 48906 lm | 116 | 425 W | 3 | |
| VP-3-480L-425-4K7-3-HSS-270-BSS | 4000 K | 70 CRI | 33069 lm | 78 | 425 W | 3 | |
| VP-3-480L-425-4K7-3-HSS-360 | 4000 K | 70 CRI | 27095 lm | 64 | 425 W | 3 | |
| VP-3-480L-425-4K7-4-BC | 4000 K | 70 CRI | 30431 lm | 72 | 425 W | 4W | |
| VP-3-480L-425-4K7-4F | 4000 K | 70 CRI | 53280 lm | 126 | 425 W | 4F | |
| VP-3-480L-425-4K7-4F-HSS-90-B | 4000 K | 70 CRI | 54139 lm | 128 | 425 W | 4F | |
| VP-3-480L-425-4K7-4F-HSS-90-F | 4000 K | 70 CRI | 44673 lm | 106 | 425 W | 4F | |
| VP-3-480L-425-4K7-4F-HSS-270-BSS | 4000 K | 70 CRI | 40372 lm | 95 | 425 W | 4F | |
| VP-3-480L-425-4K7-4F-HSS-360 | 4000 K | 70 CRI | 30451 lm | 72 | 425 W | 4F | |
| VP-3-480L-425-4K7-4W | 4000 K | 70 CRI | 54393 lm | 129 | 425 W | 4W | |
| VP-3-480L-425-4K7-4W-HSS-90-B | 4000 K | 70 CRI | 53884 lm | 127 | 425 W | 4W | |
| VP-3-480L-425-4K7-4W-HSS-90-F | 4000 K | 70 CRI | 43073 lm | 102 | 425 W | 4W | |
| VP-3-480L-425-4K7-4W-HSS-270-BSS | 4000 K | 70 CRI | 33072 lm | 313 | 425 W | 4W | |
| VP-3-480L-425-4K7-4W-HSS-360 | 4000 K | 70 CRI | 23521 lm | 56 | 425 W | 4W | |
| VP-3-480L-425-4K7-5-HSS-360 | 4000 K | 70 CRI | 22676 lm | 54 | 425 W | 5QW | |
| VP-3-480L-425-4K7-5QW | 4000 K | 70 CRI | 56736 lm | 134 | 425 W | 5QW | |
| VP-3-480L-425-5K7-2 | 5000 K | 70 CRI | 55455 lm | 131 | 425 W | 2 | |
| VP-3-480L-425-5K7-2-BC | 5000 K | 70 CRI | 29036 lm | 69 | 425 W | 2 | |
| VP-3-480L-425-5K7-2-HSS-90-B | 5000 K | 70 CRI | 65106 lm | 154 | 425 W | 2 | |
| VP-3-480L-425-5K7-2-HSS-90-F | 5000 K | 70 CRI | 52916 lm | 125 | 425 W | 2 | |
| VP-3-480L-425-5K7-2-HSS-270-BSS | 5000 K | 70 CRI | 34027 lm | 80 | 425 W | 2 | |
| VP-3-480L-425-5K7-2-HSS-360 | 5000 K | 70 CRI | 30590 lm | 72 | 425 W | 2 | |
| VP-3-480L-425-5K7-3 | 5000 K | 70 CRI | 55052 lm | 130 | 425 W | 3 | |
| VP-3-480L-425-5K7-3-BC | 5000 K | 70 CRI | 32766 lm | 77 | 425 W | 3 | |
| VP-3-480L-425-5K7-3-HSS-90-B | 5000 K | 70 CRI | 64863 lm | 153 | 425 W | 3 | |
| VP-3-480L-425-5K7-3-HSS-90-F | 5000 K | 70 CRI | 51717 lm | 122 | 425 W | 3 | |
| VP-3-480L-425-5K7-3-HSS-270-BSS | 5000 K | 70 CRI | 33259 lm | 79 | 425 W | 3 | |
| VP-3-480L-425-5K7-3-HSS-360 | 5000 K | 70 CRI | 27251 lm | 64 | 425 W | 3 | |
| VP-3-480L-425-5K7-4-BC | 5000 K | 70 CRI | 30615 lm | 72 | 425 W | 4W | |
| VP-3-480L-425-5K7-4F | 5000 K | 70 CRI | 53588 lm | 127 | 425 W | 4F | |
| VP-3-480L-425-5K7-4F-HSS-90-B | 5000 K | 70 CRI | 65154 lm | 154 | 425 W | 4F | |
| VP-3-480L-425-5K7-4F-HSS-90-F | 5000 K | 70 CRI | 47241 lm | 112 | 425 W | 4F | |
| VP-3-480L-425-5K7-4F-HSS-270-BSS | 5000 K | 70 CRI | 40604 lm | 96 | 425 W | 4F | |
| VP-3-480L-425-5K7-4F-HSS-360 | 5000 K | 70 CRI | 30625 lm | 72 | 425 W | 4F | |
| VP-3-480L-425-5K7-4W | 5000 K | 70 CRI | 54707 lm | 129 | 425 W | 4W | |
| VP-3-480L-425-5K7-4W-HSS-90-B | 5000 K | 70 CRI | 64847 lm | 153 | 425 W | 4W | |
| VP-3-480L-425-5K7-4W-HSS-90-F | 5000 K | 70 CRI | 45549 lm | 108 | 425 W | 4W | |
| VP-3-480L-425-5K7-4W-HSS-270-BSS | 5000 K | 70 CRI | 33262 lm | 315 | 425 W | 4W | |
| VP-3-480L-425-5K7-4W-HSS-360 | 5000 K | 70 CRI | 23656 lm | 56 | 425 W | 4W | |
| VP-3-480L-425-5K7-5-HSS-360 | 5000 K | 70 CRI | 22806 lm | 54 | 425 W | 5QW | |
| VP-3-480L-425-5K7-5QW | 5000 K | 70 CRI | 57064 lm | 135 | 425 W | 5QW | |
| VP-3-480L-455-3K7-2-HSS-90-F | 3000 K | 70 CRI | 52627 lm | 112 | 470 W | 2 | |
| VP-3-480L-455-3K7-3-HSS-90-F | 3000 K | 70 CRI | 51434 lm | 109 | 470 W | 3 | |
| VP-3-480L-455-3K7-4F-HSS-90-F | 3000 K | 70 CRI | 46983 lm | 100 | 470 W | 4F | |
| VP-3-480L-455-3K7-4W-HSS-90-F | 3000 K | 70 CRI | 45300 lm | 96 | 470 W | 4W | |
| VP-3-480L-455-4K7-2-HSS-90-F | 4000 K | 70 CRI | 54031 lm | 115 | 470 W | 2 | |
| VP-3-480L-455-4K7-3-HSS-90-F | 4000 K | 70 CRI | 52807 lm | 112 | 470 W | 3 | |
| VP-3-480L-455-4K7-4F-HSS-90-F | 4000 K | 70 CRI | 48236 lm | 103 | 470 W | 4F | |
| VP-3-480L-455-4K7-4W-HSS-90-F | 4000 K | 70 CRI | 46509 lm | 99 | 470 W | 4W | |
| VP-3-480L-455-5K7-2-HSS-90-F | 5000 K | 70 CRI | 57137 lm | 122 | 470 W | 2 | |
| VP-3-480L-455-5K7-3-HSS-90-F | 5000 K | 70 CRI | 55842 lm | 119 | 470 W | 3 | |
| VP-3-480L-455-5K7-4F-HSS-90-F | 5000 K | 70 CRI | 51009 lm | 109 | 470 W | 4F | |
| VP-3-480L-455-5K7-4W-HSS-90-F | 5000 K | 70 CRI | 49183 lm | 105 | 470 W | 4W | |
| VP-3-480L-470-3K7-2 | 3000 K | 70 CRI | 57740 lm | 127 | 470 W | 2 | |
| VP-3-480L-470-3K7-2-BC | 3000 K | 70 CRI | 29992 lm | 66 | 470 W | 2 | |
| VP-3-480L-470-3K7-2-HSS-90-B | 3000 K | 70 CRI | 56899 lm | 125 | 470 W | 2 | |
| VP-3-480L-470-3K7-2-HSS-270-BSS | 3000 K | 70 CRI | 35145 lm | 77 | 470 W | 2 | |
| VP-3-480L-470-3K7-2-HSS-360 | 3000 K | 70 CRI | 31595 lm | 69 | 470 W | 2 | |
| VP-3-480L-470-3K7-3 | 3000 K | 70 CRI | 57320 lm | 126 | 470 W | 3 | |
| VP-3-480L-470-3K7-3-BC | 3000 K | 70 CRI | 33845 lm | 74 | 470 W | 3 | |
| VP-3-480L-470-3K7-3-HSS-90-B | 3000 K | 70 CRI | 56686 lm | 125 | 470 W | 3 | |
| VP-3-480L-470-3K7-3-HSS-270-BSS | 3000 K | 70 CRI | 34352 lm | 75 | 470 W | 3 | |
| VP-3-480L-470-3K7-3-HSS-360 | 3000 K | 70 CRI | 28146 lm | 62 | 470 W | 3 | |
| VP-3-480L-470-3K7-4-BC | 3000 K | 70 CRI | 31623 lm | 70 | 470 W | 4W | |
| VP-3-480L-470-3K7-4F | 3000 K | 70 CRI | 55795 lm | 123 | 470 W | 4F | |
| VP-3-480L-470-3K7-4F-HSS-90-B | 3000 K | 70 CRI | 56940 lm | 125 | 470 W | 4F | |
| VP-3-480L-470-3K7-4F-HSS-270-BSS | 3000 K | 70 CRI | 41938 lm | 92 | 470 W | 4F | |
| VP-3-480L-470-3K7-4F-HSS-360 | 3000 K | 70 CRI | 31632 lm | 70 | 470 W | 4F | |
| VP-3-480L-470-3K7-4W | 3000 K | 70 CRI | 56961 lm | 125 | 470 W | 4W | |
| VP-3-480L-470-3K7-4W-HSS-90-B | 3000 K | 70 CRI | 56672 lm | 125 | 470 W | 4W | |
| VP-3-480L-470-3K7-4W-HSS-270-BSS | 3000 K | 70 CRI | 34355 lm | 302 | 470 W | 4W | |
| VP-3-480L-470-3K7-4W-HSS-360 | 3000 K | 70 CRI | 24433 lm | 54 | 470 W | 4W | |
| VP-3-480L-470-3K7-5-HSS-360 | 3000 K | 70 CRI | 23555 lm | 52 | 470 W | 5QW | |
| VP-3-480L-470-3K7-5QW | 3000 K | 70 CRI | 59414 lm | 131 | 470 W | 5QW | |
| VP-3-480L-470-4K7-2 | 4000 K | 70 CRI | 60015 lm | 132 | 470 W | 2 | |
| VP-3-480L-470-4K7-2-BC | 4000 K | 70 CRI | 31165 lm | 68 | 470 W | 2 | |
| VP-3-480L-470-4K7-2-HSS-90-B | 4000 K | 70 CRI | 58417 lm | 128 | 470 W | 2 | |
| VP-3-480L-470-4K7-2-HSS-270-BSS | 4000 K | 70 CRI | 36532 lm | 80 | 470 W | 2 | |
| VP-3-480L-470-4K7-2-HSS-360 | 4000 K | 70 CRI | 32842 lm | 72 | 470 W | 2 | |
| VP-3-480L-470-4K7-3 | 4000 K | 70 CRI | 59578 lm | 131 | 470 W | 3 | |
| VP-3-480L-470-4K7-3-BC | 4000 K | 70 CRI | 35168 lm | 77 | 470 W | 3 | |
| VP-3-480L-470-4K7-3-HSS-90-B | 4000 K | 70 CRI | 58198 lm | 128 | 470 W | 3 | |
| VP-3-480L-470-4K7-3-HSS-270-BSS | 4000 K | 70 CRI | 35707 lm | 78 | 470 W | 3 | |
| VP-3-480L-470-4K7-3-HSS-360 | 4000 K | 70 CRI | 29257 lm | 64 | 470 W | 3 | |
| VP-3-480L-470-4K7-4-BC | 4000 K | 70 CRI | 32859 lm | 72 | 470 W | 4W | |
| VP-3-480L-470-4K7-4F | 4000 K | 70 CRI | 57993 lm | 127 | 470 W | 4F | |
| VP-3-480L-470-4K7-4F-HSS-90-B | 4000 K | 70 CRI | 58460 lm | 128 | 470 W | 4F | |
| VP-3-480L-470-4K7-4F-HSS-270-BSS | 4000 K | 70 CRI | 43593 lm | 96 | 470 W | 4F | |
| VP-3-480L-470-4K7-4F-HSS-360 | 4000 K | 70 CRI | 32880 lm | 72 | 470 W | 4F | |
| VP-3-480L-470-4K7-4W | 4000 K | 70 CRI | 59205 lm | 130 | 470 W | 4W |
