ARCHITECTURAL AREA LIGHTING

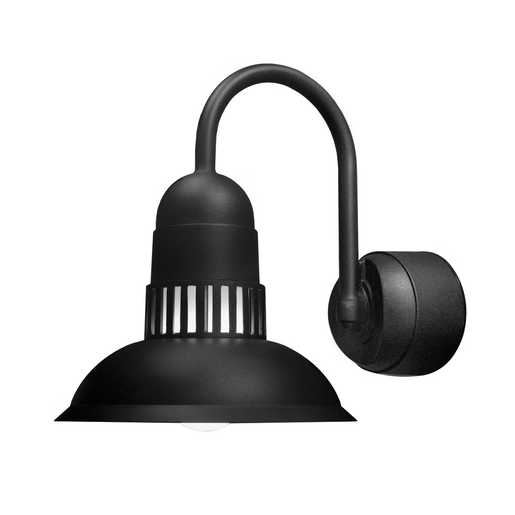

Universe® Small

Choice of CCT, 5 luminous elements, and 15 hood styles enable specifiers to create the exact configuration for any application

Features & Benefits

  • LED technology
  • Modular system offers five luminous choices and five hood options for customization to complement site design
  • Full cutoff option available
  • Pole, wall, or pendant mounting options
  • Opal glass lens, IES Type 5 distribution for soft, general lighting
  • 14 standard powder coat finishes
Where To Buy
SPEC SHEET

Specifications

Lumen Range
1 - 2,500
Dimming Protocol
0-10V Dimming
CCT Offering
3000, 4000, 5000
CRI Offering
70
Mounting Options
Wall, Surface, Arm, Post Top, Pendant
Wattage Range
31 - 150
Color Offering
BLS - Black Gloss Smooth, BLT - Black Matte Textured, DBS - Dark Bronze Gloss Smooth, DBT- Dark Bronze Matte Textured, GTT - Graphite Matte Textured, LG - Light Grey Matte Textured, LGS - Light Grey Gloss Smooth, PSS - Platinum Silver Gloss Smooth, VGT - Verde Green Matte Textured, WHS - White Gloss Smooth, WHT - White Matte Textured, CC – Custom Color
Optics & Distributions
Symmetric
Certifications
cUL
Ratings
IP55
Operating Temp
-30 to 25

Product Documents

UCS Specification Sheet
412 KB
2023-10-20

Brochures / Catalogs

Color Chart Brochure
2404 KB
2023-08-03

Design / BIM Files / 3D Models

UCS BIM file
700 KB
2023-08-03

Technical Documents

UCS
488 KB
2023-08-03

Photometry(0)

Clear Filters

Product Name Color Temp CRI Lumens LM/W Watts Dist. Type Resources
UCS-ANG-12LED-BW5100 K70 CRI1193.8 lm3432 WType V
UCS-FLR-70MH-FCO
UCS-SKB-70MH-FCO
UCS-STR-12LED-BW5100 K70 CRI1587 lm5426.9 WType V
UCS-STR-12LED-NW4000 K70 CRI1497 lm5126.9 WType V
UCS-STR-12LED-WW3000 K70 CRI1148 lm3926.9 WType V
UCS-STR-42CF
UCS-STR-70MH
UCS-STR-70MH-FCO
Show All
