KIM LIGHTING

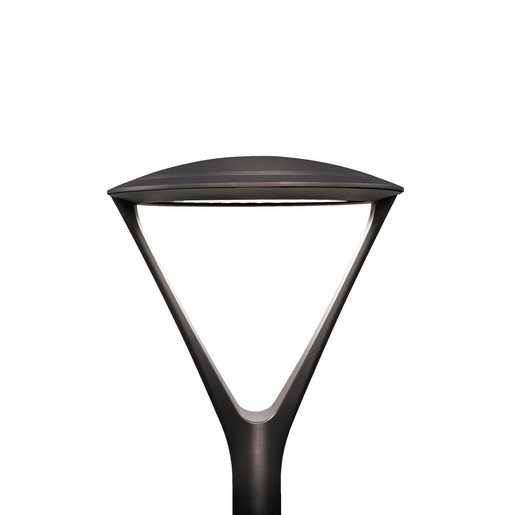

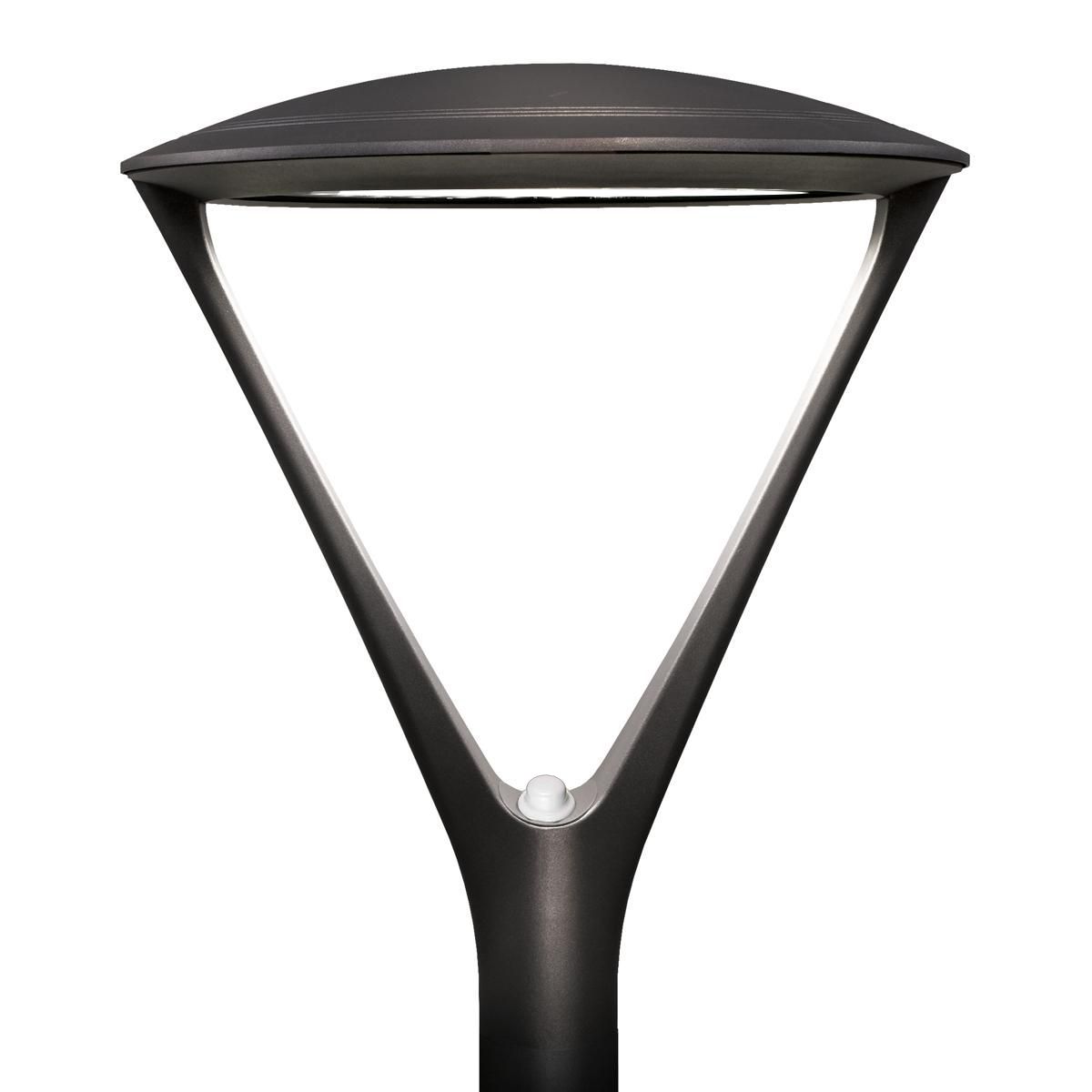

Ouro Post Top
Ouro is a seamless blend of elegant form, performance, visual comfort, controls, scalability and mounting options to enhance the environment in which they occupy.
Features & Benefits
- Ouro 20 delivers up to 17,000 lumens
- Ouro 28 delivers up to 35,000 lumens
- Three lens configurations clear, diffuse & no lens
- Nine optical distributions
- Asymmetric: 2, 3, 4, 4W & FR - Symmetric: 5QM, 5QN, 5R & 5W
- Some configurations are 1.5 or 4G certified
Specifications
Dimming Protocol
0-10V Dimming,
DALI
Wattage Range
25 - 315
Color Offering
BLS - Black Gloss Smooth,
BLT - Black Matte Textured,
DBS - Dark Bronze Gloss Smooth,
DBT- Dark Bronze Matte Textured,
GTT - Graphite Matte Textured,
LG - Light Grey Matte Textured,
LGS - Light Grey Gloss Smooth,
PSS - Platinum Silver Gloss Smooth,
VGT - Verde Green Matte Textured,
WHS - White Gloss Smooth,
WHT - White Matte Textured,
CC – Custom Color
Ratings
TAA (Buy American 52.225-11)
Controls Platform
LightGRIDPlus
Size
Round
Specifications
| Dimming Protocol | 0-10V Dimming, DALI |
| Wattage Range | 25 - 315 |
| Color Offering | BLS - Black Gloss Smooth, BLT - Black Matte Textured, DBS - Dark Bronze Gloss Smooth, DBT- Dark Bronze Matte Textured, GTT - Graphite Matte Textured, LG - Light Grey Matte Textured, LGS - Light Grey Gloss Smooth, PSS - Platinum Silver Gloss Smooth, VGT - Verde Green Matte Textured, WHS - White Gloss Smooth, WHT - White Matte Textured, CC – Custom Color |
| Ratings | TAA (Buy American 52.225-11) |
| Controls Platform | LightGRIDPlus |
| Size | Round |
Product Documents
Spec Sheets
Brochures / Catalogs
Design / BIM Files / 3D Models
Technical Documents
Photometry(0)
Clear Filters| Product Name | Color Temp | CRI | Lumens | LM/W | Watts | Dist. Type | Resources |
|---|---|---|---|---|---|---|---|
| UR28-96L-155-3K7-3-BC-CLR-PT | 3000 K | 70 CRI | 10873 lm | 70 | 155.0 W | Type III | |
| UR28-96L-155-3K7-3-BC-PT | 3000 K | 70 CRI | 11591 lm | 75 | 155.0 W | Type III | |
| UR28-96L-155-4K7-3-BC-CLR-PT | 4000 K | 70 CRI | 11147 lm | 72 | 155.0 W | Type III | |
| UR28-96L-155-4K7-3-BC-PT | 4000 K | 70 CRI | 11882 lm | 77 | 155.0 W | Type III | |
| UR28-96L-155-5K7-2-PT | 5000 K | 70 CRI | 19382 lm | 125 | 155.0 W | Type II | |
| UR28-96L-155-5K7-3-BC-CLR-PT | 5000 K | 70 CRI | 11274 lm | 73 | 155.0 W | Type III | |
| UR28-96L-170-3K7-3-BC-CLR-PT | 3000 K | 70 CRI | 11942 lm | 70 | 170.0 W | Type III | |
| UR28-96L-170-3K7-3-BC-PT | 3000 K | 70 CRI | 12991 lm | 76 | 170.0 W | Type III | |
| UR28-96L-170-4K7-3-BC-CLR-PT | 4000 K | 70 CRI | 12242 lm | 72 | 170.0 W | Type III | |
| UR28-96L-170-4K7-3-BC-PT | 4000 K | 70 CRI | 13318 lm | 78 | 170.0 W | Type III | |
| UR28-96L-170-5K7-3-BC-CLR-PT | 5000 K | 70 CRI | 12382 lm | 73 | 170.0 W | Type III | |
| UR28-96L-170-5K7-3-BC-PT | 5000 K | 70 CRI | 13470 lm | 79 | 170.0 W | Type III | |
| UR28-96L-185-3K7-3-BC-CLR-PT | 3000 K | 70 CRI | 12673 lm | 69 | 185.0 W | Type III | |
| UR28-96L-185-3K7-3-BC-PT | 3000 K | 70 CRI | 13780 lm | 74 | 185.0 W | Type III | |
| UR28-96L-185-4K7-3-BC-CLR-PT | 4000 K | 70 CRI | 13141 lm | 71 | 185.0 W | Type III | |
| UR28-96L-185-4K7-3-BC-PT | 4000 K | 70 CRI | 14127 lm | 76 | 185.0 W | Type III | |
| UR28-96L-185-5K7-3-BC-CLR-PT | 5000 K | 70 CRI | 13291 lm | 72 | 185.0 W | Type III | |
| UR28-96L-185-5K7-3-BC-PT | 5000 K | 70 CRI | 14288 lm | 77 | 185.0 W | Type III | |
| UR28-96L-220-3K7-3-BC-CLR-PT | 3000 K | 70 CRI | 14780 lm | 67 | 220.0 W | Type III | |
| UR28-96L-220-4K7-3-BC-CLR-PT | 4000 K | 70 CRI | 15162 lm | 69 | 220.0 W | Type III | |
| UR28-96L-220-5K7-3-BC-CLR-PT | 5000 K | 70 CRI | 15335 lm | 70 | 220.0 W | Type III | |
| UR28-96L-255-3K7-3-BC-CLR-PT | 3000 K | 70 CRI | 16623 lm | 65 | 255.0 W | Type III | |
| UR28-96L-255-3K7-3-BC-PT | 3000 K | 70 CRI | 16835 lm | 66 | 255.0 W | Type III | |
| UR28-96L-255-4K7-3-BC-CLR-PT | 4000 K | 70 CRI | 17042 lm | 67 | 255.0 W | Type III | |
| UR28-96L-255-4K7-3-BC-PT | 4000 K | 70 CRI | 17258 lm | 68 | 255.0 W | Type III | |
| UR28-96L-255-5K7-3-BC-CLR-PT | 5000 K | 70 CRI | 17236 lm | 68 | 255.0 W | Type III | |
| UR28-96L-255-5K7-3-BC-PT | 5000 K | 70 CRI | 17456 lm | 68 | 255.0 W | Type III | |
| UR28-96L-315-3K7-3-BC-CLR-PT | 3000 K | 70 CRI | 19810 lm | 63 | 315.0 W | Type III | |
| UR28-96L-315-3K7-3-BC-PT | 3000 K | 70 CRI | 20256 lm | 64 | 315.0 W | Type III | |
| UR28-96L-315-4K7-3-BC-CLR-PT | 4000 K | 70 CRI | 20308 lm | 64 | 315.0 W | Type III | |
| UR28-96L-315-4K7-3-BC-PT | 4000 K | 70 CRI | 20765 lm | 66 | 315.0 W | Type III | |
| UR28-96L-315-5K7-3-BC-CLR-PT | 5000 K | 70 CRI | 20540 lm | 65 | 315.0 W | Type III | |
| UR28-96L-315-5K7-3-BC-PT | 5000 K | 70 CRI | 21003 lm | 67 | 315.0 W | Type III | |
| UR20-24L-25-3K7-2-BC-CLR-PT | 3000 K | 70 CRI | 1631 lm | 64 | 25.0 W | Type II | |
| UR20-24L-25-3K7-2-BC-PT | 3000 K | 70 CRI | 1724 lm | 68 | 25.0 W | Type II | |
| UR20-24L-25-3K7-2-CLR-PT | 3000 K | 70 CRI | 2784 lm | 109 | 25.0 W | Type II | |
| UR20-24L-25-3K7-2-PT | 3000 K | 70 CRI | 2943 lm | 116 | 25.0 W | Type II | |
| UR20-24L-25-3K7-3-BC-CLR-PT | 3000 K | 70 CRI | 1806 lm | 72 | 25.0 W | Type III | |
| UR20-24L-25-3K7-3-BC-PT | 3000 K | 70 CRI | 1830 lm | 73 | 25.0 W | Type III | |
| UR20-24L-25-3K7-3-CLR-PT | 3000 K | 70 CRI | 2845 lm | 111 | 25.0 W | Type III | |
| UR20-24L-25-3K7-3-PT | 3000 K | 70 CRI | 3007 lm | 118 | 25.0 W | Type III | |
| UR20-24L-25-3K7-4-BC-CLR-PT | 3000 K | 70 CRI | 2114 lm | 83 | 25.0 W | Type IV | |
| UR20-24L-25-3K7-4-BC-PT | 3000 K | 70 CRI | 2235 lm | 88 | 25.0 W | Type IV | |
| UR20-24L-25-3K7-4-CLR-PT | 3000 K | 70 CRI | 2891 lm | 113 | 25.0 W | Type IV | |
| UR20-24L-25-3K7-4-PT | 3000 K | 70 CRI | 3056 lm | 120 | 25.0 W | Type IV | |
| UR20-24L-25-3K7-4W-BC-CLR-PT | 3000 K | 70 CRI | 1808 lm | 71 | 25.0 W | Type IV Wide | |
| UR20-24L-25-3K7-4W-BC-PT | 3000 K | 70 CRI | 1912 lm | 75 | 25.0 W | Type IV Wide | |
| UR20-24L-25-3K7-4W-CLR-PT | 3000 K | 70 CRI | 2999 lm | 117 | 25.0 W | Type IV Wide | |
| UR20-24L-25-3K7-4W-PT | 3000 K | 70 CRI | 3171 lm | 125 | 25.0 W | Type IV Wide | |
| UR20-24L-25-3K7-5QM-CLR-PT | 3000 K | 70 CRI | 2773 lm | 109 | 25.0 W | Type V Square Medium | |
| UR20-24L-25-3K7-5QM-PT | 3000 K | 70 CRI | 2931 lm | 115 | 25.0 W | Type V Square Medium | |
| UR20-24L-25-3K7-5QN-CLR-PT | 3000 K | 70 CRI | 2549 lm | 100 | 25.0 W | Type V Square Narrow | |
| UR20-24L-25-3K7-5QN-PT | 3000 K | 70 CRI | 2694 lm | 106 | 25.0 W | Type V Square Narrow | |
| UR20-24L-25-3K7-5R-CLR-PT | 3000 K | 70 CRI | 2890 lm | 113 | 25.0 W | Type V Rectangular | |
| UR20-24L-25-3K7-5R-PT | 3000 K | 70 CRI | 3054 lm | 120 | 25.0 W | Type V Rectangular | |
| UR20-24L-25-3K7-5W-CLR-PT | 3000 K | 70 CRI | 2879 lm | 113 | 25.0 W | Type V Wide(Round) | |
| UR20-24L-25-3K7-5W-PT | 3000 K | 70 CRI | 3043 lm | 120 | 25.0 W | Type V Wide(Round) | |
| UR20-24L-25-3K7-FR-BC-CLR-PT | 3000 K | 70 CRI | 1886 lm | 74 | 25.0 W | Type I | |
| UR20-24L-25-3K7-FR-BC-PT | 3000 K | 70 CRI | 1994 lm | 78 | 25.0 W | Type I | |
| UR20-24L-25-3K7-FR-CLR-PT | 3000 K | 70 CRI | 2773 lm | 109 | 25.0 W | Type I | |
| UR20-24L-25-3K7-FR-PT | 3000 K | 70 CRI | 2932 lm | 115 | 25.0 W | Type I | |
| UR20-24L-25-4K7-2-BC-CLR-PT | 4000 K | 70 CRI | 1736 lm | 68 | 25.0 W | Type II | |
| UR20-24L-25-4K7-2-BC-PT | 4000 K | 70 CRI | 1834 lm | 72 | 25.0 W | Type II | |
| UR20-24L-25-4K7-2-CLR-PT | 4000 K | 70 CRI | 2963 lm | 116 | 25.0 W | Type II | |
| UR20-24L-25-4K7-2-PT | 4000 K | 70 CRI | 3099 lm | 122 | 25.0 W | Type II | |
| UR20-24L-25-4K7-3-BC-CLR-PT | 4000 K | 70 CRI | 1922 lm | 77 | 25.0 W | Type III | |
| UR20-24L-25-4K7-3-BC-PT | 4000 K | 70 CRI | 1947 lm | 78 | 25.0 W | Type III | |
| UR20-24L-25-4K7-3-CLR-PT | 4000 K | 70 CRI | 3028 lm | 119 | 25.0 W | Type III | |
| UR20-24L-25-4K7-3-PT | 4000 K | 70 CRI | 3200 lm | 126 | 25.0 W | Type III | |
| UR20-24L-25-4K7-4-BC-CLR-PT | 4000 K | 70 CRI | 2250 lm | 88 | 25.0 W | Type IV | |
| UR20-24L-25-4K7-4-BC-PT | 4000 K | 70 CRI | 2377 lm | 93 | 25.0 W | Type IV | |
| UR20-24L-25-4K7-4-CLR-PT | 4000 K | 70 CRI | 3076 lm | 120 | 25.0 W | Type IV | |
| UR20-24L-25-4K7-4-PT | 4000 K | 70 CRI | 3251 lm | 128 | 25.0 W | Type IV | |
| UR20-24L-25-4K7-4W-BC-CLR-PT | 4000 K | 70 CRI | 1924 lm | 75 | 25.0 W | Type IV Wide | |
| UR20-24L-25-4K7-4W-BC-PT | 4000 K | 70 CRI | 2034 lm | 80 | 25.0 W | Type IV Wide | |
| UR20-24L-25-4K7-4W-CLR-PT | 4000 K | 70 CRI | 3192 lm | 125 | 25.0 W | Type IV Wide | |
| UR20-24L-25-4K7-4W-PT | 4000 K | 70 CRI | 3374 lm | 133 | 25.0 W | Type IV Wide | |
| UR20-24L-25-4K7-5QM-CLR-PT | 4000 K | 70 CRI | 2950 lm | 116 | 25.0 W | Type V Square Medium | |
| UR20-24L-25-4K7-5QM-PT | 4000 K | 70 CRI | 3119 lm | 123 | 25.0 W | Type V Square Medium | |
| UR20-24L-25-4K7-5QN-CLR-PT | 4000 K | 70 CRI | 2712 lm | 106 | 25.0 W | Type V Square Narrow | |
| UR20-24L-25-4K7-5QN-PT | 4000 K | 70 CRI | 2866 lm | 113 | 25.0 W | Type V Square Narrow | |
| UR20-24L-25-4K7-5R-CLR-PT | 4000 K | 70 CRI | 3075 lm | 120 | 25.0 W | Type V Rectangular | |
| UR20-24L-25-4K7-5R-PT | 4000 K | 70 CRI | 3250 lm | 128 | 25.0 W | Type V Rectangular | |
| UR20-24L-25-4K7-5W-CLR-PT | 4000 K | 70 CRI | 3064 lm | 120 | 25.0 W | Type V Wide(Round) | |
| UR20-24L-25-4K7-5W-PT | 4000 K | 70 CRI | 3237 lm | 127 | 25.0 W | Type V Wide(Round) | |
| UR20-24L-25-4K7-FR-BC-CLR-PT | 4000 K | 70 CRI | 2007 lm | 79 | 25.0 W | Type I | |
| UR20-24L-25-4K7-FR-BC-PT | 4000 K | 70 CRI | 2121 lm | 83 | 25.0 W | Type I | |
| UR20-24L-25-4K7-FR-CLR-PT | 4000 K | 70 CRI | 2951 lm | 116 | 25.0 W | Type I | |
| UR20-24L-25-4K7-FR-PT | 4000 K | 70 CRI | 3119 lm | 123 | 25.0 W | Type I | |
| UR20-24L-25-5K7-2-BC-CLR-PT | 5000 K | 70 CRI | 1723 lm | 67 | 25.0 W | Type II | |
| UR20-24L-25-5K7-2-BC-PT | 5000 K | 70 CRI | 1822 lm | 72 | 25.0 W | Type II | |
| UR20-24L-25-5K7-2-CLR-PT | 5000 K | 70 CRI | 2942 lm | 118 | 25.0 W | Type II | |
| UR20-24L-25-5K7-2-PT | 5000 K | 70 CRI | 3110 lm | 124 | 25.0 W | Type II | |
| UR20-24L-25-5K7-3-BC-CLR-PT | 5000 K | 70 CRI | 1909 lm | 76 | 25.0 W | Type III | |
| UR20-24L-25-5K7-3-BC-PT | 5000 K | 70 CRI | 1934 lm | 77 | 25.0 W | Type III | |
| UR20-24L-25-5K7-3-CLR-PT | 5000 K | 70 CRI | 3007 lm | 120 | 25.0 W | Type III | |
| UR20-24L-25-5K7-3-PT | 5000 K | 70 CRI | 3178 lm | 127 | 25.0 W | Type III | |
| UR20-24L-25-5K7-4-BC-CLR-PT | 5000 K | 70 CRI | 2234 lm | 88 | 25.0 W | Type IV | |
| UR20-24L-25-5K7-4-BC-PT | 5000 K | 70 CRI | 2362 lm | 93 | 25.0 W | Type IV | |
| UR20-24L-25-5K7-4-CLR-PT | 5000 K | 70 CRI | 3055 lm | 122 | 25.0 W | Type IV | |
| UR20-24L-25-5K7-4-PT | 5000 K | 70 CRI | 3229 lm | 129 | 25.0 W | Type IV | |
| UR20-24L-25-5K7-4W-BC-CLR-PT | 5000 K | 70 CRI | 1911 lm | 76 | 25.0 W | Type IV Wide | |
| UR20-24L-25-5K7-4W-BC-PT | 5000 K | 70 CRI | 2020 lm | 79 | 25.0 W | Type IV Wide | |
| UR20-24L-25-5K7-4W-CLR-PT | 5000 K | 70 CRI | 3169 lm | 127 | 25.0 W | Type IV Wide | |
| UR20-24L-25-5K7-4W-PT | 5000 K | 70 CRI | 3351 lm | 134 | 25.0 W | Type IV Wide | |
| UR20-24L-25-5K7-5QM-CLR-PT | 5000 K | 70 CRI | 2931 lm | 117 | 25.0 W | Type V Square Medium | |
| UR20-24L-25-5K7-5QM-PT | 5000 K | 70 CRI | 3098 lm | 124 | 25.0 W | Type V Square Medium | |
| UR20-24L-25-5K7-5QN-CLR-PT | 5000 K | 70 CRI | 2693 lm | 108 | 25.0 W | Type V Square Narrow | |
| UR20-24L-25-5K7-5QN-PT | 5000 K | 70 CRI | 2847 lm | 114 | 25.0 W | Type V Square Narrow | |
| UR20-24L-25-5K7-5R-CLR-PT | 5000 K | 70 CRI | 3054 lm | 122 | 25.0 W | Type V Rectangular | |
| UR20-24L-25-5K7-5R-PT | 5000 K | 70 CRI | 3228 lm | 129 | 25.0 W | Type V Rectangular | |
| UR20-24L-25-5K7-5W-CLR-PT | 5000 K | 70 CRI | 3042 lm | 122 | 25.0 W | Type V Wide(Round) | |
| UR20-24L-25-5K7-5W-PT | 5000 K | 70 CRI | 3216 lm | 129 | 25.0 W | Type V Wide(Round) | |
| UR20-24L-25-5K7-FR-BC-CLR-PT | 5000 K | 70 CRI | 1993 lm | 78 | 25.0 W | Type I | |
| UR20-24L-25-5K7-FR-BC-PT | 5000 K | 70 CRI | 2107 lm | 83 | 25.0 W | Type I | |
| UR20-24L-25-5K7-FR-CLR-PT | 5000 K | 70 CRI | 2930 lm | 117 | 25.0 W | Type I | |
| UR20-24L-25-5K7-FR-PT | 5000 K | 70 CRI | 3098 lm | 124 | 25.0 W | Type I | |
| UR20-24L-65-3K7-2-BC-CLR-PT | 3000 K | 70 CRI | 3617 lm | 55 | 65.0 W | Type II | |
| UR20-24L-65-3K7-2-BC-PT | 3000 K | 70 CRI | 3799 lm | 58 | 65.0 W | Type II | |
| UR20-24L-65-3K7-2-CLR-PT | 3000 K | 70 CRI | 6258 lm | 95 | 65.0 W | Type II | |
| UR20-24L-65-3K7-2-PT | 3000 K | 70 CRI | 6571 lm | 101 | 65.0 W | Type II | |
| UR20-24L-65-3K7-3-BC-CLR-PT | 3000 K | 70 CRI | 3599 lm | 55 | 65.0 W | Type III | |
| UR20-24L-65-3K7-3-BC-PT | 3000 K | 70 CRI | 4032 lm | 62 | 65.0 W | Type III | |
| UR20-24L-65-3K7-3-CLR-PT | 3000 K | 70 CRI | 6310 lm | 96 | 65.0 W | Type III | |
| UR20-24L-65-3K7-3-PT | 3000 K | 70 CRI | 6625 lm | 102 | 65.0 W | Type III | |
| UR20-24L-65-3K7-4-BC-CLR-PT | 3000 K | 70 CRI | 4688 lm | 71 | 65.0 W | Type IV | |
| UR20-24L-65-3K7-4-BC-PT | 3000 K | 70 CRI | 4924 lm | 76 | 65.0 W | Type IV | |
| UR20-24L-65-3K7-4-CLR-PT | 3000 K | 70 CRI | 6465 lm | 98 | 65.0 W | Type IV | |
| UR20-24L-65-3K7-4-PT | 3000 K | 70 CRI | 6788 lm | 104 | 65.0 W | Type IV | |
| UR20-24L-65-3K7-4W-BC-CLR-PT | 3000 K | 70 CRI | 4011 lm | 61 | 65.0 W | Type IV Wide | |
| UR20-24L-65-3K7-4W-BC-PT | 3000 K | 70 CRI | 4212 lm | 65 | 65.0 W | Type IV Wide | |
| UR20-24L-65-3K7-4W-CLR-PT | 3000 K | 70 CRI | 6572 lm | 100 | 65.0 W | Type IV Wide | |
| UR20-24L-65-3K7-4W-PT | 3000 K | 70 CRI | 6900 lm | 106 | 65.0 W | Type IV Wide | |
| UR20-24L-65-3K7-5QM-CLR-PT | 3000 K | 70 CRI | 6691 lm | 101 | 65.0 W | Type V Square Medium | |
| UR20-24L-65-3K7-5QM-PT | 3000 K | 70 CRI | 7025 lm | 108 | 65.0 W | Type V Square Medium | |
| UR20-24L-65-3K7-5QN-CLR-PT | 3000 K | 70 CRI | 6632 lm | 100 | 65.0 W | Type V Square Narrow | |
| UR20-24L-65-3K7-5QN-PT | 3000 K | 70 CRI | 6964 lm | 107 | 65.0 W | Type V Square Narrow | |
| UR20-24L-65-3K7-5R-CLR-PT | 3000 K | 70 CRI | 6702 lm | 102 | 65.0 W | Type V Rectangular | |
| UR20-24L-65-3K7-5R-PT | 3000 K | 70 CRI | 7038 lm | 108 | 65.0 W | Type V Rectangular | |
| UR20-24L-65-3K7-5W-CLR-PT | 3000 K | 70 CRI | 6676 lm | 101 | 65.0 W | Type V Wide(Round) | |
| UR20-24L-65-3K7-5W-PT | 3000 K | 70 CRI | 7011 lm | 108 | 65.0 W | Type V Wide(Round) | |
| UR20-24L-65-3K7-FR-BC-CLR-PT | 3000 K | 70 CRI | 4182 lm | 63 | 65.0 W | Type I | |
| UR20-24L-65-3K7-FR-BC-PT | 3000 K | 70 CRI | 4392 lm | 68 | 65.0 W | Type I | |
| UR20-24L-65-3K7-FR-CLR-PT | 3000 K | 70 CRI | 6432 lm | 97 | 65.0 W | Type I | |
| UR20-24L-65-3K7-FR-PT | 3000 K | 70 CRI | 6754 lm | 104 | 65.0 W | Type I | |
| UR20-24L-65-4K7-2-BC-CLR-PT | 4000 K | 70 CRI | 3849 lm | 58 | 65.0 W | Type II | |
| UR20-24L-65-4K7-2-BC-PT | 4000 K | 70 CRI | 4042 lm | 62 | 65.0 W | Type II | |
| UR20-24L-65-4K7-2-CLR-PT | 4000 K | 70 CRI | 6659 lm | 101 | 65.0 W | Type II | |
| UR20-24L-65-4K7-2-PT | 4000 K | 70 CRI | 6992 lm | 108 | 65.0 W | Type II | |
| UR20-24L-65-4K7-3-BC-CLR-PT | 4000 K | 70 CRI | 3829 lm | 59 | 65.0 W | Type III | |
| UR20-24L-65-4K7-3-BC-PT | 4000 K | 70 CRI | 4291 lm | 66 | 65.0 W | Type III | |
| UR20-24L-65-4K7-3-CLR-PT | 4000 K | 70 CRI | 6714 lm | 102 | 65.0 W | Type III | |
| UR20-24L-65-4K7-3-PT | 4000 K | 70 CRI | 7051 lm | 108 | 65.0 W | Type III | |
| UR20-24L-65-4K7-4-BC-CLR-PT | 4000 K | 70 CRI | 4990 lm | 76 | 65.0 W | Type IV | |
| UR20-24L-65-4K7-4-BC-PT | 4000 K | 70 CRI | 5239 lm | 81 | 65.0 W | Type IV | |
| UR20-24L-65-4K7-4-CLR-PT | 4000 K | 70 CRI | 6879 lm | 104 | 65.0 W | Type IV | |
| UR20-24L-65-4K7-4-PT | 4000 K | 70 CRI | 7223 lm | 111 | 65.0 W | Type IV | |
| UR20-24L-65-4K7-4W-BC-CLR-PT | 4000 K | 70 CRI | 4268 lm | 65 | 65.0 W | Type IV Wide | |
| UR20-24L-65-4K7-4W-BC-PT | 4000 K | 70 CRI | 4482 lm | 69 | 65.0 W | Type IV Wide | |
| UR20-24L-65-4K7-4W-CLR-PT | 4000 K | 70 CRI | 6993 lm | 106 | 65.0 W | Type IV Wide | |
| UR20-24L-65-4K7-4W-PT | 4000 K | 70 CRI | 7343 lm | 113 | 65.0 W | Type IV Wide | |
| UR20-24L-65-4K7-5QM-CLR-PT | 4000 K | 70 CRI | 7119 lm | 108 | 65.0 W | Type V Square Medium | |
| UR20-24L-65-4K7-5QM-PT | 4000 K | 70 CRI | 7477 lm | 115 | 65.0 W | Type V Square Medium | |
| UR20-24L-65-4K7-5QN-CLR-PT | 4000 K | 70 CRI | 7058 lm | 107 | 65.0 W | Type V Square Narrow | |
| UR20-24L-65-4K7-5QN-PT | 4000 K | 70 CRI | 7410 lm | 114 | 65.0 W | Type V Square Narrow | |
| UR20-24L-65-4K7-5R-CLR-PT | 4000 K | 70 CRI | 7131 lm | 108 | 65.0 W | Type V Rectangular | |
| UR20-24L-65-4K7-5R-PT | 4000 K | 70 CRI | 7489 lm | 115 | 65.0 W | Type V Rectangular | |
| UR20-24L-65-4K7-5W-CLR-PT | 4000 K | 70 CRI | 7104 lm | 108 | 65.0 W | Type V Wide(Round) | |
| UR20-24L-65-4K7-5W-PT | 4000 K | 70 CRI | 7460 lm | 115 | 65.0 W | Type V Wide(Round) | |
| UR20-24L-65-4K7-FR-BC-CLR-PT | 4000 K | 70 CRI | 4450 lm | 67 | 65.0 W | Type I | |
| UR20-24L-65-4K7-FR-BC-PT | 4000 K | 70 CRI | 4673 lm | 72 | 65.0 W | Type I | |
| UR20-24L-65-4K7-FR-CLR-PT | 4000 K | 70 CRI | 6844 lm | 104 | 65.0 W | Type I | |
| UR20-24L-65-4K7-FR-PT | 4000 K | 70 CRI | 7187 lm | 111 | 65.0 W | Type I | |
| UR20-24L-65-5K7-2-BC-CLR-PT | 5000 K | 70 CRI | 3823 lm | 58 | 65.0 W | Type II | |
| UR20-24L-65-5K7-2-BC-PT | 5000 K | 70 CRI | 4014 lm | 62 | 65.0 W | Type II | |
| UR20-24L-65-5K7-2-CLR-PT | 5000 K | 70 CRI | 6613 lm | 102 | 65.0 W | Type II | |
| UR20-24L-65-5K7-2-PT | 5000 K | 70 CRI | 6944 lm | 107 | 65.0 W | Type II | |
| UR20-24L-65-5K7-3-BC-CLR-PT | 5000 K | 70 CRI | 3803 lm | 59 | 65.0 W | Type III | |
| UR20-24L-65-5K7-3-BC-PT | 5000 K | 70 CRI | 4261 lm | 66 | 65.0 W | Type III | |
| UR20-24L-65-5K7-3-CLR-PT | 5000 K | 70 CRI | 6668 lm | 103 | 65.0 W | Type III | |
| UR20-24L-65-5K7-3-PT | 5000 K | 70 CRI | 7002 lm | 108 | 65.0 W | Type III | |
| UR20-24L-65-5K7-4-BC-CLR-PT | 5000 K | 70 CRI | 4955 lm | 75 | 65.0 W | Type IV | |
| UR20-24L-65-5K7-4-BC-PT | 5000 K | 70 CRI | 5203 lm | 80 | 65.0 W | Type IV | |
| UR20-24L-65-5K7-4-CLR-PT | 5000 K | 70 CRI | 6832 lm | 105 | 65.0 W | Type IV | |
| UR20-24L-65-5K7-4-PT | 5000 K | 70 CRI | 7174 lm | 110 | 65.0 W | Type IV | |
| UR20-24L-65-5K7-4W-BC-CLR-PT | 5000 K | 70 CRI | 4238 lm | 64 | 65.0 W | Type IV Wide | |
| UR20-24L-65-5K7-4W-BC-PT | 5000 K | 70 CRI | 4451 lm | 68 | 65.0 W | Type IV Wide | |
| UR20-24L-65-5K7-4W-CLR-PT | 5000 K | 70 CRI | 6944 lm | 107 | 65.0 W | Type IV Wide | |
| UR20-24L-65-5K7-4W-PT | 5000 K | 70 CRI | 7291 lm | 112 | 65.0 W | Type IV Wide | |
| UR20-24L-65-5K7-5QM-CLR-PT | 5000 K | 70 CRI | 7070 lm | 109 | 65.0 W | Type V Square Medium | |
| UR20-24L-65-5K7-5QM-PT | 5000 K | 70 CRI | 7425 lm | 114 | 65.0 W | Type V Square Medium | |
| UR20-24L-65-5K7-5QN-CLR-PT | 5000 K | 70 CRI | 7009 lm | 108 | 65.0 W | Type V Square Narrow | |
| UR20-24L-65-5K7-5QN-PT | 5000 K | 70 CRI | 7323 lm | 113 | 65.0 W | Type V Square Narrow | |
| UR20-24L-65-5K7-5R-CLR-PT | 5000 K | 70 CRI | 7082 lm | 109 | 65.0 W | Type V Rectangular | |
| UR20-24L-65-5K7-5R-PT | 5000 K | 70 CRI | 7437 lm | 114 | 65.0 W | Type V Rectangular | |
| UR20-24L-65-5K7-5W-CLR-PT | 5000 K | 70 CRI | 7055 lm | 109 | 65.0 W | Type V Wide(Round) | |
| UR20-24L-65-5K7-5W-PT | 5000 K | 70 CRI | 7409 lm | 114 | 65.0 W | Type V Wide(Round) | |
| UR20-24L-65-5K7-FR-BC-CLR-PT | 5000 K | 70 CRI | 4420 lm | 67 | 65.0 W | Type I | |
| UR20-24L-65-5K7-FR-BC-PT | 5000 K | 70 CRI | 4641 lm | 71 | 65.0 W | Type I | |
| UR20-24L-65-5K7-FR-CLR-PT | 5000 K | 70 CRI | 6798 lm | 105 | 65.0 W | Type I | |
| UR20-24L-65-5K7-FR-PT | 5000 K | 70 CRI | 7138 lm | 110 | 65.0 W | Type I | |
| UR20-28L-30-3K7-3-HDL-PT | 3000 K | 70 CRI | 2816 lm | 96 | 30.0 W | Type III | |
| UR20-28L-30-3K7-5W-HDL-PT | 3000 K | 0 CRI | 2917 lm | 100 | 30.0 W | Type V Wide(Round) | |
| UR20-28L-30-4K7-3-HDL-PT | 4000 K | 70 CRI | 2997 lm | 102 | 30.0 W | Type III | |
| UR20-28L-30-4K7-5W-HDL-PT | 4000 K | 0 CRI | 3105 lm | 106 | 30.0 W | Type V Wide(Round) | |
| UR20-28L-30-5K7-3-HDL-PT | 5000 K | 70 CRI | 3020 lm | 101 | 30.0 W | Type III | |
| UR20-28L-30-5K7-5W-HDL-PT | 5000 K | 70 CRI | 3084 lm | 103 | 30.0 W | Type V Wide(Round) | |
| UR20-28L-70-3K7-3-HDL-PT | 3000 K | 70 CRI | 6047 lm | 92 | 70.0 W | Type III | |
| UR20-28L-70-3K7-5W-HDL-PT | 3000 K | 70 CRI | 6221 lm | 94 | 70.0 W | Type V Wide(Round) | |
| UR20-28L-70-4K7-3-HDL-PT | 4000 K | 70 CRI | 6047 lm | 92 | 70.0 W | Type III | |
| UR20-28L-70-4K7-5W-HDL-PT | 4000 K | 70 CRI | 6619 lm | 100 | 70.0 W | Type V Wide(Round) | |
| UR20-28L-70-5K7-3-HDL-PT | 5000 K | 70 CRI | 6236 lm | 89 | 70.0 W | Type III | |
| UR20-28L-70-5K7-5W-HDL-PT | 5000 K | 70 CRI | 6525 lm | 93 | 70.0 W | Type V Wide(Round) | |
| UR20-56L-75-3K7-2-BC-CLR-PT | 3000 K | 70 CRI | 4989 lm | 67 | 75.0 W | Type II | |
| UR20-56L-75-3K7-2-BC-PT | 3000 K | 70 CRI | 5239 lm | 70 | 75.0 W | Type II | |
| UR20-56L-75-3K7-2-CLR-PT | 3000 K | 70 CRI | 8631 lm | 114 | 75.0 W | Type II | |
| UR20-56L-75-3K7-2-PT | 3000 K | 70 CRI | 9063 lm | 120 | 75.0 W | Type II | |
| UR20-56L-75-3K7-3-BC-CLR-PT | 3000 K | 70 CRI | 4964 lm | 66 | 75.0 W | Type III | |
| UR20-56L-75-3K7-3-BC-PT | 3000 K | 70 CRI | 5561 lm | 74 | 75.0 W | Type III | |
| UR20-56L-75-3K7-3-CLR-PT | 3000 K | 70 CRI | 8703 lm | 115 | 75.0 W | Type III | |
| UR20-56L-75-3K7-3-PT | 3000 K | 70 CRI | 9139 lm | 125 | 75.0 W | Type III | |
| UR20-56L-75-3K7-4-BC-CLR-PT | 3000 K | 70 CRI | 6467 lm | 85 | 75.0 W | Type IV | |
| UR20-56L-75-3K7-4-BC-PT | 3000 K | 70 CRI | 6791 lm | 90 | 75.0 W | Type IV | |
| UR20-56L-75-3K7-4-CLR-PT | 3000 K | 70 CRI | 8916 lm | 118 | 75.0 W | Type IV | |
| UR20-56L-75-3K7-4-PT | 3000 K | 70 CRI | 9362 lm | 124 | 75.0 W | Type IV | |
| UR20-56L-75-3K7-4W-BC-CLR-PT | 3000 K | 70 CRI | 5532 lm | 74 | 75.0 W | Type IV Wide | |
| UR20-56L-75-3K7-4W-BC-PT | 3000 K | 70 CRI | 5809 lm | 77 | 75.0 W | Type IV Wide | |
| UR20-56L-75-3K7-4W-CLR-PT | 3000 K | 70 CRI | 9065 lm | 120 | 75.0 W | Type IV Wide | |
| UR20-56L-75-3K7-4W-PT | 3000 K | 70 CRI | 9518 lm | 126 | 75.0 W | Type IV Wide | |
| UR20-56L-75-3K7-5QM-CLR-PT | 3000 K | 70 CRI | 9228 lm | 122 | 75.0 W | Type V Square Medium | |
| UR20-56L-75-3K7-5QM-PT | 3000 K | 70 CRI | 9691 lm | 129 | 75.0 W | Type V Square Medium | |
| UR20-56L-75-3K7-5QN-CLR-PT | 3000 K | 70 CRI | 9147 lm | 121 | 75.0 W | Type V Square Narrow | |
| UR20-56L-75-3K7-5QN-PT | 3000 K | 70 CRI | 9606 lm | 128 | 75.0 W | Type V Square Narrow | |
| UR20-56L-75-3K7-5R-CLR-PT | 3000 K | 70 CRI | 9244 lm | 122 | 75.0 W | Type V Rectangular | |
| UR20-56L-75-3K7-5R-PT | 3000 K | 70 CRI | 9706 lm | 129 | 75.0 W | Type V Rectangular | |
| UR20-56L-75-3K7-5W-CLR-PT | 3000 K | 70 CRI | 9208 lm | 122 | 75.0 W | Type V Wide(Round) | |
| UR20-56L-75-3K7-5W-PT | 3000 K | 70 CRI | 9669 lm | 129 | 75.0 W | Type V Wide(Round) | |
| UR20-56L-75-3K7-FR-BC-CLR-PT | 3000 K | 70 CRI | 5769 lm | 76 | 75.0 W | Type I | |
| UR20-56L-75-3K7-FR-BC-PT | 3000 K | 70 CRI | 6058 lm | 81 | 75.0 W | Type I | |
| UR20-56L-75-3K7-FR-CLR-PT | 3000 K | 70 CRI | 8871 lm | 117 | 75.0 W | Type I | |
| UR20-56L-75-3K7-FR-PT | 3000 K | 70 CRI | 9315 lm | 124 | 75.0 W | Type I | |
| UR20-56L-75-4K7-2-BC-CLR-PT | 4000 K | 70 CRI | 5309 lm | 71 | 75.0 W | Type II | |
| UR20-56L-75-4K7-2-BC-PT | 4000 K | 70 CRI | 5575 lm | 74 | 75.0 W | Type II | |
| UR20-56L-75-4K7-2-CLR-PT | 4000 K | 70 CRI | 9183 lm | 121 | 75.0 W | Type II | |
| UR20-56L-75-4K7-2-PT | 4000 K | 70 CRI | 9644 lm | 128 | 75.0 W | Type II | |
| UR20-56L-75-4K7-3-BC-CLR-PT | 4000 K | 70 CRI | 5282 lm | 70 | 75.0 W | Type III | |
| UR20-56L-75-4K7-3-BC-PT | 4000 K | 70 CRI | 5877 lm | 78 | 75.0 W | Type III | |
| UR20-56L-75-4K7-3-CLR-PT | 4000 K | 70 CRI | 9260 lm | 122 | 75.0 W | Type III | |
| UR20-56L-75-4K7-3-PT | 4000 K | 70 CRI | 9725 lm | 134 | 75.0 W | Type III | |
| UR20-56L-75-4K7-4-BC-CLR-PT | 4000 K | 70 CRI | 6881 lm | 91 | 75.0 W | Type IV | |
| UR20-56L-75-4K7-4-BC-PT | 4000 K | 70 CRI | 7226 lm | 96 | 75.0 W | Type IV | |
| UR20-56L-75-4K7-4-CLR-PT | 4000 K | 70 CRI | 9487 lm | 125 | 75.0 W | Type IV | |
| UR20-56L-110-3K7-2-BC-CLR-PT | 3000 K | 70 CRI | 7200 lm | 67 | 110.0 W | Type II | |
| UR20-56L-110-3K7-2-BC-PT | 3000 K | 70 CRI | 7611 lm | 70 | 110.0 W | Type II | |
| UR20-56L-110-3K7-2-CLR-PT | 3000 K | 70 CRI | 12455 lm | 115 | 110.0 W | Type II | |
| UR20-56L-110-3K7-2-PT | 3000 K | 70 CRI | 13165 lm | 121 | 110.0 W | Type II | |
| UR20-56L-110-3K7-3-BC-CLR-PT | 3000 K | 70 CRI | 7163 lm | 65 | 110.0 W | Type III | |
| UR20-56L-110-3K7-3-BC-PT | 3000 K | 70 CRI | 8079 lm | 73 | 110.0 W | Type III | |
| UR20-56L-110-3K7-3-CLR-PT | 3000 K | 70 CRI | 12560 lm | 116 | 110.0 W | Type III | |
| UR20-56L-110-3K7-3-PT | 3000 K | 70 CRI | 13275 lm | 122 | 110.0 W | Type III | |
| UR20-56L-110-3K7-4-BC-CLR-PT | 3000 K | 70 CRI | 9333 lm | 86 | 110.0 W | Type IV | |
| UR20-56L-110-3K7-4-BC-PT | 3000 K | 70 CRI | 9865 lm | 91 | 110.0 W | Type IV | |
| UR20-56L-110-3K7-4-CLR-PT | 3000 K | 70 CRI | 12868 lm | 119 | 110.0 W | Type IV | |
| UR20-56L-110-3K7-4-PT | 3000 K | 70 CRI | 13601 lm | 125 | 110.0 W | Type IV | |
| UR20-56L-110-3K7-4W-BC-CLR-PT | 3000 K | 70 CRI | 7983 lm | 74 | 110.0 W | Type IV Wide | |
| UR20-56L-110-3K7-4W-BC-PT | 3000 K | 70 CRI | 8437 lm | 78 | 110.0 W | Type IV Wide | |
| UR20-56L-110-3K7-4W-CLR-PT | 3000 K | 70 CRI | 13081 lm | 121 | 110.0 W | Type IV Wide | |
| UR20-56L-110-3K7-4W-PT | 3000 K | 70 CRI | 13827 lm | 127 | 110.0 W | Type IV Wide | |
| UR20-56L-110-3K7-5QM-CLR-PT | 3000 K | 70 CRI | 13318 lm | 123 | 110.0 W | Type V Square Medium | |
| UR20-56L-110-3K7-5QM-PT | 3000 K | 70 CRI | 14077 lm | 130 | 110.0 W | Type V Square Medium | |
| UR20-56L-110-3K7-5QN-CLR-PT | 3000 K | 70 CRI | 13202 lm | 122 | 110.0 W | Type V Square Narrow | |
| UR20-56L-110-3K7-5QN-PT | 3000 K | 70 CRI | 13953 lm | 129 | 110.0 W | Type V Square Narrow | |
| UR20-56L-110-3K7-5R-CLR-PT | 3000 K | 70 CRI | 13341 lm | 123 | 110.0 W | Type V Rectangular | |
| UR20-56L-110-3K7-5R-PT | 3000 K | 70 CRI | 14100 lm | 130 | 110.0 W | Type V Rectangular | |
| UR20-56L-110-3K7-5W-CLR-PT | 3000 K | 70 CRI | 13290 lm | 123 | 110.0 W | Type V Wide(Round) | |
| UR20-56L-110-3K7-5W-PT | 3000 K | 70 CRI | 14046 lm | 129 | 110.0 W | Type V Wide(Round) | |
| UR20-56L-110-3K7-FR-BC-CLR-PT | 3000 K | 70 CRI | 9298 lm | 86 | 110.0 W | Type I | |
| UR20-56L-110-3K7-FR-BC-PT | 3000 K | 70 CRI | 8799 lm | 81 | 110.0 W | Type I | |
| UR20-56L-110-3K7-FR-CLR-PT | 3000 K | 70 CRI | 12803 lm | 118 | 110.0 W | Type I | |
| UR20-56L-110-3K7-FR-PT | 3000 K | 70 CRI | 13533 lm | 125 | 110.0 W | Type I | |
| UR20-56L-110-4K7-2-BC-CLR-PT | 4000 K | 70 CRI | 7661 lm | 71 | 110.0 W | Type II | |
| UR20-56L-110-4K7-2-BC-PT | 4000 K | 70 CRI | 8098 lm | 75 | 110.0 W | Type II | |
| UR20-56L-110-4K7-2-CLR-PT | 4000 K | 70 CRI | 13254 lm | 123 | 110.0 W | Type II | |
| UR20-56L-110-4K7-2-PT | 4000 K | 70 CRI | 14009 lm | 129 | 110.0 W | Type II | |
| UR20-56L-110-4K7-3-BC-CLR-PT | 4000 K | 70 CRI | 7622 lm | 69 | 110.0 W | Type III | |
| UR20-56L-110-4K7-3-BC-PT | 4000 K | 70 CRI | 8596 lm | 78 | 110.0 W | Type III | |
| UR20-56L-110-4K7-3-CLR-PT | 4000 K | 70 CRI | 13365 lm | 124 | 110.0 W | Type III | |
| UR20-56L-110-4K7-3-PT | 4000 K | 70 CRI | 14126 lm | 130 | 110.0 W | Type III | |
| UR20-56L-110-4K7-4-BC-CLR-PT | 4000 K | 70 CRI | 9931 lm | 92 | 110.0 W | Type IV | |
| UR20-56L-110-4K7-4-BC-PT | 4000 K | 70 CRI | 10497 lm | 97 | 110.0 W | Type IV | |
| UR20-56L-110-4K7-4-CLR-PT | 4000 K | 70 CRI | 13692 lm | 127 | 110.0 W | Type IV | |
| UR20-56L-110-4K7-4-PT | 4000 K | 70 CRI | 14472 lm | 133 | 110.0 W | Type IV | |
| UR20-56L-110-4K7-4W-BC-CLR-PT | 4000 K | 70 CRI | 8495 lm | 79 | 110.0 W | Type IV Wide | |
| UR20-56L-110-4K7-4W-BC-PT | 4000 K | 70 CRI | 8978 lm | 83 | 110.0 W | Type IV Wide | |
| UR20-56L-110-4K7-4W-CLR-PT | 4000 K | 70 CRI | 13920 lm | 129 | 110.0 W | Type IV Wide | |
| UR20-56L-110-4K7-4W-PT | 4000 K | 70 CRI | 14713 lm | 136 | 110.0 W | Type IV Wide | |
| UR20-56L-110-4K7-5QM-CLR-PT | 4000 K | 70 CRI | 14172 lm | 131 | 110.0 W | Type V Square Medium | |
| UR20-56L-110-4K7-5QM-PT | 4000 K | 70 CRI | 14979 lm | 138 | 110.0 W | Type V Square Medium | |
| UR20-56L-110-4K7-5QN-CLR-PT | 4000 K | 70 CRI | 14048 lm | 130 | 110.0 W | Type V Square Narrow | |
| UR20-56L-110-4K7-5QN-PT | 4000 K | 70 CRI | 14848 lm | 137 | 110.0 W | Type V Square Narrow | |
| UR20-56L-110-4K7-5R-CLR-PT | 4000 K | 70 CRI | 14195 lm | 131 | 110.0 W | Type V Rectangular | |
| UR20-56L-110-4K7-5R-PT | 4000 K | 70 CRI | 15004 lm | 138 | 110.0 W | Type V Rectangular | |
| UR20-56L-110-4K7-5W-CLR-PT | 4000 K | 70 CRI | 14141 lm | 131 | 110.0 W | Type V Wide(Round) | |
| UR20-56L-110-4K7-5W-PT | 4000 K | 70 CRI | 14946 lm | 138 | 110.0 W | Type V Wide(Round) | |
| UR20-56L-110-4K7-FR-BC-CLR-PT | 4000 K | 70 CRI | 8325 lm | 77 | 110.0 W | Type I | |
| UR20-56L-110-4K7-FR-BC-PT | 4000 K | 70 CRI | 9363 lm | 86 | 110.0 W | Type I | |
| UR20-56L-110-4K7-FR-CLR-PT | 4000 K | 70 CRI | 13624 lm | 126 | 110.0 W | Type I | |
| UR20-56L-110-4K7-FR-PT | 4000 K | 70 CRI | 14399 lm | 133 | 110.0 W | Type I | |
| UR20-56L-110-5K7-2-BC-CLR-PT | 5000 K | 70 CRI | 7610 lm | 70 | 110.0 W | Type II | |
| UR20-56L-110-5K7-2-BC-PT | 5000 K | 70 CRI | 8042 lm | 74 | 110.0 W | Type II | |
| UR20-56L-110-5K7-2-CLR-PT | 5000 K | 70 CRI | 13164 lm | 120 | 110.0 W | Type II | |
| UR20-56L-110-5K7-2-PT | 5000 K | 70 CRI | 13913 lm | 126 | 110.0 W | Type II | |
| UR20-56L-110-5K7-3-BC-CLR-PT | 5000 K | 70 CRI | 7570 lm | 69 | 110.0 W | Type III | |
| UR20-56L-110-5K7-3-BC-PT | 5000 K | 70 CRI | 8538 lm | 78 | 110.0 W | Type III | |
| UR20-56L-110-5K7-3-CLR-PT | 5000 K | 70 CRI | 13273 lm | 121 | 110.0 W | Type III | |
| UR20-56L-110-5K7-3-PT | 5000 K | 70 CRI | 14030 lm | 128 | 110.0 W | Type III | |
| UR20-56L-110-5K7-4-BC-CLR-PT | 5000 K | 70 CRI | 9864 lm | 90 | 110.0 W | Type IV | |
| UR20-56L-110-5K7-4-BC-PT | 5000 K | 70 CRI | 10425 lm | 96 | 110.0 W | Type IV | |
| UR20-56L-110-5K7-4-CLR-PT | 5000 K | 70 CRI | 13599 lm | 124 | 110.0 W | Type IV | |
| UR20-56L-110-5K7-4-PT | 5000 K | 70 CRI | 14373 lm | 131 | 110.0 W | Type IV | |
| UR20-56L-110-5K7-4W-BC-CLR-PT | 5000 K | 70 CRI | 8436 lm | 78 | 110.0 W | Type IV Wide | |
| UR20-56L-110-5K7-4W-BC-PT | 5000 K | 70 CRI | 8916 lm | 82 | 110.0 W | Type IV Wide | |
| UR20-56L-110-5K7-4W-CLR-PT | 5000 K | 70 CRI | 13823 lm | 126 | 110.0 W | Type IV Wide | |
| UR20-56L-110-5K7-4W-PT | 5000 K | 70 CRI | 14611 lm | 133 | 110.0 W | Type IV Wide | |
| UR20-56L-110-5K7-5QM-CLR-PT | 5000 K | 70 CRI | 14075 lm | 128 | 110.0 W | Type V Square Medium | |
| UR20-56L-110-5K7-5QM-PT | 5000 K | 70 CRI | 14876 lm | 135 | 110.0 W | Type V Square Medium | |
| UR20-56L-110-5K7-5QN-CLR-PT | 5000 K | 70 CRI | 13951 lm | 127 | 110.0 W | Type V Square Narrow | |
| UR20-56L-110-5K7-5QN-PT | 5000 K | 70 CRI | 14747 lm | 134 | 110.0 W | Type V Square Narrow | |
| UR20-56L-110-5K7-5R-CLR-PT | 5000 K | 70 CRI | 14099 lm | 128 | 110.0 W | Type V Rectangular | |
| UR20-56L-110-5K7-5R-PT | 5000 K | 70 CRI | 14901 lm | 135 | 110.0 W | Type V Rectangular | |
| UR20-56L-110-5K7-5W-CLR-PT | 5000 K | 70 CRI | 14044 lm | 128 | 110.0 W | Type V Wide(Round) | |
| UR20-56L-110-5K7-5W-PT | 5000 K | 70 CRI | 14844 lm | 135 | 110.0 W | Type V Wide(Round) | |
| UR20-56L-110-5K7-FR-BC-CLR-PT | 5000 K | 70 CRI | 8798 lm | 81 | 110.0 W | Type I | |
| UR20-56L-110-5K7-FR-BC-PT | 5000 K | 70 CRI | 9300 lm | 85 | 110.0 W | Type I | |
| UR20-56L-110-5K7-FR-CLR-PT | 5000 K | 70 CRI | 13531 lm | 123 | 110.0 W | Type I | |
| UR20-56L-110-5K7-FR-PT | 5000 K | 70 CRI | 14301 lm | 130 | 110.0 W | Type I | |
| UR20-56L-140-3K7-2-BC-CLR-PT | 3000 K | 70 CRI | 8178 lm | 59 | 140.0 W | Type II | |
| UR20-56L-140-3K7-2-BC-PT | 3000 K | 70 CRI | 8618 lm | 63 | 140.0 W | Type II | |
| UR20-56L-140-3K7-2-CLR-PT | 3000 K | 70 CRI | 14146 lm | 102 | 140.0 W | Type II | |
| UR20-56L-140-3K7-2-PT | 3000 K | 70 CRI | 14897 lm | 108 | 140.0 W | Type II | |
| UR20-56L-140-3K7-3-BC-CLR-PT | 3000 K | 70 CRI | 8136 lm | 58 | 140.0 W | Type III | |
| UR20-56L-140-3K7-3-BC-PT | 3000 K | 70 CRI | 9147 lm | 65 | 140.0 W | Type III | |
| UR20-56L-140-3K7-3-CLR-PT | 3000 K | 70 CRI | 14265 lm | 103 | 140.0 W | Type III | |
| UR20-56L-140-3K7-3-PT | 3000 K | 70 CRI | 15032 lm | 109 | 140.0 W | Type III | |
| UR20-56L-140-3K7-4-BC-CLR-PT | 3000 K | 70 CRI | 10600 lm | 76 | 140.0 W | Type IV | |
| UR20-56L-140-3K7-4-BC-PT | 3000 K | 70 CRI | 11170 lm | 81 | 140.0 W | Type IV | |
| UR20-56L-140-3K7-4-CLR-PT | 3000 K | 70 CRI | 14614 lm | 105 | 140.0 W | Type IV | |
| UR20-56L-140-3K7-4-PT | 3000 K | 70 CRI | 15400 lm | 112 | 140.0 W | Type IV | |
| UR20-56L-140-3K7-4W-BC-CLR-PT | 3000 K | 70 CRI | 9067 lm | 65 | 140.0 W | Type IV Wide | |
| UR20-56L-140-3K7-4W-BC-PT | 3000 K | 70 CRI | 9554 lm | 69 | 140.0 W | Type IV Wide | |
| UR20-56L-140-3K7-4W-CLR-PT | 3000 K | 70 CRI | 14858 lm | 107 | 140.0 W | Type IV Wide | |
| UR20-56L-140-3K7-4W-PT | 3000 K | 70 CRI | 15656 lm | 114 | 140.0 W | Type IV Wide | |
| UR20-56L-140-3K7-5QM-CLR-PT | 3000 K | 70 CRI | 15126 lm | 109 | 140.0 W | Type V Square Medium | |
| UR20-56L-140-3K7-5QM-PT | 3000 K | 70 CRI | 15939 lm | 116 | 140.0 W | Type V Square Medium | |
| UR20-56L-140-3K7-5QN-CLR-PT | 3000 K | 70 CRI | 14994 lm | 108 | 140.0 W | Type V Square Narrow | |
| UR20-56L-140-3K7-5QN-PT | 3000 K | 70 CRI | 15801 lm | 115 | 140.0 W | Type V Square Narrow | |
| UR20-56L-140-3K7-5R-CLR-PT | 3000 K | 70 CRI | 15152 lm | 109 | 140.0 W | Type V Rectangular | |
| UR20-56L-140-3K7-5R-PT | 3000 K | 70 CRI | 15966 lm | 116 | 140.0 W | Type V Rectangular | |
| UR20-56L-140-3K7-5W-CLR-PT | 3000 K | 70 CRI | 15094 lm | 109 | 140.0 W | Type V Wide(Round) | |
| UR20-56L-140-3K7-5W-PT | 3000 K | 70 CRI | 15906 lm | 115 | 140.0 W | Type V Wide(Round) | |
| UR20-56L-140-3K7-FR-BC-CLR-PT | 3000 K | 70 CRI | 9456 lm | 68 | 140.0 W | Type I | |
| UR20-56L-140-3K7-FR-BC-PT | 3000 K | 70 CRI | 9964 lm | 72 | 140.0 W | Type I | |
| UR20-56L-140-3K7-FR-CLR-PT | 3000 K | 70 CRI | 14541 lm | 105 | 140.0 W | Type I | |
| UR20-56L-140-3K7-FR-PT | 3000 K | 70 CRI | 15323 lm | 111 | 140.0 W | Type I | |
| UR20-56L-140-4K7-2-BC-CLR-PT | 4000 K | 70 CRI | 8702 lm | 63 | 140.0 W | Type II | |
| UR20-56L-140-4K7-2-BC-PT | 4000 K | 70 CRI | 9169 lm | 67 | 140.0 W | Type II | |
| UR20-56L-140-4K7-2-CLR-PT | 4000 K | 70 CRI | 15053 lm | 108 | 140.0 W | Type II | |
| UR20-56L-140-4K7-2-PT | 4000 K | 70 CRI | 15852 lm | 115 | 140.0 W | Type II | |
| UR20-56L-140-4K7-3-BC-CLR-PT | 4000 K | 70 CRI | 8657 lm | 62 | 140.0 W | Type III | |
| UR20-56L-140-4K7-3-BC-PT | 4000 K | 70 CRI | 9733 lm | 70 | 140.0 W | Type III | |
| UR20-56L-140-4K7-3-CLR-PT | 4000 K | 70 CRI | 15179 lm | 109 | 140.0 W | Type III | |
| UR20-56L-140-4K7-3-PT | 4000 K | 70 CRI | 15996 lm | 116 | 140.0 W | Type III | |
| UR20-56L-140-4K7-4-BC-CLR-PT | 4000 K | 70 CRI | 11279 lm | 81 | 140.0 W | Type IV | |
| UR20-56L-140-4K7-4-BC-PT | 4000 K | 70 CRI | 11886 lm | 86 | 140.0 W | Type IV | |
| UR20-56L-140-4K7-4-CLR-PT | 4000 K | 70 CRI | 15551 lm | 112 | 140.0 W | Type IV | |
| UR20-56L-140-4K7-4-PT | 4000 K | 70 CRI | 16387 lm | 119 | 140.0 W | Type IV | |
| UR20-56L-140-4K7-4W-BC-CLR-PT | 4000 K | 70 CRI | 9649 lm | 70 | 140.0 W | Type IV Wide | |
| UR20-56L-140-4K7-4W-BC-PT | 4000 K | 70 CRI | 10166 lm | 74 | 140.0 W | Type IV Wide | |
| UR20-56L-140-4K7-4W-CLR-PT | 4000 K | 70 CRI | 15811 lm | 114 | 140.0 W | Type IV Wide | |
| UR20-56L-140-4K7-4W-PT | 4000 K | 70 CRI | 16660 lm | 121 | 140.0 W | Type IV Wide | |
| UR20-56L-140-4K7-5QM-CLR-PT | 4000 K | 70 CRI | 16095 lm | 116 | 140.0 W | Type V Square Medium | |
| UR20-56L-140-4K7-5QM-PT | 4000 K | 70 CRI | 16962 lm | 123 | 140.0 W | Type V Square Medium | |
| UR20-56L-140-4K7-5QN-CLR-PT | 4000 K | 70 CRI | 15955 lm | 115 | 140.0 W | Type V Square Narrow | |
| UR20-56L-140-4K7-5QN-PT | 4000 K | 70 CRI | 16813 lm | 122 | 140.0 W | Type V Square Narrow | |
| UR20-56L-140-4K7-5R-CLR-PT | 4000 K | 70 CRI | 16122 lm | 116 | 140.0 W | Type V Rectangular | |
| UR20-56L-140-4K7-5R-PT | 4000 K | 70 CRI | 16990 lm | 123 | 140.0 W | Type V Rectangular | |
| UR20-56L-140-4K7-5W-CLR-PT | 4000 K | 70 CRI | 16061 lm | 116 | 140.0 W | Type V Wide(Round) | |
| UR20-56L-140-4K7-5W-PT | 4000 K | 70 CRI | 16925 lm | 123 | 140.0 W | Type V Wide(Round) | |
| UR20-56L-140-4K7-FR-BC-CLR-PT | 4000 K | 70 CRI | 10061 lm | 72 | 140.0 W | Type I | |
| UR20-56L-140-4K7-FR-BC-PT | 4000 K | 70 CRI | 10603 lm | 77 | 140.0 W | Type I | |
| UR20-56L-140-4K7-FR-CLR-PT | 4000 K | 70 CRI | 15473 lm | 111 | 140.0 W | Type I | |
| UR20-56L-140-4K7-FR-PT | 4000 K | 70 CRI | 16306 lm | 118 | 140.0 W | Type I | |
| UR20-56L-140-5K7-2-BC-CLR-PT | 5000 K | 70 CRI | 8642 lm | 62 | 140.0 W | Type II | |
| UR20-56L-140-5K7-2-BC-PT | 5000 K | 70 CRI | 9107 lm | 66 | 140.0 W | Type II | |
| UR20-56L-140-5K7-2-CLR-PT | 5000 K | 70 CRI | 14950 lm | 107 | 140.0 W | Type II | |
| UR20-56L-140-5K7-2-PT | 5000 K | 70 CRI | 15743 lm | 112 | 140.0 W | Type II | |
| UR20-56L-140-5K7-3-BC-CLR-PT | 5000 K | 70 CRI | 8598 lm | 61 | 140.0 W | Type III | |
| UR20-56L-140-5K7-3-BC-PT | 5000 K | 70 CRI | 9667 lm | 69 | 140.0 W | Type III | |
| UR20-56L-140-5K7-3-CLR-PT | 5000 K | 70 CRI | 15076 lm | 108 | 140.0 W | Type III | |
| UR20-56L-140-5K7-3-PT | 5000 K | 70 CRI | 15886 lm | 113 | 140.0 W | Type III | |
| UR20-56L-140-5K7-4-BC-CLR-PT | 5000 K | 70 CRI | 11203 lm | 81 | 140.0 W | Type IV | |
| UR20-56L-140-5K7-4-BC-PT | 5000 K | 70 CRI | 11804 lm | 86 | 140.0 W | Type IV | |
| UR20-56L-140-5K7-4-CLR-PT | 5000 K | 70 CRI | 15445 lm | 110 | 140.0 W | Type IV | |
| UR20-56L-140-5K7-4-PT | 5000 K | 70 CRI | 16275 lm | 116 | 140.0 W | Type IV | |
| UR20-56L-140-5K7-4W-BC-CLR-PT | 5000 K | 70 CRI | 9581 lm | 69 | 140.0 W | Type IV Wide | |
| UR20-56L-140-5K7-4W-BC-PT | 5000 K | 70 CRI | 10095 lm | 73 | 140.0 W | Type IV Wide | |
| UR20-56L-140-5K7-4W-CLR-PT | 5000 K | 70 CRI | 15700 lm | 112 | 140.0 W | Type IV Wide | |
| UR20-56L-140-5K7-4W-PT | 5000 K | 70 CRI | 16544 lm | 118 | 140.0 W | Type IV Wide | |
| UR20-56L-140-5K7-5QM-CLR-PT | 5000 K | 70 CRI | 15985 lm | 114 | 140.0 W | Type V Square Medium | |
| UR20-56L-140-5K7-5QM-PT | 5000 K | 70 CRI | 16845 lm | 120 | 140.0 W | Type V Square Medium | |
| UR20-56L-140-5K7-5QN-CLR-PT | 5000 K | 70 CRI | 15846 lm | 113 | 140.0 W | Type V Square Narrow | |
| UR20-56L-140-5K7-5QN-PT | 5000 K | 70 CRI | 16698 lm | 119 | 140.0 W | Type V Square Narrow | |
| UR20-56L-140-5K7-5R-CLR-PT | 5000 K | 70 CRI | 16012 lm | 114 | 140.0 W | Type V Rectangular | |
| UR20-56L-140-5K7-5R-PT | 5000 K | 70 CRI | 16874 lm | 121 | 140.0 W | Type V Rectangular | |
| UR20-56L-140-5K7-5W-CLR-PT | 5000 K | 70 CRI | 15951 lm | 114 | 140.0 W | Type V Wide(Round) | |
| UR20-56L-140-5K7-5W-PT | 5000 K | 70 CRI | 16808 lm | 120 | 140.0 W | Type V Wide(Round) | |
| UR20-56L-140-5K7-FR-BC-CLR-PT | 5000 K | 70 CRI | 9993 lm | 72 | 140.0 W | Type I | |
| UR20-56L-140-5K7-FR-BC-PT | 5000 K | 70 CRI | 10530 lm | 76 | 140.0 W | Type I | |
| UR20-56L-140-5K7-FR-CLR-PT | 5000 K | 70 CRI | 15367 lm | 110 | 140.0 W | Type I | |
| UR20-56L-140-5K7-FR-PT | 5000 K | 70 CRI | 16194 lm | 116 | 140.0 W | Type I | |
| UR20-56L-75-4K7-4-PT | 4000 K | 70 CRI | 9362 lm | 124 | 75.0 W | Type IV | |
| UR20-56L-75-4K7-4W-BC-CLR-PT | 4000 K | 70 CRI | 5887 lm | 78 | 75.0 W | Type IV Wide | |
| UR20-56L-75-4K7-4W-BC-PT | 4000 K | 70 CRI | 6181 lm | 82 | 75.0 W | Type IV Wide | |
| UR20-56L-75-4K7-4W-CLR-PT | 4000 K | 70 CRI | 9646 lm | 128 | 75.0 W | Type IV Wide | |
| UR20-56L-75-4K7-4W-PT | 4000 K | 70 CRI | 10129 lm | 135 | 75.0 W | Type IV Wide | |
| UR20-56L-75-4K7-5QM-CLR-PT | 4000 K | 70 CRI | 9820 lm | 130 | 75.0 W | Type V Square Medium | |
| UR20-56L-75-4K7-5QM-PT | 4000 K | 70 CRI | 10312 lm | 137 | 75.0 W | Type V Square Medium | |
| UR20-56L-75-4K7-5QN-CLR-PT | 4000 K | 70 CRI | 9734 lm | 129 | 75.0 W | Type V Square Narrow | |
| UR20-56L-75-4K7-5QN-PT | 4000 K | 70 CRI | 10222 lm | 136 | 75.0 W | Type V Square Narrow | |
| UR20-56L-75-4K7-5R-CLR-PT | 4000 K | 70 CRI | 9836 lm | 130 | 75.0 W | Type V Rectangular | |
| UR20-56L-75-4K7-5R-PT | 4000 K | 70 CRI | 10328 lm | 137 | 75.0 W | Type V Rectangular | |
| UR20-56L-75-4K7-5W-CLR-PT | 4000 K | 70 CRI | 9798 lm | 130 | 75.0 W | Type V Wide(Round) | |
| UR20-56L-75-4K7-5W-PT | 4000 K | 70 CRI | 10289 lm | 137 | 75.0 W | Type V Wide(Round) | |
| UR20-56L-75-4K7-FR-BC-CLR-PT | 4000 K | 70 CRI | 6138 lm | 81 | 75.0 W | Type I | |
| UR20-56L-75-4K7-FR-BC-PT | 4000 K | 70 CRI | 6445 lm | 86 | 75.0 W | Type I | |
| UR20-56L-75-4K7-FR-CLR-PT | 4000 K | 70 CRI | 9760 lm | 129 | 75.0 W | Type I |
