KIM LIGHTING

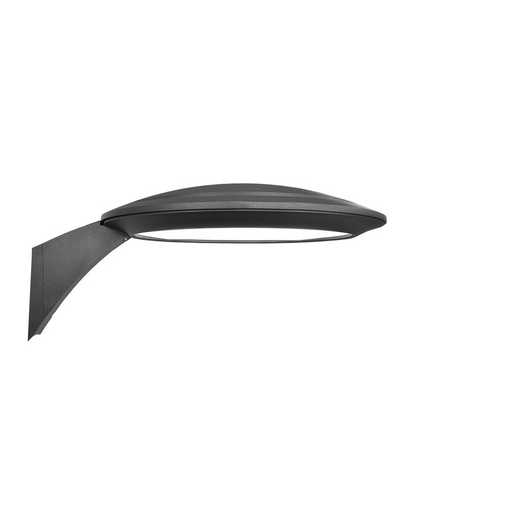

Ouro Arm Mount
Ouro is a seamless blend of elegant form, performance, visual comfort, controls, scalability and mounting options to enhance the environment in which they occupy.
Features & Benefits
- Ouro 20 delivers up to 17,000 lumens
- Ouro 28 delivers up to 35,000 lumens
- Three lens configurations clear, diffuse & no lens
- Nine optical distributions
- Asymmetric: 2, 3, 4, 4W & FR - Symmetric: 5QM, 5QN, 5R & 5W
- Some configurations are 4G certified
Specifications
Dimming Protocol
0-10V Dimming
Wattage Range
25 - 315
Color Offering
BLS - Black Gloss Smooth,
BLT - Black Matte Textured,
DBS - Dark Bronze Gloss Smooth,
DBT- Dark Bronze Matte Textured,
GTT - Graphite Matte Textured,
LG - Light Grey Matte Textured,
LGS - Light Grey Gloss Smooth,
PSS - Platinum Silver Gloss Smooth,
VGT - Verde Green Matte Textured,
WHS - White Gloss Smooth,
WHT - White Matte Textured,
CC – Custom Color
Ratings
TAA (Buy American 52.225-11)
Controls Platform
LightGRIDPlus,
NX Networked - Wireless
Size
Round
Specifications
| Dimming Protocol | 0-10V Dimming |
| Wattage Range | 25 - 315 |
| Color Offering | BLS - Black Gloss Smooth, BLT - Black Matte Textured, DBS - Dark Bronze Gloss Smooth, DBT- Dark Bronze Matte Textured, GTT - Graphite Matte Textured, LG - Light Grey Matte Textured, LGS - Light Grey Gloss Smooth, PSS - Platinum Silver Gloss Smooth, VGT - Verde Green Matte Textured, WHS - White Gloss Smooth, WHT - White Matte Textured, CC – Custom Color |
| Ratings | TAA (Buy American 52.225-11) |
| Controls Platform | LightGRIDPlus, NX Networked - Wireless |
| Size | Round |
Product Documents
Spec Sheets
Brochures / Catalogs
Design / BIM Files / 3D Models
Technical Documents
Photometry(0)
Clear Filters| Product Name | Color Temp | CRI | Lumens | LM/W | Watts | Dist. Type | Resources |
|---|---|---|---|---|---|---|---|
| UR20-24L-25-3K7-2-BC-CLR | 3000 K | 70 CRI | 1749 lm | 68 | 25.0 W | Type II | |
| UR20-24L-25-3K7-2-BC | 3000 K | 70 CRI | 1849 lm | 73 | 25.0 W | Type II | |
| UR20-24L-25-3K7-2-CLR | 3000 K | 70 CRI | 2940 lm | 115 | 25.0 W | Type II | |
| UR20-24L-25-3K7-2 | 3000 K | 70 CRI | 3107 lm | 122 | 25.0 W | Type II | |
| UR20-24L-25-3K7-3-BC-CLR | 3000 K | 70 CRI | 1732 lm | 68 | 25.0 W | Type III | |
| UR20-24L-25-3K7-3-BC | 3000 K | 70 CRI | 1870 lm | 73 | 25.0 W | Type III | |
| UR20-24L-25-3K7-3-CLR | 3000 K | 70 CRI | 2959 lm | 116 | 25.0 W | Type III | |
| UR20-24L-25-3K7-3 | 3000 K | 70 CRI | 3128 lm | 123 | 25.0 W | Type III | |
| UR20-24L-25-3K7-4-BC-CLR | 3000 K | 70 CRI | 1847 lm | 72 | 25.0 W | Type IV | |
| UR20-24L-25-3K7-4-BC | 3000 K | 70 CRI | 2330 lm | 92 | 25.0 W | Type IV | |
| UR20-24L-25-3K7-4-CLR | 3000 K | 70 CRI | 2950 lm | 116 | 25.0 W | Type IV | |
| UR20-24L-25-3K7-4 | 3000 K | 70 CRI | 3118 lm | 122 | 25.0 W | Type IV | |
| UR20-24L-25-3K7-4W-BC-CLR | 3000 K | 70 CRI | 1903 lm | 75 | 25.0 W | Type IV Wide | |
| UR20-24L-25-3K7-4W-BC | 3000 K | 70 CRI | 2011 lm | 79 | 25.0 W | Type IV Wide | |
| UR20-24L-25-3K7-4W-CLR | 3000 K | 70 CRI | 3067 lm | 120 | 25.0 W | Type IV Wide | |
| UR20-24L-25-3K7-4W | 3000 K | 70 CRI | 3242 lm | 127 | 25.0 W | Type IV Wide | |
| UR20-24L-25-3K7-5QM-CLR | 3000 K | 70 CRI | 2837 lm | 111 | 25.0 W | Type V Square Medium | |
| UR20-24L-25-3K7-5QM | 3000 K | 70 CRI | 2999 lm | 118 | 25.0 W | Type V Square Medium | |
| UR20-24L-25-3K7-5QN-CLR | 3000 K | 70 CRI | 2732 lm | 107 | 25.0 W | Type V Square Narrow | |
| UR20-24L-25-3K7-5QN | 3000 K | 70 CRI | 2888 lm | 113 | 25.0 W | Type V Square Narrow | |
| UR20-24L-25-3K7-5R-CLR | 3000 K | 70 CRI | 2926 lm | 115 | 25.0 W | Type V Rectangular | |
| UR20-24L-25-3K7-5R | 3000 K | 70 CRI | 3092 lm | 121 | 25.0 W | Type V Rectangular | |
| UR20-24L-25-3K7-5W-CLR | 3000 K | 70 CRI | 2894 lm | 113 | 25.0 W | Type V Wide(Round) | |
| UR20-24L-25-3K7-5W | 3000 K | 70 CRI | 3059 lm | 120 | 25.0 W | Type V Wide(Round) | |
| UR20-24L-25-3K7-FR-BC-CLR | 3000 K | 70 CRI | 2026 lm | 79 | 25.0 W | Type I | |
| UR20-24L-25-3K7-FR-BC | 3000 K | 70 CRI | 2141 lm | 84 | 25.0 W | Type I | |
| UR20-24L-25-3K7-FR-CLR | 3000 K | 70 CRI | 3083 lm | 121 | 25.0 W | Type I | |
| UR20-24L-25-3K7-FR | 3000 K | 70 CRI | 3258 lm | 128 | 25.0 W | Type I | |
| UR20-24L-25-4K7-2-BC-CLR | 4000 K | 70 CRI | 1861 lm | 73 | 25.0 W | Type II | |
| UR20-24L-25-4K7-2-BC | 4000 K | 70 CRI | 1967 lm | 77 | 25.0 W | Type II | |
| UR20-24L-25-4K7-2-CLR | 4000 K | 70 CRI | 3128 lm | 123 | 25.0 W | Type II | |
| UR20-24L-25-4K7-2 | 4000 K | 70 CRI | 3306 lm | 130 | 25.0 W | Type II | |
| UR20-24L-25-4K7-3-BC-CLR | 4000 K | 70 CRI | 1843 lm | 72 | 25.0 W | Type III | |
| UR20-24L-25-4K7-3-BC | 4000 K | 70 CRI | 1990 lm | 78 | 25.0 W | Type III | |
| UR20-24L-25-4K7-3-CLR | 4000 K | 70 CRI | 3149 lm | 123 | 25.0 W | Type III | |
| UR20-24L-25-4K7-3 | 4000 K | 70 CRI | 3329 lm | 131 | 25.0 W | Type III | |
| UR20-24L-25-4K7-4-BC-CLR | 4000 K | 70 CRI | 1966 lm | 77 | 25.0 W | Type IV | |
| UR20-24L-25-4K7-4-BC | 4000 K | 70 CRI | 2479 lm | 97 | 25.0 W | Type IV | |
| UR20-24L-25-4K7-4-CLR | 4000 K | 70 CRI | 3139 lm | 123 | 25.0 W | Type IV | |
| UR20-24L-25-4K7-4 | 4000 K | 70 CRI | 3318 lm | 130 | 25.0 W | Type IV | |
| UR20-24L-25-4K7-4W-BC-CLR | 4000 K | 70 CRI | 2025 lm | 79 | 25.0 W | Type IV Wide | |
| UR20-24L-25-4K7-4W-BC | 4000 K | 70 CRI | 2140 lm | 84 | 25.0 W | Type IV Wide | |
| UR20-24L-25-4K7-4W-CLR | 4000 K | 70 CRI | 3263 lm | 128 | 25.0 W | Type IV Wide | |
| UR20-24L-25-4K7-4W | 4000 K | 70 CRI | 3449 lm | 135 | 25.0 W | Type IV Wide | |
| UR20-24L-25-4K7-5QM-CLR | 4000 K | 70 CRI | 3019 lm | 118 | 25.0 W | Type V Square Medium | |
| UR20-24L-25-4K7-5QM | 4000 K | 70 CRI | 3191 lm | 125 | 25.0 W | Type V Square Medium | |
| UR20-24L-25-4K7-5QN-CLR | 4000 K | 70 CRI | 2907 lm | 114 | 25.0 W | Type V Square Narrow | |
| UR20-24L-25-4K7-5QN | 4000 K | 70 CRI | 3073 lm | 121 | 25.0 W | Type V Square Narrow | |
| UR20-24L-25-4K7-5R-CLR | 4000 K | 70 CRI | 3113 lm | 122 | 25.0 W | Type V Rectangular | |
| UR20-24L-25-4K7-5R | 4000 K | 70 CRI | 3291 lm | 129 | 25.0 W | Type V Rectangular | |
| UR20-24L-25-4K7-5W-CLR | 4000 K | 70 CRI | 3079 lm | 121 | 25.0 W | Type V Wide(Round) | |
| UR20-24L-25-4K7-5W | 4000 K | 70 CRI | 3255 lm | 128 | 25.0 W | Type V Wide(Round) | |
| UR20-24L-25-4K7-FR-BC-CLR | 4000 K | 70 CRI | 2155 lm | 84 | 25.0 W | Type I | |
| UR20-24L-25-4K7-FR-BC | 4000 K | 70 CRI | 2278 lm | 89 | 25.0 W | Type I | |
| UR20-24L-25-4K7-FR-CLR | 4000 K | 70 CRI | 3280 lm | 128 | 25.0 W | Type I | |
| UR20-24L-25-4K7-FR | 4000 K | 70 CRI | 3467 lm | 136 | 25.0 W | Type I | |
| UR20-24L-25-5K7-2-BC-CLR | 5000 K | 70 CRI | 1848 lm | 72 | 25.0 W | Type II | |
| UR20-24L-25-5K7-2-BC | 5000 K | 70 CRI | 1954 lm | 77 | 25.0 W | Type II | |
| UR20-24L-25-5K7-2-CLR | 5000 K | 70 CRI | 3107 lm | 122 | 25.0 W | Type II | |
| UR20-24L-25-5K7-2 | 5000 K | 70 CRI | 3284 lm | 129 | 25.0 W | Type II | |
| UR20-24L-25-5K7-3-BC-CLR | 5000 K | 70 CRI | 1830 lm | 72 | 25.0 W | Type III | |
| UR20-24L-25-5K7-3-BC | 5000 K | 70 CRI | 1977 lm | 78 | 25.0 W | Type III | |
| UR20-24L-25-5K7-3-CLR | 5000 K | 70 CRI | 3127 lm | 122 | 25.0 W | Type III | |
| UR20-24L-25-5K7-3 | 5000 K | 70 CRI | 3306 lm | 130 | 25.0 W | Type III | |
| UR20-24L-25-5K7-4-BC-CLR | 5000 K | 70 CRI | 1952 lm | 76 | 25.0 W | Type IV | |
| UR20-24L-25-5K7-4-BC | 5000 K | 70 CRI | 2462 lm | 97 | 25.0 W | Type IV | |
| UR20-24L-25-5K7-4-CLR | 5000 K | 70 CRI | 3117 lm | 122 | 25.0 W | Type IV | |
| UR20-24L-25-5K7-4 | 5000 K | 70 CRI | 3295 lm | 129 | 25.0 W | Type IV | |
| UR20-24L-25-5K7-4W-BC-CLR | 5000 K | 70 CRI | 2011 lm | 79 | 25.0 W | Type IV Wide | |
| UR20-24L-25-5K7-4W-BC | 5000 K | 70 CRI | 2125 lm | 83 | 25.0 W | Type IV Wide | |
| UR20-24L-25-5K7-4W-CLR | 5000 K | 70 CRI | 3241 lm | 127 | 25.0 W | Type IV Wide | |
| UR20-24L-25-5K7-4W | 5000 K | 70 CRI | 3426 lm | 135 | 25.0 W | Type IV Wide | |
| UR20-24L-25-5K7-5QM-CLR | 5000 K | 70 CRI | 2998 lm | 117 | 25.0 W | Type V Square Medium | |
| UR20-24L-25-5K7-5QM | 5000 K | 70 CRI | 3169 lm | 124 | 25.0 W | Type V Square Medium | |
| UR20-24L-25-5K7-5QN-CLR | 5000 K | 70 CRI | 2887 lm | 113 | 25.0 W | Type V Square Narrow | |
| UR20-24L-25-5K7-5QN | 5000 K | 70 CRI | 3052 lm | 120 | 25.0 W | Type V Square Narrow | |
| UR20-24L-25-5K7-5R-CLR | 5000 K | 70 CRI | 3092 lm | 121 | 25.0 W | Type V Rectangular | |
| UR20-24L-25-5K7-5R | 5000 K | 70 CRI | 3268 lm | 128 | 25.0 W | Type V Rectangular | |
| UR20-24L-25-5K7-5W-CLR | 5000 K | 70 CRI | 3058 lm | 120 | 25.0 W | Type V Wide(Round) | |
| UR20-24L-25-5K7-5W | 5000 K | 70 CRI | 3233 lm | 127 | 25.0 W | Type V Wide(Round) | |
| UR20-24L-25-5K7-FR-BC-CLR | 5000 K | 70 CRI | 2141 lm | 84 | 25.0 W | Type I | |
| UR20-24L-25-5K7-FR-BC | 5000 K | 70 CRI | 2263 lm | 89 | 25.0 W | Type I | |
| UR20-24L-25-5K7-FR-CLR | 5000 K | 70 CRI | 3258 lm | 128 | 25.0 W | Type I | |
| UR20-24L-25-5K7-FR | 5000 K | 70 CRI | 3443 lm | 135 | 25.0 W | Type I | |
| UR20-24L-65-3K7-2-BC-CLR | 3000 K | 70 CRI | 3878 lm | 59 | 65.0 W | Type II | |
| UR20-24L-65-3K7-2-BC | 3000 K | 70 CRI | 4072 lm | 63 | 65.0 W | Type II | |
| UR20-24L-65-3K7-2-CLR | 3000 K | 70 CRI | 6607 lm | 100 | 65.0 W | Type II | |
| UR20-24L-65-3K7-2 | 3000 K | 70 CRI | 6938 lm | 107 | 65.0 W | Type II | |
| UR20-24L-65-3K7-3-BC-CLR | 3000 K | 70 CRI | 3841 lm | 59 | 65.0 W | Type III | |
| UR20-24L-65-3K7-3-BC | 3000 K | 70 CRI | 4121 lm | 63 | 65.0 W | Type III | |
| UR20-24L-65-3K7-3-CLR | 3000 K | 70 CRI | 6563 lm | 99 | 65.0 W | Type III | |
| UR20-24L-65-3K7-3 | 3000 K | 70 CRI | 6892 lm | 106 | 65.0 W | Type III | |
| UR20-24L-65-3K7-4-BC-CLR | 3000 K | 70 CRI | 4888 lm | 74 | 65.0 W | Type IV | |
| UR20-24L-65-3K7-4-BC | 3000 K | 70 CRI | 5133 lm | 79 | 65.0 W | Type IV | |
| UR20-24L-65-3K7-4-CLR | 3000 K | 70 CRI | 6597 lm | 100 | 65.0 W | Type IV | |
| UR20-24L-65-3K7-4 | 3000 K | 70 CRI | 6927 lm | 107 | 65.0 W | Type IV | |
| UR20-24L-65-3K7-4W-BC-CLR | 3000 K | 70 CRI | 4219 lm | 64 | 65.0 W | Type IV Wide | |
| UR20-24L-65-3K7-4W-BC | 3000 K | 70 CRI | 4431 lm | 68 | 65.0 W | Type IV Wide | |
| UR20-24L-65-3K7-4W-CLR | 3000 K | 70 CRI | 6719 lm | 102 | 65.0 W | Type IV Wide | |
| UR20-24L-65-3K7-4W | 3000 K | 70 CRI | 7055 lm | 109 | 65.0 W | Type IV Wide | |
| UR20-24L-65-3K7-5QM-CLR | 3000 K | 70 CRI | 6846 lm | 104 | 65.0 W | Type V Square Medium | |
| UR20-24L-65-3K7-5QM | 3000 K | 70 CRI | 7188 lm | 111 | 65.0 W | Type V Square Medium | |
| UR20-24L-65-3K7-5QN-CLR | 3000 K | 70 CRI | 7109 lm | 108 | 65.0 W | Type V Square Narrow | |
| UR20-24L-65-3K7-5QN | 3000 K | 70 CRI | 7465 lm | 115 | 65.0 W | Type V Square Narrow | |
| UR20-24L-65-3K7-5R-CLR | 3000 K | 70 CRI | 6785 lm | 103 | 65.0 W | Type V Rectangular | |
| UR20-24L-65-3K7-5R | 3000 K | 70 CRI | 7125 lm | 110 | 65.0 W | Type V Rectangular | |
| UR20-24L-65-3K7-5W-CLR | 3000 K | 70 CRI | 6711 lm | 102 | 65.0 W | Type V Wide(Round) | |
| UR20-24L-65-3K7-5W | 3000 K | 70 CRI | 7048 lm | 108 | 65.0 W | Type V Wide(Round) | |
| UR20-24L-65-3K7-FR-BC-CLR | 3000 K | 70 CRI | 4492 lm | 68 | 65.0 W | Type I | |
| UR20-24L-65-3K7-FR-BC | 3000 K | 70 CRI | 4717 lm | 73 | 65.0 W | Type I | |
| UR20-24L-65-3K7-FR-CLR | 3000 K | 70 CRI | 7149 lm | 108 | 65.0 W | Type I | |
| UR20-24L-65-3K7-FR | 3000 K | 70 CRI | 7507 lm | 115 | 65.0 W | Type I | |
| UR20-24L-65-4K7-2-BC-CLR | 4000 K | 70 CRI | 4127 lm | 63 | 65.0 W | Type II | |
| UR20-24L-65-4K7-2-BC | 4000 K | 70 CRI | 4334 lm | 67 | 65.0 W | Type II | |
| UR20-24L-65-4K7-2-CLR | 4000 K | 70 CRI | 7030 lm | 107 | 65.0 W | Type II | |
| UR20-24L-65-4K7-2 | 4000 K | 70 CRI | 7382 lm | 114 | 65.0 W | Type II | |
| UR20-24L-65-4K7-3-BC-CLR | 4000 K | 70 CRI | 4087 lm | 63 | 65.0 W | Type III | |
| UR20-24L-65-4K7-3-BC | 4000 K | 70 CRI | 4385 lm | 67 | 65.0 W | Type III | |
| UR20-24L-65-4K7-3-CLR | 4000 K | 70 CRI | 6984 lm | 106 | 65.0 W | Type III | |
| UR20-24L-65-4K7-3 | 4000 K | 70 CRI | 7333 lm | 113 | 65.0 W | Type III | |
| UR20-24L-65-4K7-4-BC-CLR | 4000 K | 70 CRI | 5201 lm | 79 | 65.0 W | Type IV | |
| UR20-24L-65-4K7-4-BC | 4000 K | 70 CRI | 5461 lm | 84 | 65.0 W | Type IV | |
| UR20-24L-65-4K7-4-CLR | 4000 K | 70 CRI | 7019 lm | 106 | 65.0 W | Type IV | |
| UR20-24L-65-4K7-4 | 4000 K | 70 CRI | 7371 lm | 113 | 65.0 W | Type IV | |
| UR20-24L-65-4K7-4W-BC-CLR | 4000 K | 70 CRI | 4490 lm | 68 | 65.0 W | Type IV Wide | |
| UR20-24L-65-4K7-4W-BC | 4000 K | 70 CRI | 4715 lm | 73 | 65.0 W | Type IV Wide | |
| UR20-24L-65-4K7-4W-CLR | 4000 K | 70 CRI | 7149 lm | 108 | 65.0 W | Type IV Wide | |
| UR20-24L-65-4K7-4W | 4000 K | 70 CRI | 7507 lm | 115 | 65.0 W | Type IV Wide | |
| UR20-24L-65-4K7-5QM-CLR | 4000 K | 70 CRI | 7284 lm | 110 | 65.0 W | Type V Square Medium | |
| UR20-24L-65-4K7-5QM | 4000 K | 70 CRI | 7649 lm | 118 | 65.0 W | Type V Square Medium | |
| UR20-24L-65-4K7-5QN-CLR | 4000 K | 70 CRI | 7565 lm | 115 | 65.0 W | Type V Square Narrow | |
| UR20-24L-65-4K7-5QN | 4000 K | 70 CRI | 7944 lm | 122 | 65.0 W | Type V Square Narrow | |
| UR20-24L-65-4K7-5R-CLR | 4000 K | 70 CRI | 7220 lm | 109 | 65.0 W | Type V Rectangular | |
| UR20-24L-65-4K7-5R | 4000 K | 70 CRI | 7582 lm | 117 | 65.0 W | Type V Rectangular | |
| UR20-24L-65-4K7-5W-CLR | 4000 K | 70 CRI | 7142 lm | 108 | 65.0 W | Type V Wide(Round) | |
| UR20-24L-65-4K7-5W | 4000 K | 70 CRI | 7499 lm | 115 | 65.0 W | Type V Wide(Round) | |
| UR20-24L-65-4K7-FR-BC-CLR | 4000 K | 70 CRI | 4780 lm | 72 | 65.0 W | Type I | |
| UR20-24L-65-4K7-FR-BC | 4000 K | 70 CRI | 5019 lm | 77 | 65.0 W | Type I | |
| UR20-24L-65-4K7-FR-CLR | 4000 K | 70 CRI | 7607 lm | 115 | 65.0 W | Type I | |
| UR20-24L-65-4K7-FR | 4000 K | 70 CRI | 7988 lm | 123 | 65.0 W | Type I | |
| UR20-24L-65-5K7-2-BC-CLR | 5000 K | 70 CRI | 4099 lm | 62 | 65.0 W | Type II | |
| UR20-24L-65-5K7-2-BC | 5000 K | 70 CRI | 4304 lm | 66 | 65.0 W | Type II | |
| UR20-24L-65-5K7-2-CLR | 5000 K | 70 CRI | 6982 lm | 106 | 65.0 W | Type II | |
| UR20-24L-65-5K7-2 | 5000 K | 70 CRI | 7332 lm | 113 | 65.0 W | Type II | |
| UR20-24L-65-5K7-3-BC-CLR | 5000 K | 70 CRI | 4059 lm | 62 | 65.0 W | Type III | |
| UR20-24L-65-5K7-3-BC | 5000 K | 70 CRI | 4355 lm | 67 | 65.0 W | Type III | |
| UR20-24L-65-5K7-3-CLR | 5000 K | 70 CRI | 6936 lm | 105 | 65.0 W | Type III | |
| UR20-24L-65-5K7-3 | 5000 K | 70 CRI | 7283 lm | 112 | 65.0 W | Type III | |
| UR20-24L-65-5K7-4-BC-CLR | 5000 K | 70 CRI | 5165 lm | 78 | 65.0 W | Type IV | |
| UR20-24L-65-5K7-4-BC | 5000 K | 70 CRI | 5424 lm | 83 | 65.0 W | Type IV | |
| UR20-24L-65-5K7-4-CLR | 5000 K | 70 CRI | 6971 lm | 106 | 65.0 W | Type IV | |
| UR20-24L-65-5K7-4 | 5000 K | 70 CRI | 7320 lm | 113 | 65.0 W | Type IV | |
| UR20-24L-65-5K7-4W-BC-CLR | 5000 K | 70 CRI | 4459 lm | 68 | 65.0 W | Type IV Wide | |
| UR20-24L-65-5K7-4W-BC | 5000 K | 70 CRI | 4682 lm | 72 | 65.0 W | Type IV Wide | |
| UR20-24L-65-5K7-4W-CLR | 5000 K | 70 CRI | 7100 lm | 108 | 65.0 W | Type IV Wide | |
| UR20-24L-65-5K7-4W | 5000 K | 70 CRI | 7456 lm | 115 | 65.0 W | Type IV Wide | |
| UR20-24L-65-5K7-5QM-CLR | 5000 K | 70 CRI | 7235 lm | 110 | 65.0 W | Type V Square Medium | |
| UR20-24L-65-5K7-5QM | 5000 K | 70 CRI | 7597 lm | 117 | 65.0 W | Type V Square Medium | |
| UR20-24L-65-5K7-5QN-CLR | 5000 K | 70 CRI | 7513 lm | 114 | 65.0 W | Type V Square Narrow | |
| UR20-24L-65-5K7-5QN | 5000 K | 70 CRI | 7889 lm | 121 | 65.0 W | Type V Square Narrow | |
| UR20-24L-65-5K7-5R-CLR | 5000 K | 70 CRI | 7171 lm | 109 | 65.0 W | Type V Rectangular | |
| UR20-24L-65-5K7-5R | 5000 K | 70 CRI | 7530 lm | 116 | 65.0 W | Type V Rectangular | |
| UR20-24L-65-5K7-5W-CLR | 5000 K | 70 CRI | 7093 lm | 107 | 65.0 W | Type V Wide(Round) | |
| UR20-24L-65-5K7-5W | 5000 K | 70 CRI | 7448 lm | 115 | 65.0 W | Type V Wide(Round) | |
| UR20-24L-65-5K7-FR-BC-CLR | 5000 K | 70 CRI | 4747 lm | 72 | 65.0 W | Type I | |
| UR20-24L-65-5K7-FR-BC | 5000 K | 70 CRI | 4985 lm | 77 | 65.0 W | Type I | |
| UR20-24L-65-5K7-FR-CLR | 5000 K | 70 CRI | 7555 lm | 114 | 65.0 W | Type I | |
| UR20-24L-65-5K7-FR | 5000 K | 70 CRI | 7933 lm | 122 | 65.0 W | Type I | |
| UR20-28L-30-3K7-3-HDL | 3000 K | 70 CRI | 2880 lm | 99 | 30.0 W | Type III | |
| UR20-28L-30-3K7-5W-HDL | 3000 K | 70 CRI | 2946 lm | 101 | 30.0 W | Type V Wide(Round) | |
| UR20-28L-30-4K7-3-HDL | 4000 K | 70 CRI | 3065 lm | 105 | 30.0 W | Type III | |
| UR20-28L-30-4K7-5W-HDL | 4000 K | 70 CRI | 3134 lm | 107 | 30.0 W | Type V Wide(Round) | |
| UR20-28L-30-5K7-3-HDL | 5000 K | 70 CRI | 2971 lm | 102 | 30.0 W | Type III | |
| UR20-28L-30-5K7-5W-HDL | 5000 K | 70 CRI | 3113 lm | 106 | 30.0 W | Type V Wide(Round) | |
| UR20-28L-70-3K7-3-HDL | 3000 K | 70 CRI | 6481 lm | 98 | 70.0 W | Type III | |
| UR20-28L-70-3K7-5W-HDL | 3000 K | 70 CRI | 6628 lm | 100 | 70.0 W | Type V Wide(Round) | |
| UR20-28L-70-4K7-3-HDL | 4000 K | 70 CRI | 6897 lm | 104 | 70.0 W | Type III | |
| UR20-28L-70-4K7-5W-HDL | 4000 K | 70 CRI | 7053 lm | 107 | 70.0 W | Type V Wide(Round) | |
| UR20-28L-70-5K7-3-HDL | 5000 K | 70 CRI | 6685 lm | 96 | 70.0 W | Type III | |
| UR20-28L-70-5K7-5W-HDL | 5000 K | 70 CRI | 6952 lm | 100 | 70.0 W | Type V Wide(Round) | |
| UR20-56L-75-3K7-2-BC-CLR | 3000 K | 70 CRI | 5349 lm | 71 | 75.0 W | Type II | |
| UR20-56L-75-3K7-2-BC | 3000 K | 70 CRI | 5617 lm | 75 | 75.0 W | Type II | |
| UR20-56L-75-3K7-2-CLR | 3000 K | 70 CRI | 9112 lm | 120 | 75.0 W | Type II | |
| UR20-56L-75-3K7-2 | 3000 K | 70 CRI | 9569 lm | 127 | 75.0 W | Type II | |
| UR20-56L-75-3K7-3-BC-CLR | 3000 K | 70 CRI | 5297 lm | 71 | 75.0 W | Type III | |
| UR20-56L-75-3K7-3-BC | 3000 K | 70 CRI | 5683 lm | 76 | 75.0 W | Type III | |
| UR20-56L-75-3K7-3-CLR | 3000 K | 70 CRI | 9052 lm | 120 | 75.0 W | Type III | |
| UR20-56L-75-3K7-3 | 3000 K | 70 CRI | 9505 lm | 125 | 75.0 W | Type III | |
| UR20-56L-75-3K7-4-BC-CLR | 3000 K | 70 CRI | 6741 lm | 90 | 75.0 W | Type IV | |
| UR20-56L-75-3K7-4-BC | 3000 K | 70 CRI | 7079 lm | 94 | 75.0 W | Type IV | |
| UR20-56L-75-3K7-4-CLR | 3000 K | 70 CRI | 9098 lm | 120 | 75.0 W | Type IV | |
| UR20-56L-75-3K7-4 | 3000 K | 70 CRI | 9554 lm | 127 | 75.0 W | Type IV | |
| UR20-56L-75-3K7-4W-BC-CLR | 3000 K | 70 CRI | 5820 lm | 78 | 75.0 W | Type IV Wide | |
| UR20-56L-75-3K7-4W-BC | 3000 K | 70 CRI | 6111 lm | 81 | 75.0 W | Type IV Wide | |
| UR20-56L-75-3K7-4W-CLR | 3000 K | 70 CRI | 9267 lm | 122 | 75.0 W | Type IV Wide | |
| UR20-56L-75-3K7-4W | 3000 K | 70 CRI | 9731 lm | 129 | 75.0 W | Type IV Wide | |
| UR20-56L-75-3K7-5QM-CLR | 3000 K | 70 CRI | 9442 lm | 125 | 75.0 W | Type V Square Medium | |
| UR20-56L-75-3K7-5QM | 3000 K | 70 CRI | 9915 lm | 132 | 75.0 W | Type V Square Medium | |
| UR20-56L-75-3K7-5QN-CLR | 3000 K | 70 CRI | 9805 lm | 130 | 75.0 W | Type V Square Narrow | |
| UR20-56L-75-3K7-5QN | 3000 K | 70 CRI | 10296 lm | 137 | 75.0 W | Type V Square Narrow | |
| UR20-56L-75-3K7-5R-CLR | 3000 K | 70 CRI | 9358 lm | 124 | 75.0 W | Type V Rectangular | |
| UR20-56L-75-3K7-5R | 3000 K | 70 CRI | 9827 lm | 131 | 75.0 W | Type V Rectangular | |
| UR20-56L-75-3K7-5W-CLR | 3000 K | 70 CRI | 9257 lm | 122 | 75.0 W | Type V Wide(Round) | |
| UR20-56L-75-3K7-5W | 3000 K | 70 CRI | 9720 lm | 129 | 75.0 W | Type V Wide(Round) | |
| UR20-56L-75-3K7-FR-BC-CLR | 3000 K | 70 CRI | 6196 lm | 83 | 75.0 W | Type I | |
| UR20-56L-75-3K7-FR-BC | 3000 K | 70 CRI | 6506 lm | 87 | 75.0 W | Type I | |
| UR20-56L-75-3K7-FR-CLR | 3000 K | 70 CRI | 9860 lm | 130 | 75.0 W | Type I | |
| UR20-56L-75-3K7-FR | 3000 K | 70 CRI | 10354 lm | 138 | 75.0 W | Type I | |
| UR20-56L-75-4K7-2-BC-CLR | 4000 K | 70 CRI | 5692 lm | 76 | 75.0 W | Type II | |
| UR20-56L-75-4K7-2-BC | 4000 K | 70 CRI | 5977 lm | 80 | 75.0 W | Type II | |
| UR20-56L-75-4K7-2-CLR | 4000 K | 70 CRI | 9696 lm | 128 | 75.0 W | Type II | |
| UR20-56L-75-4K7-2 | 4000 K | 70 CRI | 10182 lm | 135 | 75.0 W | Type II | |
| UR20-56L-75-4K7-3-BC-CLR | 4000 K | 70 CRI | 5637 lm | 75 | 75.0 W | Type III | |
| UR20-56L-75-4K7-3-BC | 4000 K | 70 CRI | 6047 lm | 81 | 75.0 W | Type III | |
| UR20-56L-75-4K7-3-CLR | 4000 K | 70 CRI | 9632 lm | 127 | 75.0 W | Type III | |
| UR20-56L-75-4K7-3 | 4000 K | 70 CRI | 10114 lm | 134 | 75.0 W | Type III | |
| UR20-56L-75-4K7-4-BC-CLR | 4000 K | 70 CRI | 7174 lm | 96 | 75.0 W | Type IV | |
| UR20-56L-75-4K7-4-BC | 4000 K | 70 CRI | 7533 lm | 100 | 75.0 W | Type IV | |
| UR20-56L-75-4K7-4-CLR | 4000 K | 70 CRI | 9681 lm | 128 | 75.0 W | Type IV | |
| UR20-56L-75-4K7-4 | 4000 K | 70 CRI | 10166 lm | 135 | 75.0 W | Type IV | |
| UR20-56L-75-4K7-4W-BC-CLR | 4000 K | 70 CRI | 6193 lm | 83 | 75.0 W | Type IV Wide | |
| UR20-56L-75-4K7-4W-BC | 4000 K | 70 CRI | 6503 lm | 87 | 75.0 W | Type IV Wide | |
| UR20-56L-75-4K7-4W-CLR | 4000 K | 70 CRI | 9861 lm | 130 | 75.0 W | Type IV Wide | |
| UR20-56L-75-4K7-4W | 4000 K | 70 CRI | 10355 lm | 138 | 75.0 W | Type IV Wide | |
| UR20-56L-75-4K7-5QM-CLR | 4000 K | 70 CRI | 10047 lm | 133 | 75.0 W | Type V Square Medium | |
| UR20-56L-75-4K7-5QM | 4000 K | 70 CRI | 10550 lm | 140 | 75.0 W | Type V Square Medium | |
| UR20-56L-75-4K7-5QN-CLR | 4000 K | 70 CRI | 10434 lm | 138 | 75.0 W | Type V Square Narrow | |
| UR20-56L-75-4K7-5QN | 4000 K | 70 CRI | 10956 lm | 146 | 75.0 W | Type V Square Narrow | |
| UR20-56L-75-4K7-5R-CLR | 4000 K | 70 CRI | 9958 lm | 132 | 75.0 W | Type V Rectangular | |
| UR20-56L-75-4K7-5R | 4000 K | 70 CRI | 10457 lm | 139 | 75.0 W | Type V Rectangular | |
| UR20-56L-75-4K7-5W-CLR | 4000 K | 70 CRI | 9850 lm | 130 | 75.0 W | Type V Wide(Round) | |
| UR20-56L-75-4K7-5W | 4000 K | 70 CRI | 10343 lm | 137 | 75.0 W | Type V Wide(Round) | |
| UR20-56L-75-4K7-FR-BC-CLR | 4000 K | 70 CRI | 6593 lm | 88 | 75.0 W | Type I | |
| UR20-56L-75-4K7-FR-BC | 4000 K | 70 CRI | 6923 lm | 92 | 75.0 W | Type I | |
| UR20-56L-75-4K7-FR-CLR | 4000 K | 70 CRI | 10492 lm | 139 | 75.0 W | Type I | |
| UR20-56L-75-4K7-FR | 4000 K | 70 CRI | 11018 lm | 146 | 75.0 W | Type I | |
| UR20-56L-75-5K7-2-BC-CLR | 5000 K | 70 CRI | 5653 lm | 75 | 75.0 W | Type II | |
| UR20-56L-75-5K7-2-BC | 5000 K | 70 CRI | 5936 lm | 79 | 75.0 W | Type II | |
| UR20-56L-75-5K7-2-CLR | 5000 K | 70 CRI | 9630 lm | 127 | 75.0 W | Type II | |
| UR20-56L-75-5K7-2 | 5000 K | 70 CRI | 10112 lm | 134 | 75.0 W | Type II | |
| UR20-56L-75-5K7-3-BC-CLR | 5000 K | 70 CRI | 5598 lm | 74 | 75.0 W | Type III | |
| UR20-56L-75-5K7-3-BC | 5000 K | 70 CRI | 6006 lm | 79 | 75.0 W | Type III | |
| UR20-56L-75-5K7-3-CLR | 5000 K | 70 CRI | 9566 lm | 126 | 75.0 W | Type III | |
| UR20-56L-75-5K7-3 | 5000 K | 70 CRI | 10045 lm | 133 | 75.0 W | Type III | |
| UR20-56L-75-5K7-4-BC-CLR | 5000 K | 70 CRI | 7124 lm | 95 | 75.0 W | Type IV | |
| UR20-56L-75-5K7-4-BC | 5000 K | 70 CRI | 7481 lm | 99 | 75.0 W | Type IV | |
| UR20-56L-75-5K7-4-CLR | 5000 K | 70 CRI | 9615 lm | 127 | 75.0 W | Type IV | |
| UR20-56L-75-5K7-4 | 5000 K | 70 CRI | 10078 lm | 134 | 75.0 W | Type IV | |
| UR20-56L-75-5K7-4W-BC-CLR | 5000 K | 70 CRI | 6150 lm | 82 | 75.0 W | Type IV Wide | |
| UR20-56L-75-5K7-4W-BC | 5000 K | 70 CRI | 6458 lm | 86 | 75.0 W | Type IV Wide | |
| UR20-56L-75-5K7-4W-CLR | 5000 K | 70 CRI | 9793 lm | 129 | 75.0 W | Type IV Wide | |
| UR20-56L-75-5K7-4W | 5000 K | 70 CRI | 10284 lm | 137 | 75.0 W | Type IV Wide | |
| UR20-56L-75-5K7-5QM | 5000 K | 70 CRI | 10478 lm | 139 | 75.0 W | Type V Square Medium | |
| UR20-56L-110-3K7-2-BC-CLR | 3000 K | 70 CRI | 7720 lm | 71 | 110.0 W | Type II | |
| UR20-56L-110-3K7-2-BC | 3000 K | 70 CRI | 8159 lm | 75 | 110.0 W | Type II | |
| UR20-56L-110-3K7-2-CLR | 3000 K | 70 CRI | 13151 lm | 122 | 110.0 W | Type II | |
| UR20-56L-110-3K7-2 | 3000 K | 70 CRI | 13900 lm | 128 | 110.0 W | Type II | |
| UR20-56L-110-3K7-3-BC-CLR | 3000 K | 70 CRI | 7645 lm | 69 | 110.0 W | Type III | |
| UR20-56L-110-3K7-3-BC | 3000 K | 70 CRI | 8256 lm | 75 | 110.0 W | Type III | |
| UR20-56L-110-3K7-3-CLR | 3000 K | 70 CRI | 13064 lm | 121 | 110.0 W | Type III | |
| UR20-56L-110-3K7-3 | 3000 K | 70 CRI | 13808 lm | 127 | 110.0 W | Type III | |
| UR20-56L-110-3K7-4-BC-CLR | 3000 K | 70 CRI | 9729 lm | 90 | 110.0 W | Type IV | |
| UR20-56L-110-3K7-4-BC | 3000 K | 70 CRI | 10283 lm | 95 | 110.0 W | Type IV | |
| UR20-56L-110-3K7-4-CLR | 3000 K | 70 CRI | 13131 lm | 121 | 110.0 W | Type IV | |
| UR20-56L-110-3K7-4 | 3000 K | 70 CRI | 13878 lm | 128 | 110.0 W | Type IV | |
| UR20-56L-110-3K7-4W-BC-CLR | 3000 K | 70 CRI | 8399 lm | 78 | 110.0 W | Type IV Wide | |
| UR20-56L-110-3K7-4W-BC | 3000 K | 70 CRI | 8877 lm | 82 | 110.0 W | Type IV Wide | |
| UR20-56L-110-3K7-4W-CLR | 3000 K | 70 CRI | 13374 lm | 124 | 110.0 W | Type IV Wide | |
| UR20-56L-110-3K7-4W | 3000 K | 70 CRI | 14135 lm | 130 | 110.0 W | Type IV Wide | |
| UR20-56L-110-3K7-5QM-CLR | 3000 K | 70 CRI | 13626 lm | 126 | 110.0 W | Type V Square Medium | |
| UR20-56L-110-3K7-5QM | 3000 K | 70 CRI | 14402 lm | 133 | 110.0 W | Type V Square Medium | |
| UR20-56L-110-3K7-5QN-CLR | 3000 K | 70 CRI | 14151 lm | 131 | 110.0 W | Type V Square Narrow | |
| UR20-56L-110-3K7-5QN | 3000 K | 70 CRI | 14957 lm | 138 | 110.0 W | Type V Square Narrow | |
| UR20-56L-110-3K7-5R-CLR | 3000 K | 70 CRI | 13506 lm | 125 | 110.0 W | Type V Rectangular | |
| UR20-56L-110-3K7-5R | 3000 K | 70 CRI | 14275 lm | 132 | 110.0 W | Type V Rectangular | |
| UR20-56L-110-3K7-5W-CLR | 3000 K | 70 CRI | 13359 lm | 124 | 110.0 W | Type V Wide(Round) | |
| UR20-56L-110-3K7-5W | 3000 K | 70 CRI | 14120 lm | 130 | 110.0 W | Type V Wide(Round) | |
| UR20-56L-110-3K7-FR-BC-CLR | 3000 K | 70 CRI | 8941 lm | 83 | 110.0 W | Type I | |
| UR20-56L-110-3K7-FR-BC | 3000 K | 70 CRI | 9451 lm | 87 | 110.0 W | Type I | |
| UR20-56L-110-3K7-FR-CLR | 3000 K | 70 CRI | 14230 lm | 132 | 110.0 W | Type I | |
| UR20-56L-110-3K7-FR | 3000 K | 70 CRI | 15041 lm | 139 | 110.0 W | Type I | |
| UR20-56L-110-4K7-2-BC-CLR | 4000 K | 70 CRI | 8215 lm | 76 | 110.0 W | Type II | |
| UR20-56L-110-4K7-2-BC | 4000 K | 70 CRI | 8682 lm | 80 | 110.0 W | Type II | |
| UR20-56L-110-4K7-2-CLR | 4000 K | 70 CRI | 13994 lm | 129 | 110.0 W | Type II | |
| UR20-56L-110-4K7-2 | 4000 K | 70 CRI | 14791 lm | 136 | 110.0 W | Type II | |
| UR20-56L-110-4K7-3-BC-CLR | 4000 K | 70 CRI | 8135 lm | 74 | 110.0 W | Type III | |
| UR20-56L-110-4K7-3-BC | 4000 K | 70 CRI | 8785 lm | 80 | 110.0 W | Type III | |
| UR20-56L-110-4K7-3-CLR | 4000 K | 70 CRI | 13901 lm | 129 | 110.0 W | Type III | |
| UR20-56L-110-4K7-3 | 4000 K | 70 CRI | 14692 lm | 135 | 110.0 W | Type III | |
| UR20-56L-110-4K7-4-BC-CLR | 4000 K | 70 CRI | 10353 lm | 94 | 110.0 W | Type IV | |
| UR20-56L-110-4K7-4-BC | 4000 K | 70 CRI | 10942 lm | 101 | 110.0 W | Type IV | |
| UR20-56L-110-4K7-4-CLR | 4000 K | 70 CRI | 13972 lm | 129 | 110.0 W | Type IV | |
| UR20-56L-110-4K7-4 | 4000 K | 70 CRI | 14768 lm | 136 | 110.0 W | Type IV | |
| UR20-56L-110-4K7-4W-BC-CLR | 4000 K | 70 CRI | 8937 lm | 83 | 110.0 W | Type IV Wide | |
| UR20-56L-110-4K7-4W-BC | 4000 K | 70 CRI | 9446 lm | 87 | 110.0 W | Type IV Wide | |
| UR20-56L-110-4K7-4W-CLR | 4000 K | 70 CRI | 14231 lm | 132 | 110.0 W | Type IV Wide | |
| UR20-56L-110-4K7-4W | 4000 K | 70 CRI | 15041 lm | 139 | 110.0 W | Type IV Wide | |
| UR20-56L-110-4K7-5QM-CLR | 4000 K | 70 CRI | 14500 lm | 134 | 110.0 W | Type V Square Medium | |
| UR20-56L-110-4K7-5QM | 4000 K | 70 CRI | 15325 lm | 141 | 110.0 W | Type V Square Medium | |
| UR20-56L-110-4K7-5QN-CLR | 4000 K | 70 CRI | 15058 lm | 139 | 110.0 W | Type V Square Narrow | |
| UR20-56L-110-4K7-5QN | 4000 K | 70 CRI | 15915 lm | 147 | 110.0 W | Type V Square Narrow | |
| UR20-56L-110-4K7-5R-CLR | 4000 K | 70 CRI | 14372 lm | 133 | 110.0 W | Type V Rectangular | |
| UR20-56L-110-4K7-5R | 4000 K | 70 CRI | 15190 lm | 140 | 110.0 W | Type V Rectangular | |
| UR20-56L-110-4K7-5W-CLR | 4000 K | 70 CRI | 14215 lm | 132 | 110.0 W | Type V Wide(Round) | |
| UR20-56L-110-4K7-5W | 4000 K | 70 CRI | 15025 lm | 138 | 110.0 W | Type V Wide(Round) | |
| UR20-56L-110-4K7-FR-BC-CLR | 4000 K | 70 CRI | 9514 lm | 88 | 110.0 W | Type I | |
| UR20-56L-110-4K7-FR-BC | 4000 K | 70 CRI | 10056 lm | 93 | 110.0 W | Type I | |
| UR20-56L-110-4K7-FR-CLR | 4000 K | 70 CRI | 15142 lm | 140 | 110.0 W | Type I | |
| UR20-56L-110-4K7-FR | 4000 K | 70 CRI | 16005 lm | 147 | 110.0 W | Type I | |
| UR20-56L-110-5K7-2-BC-CLR | 5000 K | 70 CRI | 8158 lm | 75 | 110.0 W | Type II | |
| UR20-56L-110-5K7-2-BC | 5000 K | 70 CRI | 8623 lm | 79 | 110.0 W | Type II | |
| UR20-56L-110-5K7-2-CLR | 5000 K | 70 CRI | 13898 lm | 129 | 110.0 W | Type II | |
| UR20-56L-110-5K7-2 | 5000 K | 70 CRI | 14689 lm | 135 | 110.0 W | Type II | |
| UR20-56L-110-5K7-3-BC-CLR | 5000 K | 70 CRI | 8079 lm | 73 | 110.0 W | Type III | |
| UR20-56L-110-5K7-3-BC | 5000 K | 70 CRI | 8725 lm | 79 | 110.0 W | Type III | |
| UR20-56L-110-5K7-3-CLR | 5000 K | 70 CRI | 13806 lm | 128 | 110.0 W | Type III | |
| UR20-56L-110-5K7-3 | 5000 K | 70 CRI | 14592 lm | 134 | 110.0 W | Type III | |
| UR20-56L-110-5K7-4-BC-CLR | 5000 K | 70 CRI | 10282 lm | 95 | 110.0 W | Type IV | |
| UR20-56L-110-5K7-4-BC | 5000 K | 70 CRI | 10867 lm | 100 | 110.0 W | Type IV | |
| UR20-56L-110-5K7-4-CLR | 5000 K | 70 CRI | 13876 lm | 128 | 110.0 W | Type IV | |
| UR20-56L-110-5K7-4 | 5000 K | 70 CRI | 14667 lm | 135 | 110.0 W | Type IV | |
| UR20-56L-110-5K7-4W-BC-CLR | 5000 K | 70 CRI | 8876 lm | 82 | 110.0 W | Type IV Wide | |
| UR20-56L-110-5K7-4W-BC | 5000 K | 70 CRI | 9381 lm | 86 | 110.0 W | Type IV Wide | |
| UR20-56L-110-5K7-4W-CLR | 5000 K | 70 CRI | 14134 lm | 131 | 110.0 W | Type IV Wide | |
| UR20-56L-110-5K7-4W | 5000 K | 70 CRI | 14938 lm | 138 | 110.0 W | Type IV Wide | |
| UR20-56L-110-5K7-5QM-CLR | 5000 K | 70 CRI | 14400 lm | 133 | 110.0 W | Type V Square Medium | |
| UR20-56L-110-5K7-5QM | 5000 K | 70 CRI | 15220 lm | 140 | 110.0 W | Type V Square Medium | |
| UR20-56L-110-5K7-5QN-CLR | 5000 K | 70 CRI | 14955 lm | 138 | 110.0 W | Type V Square Narrow | |
| UR20-56L-110-5K7-5QN | 5000 K | 70 CRI | 15806 lm | 146 | 110.0 W | Type V Square Narrow | |
| UR20-56L-110-5K7-5R-CLR | 5000 K | 70 CRI | 14273 lm | 132 | 110.0 W | Type V Rectangular | |
| UR20-56L-110-5K7-5R | 5000 K | 70 CRI | 15086 lm | 139 | 110.0 W | Type V Rectangular | |
| UR20-56L-110-5K7-5W-CLR | 5000 K | 70 CRI | 14118 lm | 131 | 110.0 W | Type V Wide(Round) | |
| UR20-56L-110-5K7-5W | 5000 K | 70 CRI | 14922 lm | 138 | 110.0 W | Type V Wide(Round) | |
| UR20-56L-110-5K7-FR-BC-CLR | 5000 K | 70 CRI | 9449 lm | 87 | 110.0 W | Type I | |
| UR20-56L-110-5K7-FR-BC | 5000 K | 70 CRI | 9987 lm | 92 | 110.0 W | Type I | |
| UR20-56L-110-5K7-FR-CLR | 5000 K | 70 CRI | 15038 lm | 139 | 110.0 W | Type I | |
| UR20-56L-110-5K7-FR | 5000 K | 70 CRI | 15895 lm | 146 | 110.0 W | Type I | |
| UR20-56L-140-3K7-2-BC-CLR | 3000 K | 70 CRI | 8768 lm | 63 | 140.0 W | Type II | |
| UR20-56L-140-3K7-2-BC | 3000 K | 70 CRI | 9239 lm | 67 | 140.0 W | Type II | |
| UR20-56L-140-3K7-2-CLR | 3000 K | 70 CRI | 14936 lm | 108 | 140.0 W | Type II | |
| UR20-56L-140-3K7-2 | 3000 K | 70 CRI | 15740 lm | 114 | 140.0 W | Type II | |
| UR20-56L-140-3K7-3-BC-CLR | 3000 K | 70 CRI | 8683 lm | 62 | 140.0 W | Type III | |
| UR20-56L-140-3K7-3-BC | 3000 K | 70 CRI | 9348 lm | 67 | 140.0 W | Type III | |
| UR20-56L-140-3K7-3-CLR | 3000 K | 70 CRI | 14837 lm | 107 | 140.0 W | Type III | |
| UR20-56L-140-3K7-3 | 3000 K | 70 CRI | 15635 lm | 113 | 140.0 W | Type III | |
| UR20-56L-140-3K7-4-BC-CLR | 3000 K | 70 CRI | 11050 lm | 80 | 140.0 W | Type IV | |
| UR20-56L-140-3K7-4-BC | 3000 K | 70 CRI | 11644 lm | 85 | 140.0 W | Type IV | |
| UR20-56L-140-3K7-4-CLR | 3000 K | 70 CRI | 14913 lm | 107 | 140.0 W | Type IV | |
| UR20-56L-140-3K7-4 | 3000 K | 70 CRI | 15715 lm | 114 | 140.0 W | Type IV | |
| UR20-56L-140-3K7-4W-BC-CLR | 3000 K | 70 CRI | 9539 lm | 69 | 140.0 W | Type IV Wide | |
| UR20-56L-140-3K7-4W-BC | 3000 K | 70 CRI | 10052 lm | 73 | 140.0 W | Type IV Wide | |
| UR20-56L-140-3K7-4W-CLR | 3000 K | 70 CRI | 15189 lm | 109 | 140.0 W | Type IV Wide | |
| UR20-56L-140-3K7-4W | 3000 K | 70 CRI | 16006 lm | 116 | 140.0 W | Type IV Wide | |
| UR20-56L-140-3K7-5QM-CLR | 3000 K | 70 CRI | 15476 lm | 112 | 140.0 W | Type V Square Medium | |
| UR20-56L-140-3K7-5QM | 3000 K | 70 CRI | 16309 lm | 118 | 140.0 W | Type V Square Medium | |
| UR20-56L-140-3K7-5QN-CLR | 3000 K | 70 CRI | 16072 lm | 116 | 140.0 W | Type V Square Narrow | |
| UR20-56L-140-3K7-5QN | 3000 K | 70 CRI | 16936 lm | 123 | 140.0 W | Type V Square Narrow | |
| UR20-56L-140-3K7-5R-CLR | 3000 K | 70 CRI | 15339 lm | 111 | 140.0 W | Type V Rectangular | |
| UR20-56L-140-3K7-5R | 3000 K | 70 CRI | 16164 lm | 117 | 140.0 W | Type V Rectangular | |
| UR20-56L-140-3K7-5W-CLR | 3000 K | 70 CRI | 15173 lm | 109 | 140.0 W | Type V Wide(Round) | |
| UR20-56L-140-3K7-5W | 3000 K | 70 CRI | 15989 lm | 116 | 140.0 W | Type V Wide(Round) | |
| UR20-56L-140-3K7-FR-BC-CLR | 3000 K | 70 CRI | 10155 lm | 73 | 140.0 W | Type I | |
| UR20-56L-140-3K7-FR-BC | 3000 K | 70 CRI | 10701 lm | 78 | 140.0 W | Type I | |
| UR20-56L-140-3K7-FR-CLR | 3000 K | 70 CRI | 16162 lm | 116 | 140.0 W | Type I | |
| UR20-56L-140-3K7-FR | 3000 K | 70 CRI | 17031 lm | 124 | 140.0 W | Type I | |
| UR20-56L-140-4K7-2-BC-CLR | 4000 K | 70 CRI | 9330 lm | 67 | 140.0 W | Type II | |
| UR20-56L-140-4K7-2-BC | 4000 K | 70 CRI | 9831 lm | 71 | 140.0 W | Type II | |
| UR20-56L-140-4K7-2-CLR | 4000 K | 70 CRI | 15894 lm | 115 | 140.0 W | Type II | |
| UR20-56L-140-4K7-2 | 4000 K | 70 CRI | 16748 lm | 122 | 140.0 W | Type II | |
| UR20-56L-140-4K7-3-BC-CLR | 4000 K | 70 CRI | 9239 lm | 66 | 140.0 W | Type III | |
| UR20-56L-140-4K7-3-BC | 4000 K | 70 CRI | 9947 lm | 71 | 140.0 W | Type III | |
| UR20-56L-140-4K7-3-CLR | 4000 K | 70 CRI | 15788 lm | 114 | 140.0 W | Type III | |
| UR20-56L-140-4K7-3 | 4000 K | 70 CRI | 16637 lm | 121 | 140.0 W | Type III | |
| UR20-56L-140-4K7-4-BC-CLR | 4000 K | 70 CRI | 11758 lm | 85 | 140.0 W | Type IV | |
| UR20-56L-140-4K7-4-BC | 4000 K | 70 CRI | 12391 lm | 90 | 140.0 W | Type IV | |
| UR20-56L-140-4K7-4-CLR | 4000 K | 70 CRI | 15869 lm | 114 | 140.0 W | Type IV | |
| UR20-56L-140-4K7-4 | 4000 K | 70 CRI | 16722 lm | 121 | 140.0 W | Type IV | |
| UR20-56L-140-4K7-4W-BC-CLR | 4000 K | 70 CRI | 10150 lm | 73 | 140.0 W | Type IV Wide | |
| UR20-56L-140-4K7-4W-BC | 4000 K | 70 CRI | 10696 lm | 78 | 140.0 W | Type IV Wide | |
| UR20-56L-140-4K7-4W-CLR | 4000 K | 70 CRI | 16163 lm | 116 | 140.0 W | Type IV Wide | |
| UR20-56L-140-4K7-4W | 4000 K | 70 CRI | 17032 lm | 124 | 140.0 W | Type IV Wide | |
| UR20-56L-140-4K7-5QM-CLR | 4000 K | 70 CRI | 16468 lm | 119 | 140.0 W | Type V Square Medium | |
| UR20-56L-140-4K7-5QM | 4000 K | 70 CRI | 17354 lm | 126 | 140.0 W | Type V Square Medium | |
| UR20-56L-140-4K7-5QN-CLR | 4000 K | 70 CRI | 17102 lm | 123 | 140.0 W | Type V Square Narrow | |
| UR20-56L-140-4K7-5QN | 4000 K | 70 CRI | 18022 lm | 131 | 140.0 W | Type V Square Narrow | |
| UR20-56L-140-4K7-5R-CLR | 4000 K | 70 CRI | 16323 lm | 118 | 140.0 W | Type V Rectangular | |
| UR20-56L-140-4K7-5R | 4000 K | 70 CRI | 17200 lm | 125 | 140.0 W | Type V Rectangular | |
| UR20-56L-140-4K7-5W-CLR | 4000 K | 70 CRI | 16145 lm | 116 | 140.0 W | Type V Wide(Round) | |
| UR20-56L-140-4K7-5W | 4000 K | 70 CRI | 17013 lm | 123 | 140.0 W | Type V Wide(Round) | |
| UR20-56L-140-4K7-FR-BC-CLR | 4000 K | 70 CRI | 10659 lm | 77 | 140.0 W | Type I | |
| UR20-56L-140-4K7-FR-BC | 4000 K | 70 CRI | 11387 lm | 83 | 140.0 W | Type I | |
| UR20-56L-140-4K7-FR-CLR | 4000 K | 70 CRI | 17198 lm | 124 | 140.0 W | Type I | |
| UR20-56L-140-4K7-FR | 4000 K | 70 CRI | 18123 lm | 132 | 140.0 W | Type I | |
| UR20-56L-140-5K7-2-BC-CLR | 5000 K | 70 CRI | 9266 lm | 67 | 140.0 W | Type II | |
| UR20-56L-140-5K7-2-BC | 5000 K | 70 CRI | 9764 lm | 71 | 140.0 W | Type II | |
| UR20-56L-140-5K7-2-CLR | 5000 K | 70 CRI | 15785 lm | 114 | 140.0 W | Type II | |
| UR20-56L-140-5K7-2 | 5000 K | 70 CRI | 16634 lm | 121 | 140.0 W | Type II | |
| UR20-56L-140-5K7-3-BC-CLR | 5000 K | 70 CRI | 9176 lm | 66 | 140.0 W | Type III | |
| UR20-56L-140-5K7-3-BC | 5000 K | 70 CRI | 9879 lm | 71 | 140.0 W | Type III | |
| UR20-56L-140-5K7-3-CLR | 5000 K | 70 CRI | 15680 lm | 113 | 140.0 W | Type III | |
| UR20-56L-140-5K7-3 | 5000 K | 70 CRI | 16523 lm | 120 | 140.0 W | Type III | |
| UR20-56L-140-5K7-4-BC-CLR | 5000 K | 70 CRI | 11678 lm | 84 | 140.0 W | Type IV | |
| UR20-56L-140-5K7-4-BC | 5000 K | 70 CRI | 12306 lm | 89 | 140.0 W | Type IV | |
| UR20-56L-140-5K7-4-CLR | 5000 K | 70 CRI | 15760 lm | 114 | 140.0 W | Type IV | |
| UR20-56L-140-5K7-4 | 5000 K | 70 CRI | 16608 lm | 121 | 140.0 W | Type IV | |
| UR20-56L-140-5K7-4W-BC-CLR | 5000 K | 70 CRI | 10081 lm | 73 | 140.0 W | Type IV Wide | |
| UR20-56L-140-5K7-4W-BC | 5000 K | 70 CRI | 10623 lm | 77 | 140.0 W | Type IV Wide | |
| UR20-56L-140-5K7-4W-CLR | 5000 K | 70 CRI | 16052 lm | 116 | 140.0 W | Type IV Wide | |
| UR20-56L-140-5K7-4W | 5000 K | 70 CRI | 16915 lm | 123 | 140.0 W | Type IV Wide | |
| UR20-56L-140-5K7-5QM-CLR | 5000 K | 70 CRI | 16355 lm | 118 | 140.0 W | Type V Square Medium | |
| UR20-56L-140-5K7-5QM | 5000 K | 70 CRI | 17235 lm | 125 | 140.0 W | Type V Square Medium | |
| UR20-56L-140-5K7-5QN-CLR | 5000 K | 70 CRI | 16985 lm | 122 | 140.0 W | Type V Square Narrow | |
| UR20-56L-140-5K7-5QN | 5000 K | 70 CRI | 17898 lm | 130 | 140.0 W | Type V Square Narrow | |
| UR20-56L-140-5K7-5R-CLR | 5000 K | 70 CRI | 16211 lm | 117 | 140.0 W | Type V Rectangular | |
| UR20-56L-140-5K7-5R | 5000 K | 70 CRI | 17082 lm | 124 | 140.0 W | Type V Rectangular | |
| UR20-56L-140-5K7-5W-CLR | 5000 K | 70 CRI | 16035 lm | 116 | 140.0 W | Type V Wide(Round) | |
| UR20-56L-140-5K7-5W | 5000 K | 70 CRI | 16897 lm | 123 | 140.0 W | Type V Wide(Round) | |
| UR20-56L-140-5K7-FR-BC-CLR | 5000 K | 70 CRI | 10732 lm | 77 | 140.0 W | Type I | |
| UR20-56L-140-5K7-FR-BC | 5000 K | 70 CRI | 11309 lm | 82 | 140.0 W | Type I | |
| UR20-56L-140-5K7-FR-CLR | 5000 K | 70 CRI | 17080 lm | 123 | 140.0 W | Type I | |
| UR20-56L-140-5K7-FR | 5000 K | 70 CRI | 17999 lm | 131 | 140.0 W | Type I | |
| UR20-56L-75-5K7-5QM-CLR | 5000 K | 70 CRI | 9978 lm | 132 | 75.0 W | Type V Square Medium | |
| UR20-56L-75-5K7-5QN-CLR | 5000 K | 70 CRI | 10362 lm | 137 | 75.0 W | Type V Square Narrow | |
| UR20-56L-75-5K7-5QN | 5000 K | 70 CRI | 10881 lm | 145 | 75.0 W | Type V Square Narrow | |
| UR20-56L-75-5K7-5R-CLR | 5000 K | 70 CRI | 9890 lm | 131 | 75.0 W | Type V Rectangular | |
| UR20-56L-75-5K7-5R | 5000 K | 70 CRI | 10385 lm | 138 | 75.0 W | Type V Rectangular | |
| UR20-56L-75-5K7-5W-CLR | 5000 K | 70 CRI | 9782 lm | 129 | 75.0 W | Type V Wide(Round) | |
| UR20-56L-75-5K7-5W | 5000 K | 70 CRI | 10272 lm | 137 | 75.0 W | Type V Wide(Round) | |
| UR20-56L-75-5K7-FR-BC-CLR | 5000 K | 70 CRI | 6547 lm | 87 | 75.0 W | Type I | |
| UR20-56L-75-5K7-FR-BC | 5000 K | 70 CRI | 6875 lm | 92 | 75.0 W | Type I | |
| UR20-56L-75-5K7-FR-CLR | 5000 K | 70 CRI | 10420 lm | 138 | 75.0 W | Type I | |
| UR20-56L-75-5K7-FR | 5000 K | 70 CRI | 10942 lm | 145 | 75.0 W | Type I | |
| UR20-68L-115-3K7-3-HDL | 3000 K | 70 CRI | 12410 lm | 109 | 115.0 W | Type III | |
| UR20-68L-115-3K7-5W-HDL | 3000 K | 70 CRI | 12691 lm | 112 | 115.0 W | Type V Wide(Round) | |
| UR20-68L-115-4K7-3-HDL | 4000 K | 70 CRI | 13206 lm | 116 | 115.0 W | Type III | |
| UR20-68L-115-4K7-5W-HDL | 4000 K | 70 CRI | 13505 lm | 119 | 115.0 W | Type V Wide(Round) | |
| UR20-68L-115-5K7-3-HDL | 5000 K | 70 CRI | 13115 lm | 116 | 115.0 W | Type III | |
| UR20-68L-115-5K7-5W-HDL | 5000 K | 70 CRI | 13412 lm | 118 | 115.0 W | Type V Wide(Round) | |
| UR20-68L-150-3K7-3-HDL | 3000 K | 70 CRI | 14192 lm | 96 | 150.0 W | Type III |
