Drive Edge-Lit Ceiling, Canopy & Garage Lighting
Drive Edge-Lit provides a balance of visual comfort and photometric performance in two sleek low profile housing sizes. A wide range of lumen outputs and photometric distributions paired with a specially designed lens makes Drive Edge-Lit luminaires the ideal solution for parking garage and canopy applications.
Two Sizes and Multiple
Drive Edge-Lit luminaires are available in two sizes. The compact SRT1 provides 2,500-6,000 lumens while the SRT2 offers and output range of 4,000-16,000 lumens.
Visual Comfort
A specially designed acrylic light guide provides a blended, non-pixelated distribution over the entire surface area of the lens for visual comfort and glare reduction.
Integrated Controls
A broad offering of control solutions are available ranging from standalone sensors, NX Distributed Intelligence™ and wiSCAPE® wireless controls.
Performance

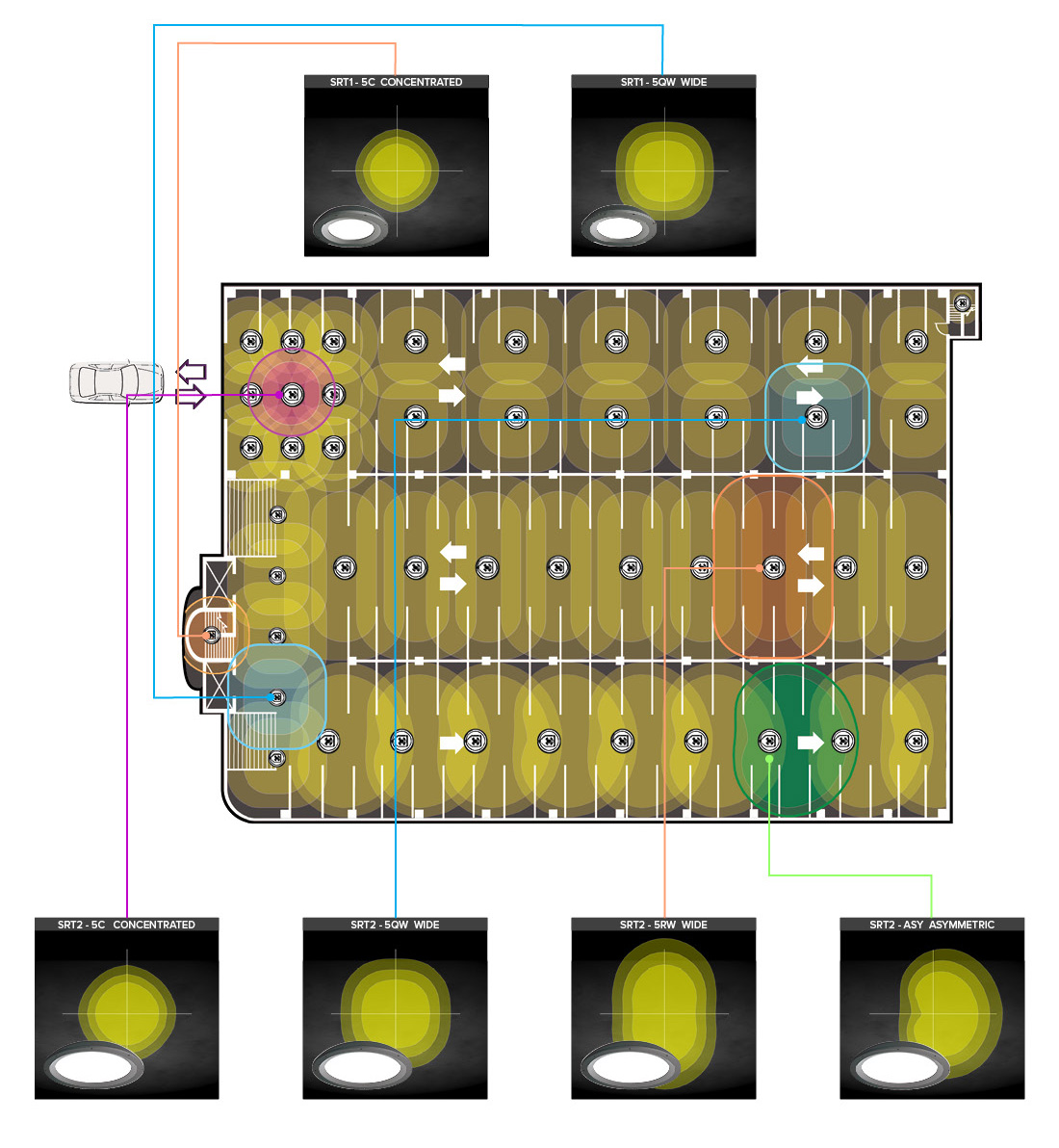

Parking garages required scalability as well as a wide variety of distributions to meet specific application requirements. The SRT1 is available in two distribution types: Type 5 Square Wide and Type 5 Concentrated ideal for typical parking garage and canopy applications. For increased flexibility, the SRT2 offers two additional distributions (four total) including the Type % Square Wide, Type 5 Concentrated, Type 5 Rectangular Wide and an Asymmetric (Type 4).
Accessories

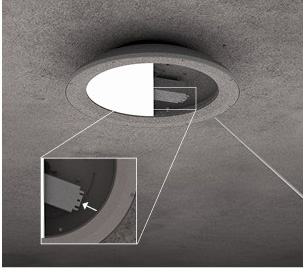

Battery Backup
Integral battery backup option available on SRT2 version.

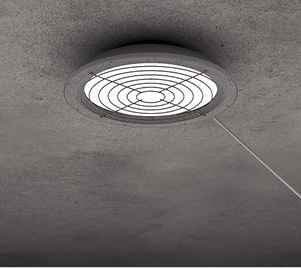

Wire Guard
An optional wire guard can be specified at the factory or as an accessory for field installation. Available for SRT1 and SRT2.

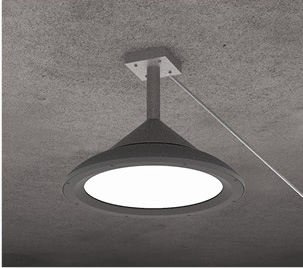

Bird Deterrent
An optional bird shroud deterrent can be specified at the factory or as an accessory for field installation. Available for SRT1 and SRT2.
Controls
Standalone Controls
Optional passive infrared sensors are available for SRT1 and SRT2 for basic occupancy and daylit sensing. Programmable via remote or Bluetooth® phone app.
Wireless Controls

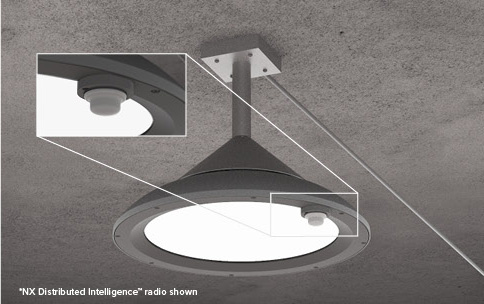

Optional NX Distributed Intelligence™ and wiSCAPE® wireless controls are available for SRT2 versions (with or without occupancy sensing).
Mounting
Surface Mount
Mounting plate with "quick mount" hanger for one person simple installation to a 4" square or octagonal junction box.

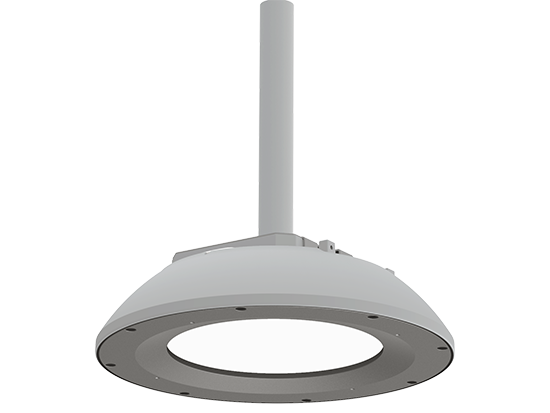

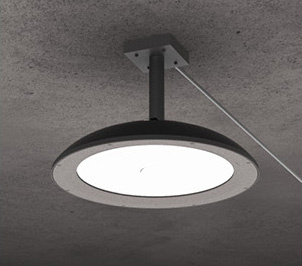

Pendant Mount
Standard 3/4" threaded entry for pendant applications. Installs to a 4" square or octagonal junction box.
Trunnion/Yoke Mount
Multiple position trunnion mount adjusts 9" up and down for positioning in 1" increments.
Simple Installation
Step 1
Mount plate to junction box.
Step 2
Hang fixture on mounting plate with provided integral hook.
Step 3
Complete wiring connections.
Step 4
Two mounting screws close and secure fixture to the mounting bracket.
Finish Options

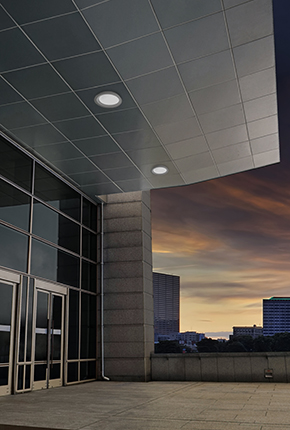

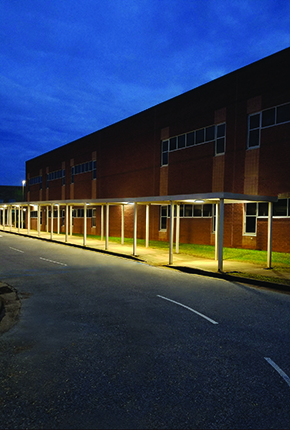

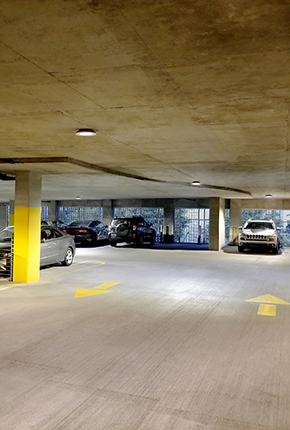

Application Images
