Kim Lighting Ouro Family
Ouro Area & Site Lighting
The striking form seamlessly blends high performance optics, controls, scalability and mounting options to cover more applications and enhance the environment they occupy.
Form
Two sizes, three mounting aesthetics. The Ouro provides an unique, scalable lighting solutions targeting for 8’ to 40’ mounting heights. Its design brings proportion to parking lots, drive lanes, entrances, building perimeters and pathways.
Performance
Exceptional performance and uniformity with three lens configurations: clear, diffuse, and no lens options. Outputs range from 3,000lm to 35,000lm. Unparalleled performance with visual comfort, the low glare, diffuse lens is available in symmetric and asymmetric distributions. Kim Lighting's nine optical distributions ensure precise, even illumination throughout the application.
Control
Controls in area/site applications save energy, extend luminaire life and allow customizable solutions. Sensors control light output based on area utilization. Use for energy savings and local code compliance.
Features
Design Freedom
Post Top-Arm Mount - Scaled across two sizes, the versatile mounting options available on the Ouro makes it the perfect family of products to design an application with.
Design with Aesthetics
Exceptional performance and uniformity with three lens configurations: clear, diffuse, and no lens options. Outputs range from 3,000lm to 35,000lm. Unparalleled performance with visual comfort, the low glare, diffuse lens is available in Type III and Type V distributions. Kim Lighting's nine optical distributions ensure precise, even illumination throughout the application.
Visual Comfort
Ouro diffuse lens offers a high degree of comfort by limiting glare and brightness without compromising performance, uniformity and IES distributions.
Engineered Excellence
The Ouro is designed to the highest standards of excellence and quality with attention focused on the finest details to aid installation and maintenance.
Seamless Transformation
Post Top - Available in flush mount, tenon mount. Choose from 3 and 4 inch fixture base diameters on the UR20 and 4 and 5 inch fixture base diameters on the UR28. The Solo Arm Post Top is now available with the UR20 along with a wall mounted and twin arm mounted post top option.
Arm Mount - Ouro arm mount fits 3 to 6 inch round poles or 4 inch and larger square poles. The convenient SpeedMount anchor, horizontal slipfitter, round and square vertical slipfitters and a wall mount option are also available.
Integrated Lighting Controls
Occupancy Sensors - Controls in area/site applications save energy, extend luminaire life and allow customizable solutions.
AstroDIM - provides multi-stage night-time power reduction based on an internal timer referenced to the power on/off time.

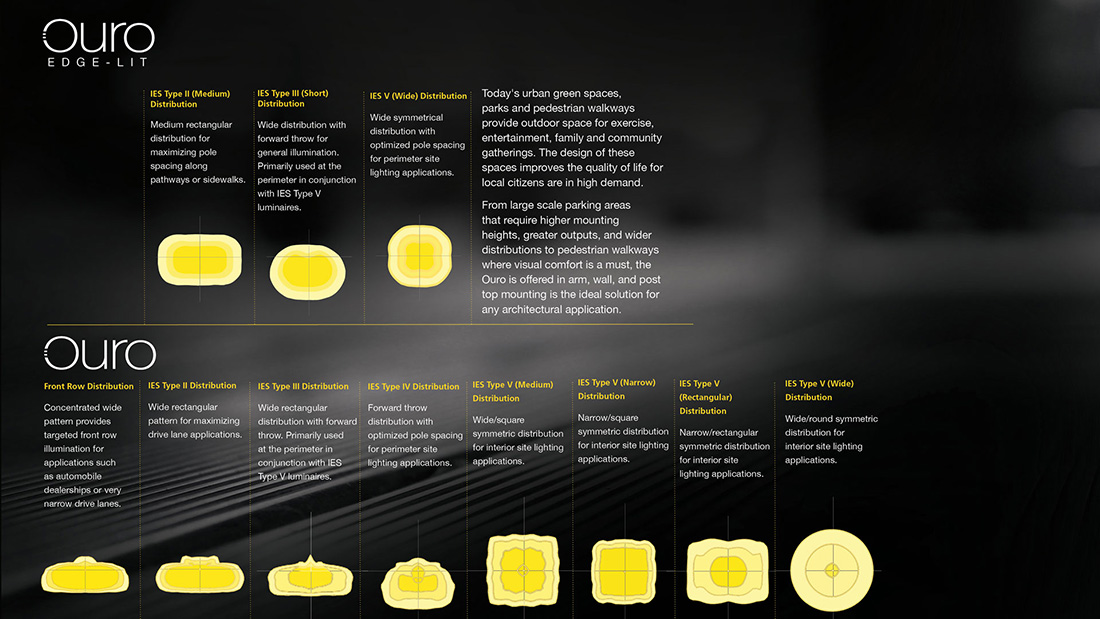

Performance with Aesthetics
- Exceptional performance and uniformity with three lens configurations: clear, diffuse, and no lens options.
- Front Row, Type II, Type III, Type IV, Type V (Medium), Type V (Narrow), Type V (Rectangular), Type V (Wide)
- Outputs range from 3,000lm to 35,000lm.
- Unparalleled performance with visual comfort, the low glare, diffuse lens is available in Type III and Type V distributions.
Design Excellence
- Tool free entry
- Tamper resistant hardware available
- Hidden hinge allows access to the electrical components without compromising the exterior design.
- Kickstand enables safe installation and easy maintenance.
- Speed Mount aids pole and wall installation.
- IP66 options ensure robustness in application.
- Dynamic thermal regulation protects LEDs and electronics under extreme temperatures.

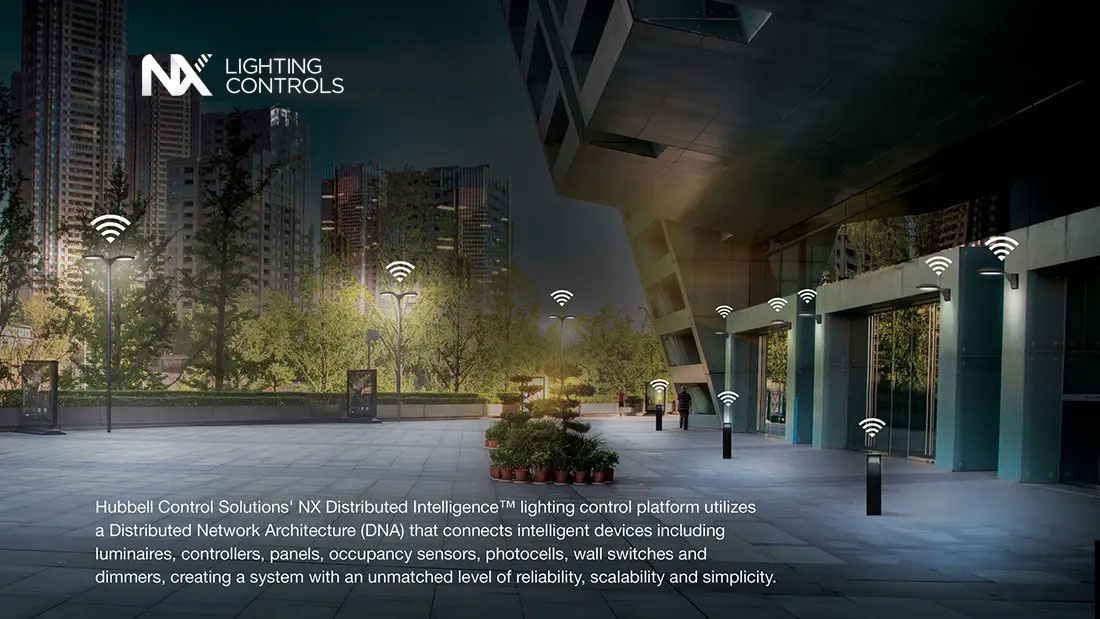

Control Integration
Occupancy Sensors
Controls in area/site applications save energy, extend luminaire life and allow customizable solutions. Sensors control light output based on area utilization. Use for energy savings and local code compliance.
SCP - Wattstopper programable sensor
- Programmable occupancy sensor with wireless configuration (ordered separately)
- Includes photocontrol functionality
- Wide lens available
- For mounting heights up to 40 ft.
WSP - WASP sensor
- Occupancy sensor with photocontrol functionality included
- High voltage 347-480V applications
- For mounting heights up to 40 ft.
SCL -Low voltage sensor
- Low voltage occupancy sensor for use with external control systems enabled via 7 pin receptacle (7PR)
AstroDIM
AstroDIM provides multi-stage night-time power reduction based on an internal timer referenced to the power on/off time. There is no need for an external control infrastructure. The unit automatically performs a dimming profile based on the predefined scheduled reference to the midpoint, which is calculated based on the power on/off times.
Post Top-Arm Mount
Two sizes, three mounting configurations. Ouro provides a unique, scalable lighting solution targeted for 8’ and 40’ mounting heights. Its design brings proportion to parking lots, drive lanes, entrances, building perimeters and pathways.

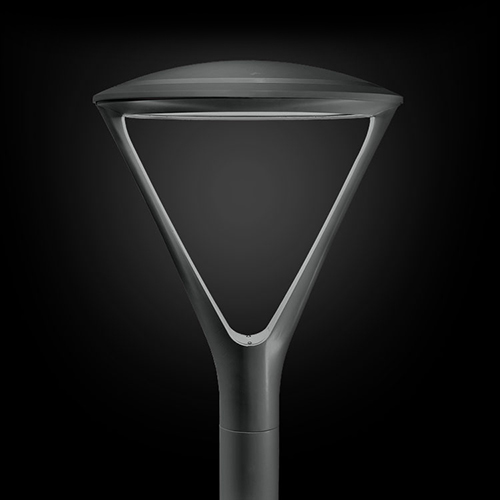

Ouro Edge-Lit Post Top | Ouro Post Top

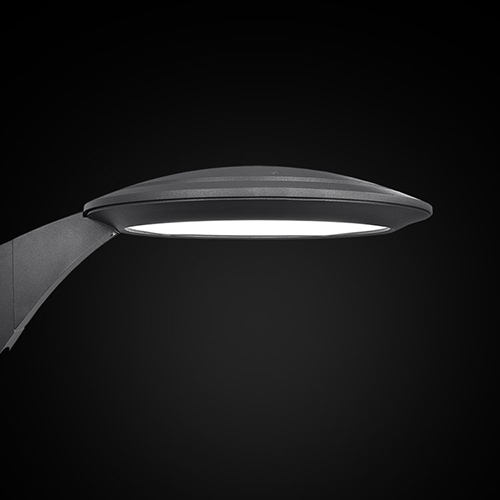

Ouro Edge-Lit Arm Mount | Ouro Arm Mount

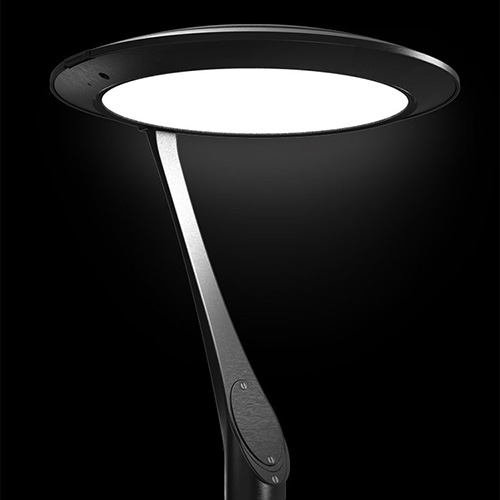

Ouro Edge-Lit Solo Arm Post Top | Ouro Solo Arm Post Top
