COLUMBIA LIGHTING
CRB

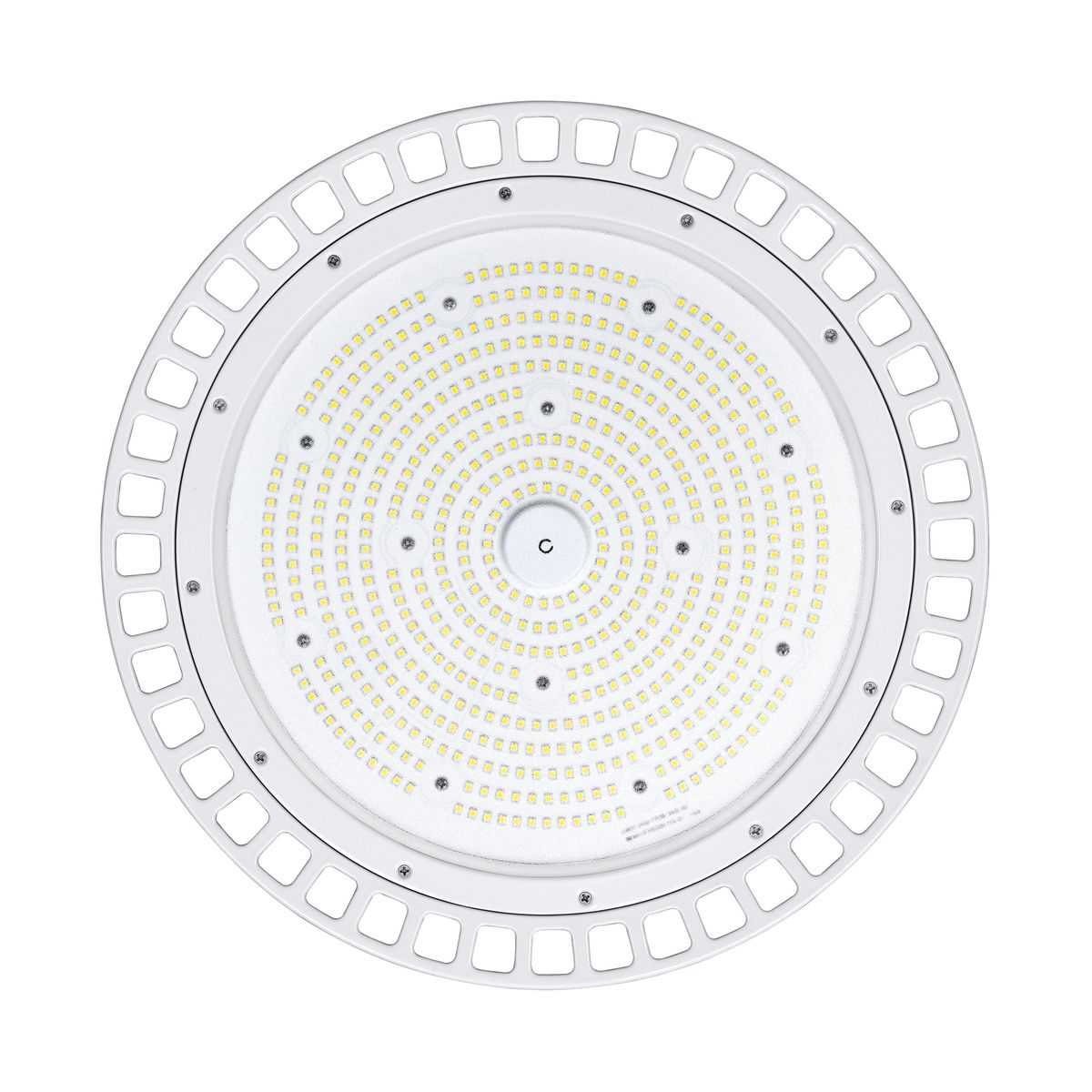

The CRB is a compact wet location high bay with a diecast alluminum housing, standard polycarbonate lens and fully qualified components replaces 750W HID.

Features & Benefits

  • Compact wet location high bay
  • Lumen packages from 14,000-34,000
  • Efficacy up to 143 lumens per watt
  • 4000K and 5000K options and 80 CRI
  • IP66 rated
  • IK07 rated
  • Durable die-cast aluminum housing and polycarbonate lens
  • DLC® (DesignLights Consortium) Premium Qualified. Please refer to the DLC website for specific product qualifications at www.designlights.org
  • 5 Year Warranty
Where To Buy
SPEC SHEET

Specifications

Lumen Range
14,000 - 34,000
Dimming Protocol
0-10V Dimming
CCT Offering
4000, 5000
CRI Offering
80
Mounting Options
Pendant
Material - Housing
Die-Cast Aluminum
Wattage Range
100 - 240
Efficacy Range
139 - 143
Color Offering
White
Certifications
UL, DLC 5.0 Premium
Ratings
IP65, IP66, IP67, Wet
Operating Temp
-30 up to 50
Warranty
5 year limited

Product Documents

CRB Specification Sheet
604 KB
2023-08-03

Sell Sheets

CRB Sell Sheet
1617 KB
2023-08-03

Design / BIM Files / 3D Models

CRB BIM file
2904 KB
2023-08-03

Technical Documents

CRB Installation Manual
725 KB
2023-08-03

Photometry(0)

Clear Filters

Product Name Color Temp CRI Lumens LM/W Watts Dist. Type Resources
CRB-40MV-EDU4000 K80 CRI28739 lm143201.34 WWide
CRB-40MX-EDU4000 K80 CRI34603 lm143242.65 WWide
CRB-50LX-EDU5000 K80 CRI14107 lm139101.58 WWide
CRB-50MM-EDU5000 K80 CRI21349 lm140152.24 WWide
CRB-50MV-EDU5000 K80 CRI28739 lm143201.34 WWide
CRB-50MX-EDU5000 K80 CRI34603 lm143242.65 WWide
CRB-40LX-EDU4000 K80 CRI14107 lm139101.58 WWide
CRB-40MM-EDU4000 K80 CRI21349 lm140152.24 WWide
