COLUMBIA LIGHTING

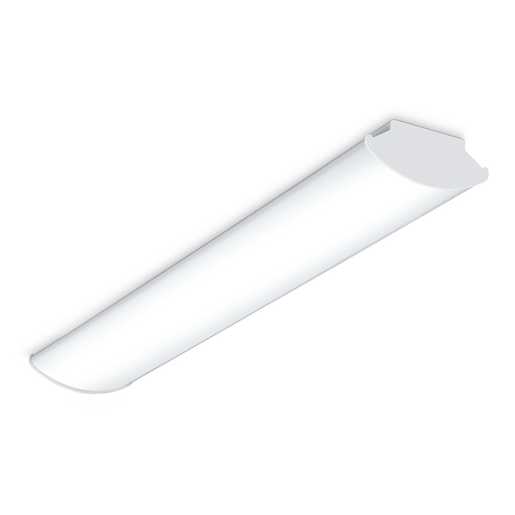

Reverie™ - RLB
The Reverie RLB is a decorative low bay for Educational, automotive and retail spaces. Distribution options and multiple control capabilities for customization.
Features & Benefits
- Uninterrupted ribbon of light for single or row mount applications
- Six LED color choices available in 80 and 90 CRI
- Available in 4' and 8'
- Optional integral emergency battery pack
- Heavy gauge steel housing, die embossed for maximum rigidity
- Injection molded ABS material endcaps
- LED boards and driver accessible for future maintenance or upgrades
- Modular replaceability of LED components
- Surface mount, stem mount or cable mount
- Long life 60,000 hour LEDs at L80 for reduced maintenance
- Optional SpectraSync™ offers three modes of tunable white solutions and integrates seamlessly into a variety of control systems
- NX Lighting Controls provides options for standalone and networked integrated sensor with wired or wireless connectivity for NX system deployments
- Five year warranty
Specifications
Product Technology
SpectraSync™ Color Tuning,
NX Lighting Controls
Lumen Range
3,300 - 24,200
Dimming Protocol
0-10V Dimming,
Phase Dimming
CCT
3000,
3500,
4000,
5000
CRI
80,
90
Color Tuning
Tunable White
Mounting Options
Ceiling,
Surface,
Pendant,
Suspended
Wattage Range
32 - 188
Efficacy
114 - 120
Color Offering
White
Beam Angle
Lambertian
Certifications
CSA,
UL 924,
DLC 5.1 Standard,
DLC 5.1 Premium
Ratings
IC,
Damp
Warranty
5 year limited
Controls Platform
Independent Control,
NX Connect,
NX Networked - Wired,
NX Networked - Wireless
Lumen Range
3,300 - 24,200
Specifications
| Product Technology | SpectraSync™ Color Tuning, NX Lighting Controls |
| Lumen Range | 3,300 - 24,200 |
| Dimming Protocol | 0-10V Dimming, Phase Dimming |
| CCT | 3000, 3500, 4000, 5000 |
| CRI | 80, 90 |
| Color Tuning | Tunable White |
| Mounting Options | Ceiling, Surface, Pendant, Suspended |
| Wattage Range | 32 - 188 |
| Efficacy | 114 - 120 |
| Color Offering | White |
| Beam Angle | Lambertian |
| Certifications | CSA, UL 924, DLC 5.1 Standard, DLC 5.1 Premium |
| Ratings | IC, Damp |
| Warranty | 5 year limited |
| Controls Platform | Independent Control, NX Connect, NX Networked - Wired, NX Networked - Wireless |
| Lumen Range | 3,300 - 24,200 |
Product Documents
Spec Sheets
Brochures / Catalogs
Design / BIM Files / 3D Models
Technical Documents
Photometry(0)
Clear Filters| Product Name | Color Temp | CRI | Lumens | LM/W | Watts | Dist. Type | Resources |
|---|---|---|---|---|---|---|---|
| RLB8-50LMHE-FAM-EDU | 5000 K | 80 CRI | 12547 lm | 138 | 91 W | Medium | |
| RLB8-50LMHE-FAN-EDU | 5000 K | 80 CRI | 12850 lm | 142 | 90 W | Narrow | |
| RLB8-50LV-FAA-EDU | 5000 K | 80 CRI | 20574 lm | 124 | 166 W | Aisle | |
| RLB8-50LV-FAM-EDU | 5000 K | 80 CRI | 20249 lm | 121 | 167 W | Medium | |
| RLB8-50LV-FAN-EDU | 5000 K | 80 CRI | 20698 lm | 126 | 165 W | Narrow | |
| RLB8-50LVHE-FAA-EDU | 5000 K | 80 CRI | 21043 lm | 138 | 152 W | Aisle | |
| RLB8-50LVHE-FAM-EDU | 5000 K | 80 CRI | 20681 lm | 135 | 153 W | Medium | |
| RLB8-50LVHE-FAN-EDU | 5000 K | 80 CRI | 15397 lm | 142 | 108 W | Narrow | |
| RLB8-50LX-FAA-EDU | 5000 K | 80 CRI | 24941 lm | 130 | 192 W | Aisle | |
| RLB8-50LX-FAM-EDU | 5000 K | 80 CRI | 24201 lm | 128 | 189 W | Medium | |
| RLB8-50LX-FAN-EDU | 5000 K | 80 CRI | 24764 lm | 131 | 189 W | Narrow | |
| RLB8-50LXHE-FAA-EDU | 5000 K | 80 CRI | 25228 lm | 135 | 187 W | Aisle | |
| RLB8-50LXHE-FAM-EDU | 5000 K | 80 CRI | 24811 lm | 132 | 188 W | Medium | |
| RLB8-50LXHE-FAN-EDU | 5000 K | 80 CRI | 25488 lm | 136 | 188 W | Narrow | |
| RLB4-30LH-FAA-EDU | 3000 K | 80 CRI | 7770 lm | 121 | 64 W | Aisle | |
| RLB4-30LH-FAM-EDU | 3000 K | 80 CRI | 7530 lm | 119 | 63 W | Medium | |
| RLB4-30LH-FAN-EDU | 3000 K | 80 CRI | 7701 lm | 122 | 63 W | Narrow | |
| RLB4-30LHHE-FAA-EDU | 3000 K | 80 CRI | 8780 lm | 132 | 66 W | Aisle | |
| RLB4-30LHHE-FAM-EDU | 3000 K | 80 CRI | 7831 lm | 131 | 60 W | Medium | |
| RLB4-30LHHE-FAN-EDU | 3000 K | 80 CRI | 8004 lm | 134 | 60 W | Narrow | |
| RLB4-30LL-FAA-EDU | 3000 K | 80 CRI | 3979 lm | 122 | 32 W | Aisle | |
| RLB4-30LL-FAM-EDU | 3000 K | 80 CRI | 3949 lm | 120 | 33 W | Medium | |
| RLB4-30LL-FAN-EDU | 3000 K | 80 CRI | 3931 lm | 121 | 32 W | Narrow | |
| RLB4-30LLHE-FAA-EDU | 3000 K | 80 CRI | 3947 lm | 131 | 30 W | Aisle | |
| RLB4-30LLHE-FAM-EDU | 3000 K | 80 CRI | 3890 lm | 129 | 30 W | Medium | |
| RLB4-30LLHE-FAN-EDU | 3000 K | 80 CRI | 4057 lm | 132 | 31 W | Narrow | |
| RLB4-30LM-FAA-EDU | 3000 K | 80 CRI | 5848 lm | 62 | 94 W | Aisle | |
| RLB4-30LM-FAM-EDU | 3000 K | 80 CRI | 5688 lm | 112 | 51 W | Medium | |
| RLB4-30LM-FAN-EDU | 3000 K | 80 CRI | 5860 lm | 114 | 51 W | Narrow | |
| RLB4-30LMHE-FAA-EDU | 3000 K | 80 CRI | 5848 lm | 116 | 50 W | Aisle | |
| RLB4-30LMHE-FAM-EDU | 3000 K | 80 CRI | 5891 lm | 130 | 45 W | Medium | |
| RLB4-30LMHE-FAN-EDU | 3000 K | 80 CRI | 6033 lm | 133 | 45 W | Narrow | |
| RLB4-30LV-FAA-EDU | 3000 K | 80 CRI | 9659 lm | 116 | 83 W | Aisle | |
| RLB4-30LV-FAM-EDU | 3000 K | 80 CRI | 9507 lm | 114 | 83 W | Medium | |
| RLB4-30LV-FAN-EDU | 3000 K | 80 CRI | 9717 lm | 118 | 82 W | Narrow | |
| RLB4-30LVHE-FAA-EDU | 3000 K | 80 CRI | 9879 lm | 130 | 76 W | Aisle | |
| RLB4-30LVHE-FAM-EDU | 3000 K | 80 CRI | 9710 lm | 127 | 76 W | Medium | |
| RLB4-30LVHE-FAN-EDU | 3000 K | 80 CRI | 7229 lm | 134 | 54 W | Narrow | |
| RLB4-30LX-FAA-EDU | 3000 K | 80 CRI | 11709 lm | 122 | 96 W | Aisle | |
| RLB4-30LX-FAM-EDU | 3000 K | 80 CRI | 11362 lm | 120 | 94 W | Medium | |
| RLB4-30LX-FAN-EDU | 3000 K | 80 CRI | 11626 lm | 123 | 94 W | Narrow | |
| RLB4-30LXHE-FAA-EDU | 3000 K | 80 CRI | 11844 lm | 127 | 94 W | Aisle | |
| RLB4-30LXHE-FAM-EDU | 3000 K | 80 CRI | 11648 lm | 124 | 94 W | Medium | |
| RLB4-30LXHE-FAN-EDU | 3000 K | 80 CRI | 11966 lm | 127 | 94 W | Narrow | |
| RLB4-35LH-FAA-EDU | 3500 K | 80 CRI | 7910 lm | 123 | 64 W | Aisle | |
| RLB4-35LH-FAM-EDU | 3500 K | 80 CRI | 7665 lm | 121 | 63 W | Medium | |
| RLB4-35LH-FAN-EDU | 3500 K | 80 CRI | 7839 lm | 124 | 63 W | Narrow | |
| RLB4-35LHHE-FAA-EDU | 3500 K | 80 CRI | 8938 lm | 135 | 66 W | Aisle | |
| RLB4-35LHHE-FAM-EDU | 3500 K | 80 CRI | 7972 lm | 133 | 60 W | Medium | |
| RLB4-35LHHE-FAN-EDU | 3500 K | 80 CRI | 8148 lm | 136 | 60 W | Narrow | |
| RLB4-35LL-FAA-EDU | 3500 K | 80 CRI | 4050 lm | 125 | 32 W | Aisle | |
| RLB4-35LL-FAM-EDU | 3500 K | 80 CRI | 4020 lm | 123 | 33 W | Medium | |
| RLB4-35LL-FAN-EDU | 3500 K | 80 CRI | 4002 lm | 124 | 32 W | Narrow | |
| RLB4-35LLHE-FAA-EDU | 3500 K | 80 CRI | 4018 lm | 133 | 30 W | Aisle | |
| RLB4-35LLHE-FAM-EDU | 3500 K | 80 CRI | 4124 lm | 136 | 30 W | Medium | |
| RLB4-35LLHE-FAN-EDU | 3500 K | 80 CRI | 4130 lm | 134 | 31 W | Narrow | |
| RLB4-35LM-FAA-EDU | 3500 K | 80 CRI | 5954 lm | 64 | 94 W | Aisle | |
| RLB4-35LM-FAM-EDU | 3500 K | 80 CRI | 5790 lm | 114 | 51 W | Medium | |
| RLB4-35LM-FAN-EDU | 3500 K | 80 CRI | 5965 lm | 116 | 51 W | Narrow | |
| RLB4-35LMHE-FAA-EDU | 3500 K | 80 CRI | 5954 lm | 118 | 50 W | Aisle | |
| RLB4-35LMHE-FAM-EDU | 3500 K | 80 CRI | 5997 lm | 132 | 45 W | Medium | |
| RLB4-35LMHE-FAN-EDU | 3500 K | 80 CRI | 6142 lm | 136 | 45 W | Narrow | |
| RLB4-35LV-FAA-EDU | 3500 K | 80 CRI | 9833 lm | 118 | 83 W | Aisle | |
| RLB4-35LV-FAA-EDU | 3500 K | 80 CRI | 9833 lm | 118 | 83 W | Aisle | |
| RLB4-35LV-FAM-EDU | 3500 K | 80 CRI | 9678 lm | 116 | 83 W | Medium | |
| RLB4-35LV-FAN-EDU | 3500 K | 80 CRI | 9892 lm | 120 | 82 W | Narrow | |
| RLB4-35LVHE-FAA-EDU | 3500 K | 80 CRI | 10057 lm | 132 | 76 W | Aisle | |
| RLB4-35LVHE-FAM-EDU | 3500 K | 80 CRI | 9884 lm | 129 | 76 W | Medium | |
| RLB4-35LVHE-FAN-EDU | 3500 K | 80 CRI | 7359 lm | 136 | 54 W | Narrow | |
| RLB4-35LX-FAA-EDU | 3500 K | 80 CRI | 11920 lm | 124 | 96 W | Aisle | |
| RLB4-35LX-FAM-EDU | 3500 K | 80 CRI | 11566 lm | 123 | 94 W | Medium | |
| RLB4-35LX-FAN-EDU | 3500 K | 80 CRI | 11836 lm | 125 | 94 W | Narrow | |
| RLB4-35LXHE-FAA-EDU | 3500 K | 80 CRI | 12057 lm | 129 | 94 W | Aisle | |
| RLB4-35LXHE-FAM-EDU | 3500 K | 80 CRI | 11858 lm | 126 | 94 W | Medium | |
| RLB4-35LXHE-FAN-EDU | 3500 K | 80 CRI | 12181 lm | 130 | 94 W | Narrow | |
| RLB4-40LH-FAA-EDU | 4000 K | 80 CRI | 8011 lm | 125 | 64 W | Aisle | |
| RLB4-40LH-FAM-EDU | 4000 K | 80 CRI | 7763 lm | 123 | 63 W | Medium | |
| RLB4-40LH-FAN-EDU | 4000 K | 80 CRI | 7940 lm | 126 | 63 W | Narrow | |
| RLB4-40LHHE-FAA-EDU | 4000 K | 80 CRI | 9053 lm | 137 | 66 W | Aisle | |
| RLB4-40LHHE-FAM-EDU | 4000 K | 80 CRI | 8074 lm | 135 | 60 W | Medium | |
| RLB4-40LHHE-FAN-EDU | 4000 K | 80 CRI | 8252 lm | 138 | 60 W | Narrow | |
| RLB4-40LL-FAA-EDU | 4000 K | 80 CRI | 4102 lm | 126 | 32 W | Aisle | |
| RLB4-40LL-FAM-EDU | 4000 K | 80 CRI | 4072 lm | 124 | 33 W | Medium | |
| RLB4-40LL-FAN-EDU | 4000 K | 80 CRI | 4053 lm | 125 | 32 W | Narrow | |
| RLB4-40LLHE-FAA-EDU | 4000 K | 80 CRI | 4070 lm | 135 | 30 W | Aisle | |
| RLB4-40LLHE-FAM-EDU | 4000 K | 80 CRI | 4157 lm | 135 | 31 W | Medium | |
| RLB4-40LLHE-FAN-EDU | 4000 K | 80 CRI | 4309 lm | 140 | 31 W | Narrow | |
| RLB4-40LM-FAA-EDU | 4000 K | 80 CRI | 6030 lm | 64 | 94 W | Aisle | |
| RLB4-40LM-FAM-EDU | 4000 K | 80 CRI | 5864 lm | 115 | 51 W | Medium | |
| RLB4-40LM-FAN-EDU | 4000 K | 80 CRI | 6041 lm | 118 | 51 W | Narrow | |
| RLB4-40LMHE-FAA-EDU | 4000 K | 80 CRI | 6030 lm | 120 | 50 W | Aisle | |
| RLB4-40LMHE-FAM-EDU | 4000 K | 80 CRI | 6073 lm | 134 | 45 W | Medium | |
| RLB4-40LMHE-FAN-EDU | 4000 K | 80 CRI | 6220 lm | 138 | 45 W | Narrow | |
| RLB4-40LV-FAA-EDU | 4000 K | 80 CRI | 9959 lm | 120 | 83 W | Aisle | |
| RLB4-40LV-FAM-EDU | 4000 K | 80 CRI | 9801 lm | 118 | 83 W | Medium | |
| RLB4-40LV-FAN-EDU | 4000 K | 80 CRI | 10019 lm | 122 | 82 W | Narrow | |
| RLB4-40LVHE-FAA-EDU | 4000 K | 80 CRI | 10186 lm | 134 | 76 W | Aisle | |
| RLB4-40LVHE-FAM-EDU | 4000 K | 80 CRI | 10011 lm | 131 | 76 W | Medium | |
| RLB4-40LVHE-FAN-EDU | 4000 K | 80 CRI | 7453 lm | 138 | 54 W | Narrow | |
| RLB4-40LX-FAA-EDU | 4000 K | 80 CRI | 12072 lm | 126 | 96 W | Aisle | |
| RLB4-40LX-FAM-EDU | 4000 K | 80 CRI | 11714 lm | 124 | 94 W | Medium | |
| RLB4-40LX-FAN-EDU | 4000 K | 80 CRI | 11987 lm | 127 | 94 W | Narrow | |
| RLB4-40LXHE-FAA-EDU | 4000 K | 80 CRI | 12211 lm | 130 | 94 W | Aisle | |
| RLB4-40LXHE-FAM-EDU | 4000 K | 80 CRI | 12010 lm | 128 | 94 W | Medium | |
| RLB4-40LXHE-FAN-EDU | 4000 K | 80 CRI | 12337 lm | 131 | 94 W | Narrow | |
| RLB4-50LH-FAA-EDU | 5000 K | 80 CRI | 8275 lm | 129 | 64 W | Aisle | |
| RLB4-50LH-FAM-EDU | 5000 K | 80 CRI | 7997 lm | 126 | 63 W | Medium | |
| RLB4-50LH-FAN-EDU | 5000 K | 80 CRI | 8201 lm | 130 | 63 W | Narrow | |
| RLB4-50LHHE-FAA-EDU | 5000 K | 80 CRI | 9351 lm | 141 | 66 W | Aisle | |
| RLB4-50LHHE-FAM-EDU | 5000 K | 80 CRI | 8340 lm | 139 | 60 W | Medium | |
| RLB4-50LHHE-FAN-EDU | 5000 K | 80 CRI | 8524 lm | 143 | 60 W | Narrow | |
| RLB4-50LL-FAA-EDU | 5000 K | 80 CRI | 4237 lm | 130 | 32 W | Aisle | |
| RLB4-50LL-FAM-EDU | 5000 K | 80 CRI | 4206 lm | 128 | 33 W | Medium | |
| RLB4-50LL-FAN-EDU | 5000 K | 80 CRI | 4187 lm | 133 | 33 W | Narrow | |
| RLB4-50LL-FAN-EDU | 5000 K | 80 CRI | 4337 lm | 129 | 32 W | Narrow | |
| RLB4-50LLHE-FAA-EDU | 5000 K | 80 CRI | 4204 lm | 139 | 30 W | Aisle | |
| RLB4-50LLHE-FAM-EDU | 5000 K | 80 CRI | 4313 lm | 142 | 30 W | Medium | |
| RLB4-50LLHE-FAN-EDU | 5000 K | 80 CRI | 4308 lm | 140 | 31 W | Narrow | |
| RLB4-50LM-FAA-EDU | 5000 K | 80 CRI | 6228 lm | 67 | 94 W | Aisle | |
| RLB4-50LM-FAM-EDU | 5000 K | 80 CRI | 6058 lm | 119 | 51 W | Medium | |
| RLB4-50LM-FAN-EDU | 5000 K | 80 CRI | 6241 lm | 122 | 51 W | Narrow | |
| RLB4-50LMHE-FAA-EDU | 5000 K | 80 CRI | 6228 lm | 124 | 50 W | Aisle | |
| RLB4-50LMHE-FAM-EDU | 5000 K | 80 CRI | 6274 lm | 138 | 45 W | Medium | |
| RLB4-50LMHE-FAN-EDU | 5000 K | 80 CRI | 6425 lm | 142 | 45 W | Narrow | |
| RLB4-50LV-FAA-EDU | 5000 K | 80 CRI | 10287 lm | 124 | 83 W | Aisle | |
| RLB4-50LV-FAM-EDU | 5000 K | 80 CRI | 10125 lm | 121 | 83 W | Medium | |
| RLB4-50LV-FAN-EDU | 5000 K | 80 CRI | 10349 lm | 126 | 82 W | Narrow | |
| RLB4-50LVHE-FAA-EDU | 5000 K | 80 CRI | 10522 lm | 138 | 76 W | Aisle | |
| RLB4-50LVHE-FAM-EDU | 5000 K | 80 CRI | 10341 lm | 135 | 76 W | Medium | |
| RLB4-50LVHE-FAN-EDU | 5000 K | 80 CRI | 7699 lm | 142 | 54 W | Narrow | |
| RLB4-50LX-FAA-EDU | 5000 K | 80 CRI | 12470 lm | 130 | 96 W | Aisle | |
| RLB4-50LX-FAM-EDU | 5000 K | 80 CRI | 12100 lm | 128 | 94 W | Medium | |
| RLB4-50LX-FAN-EDU | 5000 K | 80 CRI | 12382 lm | 131 | 94 W | Narrow | |
| RLB4-50LXHE-FAA-EDU | 5000 K | 80 CRI | 12614 lm | 135 | 94 W | Aisle | |
| RLB4-50LXHE-FAM-EDU | 5000 K | 80 CRI | 12406 lm | 132 | 94 W | Medium | |
| RLB4-50LXHE-FAN-EDU | 5000 K | 80 CRI | 12744 lm | 136 | 94 W | Narrow | |
| RLB8-30LH-FAA-EDU | 3000 K | 80 CRI | 15540 lm | 121 | 129 W | Aisle | |
| RLB8-30LH-FAM-EDU | 3000 K | 80 CRI | 15059 lm | 119 | 127 W | Medium | |
| RLB8-30LH-FAN-EDU | 3000 K | 80 CRI | 15402 lm | 122 | 126 W | Narrow | |
| RLB8-30LHHE-FAA-EDU | 3000 K | 80 CRI | 17561 lm | 132 | 133 W | Aisle | |
| RLB8-30LHHE-FAM-EDU | 3000 K | 80 CRI | 15663 lm | 131 | 120 W | Medium | |
| RLB8-30LHHE-FAN-EDU | 3000 K | 80 CRI | 16008 lm | 134 | 120 W | Narrow | |
| RLB8-30LL-FAA-EDU | 3000 K | 80 CRI | 7957 lm | 122 | 65 W | Aisle | |
| RLB8-30LL-FAM-EDU | 3000 K | 80 CRI | 7898 lm | 120 | 66 W | Medium | |
| RLB8-30LL-FAN-EDU | 3000 K | 80 CRI | 7863 lm | 121 | 65 W | Narrow | |
| RLB8-30LLHE-FAA-EDU | 3000 K | 80 CRI | 7894 lm | 131 | 60 W | Aisle | |
| RLB8-30LLHE-FAN-EDU | 3000 K | 80 CRI | 8114 lm | 132 | 62 W | Narrow | |
| RLB8-30LM-FAA-EDU | 3000 K | 80 CRI | 11697 lm | 62 | 187 W | Aisle | |
| RLB8-30LM-FAM-EDU | 3000 K | 80 CRI | 11376 lm | 112 | 102 W | Medium | |
| RLB8-30LM-FAN-EDU | 3000 K | 80 CRI | 11719 lm | 114 | 103 W | Narrow | |
| RLB8-30LMHE-FAA-EDU | 3000 K | 80 CRI | 11697 lm | 116 | 101 W | Aisle | |
| RLB8-30LMHE-FAM-EDU | 3000 K | 80 CRI | 11781 lm | 130 | 91 W | Medium | |
| RLB8-30LMHE-FAN-EDU | 3000 K | 80 CRI | 12066 lm | 133 | 90 W | Narrow | |
| RLB8-30LV-FAA-EDU | 3000 K | 80 CRI | 19319 lm | 116 | 166 W | Aisle | |
| RLB8-30LV-FAM-EDU | 3000 K | 80 CRI | 19013 lm | 114 | 167 W | Medium | |
| RLB8-30LV-FAN-EDU | 3000 K | 80 CRI | 19435 lm | 118 | 165 W | Narrow | |
| RLB8-30LVHE-FAA-EDU | 3000 K | 80 CRI | 19759 lm | 130 | 152 W | Aisle | |
| RLB8-30LVHE-FAM-EDU | 3000 K | 80 CRI | 19419 lm | 127 | 153 W | Medium | |
| RLB8-30LVHE-FAN-EDU | 3000 K | 80 CRI | 14457 lm | 134 | 108 W | Narrow | |
| RLB8-30LX-FAA-EDU | 3000 K | 80 CRI | 23419 lm | 122 | 192 W | Aisle | |
| RLB8-30LX-FAM-EDU | 3000 K | 80 CRI | 22724 lm | 120 | 189 W | Medium | |
| RLB8-30LX-FAN-EDU | 3000 K | 80 CRI | 23253 lm | 123 | 189 W | Narrow | |
| RLB8-30LXHE-FAA-EDU | 3000 K | 80 CRI | 23689 lm | 127 | 187 W | Aisle | |
| RLB8-30LXHE-FAM-EDU | 3000 K | 80 CRI | 23297 lm | 124 | 188 W | Medium | |
| RLB8-30LXHE-FAN-EDU | 3000 K | 80 CRI | 23932 lm | 127 | 188 W | Narrow | |
| RLB8-35LH-FAA-EDU | 3500 K | 80 CRI | 15820 lm | 123 | 129 W | Aisle | |
| RLB8-35LH-FAM-EDU | 3500 K | 80 CRI | 15331 lm | 121 | 127 W | Medium | |
| RLB8-35LH-FAN-EDU | 3500 K | 80 CRI | 15679 lm | 124 | 126 W | Narrow | |
| RLB8-35LHHE-FAA-EDU | 3500 K | 80 CRI | 17877 lm | 135 | 133 W | Aisle | |
| RLB8-35LHHE-FAM-EDU | 3500 K | 80 CRI | 15945 lm | 133 | 120 W | Medium | |
| RLB8-35LHHE-FAN-EDU | 3500 K | 80 CRI | 16296 lm | 136 | 120 W | Narrow | |
| RLB8-35LL-FAA-EDU | 3500 K | 80 CRI | 8100 lm | 125 | 65 W | Aisle | |
| RLB8-35LL-FAM-EDU | 3500 K | 80 CRI | 8041 lm | 123 | 66 W | Medium | |
| RLB8-35LL-FAN-EDU | 3500 K | 80 CRI | 8004 lm | 124 | 65 W | Narrow | |
| RLB8-35LLHE-FAA-EDU | 3500 K | 80 CRI | 8036 lm | 133 | 60 W | Aisle | |
| RLB8-35LLHE-FAM-EDU | 3500 K | 80 CRI | 8247 lm | 136 | 61 W | Medium | |
| RLB8-35LLHE-FAN-EDU | 3500 K | 80 CRI | 8260 lm | 134 | 62 W | Narrow | |
| RLB8-35LM-FAA-EDU | 3500 K | 80 CRI | 11907 lm | 64 | 187 W | Aisle | |
| RLB8-35LM-FAM-EDU | 3500 K | 80 CRI | 11580 lm | 114 | 102 W | Medium | |
| RLB8-35LM-FAN-EDU | 3500 K | 80 CRI | 11930 lm | 116 | 103 W | Narrow | |
| RLB8-35LMHE-FAA-EDU | 3500 K | 80 CRI | 11907 lm | 118 | 101 W | Aisle | |
| RLB8-35LMHE-FAM-EDU | 3500 K | 80 CRI | 11993 lm | 132 | 91 W | Medium | |
| RLB8-35LMHE-FAN-EDU | 3500 K | 80 CRI | 12283 lm | 136 | 90 W | Narrow | |
| RLB8-35LV-FAA-EDU | 3500 K | 80 CRI | 19666 lm | 118 | 166 W | Aisle | |
| RLB8-35LV-FAM-EDU | 3500 K | 80 CRI | 19356 lm | 116 | 167 W | Medium | |
| RLB8-35LV-FAN-EDU | 3500 K | 80 CRI | 19785 lm | 120 | 165 W | Narrow | |
| RLB8-35LVHE-FAA-EDU | 3500 K | 80 CRI | 20115 lm | 132 | 152 W | Aisle | |
| RLB8-35LVHE-FAM-EDU | 3500 K | 80 CRI | 19769 lm | 129 | 153 W | Medium | |
| RLB8-35LVHE-FAN-EDU | 3500 K | 80 CRI | 14718 lm | 136 | 108 W | Narrow | |
| RLB8-35LX-FAA-EDU | 3500 K | 80 CRI | 23840 lm | 124 | 192 W | Aisle | |
| RLB8-35LX-FAM-EDU | 3500 K | 80 CRI | 23133 lm | 123 | 189 W | Medium | |
| RLB8-35LX-FAN-EDU | 3500 K | 80 CRI | 23671 lm | 125 | 189 W | Narrow | |
| RLB8-35LXHE-FAA-EDU | 3500 K | 80 CRI | 24115 lm | 129 | 187 W | Aisle | |
| RLB8-35LXHE-FAM-EDU | 3500 K | 80 CRI | 23716 lm | 126 | 188 W | Medium | |
| RLB8-35LXHE-FAN-EDU | 3500 K | 80 CRI | 24363 lm | 130 | 188 W | Narrow | |
| RLB8-40LH-FAA-EDU | 4000 K | 80 CRI | 16022 lm | 125 | 129 W | Aisle | |
| RLB8-40LH-FAM-EDU | 4000 K | 80 CRI | 15526 lm | 123 | 127 W | Medium | |
| RLB8-40LH-FAN-EDU | 4000 K | 80 CRI | 15879 lm | 126 | 126 W | Narrow | |
| RLB8-40LHHE-FAA-EDU | 4000 K | 80 CRI | 18105 lm | 137 | 133 W | Aisle | |
| RLB8-40LHHE-FAM-EDU | 4000 K | 80 CRI | 16148 lm | 135 | 120 W | Medium | |
| RLB8-40LHHE-FAN-EDU | 4000 K | 80 CRI | 16504 lm | 138 | 120 W | Narrow | |
| RLB8-40LL-FAA-EDU | 4000 K | 80 CRI | 8204 lm | 126 | 65 W | Aisle | |
| RLB8-40LL-FAM-EDU | 4000 K | 80 CRI | 8143 lm | 124 | 66 W | Medium | |
| RLB8-40LL-FAN-EDU | 4000 K | 80 CRI | 8107 lm | 125 | 65 W | Narrow | |
| RLB8-40LLHE-FAA-EDU | 4000 K | 80 CRI | 8139 lm | 135 | 60 W | Aisle | |
| RLB8-40LLHE-FAM-EDU | 4000 K | 80 CRI | 8314 lm | 135 | 61 W | Medium | |
| RLB8-40LLHE-FAN-EDU | 4000 K | 80 CRI | 8365 lm | 136 | 62 W | Narrow | |
| RLB8-40LM-FAA-EDU | 4000 K | 80 CRI | 12059 lm | 64 | 187 W | Aisle | |
| RLB8-40LM-FAM-EDU | 4000 K | 80 CRI | 11728 lm | 115 | 102 W | Medium | |
| RLB8-40LM-FAN-EDU | 4000 K | 80 CRI | 12083 lm | 118 | 103 W | Narrow | |
| RLB8-40LMHE-FAA-EDU | 4000 K | 80 CRI | 12059 lm | 120 | 101 W | Aisle | |
| RLB8-40LMHE-FAM-EDU | 4000 K | 80 CRI | 12147 lm | 134 | 91 W | Medium | |
| RLB8-40LMHE-FAN-EDU | 4000 K | 80 CRI | 12440 lm | 138 | 90 W | Narrow | |
| RLB8-40LV-FAA-EDU | 4000 K | 80 CRI | 19918 lm | 120 | 166 W | Aisle | |
| RLB8-40LV-FAM-EDU | 4000 K | 80 CRI | 19603 lm | 118 | 167 W | Medium | |
| RLB8-40LV-FAN-EDU | 4000 K | 80 CRI | 20037 lm | 122 | 165 W | Narrow | |
| RLB8-40LVHE-FAA-EDU | 4000 K | 80 CRI | 20371 lm | 134 | 152 W | Aisle | |
| RLB8-40LVHE-FAM-EDU | 4000 K | 80 CRI | 20021 lm | 131 | 153 W | Medium | |
| RLB8-40LVHE-FAN-EDU | 4000 K | 80 CRI | 14906 lm | 138 | 108 W | Narrow | |
| RLB8-40LX-FAA-EDU | 4000 K | 80 CRI | 24145 lm | 126 | 192 W | Aisle | |
| RLB8-40LX-FAM-EDU | 4000 K | 80 CRI | 23428 lm | 124 | 189 W | Medium | |
| RLB8-40LX-FAN-EDU | 4000 K | 80 CRI | 23973 lm | 127 | 189 W | Narrow | |
| RLB8-40LXHE-FAA-EDU | 4000 K | 80 CRI | 24423 lm | 124 | 187 W | Aisle | |
| RLB8-40LXHE-FAM-EDU | 4000 K | 80 CRI | 24019 lm | 128 | 188 W | Medium | |
| RLB8-40LXHE-FAN-EDU | 4000 K | 80 CRI | 24674 lm | 131 | 188 W | Narrow | |
| RLB8-50LH-FAA-EDU | 5000 K | 80 CRI | 16551 lm | 129 | 129 W | Aisle | |
| RLB8-50LH-FAM-EDU | 5000 K | 80 CRI | 15993 lm | 126 | 127 W | Medium | |
| RLB8-50LH-FAN-EDU | 5000 K | 80 CRI | 16403 lm | 130 | 126 W | Narrow | |
| RLB8-50LHHE-FAA-EDU | 5000 K | 80 CRI | 18702 lm | 141 | 133 W | Aisle | |
| RLB8-50LHHE-FAM-EDU | 5000 K | 80 CRI | 16681 lm | 139 | 120 W | Medium | |
| RLB8-50LHHE-FAN-EDU | 5000 K | 80 CRI | 17048 lm | 143 | 120 W | Narrow | |
| RLB8-50LL-FAA-EDU | 5000 K | 80 CRI | 8474 lm | 130 | 65 W | Aisle | |
| RLB8-50LL-FAM-EDU | 5000 K | 80 CRI | 8412 lm | 128 | 66 W | Medium | |
| RLB8-50LL-FAN-EDU | 5000 K | 80 CRI | 8374 lm | 129 | 65 W | Narrow | |
| RLB8-50LLHE-FAA-EDU | 5000 K | 80 CRI | 8407 lm | 139 | 60 W | Aisle | |
| RLB8-50LLHE-FAM-EDU | 5000 K | 80 CRI | 8626 lm | 142 | 61 W | Medium | |
| RLB8-50LLHE-FAN-EDU | 5000 K | 80 CRI | 8617 lm | 140 | 62 W | Narrow | |
| RLB8-50LM-FAA-EDU | 5000 K | 80 CRI | 12457 lm | 67 | 187 W | Aisle | |
| RLB8-50LM-FAM-EDU | 5000 K | 80 CRI | 12115 lm | 119 | 102 W | Medium | |
| RLB8-50LM-FAN-EDU | 5000 K | 80 CRI | 12481 lm | 122 | 103 W | Narrow | |
| RLB8-50LMHE-FAA-EDU | 5000 K | 80 CRI | 12457 lm | 124 | 101 W | Aisle |
Show All
Lumen Range
Application Photos
Related Products
The MPS linear fixture is a multi purpose solution that will fit seamlessly into countless applications. MPS is adaptable to most any environment.
The Revalume RLW is a linear wrap with a sleek, contemporary aesthetic for a variety of applications. Integrated controls and single or row mounting available.
