EXO

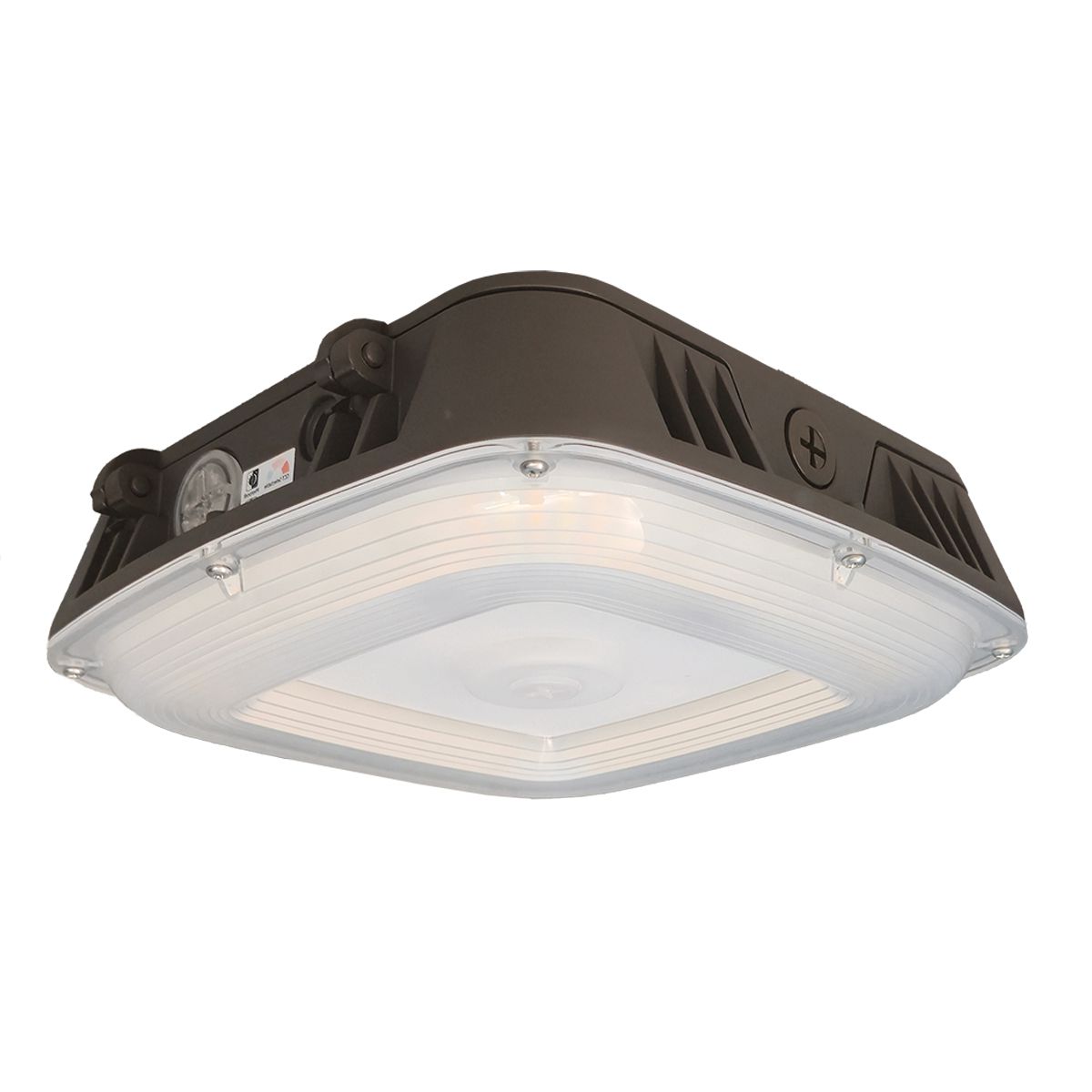

SGC Sling Canopy

Commercial grade LED canopy luminaire for use in outdoor applications such a commercial building, retail, government, and educational facilities.

Features & Benefits

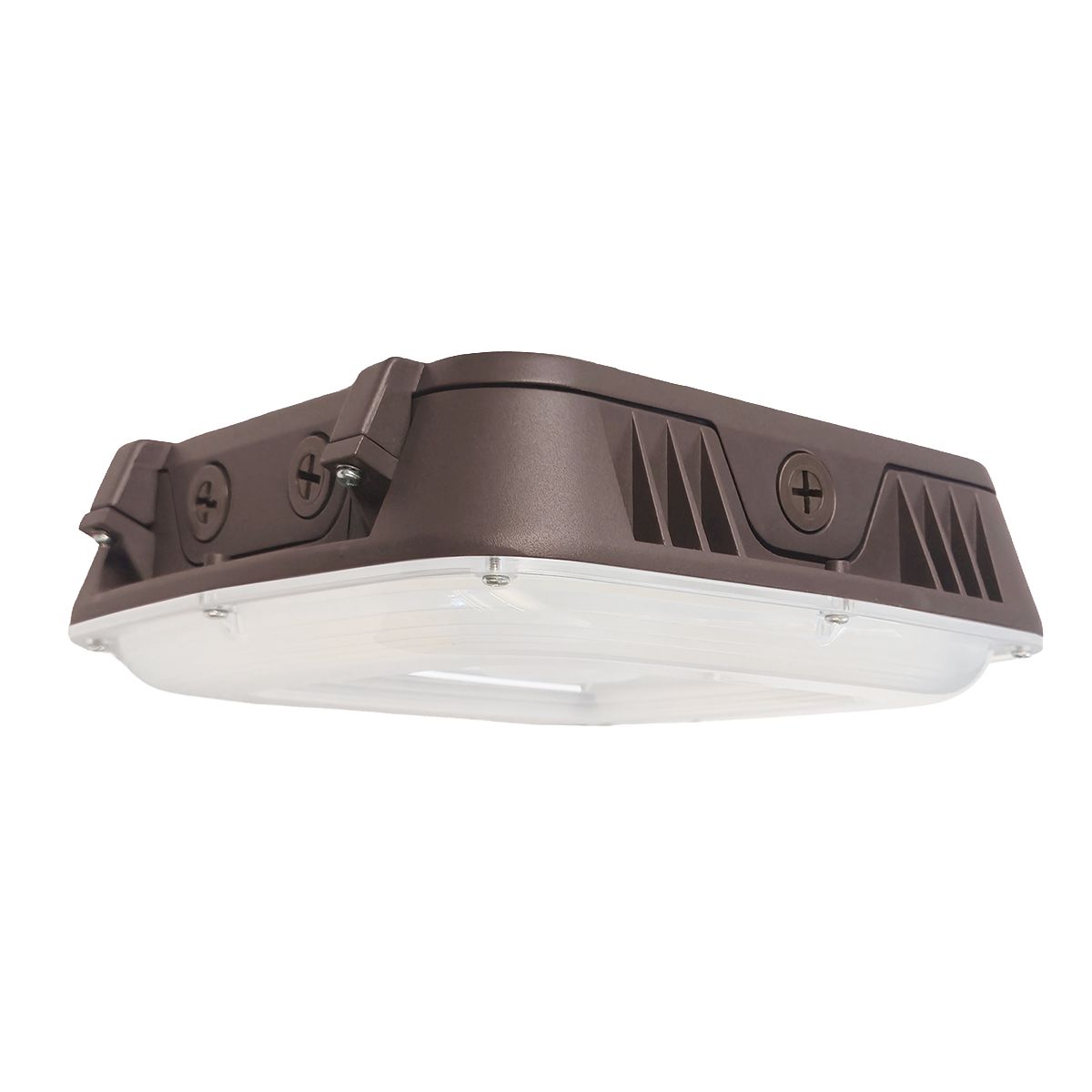

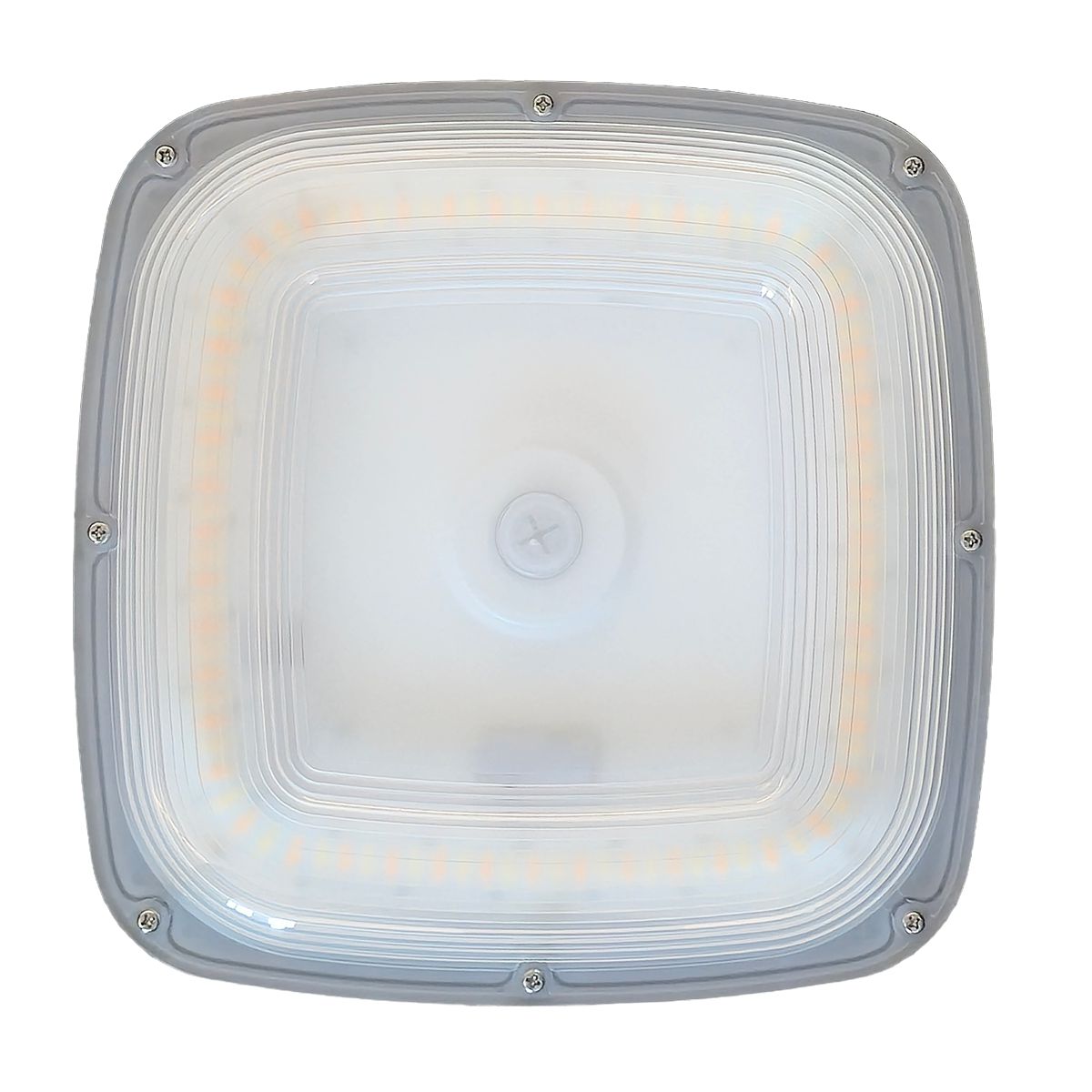

  • Low profile housing with a lightly diffused lens for reduced pixilation and glare

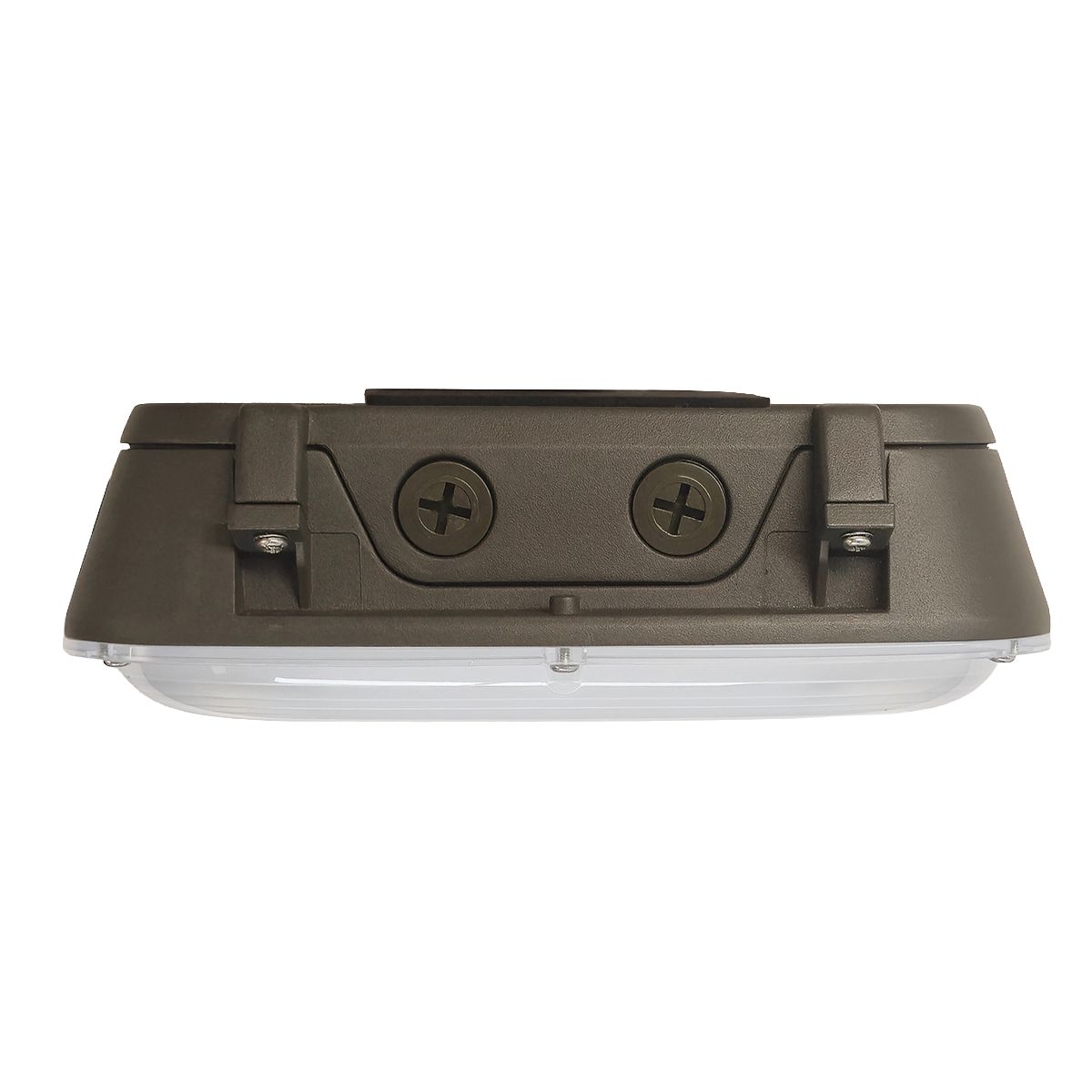

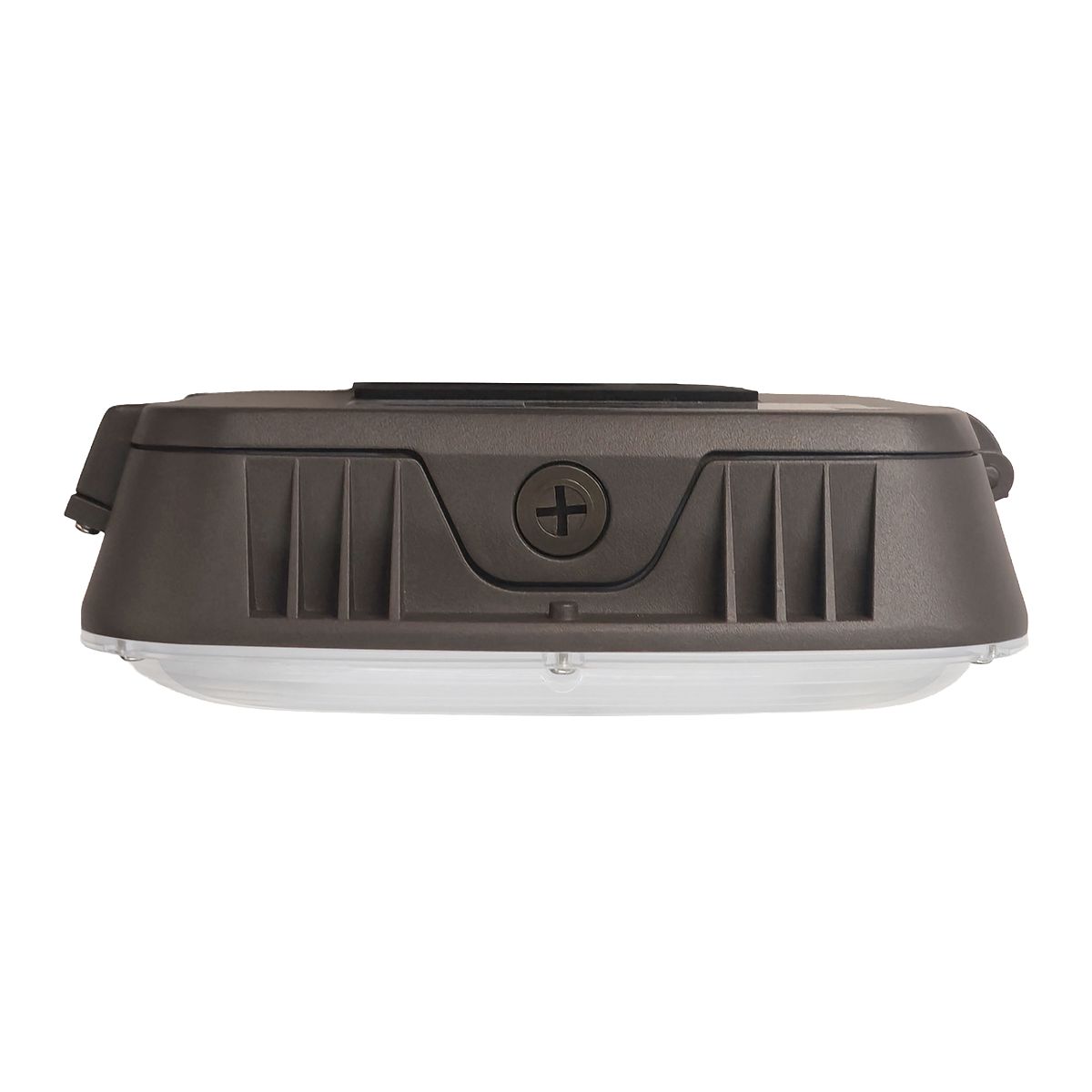

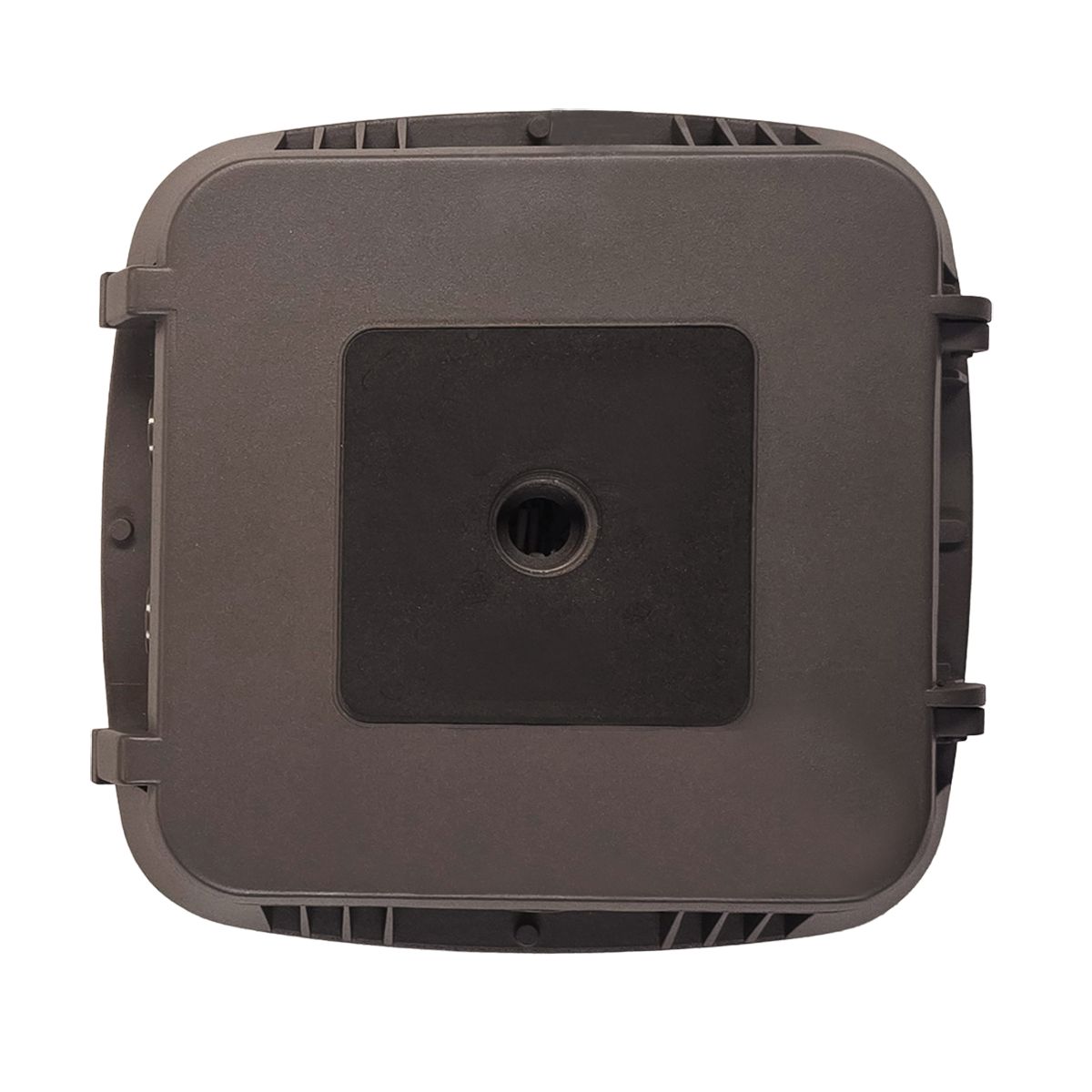

  • Mounts over standard J-box with quick-mount plate or 3/4" pendant and features three 1/2" side hubs for surface conduit mounting and thru-wire capability
  • Typical mounting height up to 12 ft

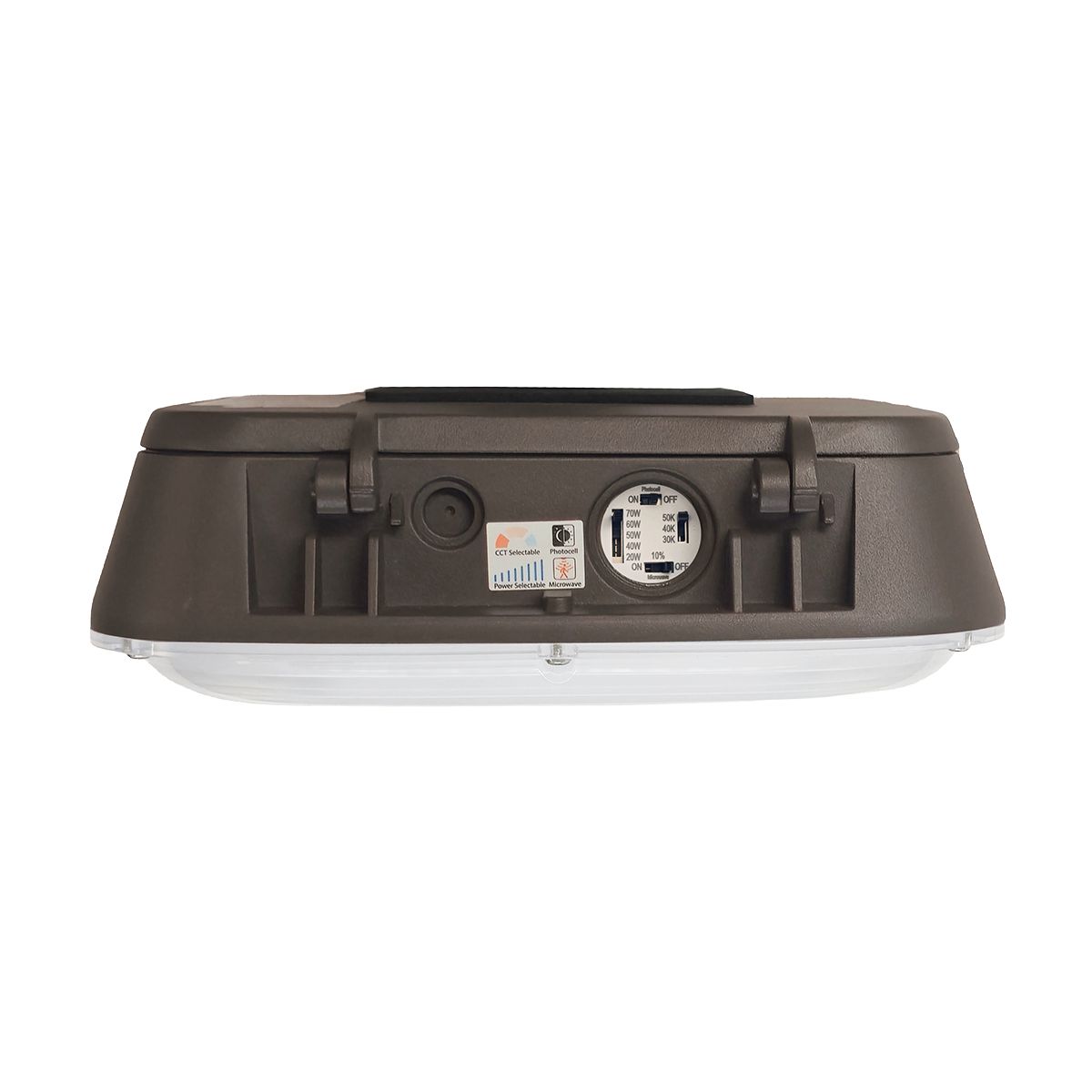

  • Field switchable lumens (25, 40, 60W) and LED color temperature (3K, 4K, 5K) in bronze fixture
  • Two housing finishes including white and dark bronze
  • Type 5 distribution
Where To Buy
SPEC SHEET

Specifications

Lumen Range
3,500 - 8,300
Dimming Protocol
0-10V Dimming
CCT
3000, 4000, 5000
CRI
70
Mounting Options
Ceiling (junction box), Ceiling (surface), Pendant
Wattage Range
25 - 60
Color Offering
Dark Bronze Textured, White Textured
Beam Angle
Type V
Certifications
cUL, DLC Premium
Ratings
IP65
Operating Temperature
-40 to 40
FV Light Distribution
Type V
Lumen Range
3,500 - 8,300
Wattage
25 - 60

Product Documents

Brochures / Catalogs

Canopy Product Selection Guide
314 KB
2023-08-03
Sling Canopy SGC Flyer
2720 KB
2024-03-13

Design / BIM Files / 3D Models

SGC BIM file
1724 KB
2023-08-03

Technical Documents

SGC Canopy Instruction Sheet
1891 KB
2024-07-12

Warranties

Photometry(0)

Clear Filters

Product Name Color Temp CRI Lumens LM/W Watts Dist. Type Resources
SGC-LSCS-F-20W-5K770 CRI3793 lm16523.013 W
SGC-LSCS-F-40W-3K770 CRI5257 lm13140 W
SGC-LSCS-F-40W-4K770 CRI5666 lm14240 W
SGC-LSCS-F-40W-5K770 CRI5602 lm14040 W
SGC-LSCS-F-60W-3K770 CRI7265 lm12160 W
SGC-LSCS-F-60W-4K770 CRI7847 lm13160 W
SGC-LSCS-F-60W-5K770 CRI7738 lm12960 W
SGC-LSCS-F-20W-3K770 CRI3561 lm15523.013 W
SGC-LSCS-F-20W-4K770 CRI3846 lm16723.013 W
