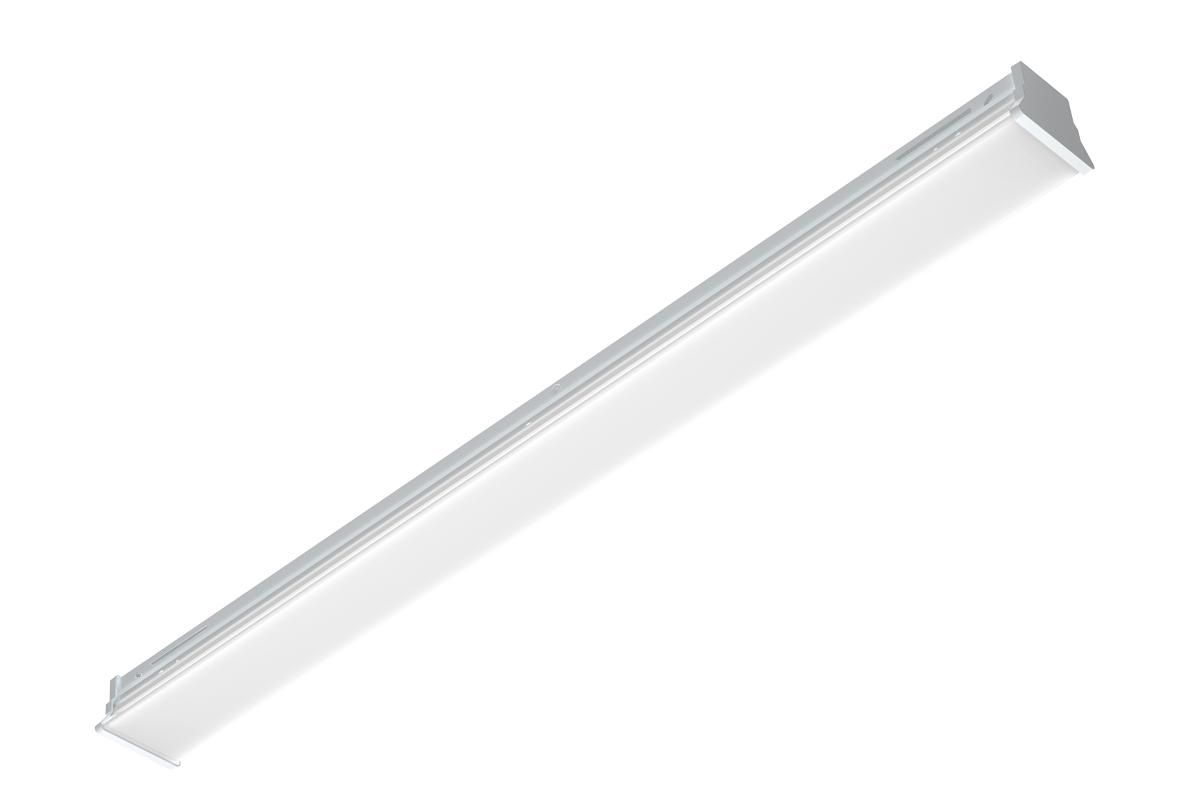

COLUMBIA LIGHTING
MultiPurpose Linear - MPS
The MPS linear fixture is a multi purpose solution that will fit seamlessly into countless applications. MPS is adaptable to most any environment.
Features & Benefits
- Three lens options as well as less lens (NL)
- Modular replaceable LED boards and driver accessible for future maintenance or upgrades
- Optional SpectraSync™ offers three modes of tunable white solutions and integrates seamlessly into a variety of control systems
- NX Lighting Control provides options for standalone and networked integrated sensor with wired or wireless connectivity for NX system deployments
- Optional integral emergency battery pack
- DLC® (DesignLights Consortium) Qualified
Specifications
Product Technology
SpectraSync™ Color Tuning
Lumen Range
1,500 - 16,700
Dimming Protocol
0-10V Dimming,
Lutron EcoSystem,
Step-Dimming
CCT
3000,
3500,
4000,
5000
CRI
80,
90
Color Tuning
Tunable White
Mounting Options
Ceiling,
Surface,
Pendant,
Suspended,
Wall
Wattage Range
14 - 133
Efficacy
128 - 155
Color Offering
White,
Matte Black,
ZET Metallic Silver
Beam Angle
Lambertian
Certifications
CSA,
UL 924,
DLC 5.1 Standard
Ratings
TAA (Buy American 52.225-11),
Damp
Warranty
5 year limited
FV Light Distribution
Lambertian
Controls Platform
Independent Control,
NX Networked - Wired,
NX Networked - Wireless
Lumen Range
1,500 - 16,700
Specifications
| Product Technology | SpectraSync™ Color Tuning |
| Lumen Range | 1,500 - 16,700 |
| Dimming Protocol | 0-10V Dimming, Lutron EcoSystem, Step-Dimming |
| CCT | 3000, 3500, 4000, 5000 |
| CRI | 80, 90 |
| Color Tuning | Tunable White |
| Mounting Options | Ceiling, Surface, Pendant, Suspended, Wall |
| Wattage Range | 14 - 133 |
| Efficacy | 128 - 155 |
| Color Offering | White, Matte Black, ZET Metallic Silver |
| Beam Angle | Lambertian |
| Certifications | CSA, UL 924, DLC 5.1 Standard |
| Ratings | TAA (Buy American 52.225-11), Damp |
| Warranty | 5 year limited |
| FV Light Distribution | Lambertian |
| Controls Platform | Independent Control, NX Networked - Wired, NX Networked - Wireless |
| Lumen Range | 1,500 - 16,700 |
Product Documents
Spec Sheets
Brochures / Catalogs
Design / BIM Files / 3D Models
Technical Documents
Photometry(0)
Clear Filters| Product Name | Color Temp | CRI | Lumens | LM/W | Watts | Dist. Type | Resources |
|---|---|---|---|---|---|---|---|
| MPS2-30HL-CN-EDU | 3000 K | 80 CRI | 3666 lm | 116 | 32 W | Narrow | |
| MPS2-30HL-CW-ED347 | 3000 K | 80 CRI | 3689 lm | 119 | 31 W | Wide | |
| MPS2-30HL-CW-EDD | 3000 K | 80 CRI | 3683 lm | 115 | 32 W | Wide | |
| MPS2-30HL-CW-EDU | 3000 K | 80 CRI | 3592 lm | 113 | 32 W | Wide | |
| MPS2-30HL-CW-ESDU | 3000 K | 80 CRI | 1699 lm | 118 | 14 W | Wide | |
| MPS2-30HL-CW-LUT5U | 3000 K | 80 CRI | 3665 lm | 116 | 32 W | Wide | |
| MPS2-30HL-FW-EDU | 3000 K | 80 CRI | 3614 lm | 115 | 32 W | Wide | |
| MPS2-30LW-CN-EDU | 3000 K | 80 CRI | 2303 lm | 116 | 20 W | Narrow | |
| MPS2-30LW-CW-EDU | 3000 K | 80 CRI | 2402 lm | 118 | 20 W | Wide | |
| MPS2-30LW-FW-EDU | 3000 K | 80 CRI | 2269 lm | 114 | 20 W | Wide | |
| MPS2-30LWHE-CW-EDU | 3000 K | 80 CRI | 2515 lm | 125 | 20 W | Wide | |
| MPS2-30ML-CN-EDU | 3000 K | 80 CRI | 3410 lm | 118 | 29 W | Narrow | |
| MPS2-30ML-CW-EDU | 3000 K | 80 CRI | 3392 lm | 117 | 29 W | Wide | |
| MPS2-30ML-CW-ESDU | 3000 K | 80 CRI | 1566 lm | 117 | 13 W | Wide | |
| MPS2-30ML-FW-EDU | 3000 K | 80 CRI | 3356 lm | 117 | 29 W | Wide | |
| MPS2-30MW-CN-EDU | 3000 K | 80 CRI | 2069 lm | 116 | 18 W | Narrow | |
| MPS2-30MW-CW-EDD | 3000 K | 80 CRI | 2123 lm | 121 | 18 W | Wide | |
| MPS2-30MW-CW-EDU | 3000 K | 80 CRI | 2163 lm | 119 | 18 W | Wide | |
| MPS2-30MW-CW-LUT5U | 3000 K | 80 CRI | 2134 lm | 113 | 19 W | Wide | |
| MPS2-30MW-FW-EDU | 3000 K | 80 CRI | 2040 lm | 115 | 18 W | Wide | |
| MPS2-30MWHE-CW-EDU | 3000 K | 80 CRI | 1952 lm | 126 | 16 W | Wide | |
| MPS2-30VW-CN-EDU | 3000 K | 80 CRI | 1580 lm | 117 | 14 W | Narrow | |
| MPS2-30VW-CW-ED347 | 3000 K | 80 CRI | 1632 lm | 116 | 14 W | Wide | |
| MPS2-30VW-CW-EDU | 3000 K | 80 CRI | 1631 lm | 118 | 14 W | Wide | |
| MPS2-30VW-FW-EDU | 3000 K | 80 CRI | 1557 lm | 115 | 14 W | Wide | |
| MPS2-35HL-CN-EDU | 3500 K | 80 CRI | 3732 lm | 118 | 32 W | Narrow | |
| MPS2-35HL-CW-EDU | 3500 K | 80 CRI | 3656 lm | 115 | 32 W | Wide | |
| MPS2-35HL-FW-EDU | 3500 K | 80 CRI | 3679 lm | 117 | 32 W | Wide | |
| MPS2-35LW-CN-EDU | 3500 K | 80 CRI | 2344 lm | 118 | 20 W | Narrow | |
| MPS2-35LW-CW-EDU | 3500 K | 80 CRI | 2444 lm | 120 | 20 W | Wide | |
| MPS2-35LWHE-FW-EDU | 3500 K | 80 CRI | 2510 lm | 125 | 20 W | Wide | |
| MPS2-35ML-CN-EDU | 3500 K | 80 CRI | 3471 lm | 121 | 29 W | Narrow | |
| MPS2-35ML-CW-EDU | 3500 K | 80 CRI | 3453 lm | 119 | 29 W | Wide | |
| MPS2-35ML-FW-EDU | 3500 K | 80 CRI | 3416 lm | 119 | 29 W | Wide | |
| MPS2-35MW-CN-EDU | 3500 K | 80 CRI | 2106 lm | 118 | 18 W | Narrow | |
| MPS2-35MW-CW-EDU | 3500 K | 80 CRI | 2201 lm | 121 | 18 W | Wide | |
| MPS2-35MW-FW-EDU | 3500 K | 80 CRI | 2076 lm | 117 | 18 W | Wide | |
| MPS2-35MWHE-FW-EDU | 3500 K | 80 CRI | 1918 lm | 125 | 15 W | Wide | |
| MPS2-35VW-CW-EDU | 3500 K | 80 CRI | 1660 lm | 120 | 14 W | Wide | |
| MPS2-35VW-FW-EDU | 3500 K | 80 CRI | 1584 lm | 117 | 14 W | Wide | |
| MPS2-40HL-CN-EDU | 4000 K | 80 CRI | 3780 lm | 120 | 32 W | Narrow | |
| MPS2-40HL-CW-EDU | 4000 K | 80 CRI | 3703 lm | 117 | 32 W | Wide | |
| MPS2-40HL-FW-EDU | 4000 K | 80 CRI | 3726 lm | 118 | 32 W | Wide | |
| MPS2-40LW-CN-EDU | 4000 K | 80 CRI | 2374 lm | 119 | 20 W | Narrow | |
| MPS2-40LW-FW-EDU | 4000 K | 80 CRI | 2339 lm | 118 | 20 W | Wide | |
| MPS2-40ML-CN-EDU | 4000 K | 80 CRI | 3515 lm | 122 | 29 W | Narrow | |
| MPS2-40ML-CW-EDU | 4000 K | 80 CRI | 3497 lm | 121 | 29 W | Wide | |
| MPS2-40ML-FW-EDU | 4000 K | 80 CRI | 3459 lm | 120 | 29 W | Wide | |
| MPS2-40MW-CW-EDU | 4000 K | 80 CRI | 2229 lm | 122 | 18 W | Wide | |
| MPS2-40MW-FW-EDU | 4000 K | 80 CRI | 2103 lm | 118 | 18 W | Wide | |
| MPS2-40VW-CN-EDU | 4000 K | 80 CRI | 1629 lm | 121 | 14 W | Narrow | |
| MPS2-40VW-CW-EDU | 4000 K | 80 CRI | 1681 lm | 122 | 14 W | Wide | |
| MPS2-40VW-FW-EDU | 4000 K | 80 CRI | 1605 lm | 119 | 14 W | Wide | |
| MPS2-50HL-CN-EDU | 5000 K | 80 CRI | 3905 lm | 124 | 32 W | Narrow | |
| MPS2-50HL-CW-EDU | 5000 K | 80 CRI | 3825 lm | 121 | 32 W | Wide | |
| MPS2-50HL-FW-EDU | 5000 K | 80 CRI | 3849 lm | 122 | 32 W | Wide | |
| MPS2-50LW-CN-EDU | 5000 K | 80 CRI | 2452 lm | 123 | 20 W | Narrow | |
| MPS2-50LW-CW-EDU | 5000 K | 80 CRI | 2558 lm | 125 | 20 W | Wide | |
| MPS2-50LW-FW-EDU | 5000 K | 80 CRI | 2416 lm | 121 | 20 W | Wide | |
| MPS2-50ML-CN-EDU | 5000 K | 80 CRI | 3631 lm | 126 | 29 W | Narrow | |
| MPS2-50ML-CW-EDU | 5000 K | 80 CRI | 3612 lm | 125 | 29 W | Wide | |
| MPS2-50ML-FW-EDU | 5000 K | 80 CRI | 3574 lm | 124 | 29 W | Wide | |
| MPS2-50MW-CN-EDU | 5000 K | 80 CRI | 2204 lm | 124 | 18 W | Narrow | |
| MPS2-50MW-CW-EDU | 5000 K | 80 CRI | 2303 lm | 127 | 18 W | Wide | |
| MPS2-50MW-FW-EDU | 5000 K | 80 CRI | 2172 lm | 122 | 18 W | Wide | |
| MPS2-50VW-CN-EDU | 5000 K | 80 CRI | 1683 lm | 125 | 14 W | Narrow | |
| MPS2-50VW-CW-EDU | 5000 K | 80 CRI | 1736 lm | 126 | 14 W | Wide | |
| MPS2-50VW-FW-EDU | 5000 K | 80 CRI | 1657 lm | 123 | 14 W | Wide | |
| MPS2-930HL-CW-ED347 | 3000 K | 90 CRI | 3132 lm | 101 | 31 W | Wide | |
| MPS2-930HL-CW-EDD | 3000 K | 90 CRI | 3158 lm | 98 | 32 W | Wide | |
| MPS2-930HL-CW-EDU | 3000 K | 90 CRI | 3198 lm | 101 | 32 W | Wide | |
| MPS2-930HL-CW-ESDU | 3000 K | 90 CRI | 3217 lm | 98 | 33 W | Wide | |
| MPS2-930HL-CW-LUT5U | 3000 K | 90 CRI | 3119 lm | 99 | 32 W | Wide | |
| MPS2-930LW-CW-EDU | 3000 K | 90 CRI | 2053 lm | 102 | 20 W | Wide | |
| MPS2-930ML-CW-EDU | 3000 K | 90 CRI | 2973 lm | 102 | 29 W | Wide | |
| MPS2-930ML-CW-ESDU | 3000 K | 90 CRI | 2981 lm | 100 | 30 W | Wide | |
| MPS2-930MW-CW-EDD | 3000 K | 90 CRI | 1832 lm | 104 | 18 W | Wide | |
| MPS2-930MW-CW-EDU | 3000 K | 90 CRI | 1848 lm | 103 | 18 W | Wide | |
| MPS2-930MW-CW-LUT5U | 3000 K | 90 CRI | 1843 lm | 98 | 19 W | Wide | |
| MPS2-930VW-CW-ED347 | 3000 K | 90 CRI | 1412 lm | 100 | 14 W | Wide | |
| MPS2-930VW-CW-EDU | 3000 K | 90 CRI | 1413 lm | 103 | 14 W | Wide | |
| MPS4-30HL-CN-EDU | 3000 K | 80 CRI | 5720 lm | 116 | 49 W | Narrow | |
| MPS4-30HL-CW-ED347 | 3000 K | 80 CRI | 5615 lm | 119 | 47 W | Wide | |
| MPS4-30HL-CW-EDD | 3000 K | 80 CRI | 5768 lm | 114 | 51 W | Wide | |
| MPS4-30HL-CW-EDU | 3000 K | 80 CRI | 5659 lm | 114 | 50 W | Wide | |
| MPS4-30HL-CW-ESDU | 3000 K | 80 CRI | 5861 lm | 115 | 51 W | Wide | |
| MPS4-30HL-CW-LUT5U | 3000 K | 80 CRI | 5895 lm | 113 | 52 W | Wide | |
| MPS4-30HL-FW-EDU | 3000 K | 80 CRI | 5641 lm | 114 | 49 W | Wide | |
| MPS4-30HLHE-CW-EDU | 3000 K | 80 CRI | 5395 lm | 132 | 41 W | Wide | |
| MPS4-30HLHE-FW-EDU | 3000 K | 80 CRI | 5209 lm | 127 | 41 W | Wide | |
| MPS4-30LW-CN-EDU | 3000 K | 80 CRI | 4051 lm | 125 | 33 W | Narrow | |
| MPS4-30LW-CW-EDU | 3000 K | 80 CRI | 3974 lm | 116 | 34 W | Wide | |
| MPS4-30LW-FW-EDU | 3000 K | 80 CRI | 4001 lm | 123 | 33 W | Wide | |
| MPS4-30LWHE-CW-EDU | 3000 K | 80 CRI | 3894 lm | 134 | 29 W | Wide | |
| MPS4-30LWHE-FW-EDU | 3000 K | 80 CRI | 3722 lm | 128 | 29 W | Wide | |
| MPS4-30ML-CN-EDU | 3000 K | 80 CRI | 4600 lm | 122 | 38 W | Narrow | |
| MPS4-30ML-CW-EDU | 3000 K | 80 CRI | 4477 lm | 112 | 40 W | Wide | |
| MPS4-30ML-FW-EDU | 3000 K | 80 CRI | 4544 lm | 120 | 38 W | Wide | |
| MPS4-30MLHE-CW-EDU | 3000 K | 80 CRI | 4883 lm | 131 | 37 W | Wide | |
| MPS4-30MLHE-FW-EDU | 3000 K | 80 CRI | 4266 lm | 126 | 34 W | Wide | |
| MPS4-30MW-CN-EDU | 3000 K | 80 CRI | 3474 lm | 115 | 30 W | Narrow | |
| MPS4-30MW-CW-EDU | 3000 K | 80 CRI | 3592 lm | 118 | 30 W | Wide | |
| MPS4-30MW-CW-ESDU | 3000 K | 80 CRI | 3786 lm | 113 | 34 W | Wide | |
| MPS4-30MW-FW-EDU | 3000 K | 80 CRI | 3430 lm | 114 | 30 W | Wide | |
| MPS4-30MWHE-CW-EDU | 3000 K | 80 CRI | 3486 lm | 126 | 28 W | Wide | |
| MPS4-30MWHE-FW-EDU | 3000 K | 80 CRI | 3377 lm | 122 | 28 W | Wide | |
| MPS4-30VL-CN-EDU | 3000 K | 80 CRI | 6604 lm | 122 | 54 W | Narrow | |
| MPS4-30VL-CW-EDU | 3000 K | 80 CRI | 6651 lm | 123 | 54 W | Wide | |
| MPS4-30VL-FW-EDU | 3000 K | 80 CRI | 6522 lm | 121 | 54 W | Wide | |
| MPS4-30VW-CN-EDU | 3000 K | 80 CRI | 3118 lm | 118 | 27 W | Narrow | |
| MPS4-30VW-CW-ED347 | 3000 K | 80 CRI | 3101 lm | 118 | 26 W | Wide | |
| MPS4-30VW-CW-EDU | 3000 K | 80 CRI | 3222 lm | 121 | 27 W | Wide | |
| MPS4-30VW-FW-EDU | 3000 K | 80 CRI | 3080 lm | 116 | 27 W | Wide | |
| MPS4-30VWHE-CW-EDU | 3000 K | 80 CRI | 3100 lm | 127 | 24 W | Wide | |
| MPS4-30VWHE-FW-EDU | 3000 K | 80 CRI | 3013 lm | 123 | 25 W | Wide | |
| MPS4-30XL-CN-EDU | 3000 K | 80 CRI | 7796 lm | 117 | 67 W | Narrow | |
| MPS4-30XL-CW-EDU | 3000 K | 80 CRI | 7906 lm | 119 | 67 W | Wide | |
| MPS4-30XL-FW-EDU | 3000 K | 80 CRI | 7677 lm | 115 | 67 W | Wide | |
| MPS4-30XW-CN-EDU | 3000 K | 80 CRI | 2444 lm | 123 | 20 W | Narrow | |
| MPS4-30XW-CW-ED347 | 3000 K | 80 CRI | 2447 lm | 120 | 20 W | Wide | |
| MPS4-30XW-CW-EDD | 3000 K | 80 CRI | 2436 lm | 123 | 20 W | Wide | |
| MPS4-30XW-CW-EDU | 3000 K | 80 CRI | 2529 lm | 126 | 20 W | Wide | |
| MPS4-30XW-CW-LUT5U | 3000 K | 80 CRI | 2453 lm | 117 | 21 W | Wide | |
| MPS4-30XW-FW-EDU | 3000 K | 80 CRI | 2420 lm | 121 | 20 W | Wide | |
| MPS4-30XWHE-CW-EDU | 3000 K | 80 CRI | 2360 lm | 130 | 18 W | Wide | |
| MPS4-30XWHE-FW-EDU | 3000 K | 80 CRI | 2292 lm | 127 | 18 W | Wide | |
| MPS4-35HL-CN-EDU | 3500 K | 80 CRI | 5823 lm | 118 | 49 W | Narrow | |
| MPS4-35HL-CW-EDU | 3500 K | 80 CRI | 5760 lm | 116 | 50 W | Wide | |
| MPS4-35HL-FW-EDU | 3500 K | 80 CRI | 5743 lm | 116 | 49 W | Wide | |
| MPS4-35LW-CN-EDU | 3500 K | 80 CRI | 4123 lm | 127 | 33 W | Narrow | |
| MPS4-35LW-CW-EDU | 3500 K | 80 CRI | 4045 lm | 118 | 34 W | Wide | |
| MPS4-35LW-FW-EDU | 3500 K | 80 CRI | 4073 lm | 125 | 33 W | Wide | |
| MPS4-35ML-CN-EDU | 3500 K | 80 CRI | 4683 lm | 124 | 38 W | Narrow | |
| MPS4-35ML-CW-EDU | 3500 K | 80 CRI | 4557 lm | 114 | 40 W | Wide | |
| MPS4-35ML-FW-EDU | 3500 K | 80 CRI | 4625 lm | 122 | 38 W | Wide | |
| MPS4-35MLHE-FW-EDU | 3500 K | 80 CRI | 4333 lm | 129 | 34 W | Wide | |
| MPS4-35MW-CN-EDU | 3500 K | 80 CRI | 3536 lm | 117 | 30 W | Narrow | |
| MPS4-35MW-CW-EDU | 3500 K | 80 CRI | 3656 lm | 120 | 30 W | Wide | |
| MPS4-35MW-FW-EDU | 3500 K | 80 CRI | 3492 lm | 116 | 30 W | Wide | |
| MPS4-35MWHE-FW-EDU | 3500 K | 80 CRI | 3520 lm | 128 | 28 W | Wide | |
| MPS4-35VL-CN-EDU | 3500 K | 80 CRI | 6723 lm | 124 | 54 W | Narrow | |
| MPS4-35VL-CW-EDU | 3500 K | 80 CRI | 6770 lm | 125 | 54 W | Wide | |
| MPS4-35VL-FW-EDU | 3500 K | 80 CRI | 6640 lm | 123 | 54 W | Wide | |
| MPS4-35VW-CN-EDU | 3500 K | 80 CRI | 3174 lm | 120 | 27 W | Narrow | |
| MPS4-35VW-CW-EDU | 3500 K | 80 CRI | 3280 lm | 123 | 27 W | Wide | |
| MPS4-35VW-FW-EDU | 3500 K | 80 CRI | 3135 lm | 118 | 27 W | Wide | |
| MPS4-35VWHE-FW-EDU | 3500 K | 80 CRI | 3138 lm | 129 | 24 W | Wide | |
| MPS4-35XL-CN-EDU | 3500 K | 80 CRI | 7935 lm | 119 | 67 W | Narrow | |
| MPS4-35XL-CW-EDU | 3500 K | 80 CRI | 8048 lm | 121 | 67 W | Wide | |
| MPS4-35XL-FW-EDU | 3500 K | 80 CRI | 7816 lm | 117 | 67 W | Wide | |
| MPS4-35XW-CN-EDU | 3500 K | 80 CRI | 2487 lm | 125 | 20 W | Narrow | |
| MPS4-35XW-CW-EDU | 3500 K | 80 CRI | 2574 lm | 129 | 20 W | Wide | |
| MPS4-35XW-FW-EDU | 3500 K | 80 CRI | 2463 lm | 123 | 20 W | Wide | |
| MPS4-40HL-CN-EDU | 4000 K | 80 CRI | 5897 lm | 119 | 49 W | Narrow | |
| MPS4-40HL-CW-EDU | 4000 K | 80 CRI | 5834 lm | 118 | 50 W | Wide | |
| MPS4-40HL-FW-EDU | 4000 K | 80 CRI | 5816 lm | 118 | 49 W | Wide | |
| MPS4-40LW-CN-EDU | 4000 K | 80 CRI | 4175 lm | 128 | 33 W | Narrow | |
| MPS4-40LW-CW-EDU | 4000 K | 80 CRI | 4096 lm | 119 | 34 W | Wide | |
| MPS4-40LW-FW-EDU | 4000 K | 80 CRI | 4124 lm | 127 | 33 W | Wide | |
| MPS4-40ML-CN-EDU | 4000 K | 80 CRI | 4742 lm | 126 | 38 W | Narrow | |
| MPS4-40ML-CW-EDU | 4000 K | 80 CRI | 4615 lm | 115 | 40 W | Wide | |
| MPS4-40ML-FW-EDU | 4000 K | 80 CRI | 4685 lm | 124 | 38 W | Wide | |
| MPS4-40MW-CN-EDU | 4000 K | 80 CRI | 3581 lm | 119 | 30 W | Narrow | |
| MPS4-40MW-CW-EDU | 4000 K | 80 CRI | 3703 lm | 122 | 30 W | Wide | |
| MPS4-40MW-FW-EDU | 4000 K | 80 CRI | 3537 lm | 118 | 30 W | Wide | |
| MPS4-40VL-CN-EDU | 4000 K | 80 CRI | 6808 lm | 126 | 54 W | Narrow | |
| MPS4-40VL-CW-EDU | 4000 K | 80 CRI | 6857 lm | 127 | 54 W | Wide | |
| MPS4-40VL-FW-EDU | 4000 K | 80 CRI | 6724 lm | 124 | 54 W | Wide | |
| MPS4-40VW-CN-EDU | 4000 K | 80 CRI | 3214 lm | 121 | 27 W | Narrow | |
| MPS4-40VW-CW-EDU | 4000 K | 80 CRI | 3322 lm | 124 | 27 W | Wide | |
| MPS4-40VW-FW-EDU | 4000 K | 80 CRI | 3175 lm | 120 | 27 W | Wide | |
| MPS4-40XL-CN-EDU | 4000 K | 80 CRI | 8037 lm | 120 | 67 W | Narrow | |
| MPS4-40XL-CW-EDU | 4000 K | 80 CRI | 8152 lm | 123 | 67 W | Wide | |
| MPS4-40XL-FW-EDU | 4000 K | 80 CRI | 7915 lm | 118 | 67 W | Wide | |
| MPS4-40XW-CN-EDU | 4000 K | 80 CRI | 2529 lm | 127 | 20 W | Narrow | |
| MPS4-40XW-CW-EDU | 4000 K | 80 CRI | 2607 lm | 130 | 20 W | Wide | |
| MPS4-40XW-FW-EDU | 4000 K | 80 CRI | 2494 lm | 125 | 20 W | Wide | |
| MPS4-50HL-CN-EDU | 5000 K | 80 CRI | 6093 lm | 123 | 49 W | Narrow | |
| MPS4-50HL-CW-EDU | 5000 K | 80 CRI | 6027 lm | 122 | 50 W | Wide | |
| MPS4-50HL-FW-EDU | 5000 K | 80 CRI | 6008 lm | 122 | 49 W | Wide | |
| MPS4-50LW-CN-EDU | 5000 K | 80 CRI | 4315 lm | 133 | 33 W | Narrow | |
| MPS4-50LW-CW-EDU | 5000 K | 80 CRI | 4233 lm | 123 | 34 W | Wide | |
| MPS4-50LW-FW-EDU | 5000 K | 80 CRI | 4260 lm | 131 | 33 W | Wide | |
| MPS4-50ML-CN-EDU | 5000 K | 80 CRI | 4900 lm | 130 | 38 W | Narrow | |
| MPS4-50ML-CW-EDU | 5000 K | 80 CRI | 4769 lm | 119 | 40 W | Wide | |
| MPS4-50ML-FW-EDU | 5000 K | 80 CRI | 4839 lm | 128 | 38 W | Wide | |
| MPS4-50MW-CN-EDU | 5000 K | 80 CRI | 3700 lm | 123 | 30 W | Narrow | |
| MPS4-50MW-CW-EDU | 5000 K | 80 CRI | 3826 lm | 126 | 30 W | Wide | |
| MPS4-50MW-FW-EDU | 5000 K | 80 CRI | 3653 lm | 121 | 30 W | Wide | |
| MPS4-50VL-CN-EDU | 5000 K | 80 CRI | 7034 lm | 130 | 54 W | Narrow | |
| MPS4-50VL-CW-EDU | 5000 K | 80 CRI | 7084 lm | 131 | 54 W | Wide | |
| MPS4-50VL-FW-EDU | 5000 K | 80 CRI | 6946 lm | 128 | 54 W | Wide | |
| MPS4-50VW-CN-EDU | 5000 K | 80 CRI | 3320 lm | 125 | 27 W | Narrow | |
| MPS4-50VW-CW-EDU | 5000 K | 80 CRI | 3432 lm | 129 | 27 W | Wide | |
| MPS4-50VW-FW-EDU | 5000 K | 80 CRI | 3280 lm | 124 | 27 W | Wide | |
| MPS4-50XL-CN-EDU | 5000 K | 80 CRI | 8303 lm | 124 | 67 W | Narrow | |
| MPS4-50XL-CW-EDU | 5000 K | 80 CRI | 8420 lm | 127 | 67 W | Wide | |
| MPS4-50XL-FW-EDU | 5000 K | 80 CRI | 8168 lm | 122 | 67 W | Wide | |
| MPS4-50XW-CN-EDU | 5000 K | 80 CRI | 2602 lm | 131 | 20 W | Narrow | |
| MPS4-50XW-CW-EDU | 5000 K | 80 CRI | 2693 lm | 135 | 20 W | Wide | |
| MPS4-50XW-FW-EDU | 5000 K | 80 CRI | 2578 lm | 129 | 20 W | Wide | |
| MPS4-930HL-CW-ED347 | 3000 K | 90 CRI | 4841 lm | 103 | 47 W | Wide | |
| MPS4-930HL-CW-EDD | 3000 K | 90 CRI | 4981 lm | 98 | 51 W | Wide | |
| MPS4-930HL-CW-EDU | 3000 K | 90 CRI | 4956 lm | 101 | 49 W | Wide | |
| MPS4-930HL-CW-ESDU | 3000 K | 90 CRI | 5060 lm | 99 | 51 W | Wide | |
| MPS4-930HL-CW-LUT5U | 3000 K | 90 CRI | 5090 lm | 98 | 52 W | Wide | |
| MPS4-930LW-CW-EDU | 3000 K | 90 CRI | 3573 lm | 109 | 33 W | Wide | |
| MPS4-930ML-CW-EDU | 3000 K | 90 CRI | 4051 lm | 106 | 38 W | Wide | |
| MPS4-930MW-CW-EDU | 3000 K | 90 CRI | 3033 lm | 100 | 30 W | Wide | |
| MPS4-930MW-CW-ESDU | 3000 K | 90 CRI | 3259 lm | 97 | 34 W | Wide | |
| MPS4-930VL-CW-EDU | 3000 K | 90 CRI | 5736 lm | 106 | 54 W | Wide | |
| MPS4-930VW-CW-ED347 | 3000 K | 90 CRI | 2702 lm | 103 | 26 W | Wide | |
| MPS4-930VW-CW-EDU | 3000 K | 90 CRI | 2727 lm | 102 | 27 W | Wide | |
| MPS4-930XL-CW-EDU | 3000 K | 90 CRI | 6686 lm | 100 | 67 W | Wide | |
| MPS4-930XW-CW-ED347 | 3000 K | 90 CRI | 2142 lm | 105 | 20 W | Wide | |
| MPS4-930XW-CW-EDD | 3000 K | 90 CRI | 2121 lm | 108 | 20 W | Wide | |
| MPS4-930XW-CW-EDU | 3000 K | 90 CRI | 2118 lm | 106 | 20 W | Wide | |
| MPS4-930XW-CW-LUT5U | 3000 K | 90 CRI | 2124 lm | 103 | 21 W | Wide | |
| MPS2-35VW-CN-EDU | 3500 K | 80 CRI | 1608 lm | 119 | 14 W | Narrow | |
| MPS8-30HLHE-CW-EDU | 3000 K | 80 CRI | 10791 lm | 132 | 82 W | Wide | |
| MPS8-30HL-FW-EDU | 3000 K | 80 CRI | 11282 lm | 114 | 99 W | Wide | |
| MPS8-30HL-CW-EDU | 3000 K | 80 CRI | 11317 lm | 114 | 99 W | Wide | |
| MPS8-30HL-CN-EDU | 3000 K | 80 CRI | 11441 lm | 116 | 99 W | Narrow | |
| MPS8-950XW-CW-EDU | 5000 K | 90 CRI | 4706 lm | 118 | 40 W | Wide | |
| MPS8-950XL-CW-EDU | 5000 K | 90 CRI | 14856 lm | 111 | 134 W | Wide | |
| MPS8-950VW-CW-EDU | 5000 K | 90 CRI | 6059 lm | 114 | 53 W | Wide | |
| MPS8-950VL-CW-EDU | 5000 K | 90 CRI | 12745 lm | 117 | 109 W | Wide | |
| MPS8-950MW-CW-EDU | 5000 K | 90 CRI | 6740 lm | 111 | 61 W | Wide | |
| MPS8-950ML-FW-EDU | 5000 K | 90 CRI | 8714 lm | 115 | 76 W | Wide | |
| MPS8-950ML-CW-EDU | 5000 K | 90 CRI | 9001 lm | 118 | 76 W | Wide | |
| MPS8-950LW-CW-EDU | 5000 K | 90 CRI | 7939 lm | 121 | 65 W | Wide | |
| MPS8-950HL-CW-ESDU | 5000 K | 90 CRI | 11243 lm | 110 | 102 W | Wide | |
| MPS8-940XW-CW-EDU | 4000 K | 90 CRI | 4418 lm | 111 | 40 W | Wide | |
| MPS8-940XL-CW-EDU | 4000 K | 90 CRI | 13946 lm | 104 | 134 W | Wide | |
| MPS8-940VW-CW-EDU | 4000 K | 90 CRI | 5688 lm | 107 | 53 W | Wide | |
| MPS8-940VL-CW-EDU | 4000 K | 90 CRI | 11965 lm | 110 | 109 W | Wide | |
| MPS8-940MW-CW-EDU | 4000 K | 90 CRI | 6327 lm | 104 | 61 W | Wide | |
| MPS8-940ML-FW-EDU | 4000 K | 90 CRI | 8185 lm | 108 | 76 W | Wide | |
| MPS8-940ML-CW-EDU | 4000 K | 90 CRI | 8450 lm | 111 | 76 W | Wide | |
| MPS8-940LW-CW-EDU | 4000 K | 90 CRI | 7453 lm | 114 | 65 W | Wide | |
| MPS8-940HL-CW-EDU | 4000 K | 90 CRI | 10338 lm | 105 | 99 W | Wide | |
| MPS8-935XW-CW-EDU | 3500 K | 90 CRI | 4325 lm | 109 | 40 W | Wide | |
| MPS8-935XL-CW-EDU | 3500 K | 90 CRI | 13652 lm | 102 | 134 W | Wide | |
| MPS8-935VW-CW-EDU | 3500 K | 90 CRI | 5568 lm | 104 | 53 W | Wide | |
| MPS8-935VL-CW-EDU | 3500 K | 90 CRI | 11712 lm | 108 | 109 W | Wide | |
| MPS8-935MW-CW-EDU | 3500 K | 90 CRI | 6194 lm | 102 | 61 W | Wide | |
| MPS8-935ML-FW-EDU | 3500 K | 90 CRI | 8017 lm | 106 | 76 W | Wide | |
| MPS8-935ML-CW-EDU | 3500 K | 90 CRI | 8272 lm | 109 | 76 W | Wide | |
| MPS8-935LW-CW-EDU | 3500 K | 90 CRI | 7295 lm | 112 | 65 W | Wide | |
| MPS8-935HL-CW-ESDU | 3500 K | 90 CRI | 10332 lm | 101 | 102 W | Wide | |
| MPS8-930XW-CW-EDU | 3000 K | 90 CRI | 4236 lm | 106 | 40 W | Wide | |
| MPS8-930XL-CW-EDU | 3000 K | 90 CRI | 13371 lm | 100 | 134 W | Wide | |
| MPS8-930VW-CW-EDU | 3000 K | 90 CRI | 5454 lm | 102 | 53 W | Wide | |
| MPS8-930VL-CW-EDU | 3000 K | 90 CRI | 11471 lm | 106 | 109 W | Wide | |
| MPS8-930MW-CW-EDU | 3000 K | 90 CRI | 6066 lm | 100 | 61 W | Wide | |
| MPS8-930ML-FW-EDU | 3000 K | 90 CRI | 7849 lm | 103 | 76 W | Wide | |
| MPS8-930ML-CW-EDU | 3000 K | 90 CRI | 8102 lm | 106 | 76 W | Wide | |
| MPS8-930LW-CW-EDU | 3000 K | 90 CRI | 7145 lm | 109 | 65 W | Wide | |
| MPS8-50XWHE-FW-EDU | 5000 K | 80 CRI | 4882 lm | 135 | 36 W | Wide | |
| MPS8-50XWHE-CW-EDU | 5000 K | 80 CRI | 5026 lm | 139 | 36 W | Wide | |
| MPS8-50XW-FW-EDU | 5000 K | 80 CRI | 5154 lm | 129 | 40 W | Wide | |
| MPS8-50XW-CW-EDU | 5000 K | 80 CRI | 5387 lm | 135 | 40 W | Wide | |
| MPS8-50XW-CN-EDU | 5000 K | 80 CRI | 5205 lm | 131 | 40 W | Narrow | |
| MPS8-50XL-FW-EDU | 5000 K | 80 CRI | 16336 lm | 122 | 134 W | Wide | |
| MPS8-50XL-CW-EDU | 5000 K | 80 CRI | 16841 lm | 127 | 133 W | Wide | |
| MPS8-50XL-CN-EDU | 5000 K | 80 CRI | 16605 lm | 124 | 134 W | Narrow | |
| MPS8-50VWHE-FW-EDU | 5000 K | 80 CRI | 6417 lm | 131 | 49 W | Wide | |
| MPS8-50VWHE-CW-EDU | 5000 K | 80 CRI | 6603 lm | 135 | 49 W | Wide | |
| MPS8-50VW-FW-EDU | 5000 K | 80 CRI | 6561 lm | 124 | 53 W | Wide | |
| MPS8-50VW-CW-EDU | 5000 K | 80 CRI | 6863 lm | 129 | 53 W | Wide | |
| MPS8-50VW-CN-EDU | 5000 K | 80 CRI | 6642 lm | 125 | 53 W | Narrow | |
| MPS8-50VL-FW-EDU | 5000 K | 80 CRI | 13892 lm | 128 | 108 W | Wide | |
| MPS8-50VL-CW-EDU | 5000 K | 80 CRI | 14167 lm | 131 | 108 W | Wide | |
| MPS8-50VL-CN-EDU | 5000 K | 80 CRI | 14067 lm | 130 | 108 W | Narrow | |
| MPS8-50MWHE-FW-EDU | 5000 K | 80 CRI | 7194 lm | 130 | 55 W | Wide | |
| MPS8-50MWHE-CW-EDU | 5000 K | 80 CRI | 7426 lm | 135 | 55 W | Wide | |
| MPS8-50MW-FW-EDU | 5000 K | 80 CRI | 7307 lm | 121 | 60 W | Wide | |
| MPS8-50MW-CW-EDU | 5000 K | 80 CRI | 7651 lm | 126 | 61 W | Wide | |
| MPS8-50MW-CN-EDU | 5000 K | 80 CRI | 7400 lm | 123 | 60 W | Narrow | |
| MPS8-50MLHE-FW-EDU | 5000 K | 80 CRI | 9088 lm | 134 | 68 W | Wide | |
| MPS8-50MLHE-CW-EDU | 5000 K | 80 CRI | 9506 lm | 141 | 68 W | Wide | |
| MPS8-50ML-FW-EDU | 5000 K | 80 CRI | 9679 lm | 128 | 76 W | Wide | |
| MPS8-50ML-CW-EDU | 5000 K | 80 CRI | 9536 lm | 119 | 80 W | Wide | |
| MPS8-50ML-CN-EDU | 5000 K | 80 CRI | 9798 lm | 130 | 75 W | Narrow | |
| MPS8-50LWHE-FW-EDU | 5000 K | 80 CRI | 7928 lm | 136 | 58 W | Wide | |
| MPS8-50LWHE-CW-EDU | 5000 K | 80 CRI | 8294 lm | 143 | 58 W | Wide | |
| MPS8-50LW-FW-EDU | 5000 K | 80 CRI | 8522 lm | 131 | 65 W | Wide | |
| MPS8-50LW-CW-EDU | 5000 K | 80 CRI | 8464 lm | 123 | 69 W | Wide | |
| MPS8-50LW-CN-EDU | 5000 K | 80 CRI | 8628 lm | 133 | 65 W | Narrow | |
| MPS8-50HLHE-FW-EDU | 5000 K | 80 CRI | 11095 lm | 135 | 82 W | Wide | |
| MPS8-50HLHE-CW-EDU | 5000 K | 80 CRI | 11492 lm | 141 | 82 W | Wide | |
| MPS8-50HL-FW-EDU | 5000 K | 80 CRI | 12015 lm | 122 | 99 W | Wide | |
| MPS8-50HL-CW-EDU | 5000 K | 80 CRI | 12053 lm | 122 | 99 W | Wide | |
| MPS8-50HL-CN-EDU | 5000 K | 80 CRI | 12184 lm | 123 | 99 W | Narrow | |
| MPS8-40XWHE-FW-EDU | 4000 K | 80 CRI | 4726 lm | 131 | 36 W | Wide | |
| MPS8-40XWHE-CW-EDU | 4000 K | 80 CRI | 4865 lm | 134 | 36 W | Wide | |
| MPS8-40XW-FW-EDU | 4000 K | 80 CRI | 4990 lm | 125 | 40 W | Wide | |
| MPS8-40XW-CW-EDU | 4000 K | 80 CRI | 5215 lm | 130 | 40 W | Wide | |
| MPS8-40XW-CN-EDU | 4000 K | 80 CRI | 5058 lm | 127 | 40 W | Narrow | |
| MPS8-40XL-FW-EDU | 4000 K | 80 CRI | 15830 lm | 118 | 134 W | Wide | |
| MPS8-40XL-CW-EDU | 4000 K | 80 CRI | 16303 lm | 123 | 133 W | Wide | |
| MPS8-40XL-CN-EDU | 4000 K | 80 CRI | 16074 lm | 120 | 134 W | Narrow | |
| MPS8-40VWHE-FW-EDU | 4000 K | 80 CRI | 6213 lm | 127 | 49 W | Wide | |
| MPS8-40VWHE-CW-EDU | 4000 K | 80 CRI | 6392 lm | 131 | 49 W | Wide | |
| MPS8-40VW-FW-EDU | 4000 K | 80 CRI | 6351 lm | 120 | 53 W | Wide | |
| MPS8-40VW-CW-EDU | 4000 K | 80 CRI | 6644 lm | 124 | 53 W | Wide | |
| MPS8-40VW-CN-EDU | 4000 K | 80 CRI | 6430 lm | 1 | 5327 W | Narrow | |
| MPS8-40VL-FW-EDU | 4000 K | 80 CRI | 13449 lm | 124 | 108 W | Wide | |
| MPS8-40VL-CW-EDU | 4000 K | 80 CRI | 13715 lm | 127 | 108 W | Wide | |
| MPS8-40VL-CN-EDU | 4000 K | 80 CRI | 13618 lm | 126 | 108 W | Narrow | |
| MPS8-40MWHE-FW-EDU | 4000 K | 80 CRI | 6964 lm | 126 | 55 W | Wide | |
| MPS8-40MWHE-CW-EDU | 4000 K | 80 CRI | 7189 lm | 130 | 55 W | Wide | |
| MPS8-40MW-FW-EDU | 4000 K | 80 CRI | 7073 lm | 118 | 60 W | Wide | |
| MPS8-40MW-CW-EDU | 4000 K | 80 CRI | 7407 lm | 122 | 61 W | Wide | |
| MPS8-40MW-CN-EDU | 4000 K | 80 CRI | 7164 lm | 119 | 60 W | Narrow | |
| MPS8-40MLHE-FW-EDU | 4000 K | 80 CRI | 8797 lm | 130 | 68 W | Wide | |
| MPS8-40MLHE-CW-EDU | 4000 K | 80 CRI | 9203 lm | 136 | 68 W | Wide | |
| MPS8-40ML-FW-EDU | 4000 K | 80 CRI | 9370 lm | 124 | 76 W | Wide | |
| MPS8-40ML-CW-EDU | 4000 K | 80 CRI | 9231 lm | 115 | 80 W | Wide | |
| MPS8-40ML-CN-EDU | 4000 K | 80 CRI | 9485 lm | 126 | 75 W | Narrow | |
| MPS8-40LWHE-FW-EDU | 4000 K | 80 CRI | 7675 lm | 132 | 58 W | Wide | |
| MPS8-40LWHE-CW-EDU | 4000 K | 80 CRI | 8029 lm | 138 | 58 W | Wide | |
| MPS8-40LW-FW-EDU | 4000 K | 80 CRI | 8250 lm | 127 | 65 W | Wide | |
| MPS8-40LW-CW-EDU | 4000 K | 80 CRI | 8193 lm | 119 | 69 W | Wide | |
| MPS8-40LW-CN-EDU | 4000 K | 80 CRI | 8352 lm | 129 | 65 W | Narrow | |
| MPS8-40HLHE-FW-EDU | 4000 K | 80 CRI | 10741 lm | 131 | 82 W | Wide | |
| MPS8-40HLHE-CW-EDU | 4000 K | 80 CRI | 11125 lm | 136 | 82 W | Wide | |
| MPS8-40HL-FW-EDU | 4000 K | 80 CRI | 11632 lm | 118 | 99 W | Wide | |
| MPS8-40HL-CW-EDU | 4000 K | 80 CRI | 11668 lm | 118 | 99 W | Wide | |
| MPS8-40HL-CN-EDU | 4000 K | 80 CRI | 11795 lm | 119 | 99 W | Narrow | |
| MPS8-35XWHE-FW-EDU | 3500 K | 80 CRI | 4667 lm | 129 | 36 W | Wide | |
| MPS8-35XWHE-CW-EDU | 3500 K | 80 CRI | 4804 lm | 133 | 36 W | Wide | |
| MPS8-35XW-FW-EDU | 3500 K | 80 CRI | 4927 lm | 123 | 40 W | Wide | |
| MPS8-35XW-CW-EDU | 3500 K | 80 CRI | 5150 lm | 129 | 40 W | Wide | |
| MPS8-35XW-CN-EDU | 3500 K | 80 CRI | 4975 lm | 125 | 40 W | Narrow | |
| MPS8-35XL-FW-EDU | 3500 K | 80 CRI | 15631 lm | 117 | 134 W | Wide | |
| MPS8-35XL-CW-EDU | 3500 K | 80 CRI | 16097 lm | 121 | 133 W | Wide | |
| MPS8-35XL-CN-EDU | 3500 K | 80 CRI | 15872 lm | 119 | 134 W | Narrow | |
| MPS8-35VWHE-FW-EDU | 3500 K | 80 CRI | 6276 lm | 129 | 49 W | Wide | |
| MPS8-35VWHE-CW-EDU | 3500 K | 80 CRI | 6312 lm | 129 | 49 W | Wide | |
| MPS8-35VW-FW-EDU | 3500 K | 80 CRI | 6271 lm | 118 | 53 W | Wide | |
| MPS8-35VW-CW-EDU | 3500 K | 80 CRI | 6560 lm | 123 | 53 W | Wide | |
| MPS8-35VW-CN-EDU | 3500 K | 80 CRI | 6348 lm | 120 | 53 W | Narrow | |
| MPS8-35VL-FW-EDU | 3500 K | 80 CRI | 13279 lm | 123 | 108 W | Wide | |
| MPS8-35VL-CW-EDU | 3500 K | 80 CRI | 13542 lm | 125 | 108 W | Wide | |
| MPS8-35VL-CN-EDU | 3500 K | 80 CRI | 13446 lm | 124 | 108 W | Narrow | |
| MPS8-35MWHE-FW-EDU | 3500 K | 80 CRI | 7040 lm | 128 | 55 W | Wide | |
| MPS8-35MWHE-CW-EDU | 3500 K | 80 CRI | 7098 lm | 129 | 55 W | Wide | |
| MPS8-35MW-FW-EDU | 3500 K | 80 CRI | 6984 lm | 116 | 60 W | Wide | |
| MPS8-35MW-CW-EDU | 3500 K | 80 CRI | 7313 lm | 120 | 61 W | Wide | |
| MPS8-35MW-CN-EDU | 3500 K | 80 CRI | 7074 lm | 118 | 60 W | Narrow | |
| MPS8-35MLHE-FW-EDU | 3500 K | 80 CRI | 8667 lm | 129 | 67 W | Wide | |
| MPS8-35MLHE-CW-EDU | 3500 K | 80 CRI | 9087 lm | 134 | 68 W | Wide | |
| MPS8-35ML-FW-EDU | 3500 K | 80 CRI | 9252 lm | 122 | 76 W | Wide | |
| MPS8-35ML-CW-EDU | 3500 K | 80 CRI | 9115 lm | 114 | 80 W | Wide | |
| MPS8-35ML-CN-EDU | 3500 K | 80 CRI | 9366 lm | 124 | 75 W | Narrow | |
| MPS8-35LWHE-FW-EDU | 3500 K | 80 CRI | 7578 lm | 130 | 58 W | Wide | |
| MPS8-35LWHE-CW-EDU | 3500 K | 80 CRI | 7928 lm | 136 | 58 W | Wide | |
| MPS8-35LW-FW-EDU | 3500 K | 80 CRI | 8146 lm | 125 | 65 W | Wide | |
| MPS8-35LW-CW-EDU | 3500 K | 80 CRI | 8090 lm | 118 | 69 W | Wide | |
| MPS8-35LW-CN-EDU | 3500 K | 80 CRI | 8247 lm | 127 | 65 W | Narrow | |
| MPS8-35HLHE-FW-EDU | 3500 K | 80 CRI | 10605 lm | 129 | 82 W | Wide | |
| MPS8-35HLHE-CW-EDU | 3500 K | 80 CRI | 10985 lm | 135 | 82 W | Wide | |
| MPS8-35HL-FW-EDU | 3500 K | 80 CRI | 11485 lm | 116 | 99 W | Wide | |
| MPS8-35HL-CW-EDU | 3500 K | 80 CRI | 11521 lm | 116 | 99 W | Wide | |
| MPS8-35HL-CN-EDU | 3500 K | 80 CRI | 11647 lm | 118 | 99 W | Narrow | |
| MPS8-30XWHE-FW-EDU | 3000 K | 80 CRI | 4584 lm | 127 | 36 W | Wide | |
| MPS8-30XWHE-CW-EDU | 3000 K | 80 CRI | 4719 lm | 130 | 36 W | Wide | |
| MPS8-30XW-FW-EDU | 3000 K | 80 CRI | 4840 lm | 121 | 40 W | Wide | |
| MPS8-30XW-CW-EDU | 3000 K | 80 CRI | 5059 lm | 127 | 40 W | Wide | |
| MPS8-30XW-CN-EDU | 3000 K | 80 CRI | 4887 lm | 123 | 40 W | Narrow | |
| MPS8-30XL-FW-EDU | 3000 K | 80 CRI | 15354 lm | 115 | 134 W | Wide | |
| MPS8-30XL-CW-EDU | 3000 K | 80 CRI | 15813 lm | 119 | 133 W | Wide | |
| MPS8-30XL-CN-EDU | 3000 K | 80 CRI | 15591 lm | 117 | 134 W | Narrow | |
| MPS8-30VWHE-FW-EDU | 3000 K | 80 CRI | 6026 lm | 123 | 49 W | Wide | |
| MPS8-30VWHE-CW-EDU | 3000 K | 80 CRI | 6200 lm | 127 | 49 W | Wide | |
| MPS8-30VW-FW-EDU | 3000 K | 80 CRI | 6160 lm | 116 | 53 W | Wide | |
| MPS8-30VW-CW-EDU | 3000 K | 80 CRI | 6444 lm | 121 | 53 W | Wide | |
| MPS8-30VW-CN-EDU | 3000 K | 80 CRI | 6236 lm | 118 | 53 W | Narrow | |
| MPS8-30VL-FW-EDU | 3000 K | 80 CRI | 13044 lm | 121 | 108 W | Wide | |
| MPS8-30VL-CW-EDU | 3000 K | 80 CRI | 13303 lm | 123 | 108 W | Wide | |
| MPS8-30VL-CN-EDU | 3000 K | 80 CRI | 13208 lm | 122 | 108 W | Narrow | |
| MPS8-30MWHE-FW-EDU | 3000 K | 80 CRI | 6755 lm | 122 | 55 W | Wide | |
| MPS8-30MWHE-CW-EDU | 3000 K | 80 CRI | 6973 lm | 126 | 55 W | Wide | |
| MPS8-30MW-FW-EDU | 3000 K | 80 CRI | 6861 lm | 114 | 60 W | Wide | |
| MPS8-30MW-CW-EDU | 3000 K | 80 CRI | 7184 lm | 118 | 61 W | Wide | |
| MPS8-30MW-CN-EDU | 3000 K | 80 CRI | 6948 lm | 115 | 60 W | Narrow | |
| MPS8-30MLHE-FW-EDU | 3000 K | 80 CRI | 8533 lm | 126 | 68 W | Wide | |
| MPS8-30MLHE-CW-EDU | 3000 K | 80 CRI | 8926 lm | 132 | 68 W | Wide | |
| MPS8-30ML-FW-EDU | 3000 K | 80 CRI | 9088 lm | 120 | 76 W | Wide | |
| MPS8-30ML-CW-EDU | 3000 K | 80 CRI | 8954 lm | 112 | 80 W | Wide | |
| MPS8-30ML-CN-EDU | 3000 K | 80 CRI | 9200 lm | 122 | 75 W | Narrow | |
| MPS8-30LWHE-FW-EDU | 3000 K | 80 CRI | 7444 lm | 128 | 58 W | Wide | |
| MPS8-30LWHE-CW-EDU | 3000 K | 80 CRI | 7788 lm | 134 | 58 W | Wide | |
| MPS8-30LW-FW-EDU | 3000 K | 80 CRI | 8002 lm | 123 | 65 W | Wide | |
| MPS8-30LW-CW-EDU | 3000 K | 80 CRI | 7947 lm | 116 | 69 W | Wide | |
| MPS8-30LW-CN-EDU | 3000 K | 80 CRI | 8101 lm | 125 | 65 W | Narrow | |
| MPS8-30HLHE-FW-EDU | 3000 K | 80 CRI | 10418 lm | 127 | 82 W | Wide |
Show All
Lumen Range

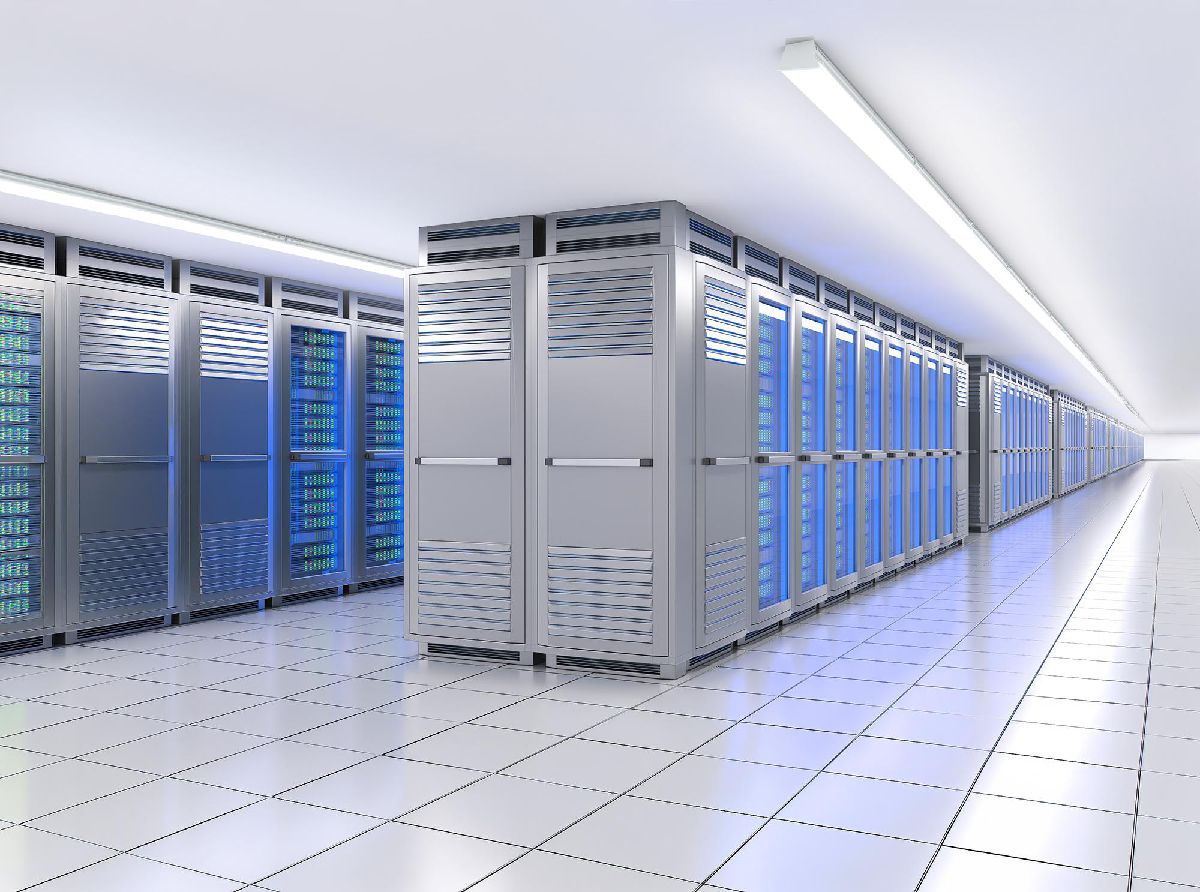

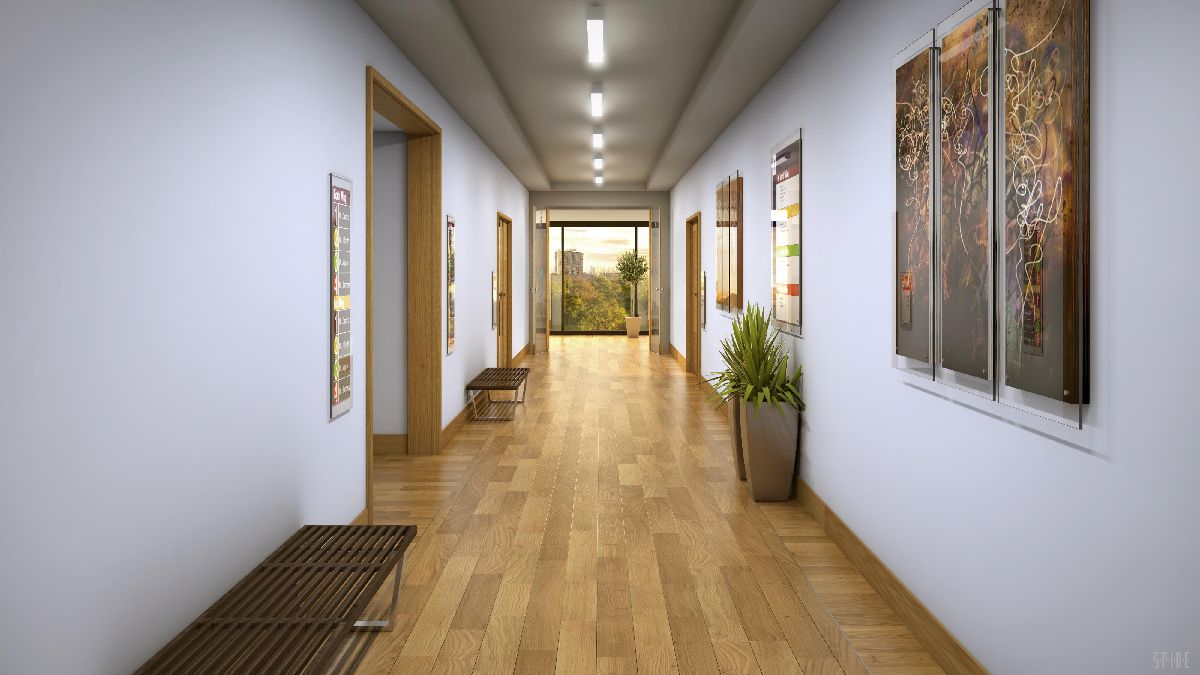

Application Photos
Related Products
The Revalume RLW is a linear wrap with a sleek, contemporary aesthetic for a variety of applications. Integrated controls and single or row mounting available.
The Reverie RLB is a decorative low bay for Educational, automotive and retail spaces. Distribution options and multiple control capabilities for customization.
