DUAL-LITE
CLML Series

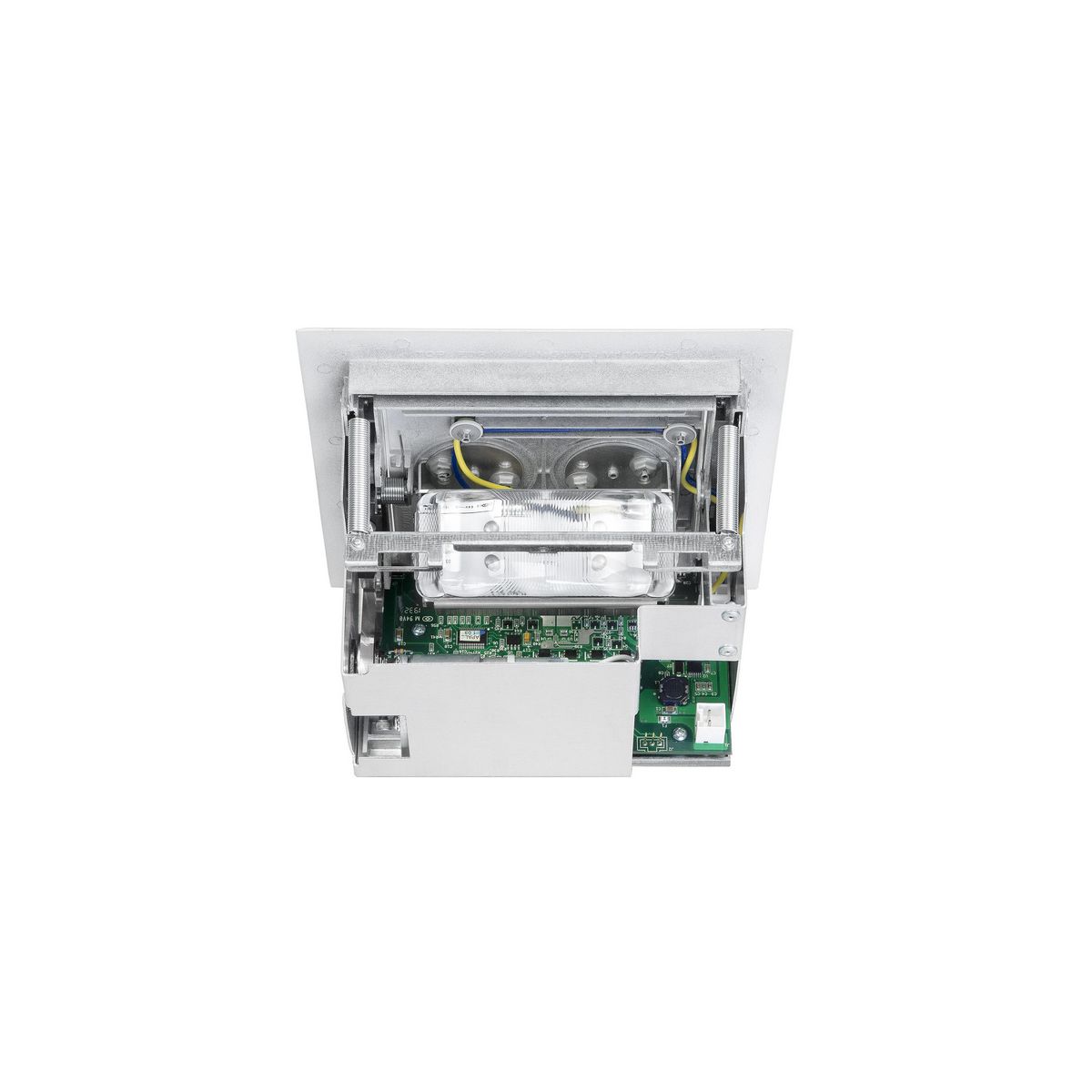

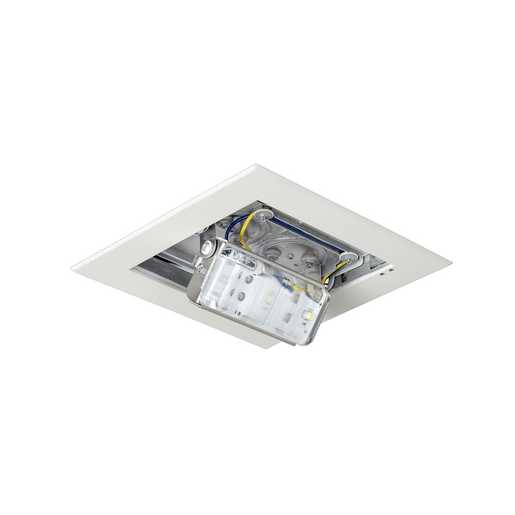

Compact concealed LED recessed self-contained emergency light with fully automatic operation suitable for wall or ceiling mount applications.

Features & Benefits

  • Emergency operation from a battery or the AC input from Inverter/Generator
  • Rated for 90-minute runtime
  • Optics are adjustable up to 70° and provide up to 50' spacing
  • Brownout Protection
  • Accessories: Remote Testing Transmitter - CLRT, Rough-in Kit, and Chicago Plenum Listed Rough-in Kit

Specifications

Product Technology
Spectron® Self-Test/Self-Diagnostics
Voltage Offering
120;277
Battery Type
Nickel Metal Hydride
Mounting Options
Wall, Ceiling
Material - Housing
Steel
Color Offering
White
Certifications
UL 924, Title 20
Ratings
NFPA 70, NFPA 101, OSHA, NYC code, City of Chicago
Operating Temp
(50°F to 104°F) 10°C to 40
Warranty
3 year full, 5 year with Spectron®

Product Documents

707 KB
2022-09-22

Sell Sheets

1746 KB
2022-11-21

Design / BIM Files / 3D Models

480 KB
2022-10-10

Installation Guides

Warranties

Photometry(0)

Clear Filters

Product Name Color Temp CRI Lumens LM/W Watts Dist. Type Resources
CLML LED Wall Mount
CLML LED Ceiling Mounted
