DUAL-LITE
CLL Series

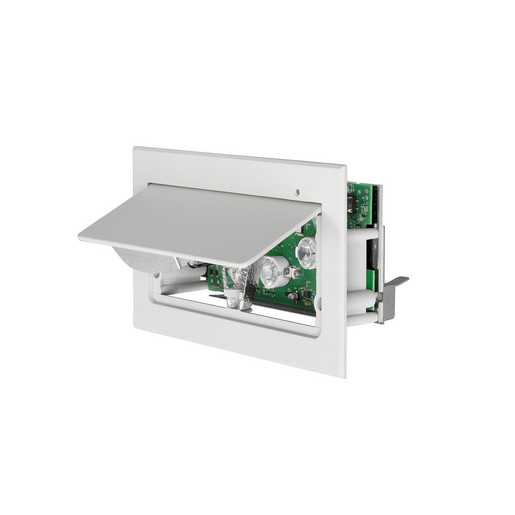

Compact concealed LED recessed self-contained emergency light with fully automatic operation suitable for wall or ceiling mount applications.

Features & Benefits

  • Designed specifically for low level applications at 18" above floor level
  • Includes Self-Test, Self-Diagnostics with optional 15 min. time delay
  • Rated for 2-hour runtime with Sealed Lead Acit or Nickel Cadmium batteries
  • Brownout Protection
  • Optional Remote Test Transmitter for ease of testing

Specifications

Product Technology
Spectron® Self-Test/Self-Diagnostics
Voltage Offering
120;277
Battery Type
Sealed Lead-acid;Nickel Cadmium
Mounting Options
Recessed
Material - Housing
Die-cast aluminum
Color Offering
White
Certifications
UL 924
Ratings
NFPA 70, NFPA 101, OSHA, NYC code, City of Chicago
Operating Temp
(50°F to 104°F) 10°C to 40
Warranty
3 year full, 5 year with Spectron®

Product Documents

547 KB
2022-09-22

Installation Guides

5377 KB
2022-07-22

Photometry(0)

Clear Filters

Product Name Color Temp CRI Lumens LM/W Watts Dist. Type Resources
CLL Low Level6500 K339 W
