NX LIGHTING CONTROLS
CX Relays

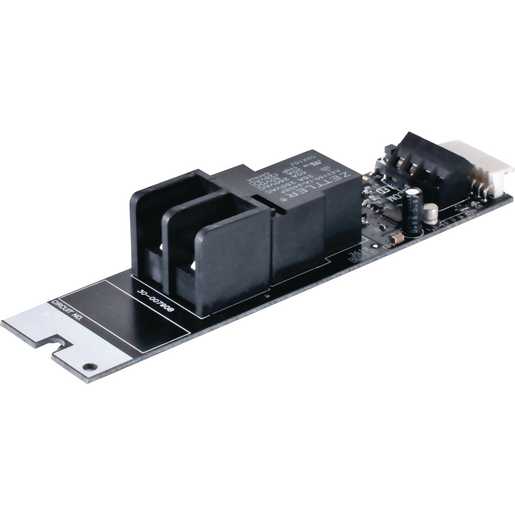

CX relays are individually board mounted and can be installed in any combination in the CX Lighting Controls panel.

Features & Benefits

  • Relays are mounted to individual relay cards
  • Five types of relays - 20A/1P and 20A/2P, NO (14K SCCR), 30A/P latching (18K SCCR) and 30A/IP latching (5K SCCR)
  • Each relay includes programmable input for low voltage switches, photocells, or motion sensors
  • Smart Relay card self-identifies type automatically to Panel
  • Panels are ordered fully populated with the same relay type or with space only for field installation of relay combinations
Where To Buy
SPEC SHEET

Specifications

Brand
NX LIGHTING CONTROLS
Connectivity
Wired
Color Offering
Black
Mounting Options
Mounts Inside NEMA 1 CX Lighting Control Panel, Pre-Drilled Mounting Holes For Mounting To Wall
Voltage Offering
120-277;120-347
Operating Temp
0 to 55
Certifications
cULus, UL 924, TAA
Warranty
5 year limited

Product Documents

CX Relay Specification Sheet
402 KB
2023-02-23

Brochures / Catalogs

Design / BIM Files / 3D Models

CXR BIM file
452 KB
2022-10-10

Installation Guides

CX Relays Installation Sheet
580 KB
2022-09-14
CXPBAR Installation Sheet
228 KB
2022-09-14

Warranties

NX Lighting Controls
138 KB
2022-08-30
