KIM LIGHTING

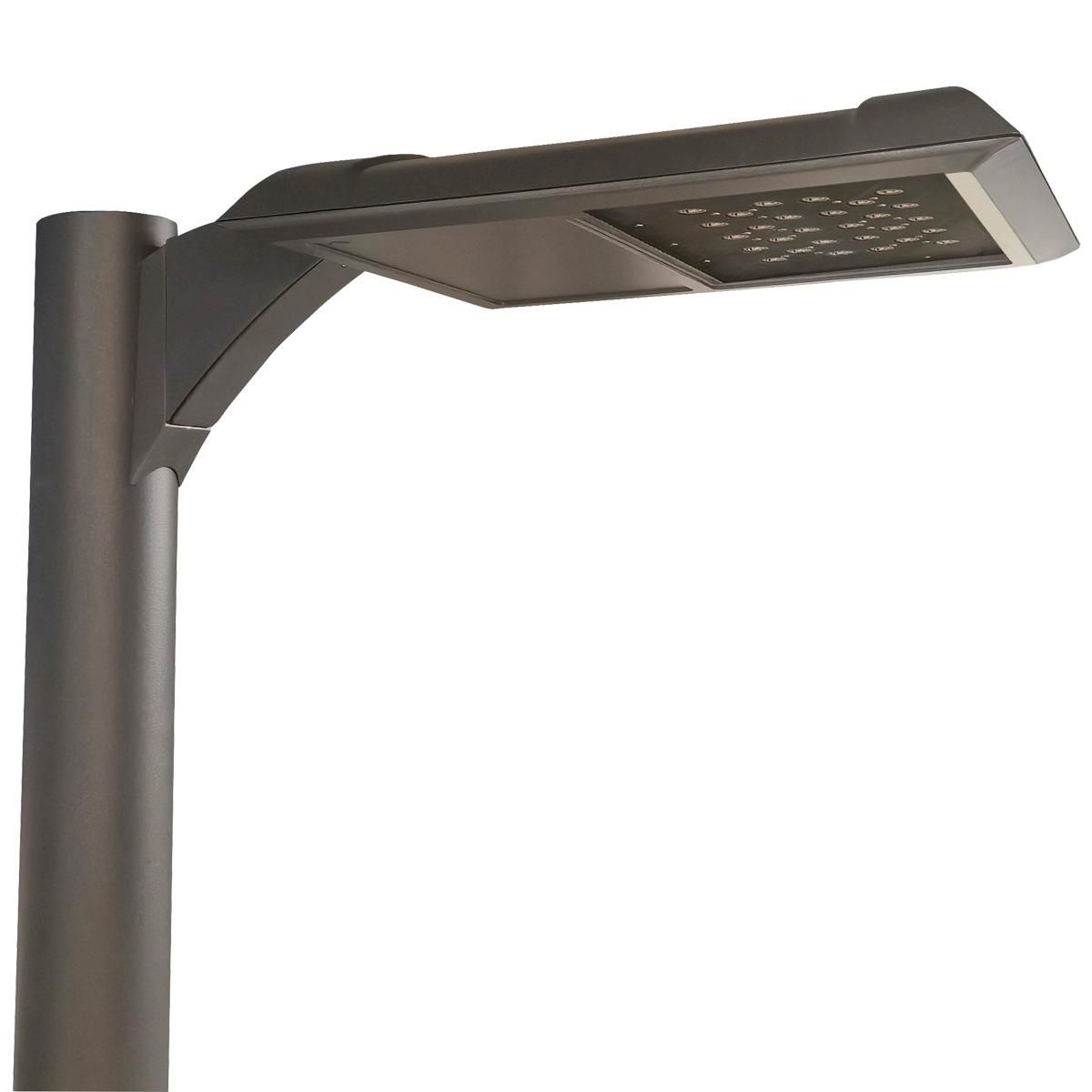

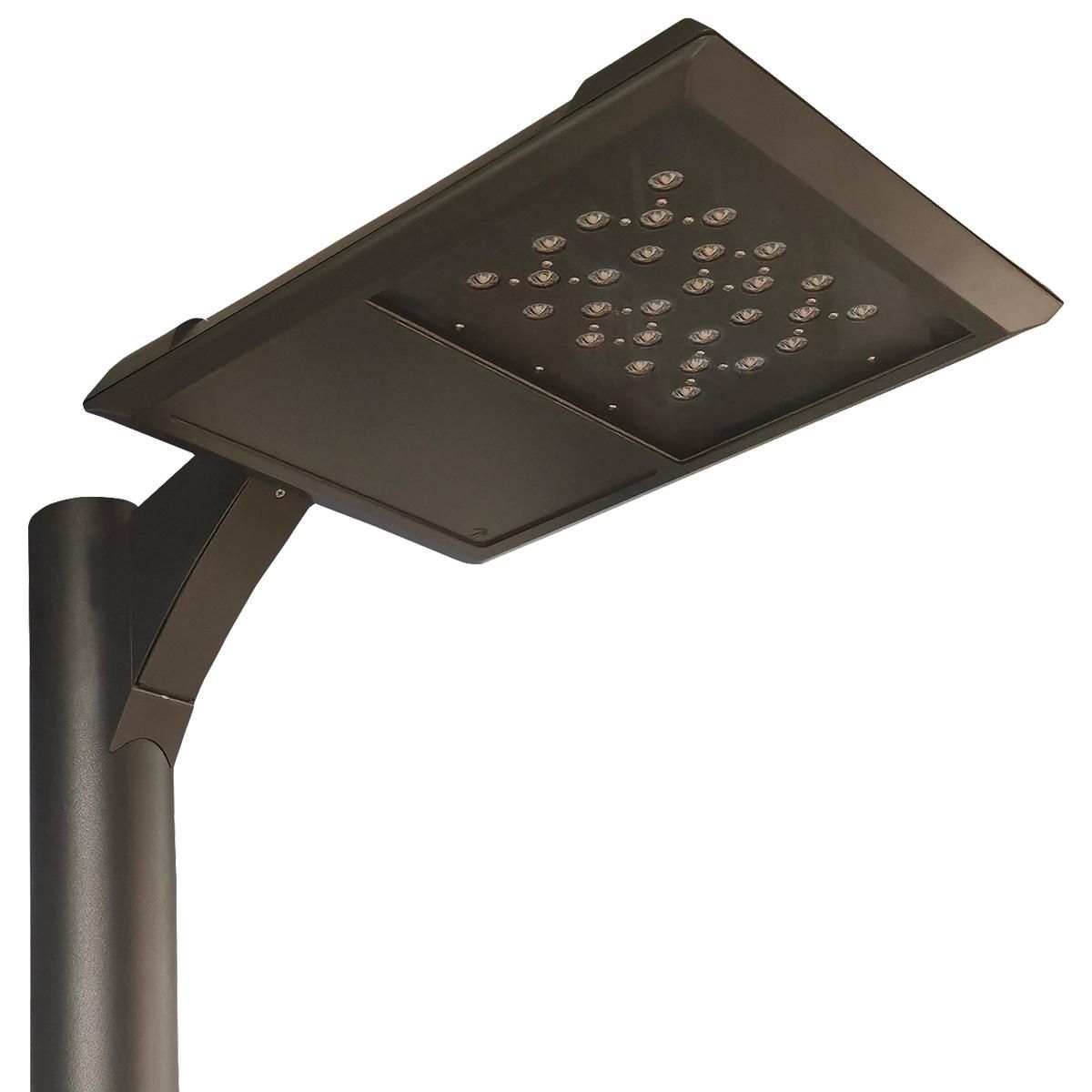

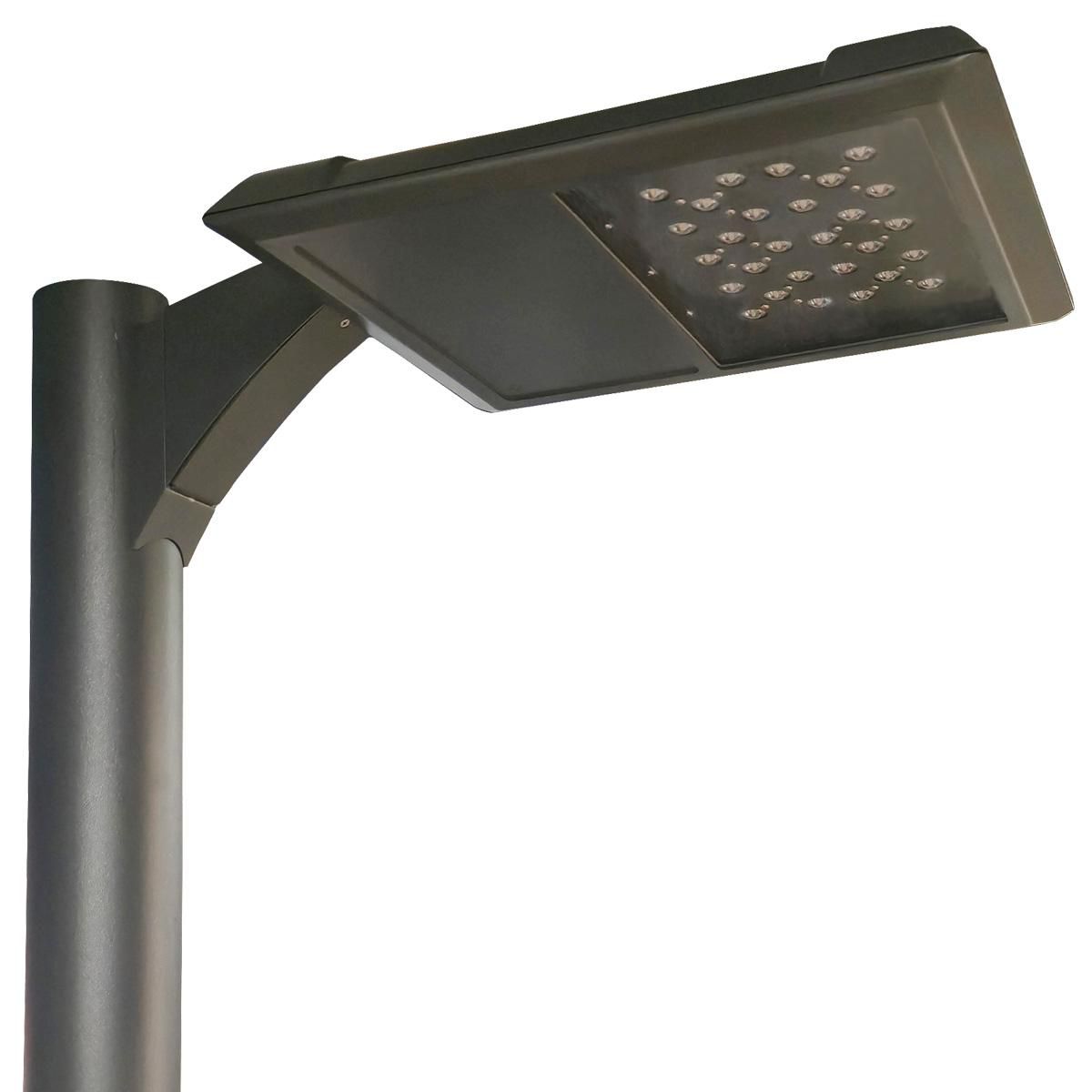

Altitude® 2.0
The ALTITUDE® is the ultimate in luminaire design innovation. The low-profile housing is proportional and scalable with sizes to cover pedestrian/site/roadway environments
Features & Benefits
- Three Sizes for maximum flexibility to cover more applications
- IP66 Certified
- Nine IES distribution patterns
- Three Lens options: no lens, clear and diffuse for visual comfort
- NX wired and wireless integrated control system
- 70, 80 and 90 CRI are available
Specifications
Lumen Range
5,001 - 50,000
Dimming Protocol
0-10V Dimming,
Step-Dimming
CCT
3000,
4000,
5000
CRI
70,
80,
90
Mounting Options
Arm
Wattage Range
50 - 150
Color Offering
BLS - Black Gloss Smooth,
BLT - Black Matte Textured,
DBS - Dark Bronze Gloss Smooth,
DBT- Dark Bronze Matte Textured,
GTT - Graphite Matte Textured,
LG - Light Grey Matte Textured,
LGS - Light Grey Gloss Smooth,
PSS - Platinum Silver Gloss Smooth,
VGT - Verde Green Matte Textured,
WHS - White Gloss Smooth,
WHT - White Matte Textured,
CC – Custom Color
Beam Angle
Type II,
Type III,
Type IV,
Type IV Wide,
Type V,
Type V Square Medium,
Type V Square Narrow,
Type V Square Wide (Round)
Certifications
UL 1598,
UL 8750,
CSA
Ratings
IP66
Operating Temperature
-40 to 25
Controls Platform
7-pin ANSI C136.41 Dimming Receptacle,
NX Networked - Wireless
Lumen Range
5,001 - 50,000
Material
Aluminum
Size
Rectangular
Specifications
| Lumen Range | 5,001 - 50,000 |
| Dimming Protocol | 0-10V Dimming, Step-Dimming |
| CCT | 3000, 4000, 5000 |
| CRI | 70, 80, 90 |
| Mounting Options | Arm |
| Wattage Range | 50 - 150 |
| Color Offering | BLS - Black Gloss Smooth, BLT - Black Matte Textured, DBS - Dark Bronze Gloss Smooth, DBT- Dark Bronze Matte Textured, GTT - Graphite Matte Textured, LG - Light Grey Matte Textured, LGS - Light Grey Gloss Smooth, PSS - Platinum Silver Gloss Smooth, VGT - Verde Green Matte Textured, WHS - White Gloss Smooth, WHT - White Matte Textured, CC – Custom Color |
| Beam Angle | Type II, Type III, Type IV, Type IV Wide, Type V, Type V Square Medium, Type V Square Narrow, Type V Square Wide (Round) |
| Certifications | UL 1598, UL 8750, CSA |
| Ratings | IP66 |
| Operating Temperature | -40 to 25 |
| Controls Platform | 7-pin ANSI C136.41 Dimming Receptacle, NX Networked - Wireless |
| Lumen Range | 5,001 - 50,000 |
| Material | Aluminum |
| Size | Rectangular |
Product Documents
Spec Sheets
Brochures / Catalogs
Design / BIM Files / 3D Models
Technical Documents
Photometry(0)
Clear Filters| Product Name | Color Temp | CRI | Lumens | LM/W | Watts | Dist. Type | Resources |
|---|---|---|---|---|---|---|---|
| ALT1-28L-20-3K7-2-BC | 3000 K | 70 CRI | 1772 lm | 81 | 22 W | Type 2 | |
| ALT1-28L-20-3K7-3-BC | 3000 K | 70 CRI | 1779 lm | 81 | 22 W | Type 2 | |
| ALT1-28L-20-3K7-4-BC | 3000 K | 70 CRI | 2189 lm | 100 | 22 W | Type 4 | |
| ALT1-28L-20-3K7-4-CLR | 3000 K | 70 CRI | 2752 lm | 125 | 22 W | Type 4 | |
| ALT1-28L-20-3K7-4 | 3000 K | 70 CRI | 2943 lm | 134 | 22 W | Type 4 | |
| ALT1-28L-20-3K7-4W-BC | 3000 K | 70 CRI | 1674 lm | 76 | 22 W | Type 4W | |
| ALT1-28L-20-3K7-FR-BC | 3000 K | 70 CRI | 2036 lm | 93 | 22 W | Type FR | |
| ALT1-28L-20-3k7-2-CLR | 3000 K | 70 CRI | 2715 lm | 123 | 22 W | Type 2 | |
| ALT1-28L-20-3k7-2 | 3000 K | 70 CRI | 2902 lm | 132 | 22 W | Type 2 | |
| ALT1-28L-20-3k7-3-CLR | 3000 K | 70 CRI | 2754 lm | 125 | 22 W | Type 3 | |
| ALT1-28L-20-3k7-3-HDL | 3000 K | 70 CRI | 2342 lm | 106 | 22 W | Type 3 | |
| ALT1-28L-20-3k7-3 | 3000 K | 70 CRI | 2945 lm | 131 | 22.49 W | Type 3 | |
| ALT1-28L-20-3k7-4W-CLR | 3000 K | 70 CRI | 2739 lm | 124 | 22 W | Type 4W | |
| ALT1-28L-20-3k7-4W | 3000 K | 70 CRI | 2928 lm | 133 | 22 W | Type 4W | |
| ALT1-28L-20-3k7-5QM-CLR | 3000 K | 70 CRI | 2870 lm | 130 | 22 W | Type 5QM | |
| ALT1-28L-20-3k7-5QM | 3000 K | 70 CRI | 3069 lm | 140 | 22 W | Type 5QM | |
| ALT1-28L-20-3k7-5QN-CLR | 3000 K | 70 CRI | 2853 lm | 130 | 22 W | Type 5QN | |
| ALT1-28L-20-3k7-5QN | 3000 K | 70 CRI | 3051 lm | 139 | 22 W | Type 5QN | |
| ALT1-28L-20-3k7-5R-CLR | 3000 K | 70 CRI | 2828 lm | 129 | 22 W | Type 5R | |
| ALT1-28L-20-3k7-5R | 3000 K | 70 CRI | 3024 lm | 137 | 22 W | Type 5R | |
| ALT1-28L-20-3k7-5W-CLR | 3000 K | 70 CRI | 2829 lm | 129 | 22 W | Type 5W | |
| ALT1-28L-20-3k7-5W-HDL | 3000 K | 70 CRI | 2405 lm | 109 | 22 W | Type 5W | |
| ALT1-28L-20-3k7-5W | 3000 K | 70 CRI | 3024 lm | 137 | 22 W | Type 5W | |
| ALT1-28L-20-3k7-FR-CLR | 3000 K | 70 CRI | 2909 lm | 132 | 22 W | Type FR | |
| ALT1-28L-20-3k7-FR | 3000 K | 70 CRI | 3110 lm | 141 | 22 W | Type FR | |
| ALT1-28L-20-4K7-2-BC | 4000 K | 70 CRI | 1865 lm | 85 | 22 W | Type 2 | |
| ALT1-28L-20-4K7-3-BC | 4000 K | 70 CRI | 1874 lm | 85 | 22 W | Type 2 | |
| ALT1-28L-20-4K7-4-BC | 4000 K | 70 CRI | 2305 lm | 105 | 22 W | Type 4 | |
| ALT1-28L-20-4K7-4-CLR | 4000 K | 70 CRI | 2897 lm | 132 | 22 W | Type 4 | |
| ALT1-28L-20-4K7-4 | 4000 K | 70 CRI | 3098 lm | 141 | 22 W | Type 4 | |
| ALT1-28L-20-4K7-4W-BC | 4000 K | 70 CRI | 1762 lm | 80 | 22 W | Type 4W | |
| ALT1-28L-20-4K7-FR-BC | 4000 K | 70 CRI | 2143 lm | 97 | 22 W | Type FR | |
| ALT1-28L-20-4k7-2-CLR | 4000 K | 70 CRI | 2858 lm | 130 | 22 W | Type 2 | |
| ALT1-28L-20-4k7-2 | 4000 K | 70 CRI | 3056 lm | 139 | 22 W | Type 2 | |
| ALT1-28L-20-4k7-3-CLR | 4000 K | 70 CRI | 2900 lm | 132 | 22 W | Type 3 | |
| ALT1-28L-20-4k7-3-HDL | 4000 K | 70 CRI | 2465 lm | 112 | 22 W | Type 3 | |
| ALT1-28L-20-4k7-3 | 4000 K | 70 CRI | 3100 lm | 138 | 22.45 W | Type 3 | |
| ALT1-28L-20-4k7-4W-CLR | 4000 K | 70 CRI | 2883 lm | 131 | 22 W | Type 4W | |
| ALT1-28L-20-4k7-4W | 4000 K | 70 CRI | 3081 lm | 140 | 22 W | Type 4W | |
| ALT1-28L-20-4k7-5QM-CLR | 4000 K | 70 CRI | 3021 lm | 137 | 22 W | Type 5QM | |
| ALT1-28L-20-4k7-5QM | 4000 K | 70 CRI | 3231 lm | 147 | 22 W | Type 5QM | |
| ALT1-28L-20-4k7-5QN-CLR | 4000 K | 70 CRI | 3004 lm | 137 | 22 W | Type 5QN | |
| ALT1-28L-20-4k7-5QN | 4000 K | 70 CRI | 3211 lm | 146 | 22 W | Type 5QN | |
| ALT1-28L-20-4k7-5R-CLR | 4000 K | 70 CRI | 2978 lm | 135 | 22 W | Type 5R | |
| ALT1-28L-20-4k7-5R | 4000 K | 70 CRI | 3184 lm | 145 | 22 W | Type 5R | |
| ALT1-28L-20-4k7-5W-CLR | 4000 K | 70 CRI | 2977 lm | 135 | 22 W | Type 5W | |
| ALT1-28L-20-4k7-5W-HDL | 4000 K | 70 CRI | 2531 lm | 115 | 22 W | Type 5W | |
| ALT1-28L-20-4k7-5W | 4000 K | 70 CRI | 3183 lm | 145 | 22 W | Type 5W | |
| ALT1-28L-20-4k7-FR-CLR | 4000 K | 70 CRI | 3062 lm | 139 | 22 W | Type FR | |
| ALT1-28L-20-4k7-FR | 4000 K | 70 CRI | 3274 lm | 149 | 22 W | Type FR | |
| ALT1-28L-20-5K7-2-BC | 5000 K | 70 CRI | 1889 lm | 84 | 22.38 W | Type 2 | |
| ALT1-28L-20-5K7-3-BC | 5000 K | 70 CRI | 1898 lm | 85 | 22.33 W | Type 2 | |
| ALT1-28L-20-5K7-4-BC | 5000 K | 70 CRI | 2335 lm | 104 | 22.36 W | Type 4 | |
| ALT1-28L-20-5K7-4-CLR | 5000 K | 70 CRI | 2936 lm | 133 | 22 W | Type 4 | |
| ALT1-28L-20-5K7-4 | 5000 K | 70 CRI | 3139 lm | 141 | 22.28 W | Type 4 | |
| ALT1-28L-20-5K7-4W-BC | 5000 K | 70 CRI | 1785 lm | 80 | 22.33 W | Type 4W | |
| ALT1-28L-20-5K7-FR-BC | 5000 K | 70 CRI | 2172 lm | 97 | 22.29 W | Type FR | |
| ALT1-28L-20-5k7-2-CLR | 5000 K | 70 CRI | 2896 lm | 132 | 22 W | Type 2 | |
| ALT1-28L-20-5k7-2 | 5000 K | 70 CRI | 3097 lm | 138 | 22.41 W | Type 2 | |
| ALT1-28L-20-5k7-3-CLR | 5000 K | 70 CRI | 2938 lm | 134 | 22 W | Type 3 | |
| ALT1-28L-20-5k7-3-HDL | 5000 K | 70 CRI | 2498 lm | 114 | 22 W | Type 3 | |
| ALT1-28L-20-5k7-3 | 5000 K | 70 CRI | 3141 lm | 140 | 22.38 W | Type 3 | |
| ALT1-28L-20-5k7-4W-CLR | 5000 K | 70 CRI | 2921 lm | 133 | 22 W | Type 4W | |
| ALT1-28L-20-5k7-4W | 5000 K | 70 CRI | 3122 lm | 139 | 22.44 W | Type 4W | |
| ALT1-28L-20-5k7-5QM-CLR | 5000 K | 70 CRI | 3062 lm | 139 | 22 W | Type 5QM | |
| ALT1-28L-20-5k7-5QM | 5000 K | 70 CRI | 3273 lm | 146 | 22.45 W | Type 5QM | |
| ALT1-28L-20-5k7-5QN-CLR | 5000 K | 70 CRI | 3044 lm | 138 | 22 W | Type 5QN | |
| ALT1-28L-20-5k7-5QN | 5000 K | 70 CRI | 3254 lm | 145 | 22.41 W | Type 5QN | |
| ALT1-28L-20-5k7-5R-CLR | 5000 K | 70 CRI | 3018 lm | 137 | 22 W | Type 5R | |
| ALT1-28L-20-5k7-5R | 5000 K | 70 CRI | 3226 lm | 144 | 22.41 W | Type 5R | |
| ALT1-28L-20-5k7-5W-CLR | 5000 K | 70 CRI | 3017 lm | 137 | 22 W | Type 5W | |
| ALT1-28L-20-5k7-5W-HDL | 5000 K | 70 CRI | 2565 lm | 117 | 22 W | Type 5W | |
| ALT1-28L-20-5k7-5W | 5000 K | 70 CRI | 3226 lm | 144 | 22.41 W | Type 5W | |
| ALT1-28L-20-5k7-FR-CLR | 5000 K | 70 CRI | 3103 lm | 141 | 22 W | Type FR | |
| ALT1-28L-20-5k7-FR | 5000 K | 70 CRI | 3318 lm | 148 | 22.4 W | Type FR | |
| ALT1-28L-40-3K7-2-BC | 3000 K | 70 CRI | 2773 lm | 73 | 38 W | Type 2 | |
| ALT1-28L-40-3K7-3-BC | 3000 K | 70 CRI | 2787 lm | 73 | 38 W | Type 2 | |
| ALT1-28L-40-3K7-4-BC | 3000 K | 70 CRI | 3428 lm | 90 | 38 W | Type 4 | |
| ALT1-28L-40-3K7-4-CLR | 3000 K | 70 CRI | 4310 lm | 113 | 38 W | Type 4 | |
| ALT1-28L-40-3K7-4 | 3000 K | 70 CRI | 4608 lm | 121 | 38 W | Type 4 | |
| ALT1-28L-40-3K7-4W-BC | 3000 K | 70 CRI | 2621 lm | 69 | 38 W | Type 4W | |
| ALT1-28L-40-3K7-FR-BC | 3000 K | 70 CRI | 3190 lm | 84 | 38 W | Type FR | |
| ALT1-28L-40-3k7-2-CLR | 3000 K | 70 CRI | 4252 lm | 112 | 38 W | Type 2 | |
| ALT1-28L-40-3k7-2 | 3000 K | 70 CRI | 4546 lm | 120 | 38 W | Type 2 | |
| ALT1-28L-40-3k7-3-CLR | 3000 K | 70 CRI | 4333 lm | 114 | 38 W | Type 3 | |
| ALT1-28L-40-3k7-3-HDL | 3000 K | 70 CRI | 3742 lm | 98 | 38 W | Type 3 | |
| ALT1-28L-40-3k7-3 | 3000 K | 70 CRI | 4611 lm | 121 | 38 W | Type 3 | |
| ALT1-28L-40-3k7-4W-CLR | 3000 K | 70 CRI | 4287 lm | 113 | 38 W | Type 4W | |
| ALT1-28L-40-3k7-4W | 3000 K | 70 CRI | 4585 lm | 121 | 38 W | Type 4W | |
| ALT1-28L-40-3k7-5QM-CLR | 3000 K | 70 CRI | 4496 lm | 118 | 38 W | Type 5QM | |
| ALT1-28L-40-3k7-5QM | 3000 K | 70 CRI | 4807 lm | 126 | 38 W | Type 5QM | |
| ALT1-28L-40-3k7-5QN-CLR | 3000 K | 70 CRI | 4468 lm | 118 | 38 W | Type 5QN | |
| ALT1-28L-40-3k7-5QN | 3000 K | 70 CRI | 4777 lm | 126 | 38 W | Type 5QN | |
| ALT1-28L-40-3k7-5R-CLR | 3000 K | 70 CRI | 4430 lm | 117 | 38 W | Type 5R | |
| ALT1-28L-40-3k7-5R | 3000 K | 70 CRI | 4736 lm | 125 | 38 W | Type 5R | |
| ALT1-28L-40-3k7-5W-CLR | 3000 K | 70 CRI | 4430 lm | 117 | 38 W | Type 5W | |
| ALT1-28L-40-3k7-5W-HDL | 3000 K | 70 CRI | 3891 lm | 102 | 38 W | Type 5W | |
| ALT1-28L-40-3k7-5W | 3000 K | 70 CRI | 4736 lm | 125 | 38 W | Type 5W | |
| ALT1-28L-40-3k7-FR-CLR | 3000 K | 70 CRI | 4555 lm | 120 | 38 W | Type FR | |
| ALT1-28L-40-3k7-FR | 3000 K | 70 CRI | 4869 lm | 128 | 38 W | Type FR | |
| ALT1-28L-40-4K7-2-BC | 4000 K | 70 CRI | 2920 lm | 77 | 38 W | Type 2 | |
| ALT1-28L-40-4K7-3-BC | 4000 K | 70 CRI | 2934 lm | 77 | 38 W | Type 2 | |
| ALT1-28L-40-4K7-4-BC | 4000 K | 70 CRI | 3609 lm | 95 | 38 W | Type 4 | |
| ALT1-28L-40-4K7-4-CLR | 4000 K | 70 CRI | 4537 lm | 119 | 38 W | Type 4 | |
| ALT1-28L-40-4K7-4 | 4000 K | 70 CRI | 4851 lm | 128 | 38 W | Type 4 | |
| ALT1-28L-40-4K7-4W-BC | 4000 K | 70 CRI | 2758 lm | 73 | 38 W | Type 4W | |
| ALT1-28L-40-4K7-FR-BC | 4000 K | 70 CRI | 3356 lm | 88 | 38 W | Type FR | |
| ALT1-28L-40-4k7-2-CLR | 4000 K | 70 CRI | 4476 lm | 118 | 38 W | Type 2 | |
| ALT1-28L-40-4k7-2 | 4000 K | 70 CRI | 4785 lm | 126 | 38 W | Type 2 | |
| ALT1-28L-40-4k7-3-CLR | 4000 K | 70 CRI | 4561 lm | 120 | 38 W | Type 3 | |
| ALT1-28L-40-4k7-3-HDL | 4000 K | 70 CRI | 3938 lm | 104 | 38 W | Type 3 | |
| ALT1-28L-40-4k7-3 | 4000 K | 70 CRI | 4854 lm | 128 | 38 W | Type 3 | |
| ALT1-28L-40-4k7-4W-CLR | 4000 K | 70 CRI | 4513 lm | 119 | 38 W | Type 4W | |
| ALT1-28L-40-4k7-4W | 4000 K | 70 CRI | 4825 lm | 127 | 38 W | Type 4W | |
| ALT1-28L-40-4k7-5QM-CLR | 4000 K | 70 CRI | 4732 lm | 125 | 38 W | Type 5QM | |
| ALT1-28L-40-4k7-5QM | 4000 K | 70 CRI | 5059 lm | 133 | 38 W | Type 5QM | |
| ALT1-28L-40-4k7-5QN-CLR | 4000 K | 70 CRI | 4704 lm | 124 | 38 W | Type 5QN | |
| ALT1-28L-40-4k7-5QN | 4000 K | 70 CRI | 5028 lm | 132 | 38 W | Type 5QN | |
| ALT1-28L-40-4k7-5R-CLR | 4000 K | 70 CRI | 4663 lm | 123 | 38 W | Type 5R | |
| ALT1-28L-40-4k7-5R | 4000 K | 70 CRI | 4985 lm | 131 | 38 W | Type 5R | |
| ALT1-28L-40-4k7-5W-CLR | 4000 K | 70 CRI | 4663 lm | 123 | 38 W | Type 5W | |
| ALT1-28L-40-4k7-5W-HDL | 4000 K | 70 CRI | 4096 lm | 108 | 38 W | Type 5W | |
| ALT1-28L-40-4k7-5W | 4000 K | 70 CRI | 4985 lm | 131 | 38 W | Type 5W | |
| ALT1-28L-40-4k7-FR-CLR | 4000 K | 70 CRI | 4795 lm | 126 | 38 W | Type FR | |
| ALT1-28L-40-4k7-FR | 4000 K | 70 CRI | 5126 lm | 135 | 38 W | Type FR | |
| ALT1-28L-40-5K7-2-BC | 5000 K | 70 CRI | 2959 lm | 78 | 38 W | Type 2 | |
| ALT1-28L-40-5K7-3-BC | 5000 K | 70 CRI | 2972 lm | 78 | 38 W | Type 2 | |
| ALT1-28L-40-5K7-4-BC | 5000 K | 70 CRI | 3656 lm | 96 | 38 W | Type 4 | |
| ALT1-28L-40-5K7-4-CLR | 5000 K | 70 CRI | 4598 lm | 121 | 38 W | Type 4 | |
| ALT1-28L-40-5K7-4 | 5000 K | 70 CRI | 4915 lm | 129 | 38 W | Type 4 | |
| ALT1-28L-40-5K7-4W-BC | 5000 K | 70 CRI | 2795 lm | 74 | 38 W | Type 4W | |
| ALT1-28L-40-5K7-FR-BC | 5000 K | 70 CRI | 3401 lm | 89 | 38 W | Type FR | |
| ALT1-28L-40-5k7-2-CLR | 5000 K | 70 CRI | 4536 lm | 119 | 38 W | Type 2 | |
| ALT1-28L-40-5k7-2 | 5000 K | 70 CRI | 4849 lm | 128 | 38 W | Type 2 | |
| ALT1-28L-40-5k7-3-CLR | 5000 K | 70 CRI | 4622 lm | 121 | 38.1 W | Type 3 | |
| ALT1-28L-40-5k7-3-HDL | 5000 K | 70 CRI | 3991 lm | 105 | 38.14 W | Type 3 | |
| ALT1-28L-40-5k7-3 | 5000 K | 70 CRI | 4919 lm | 129 | 38.19 W | Type 3 | |
| ALT1-28L-40-5k7-4W-CLR | 5000 K | 70 CRI | 4573 lm | 120 | 38 W | Type 4W | |
| ALT1-28L-40-5k7-4W | 5000 K | 70 CRI | 4890 lm | 129 | 38 W | Type 4W | |
| ALT1-28L-40-5k7-5QM-CLR | 5000 K | 70 CRI | 4795 lm | 126 | 38 W | Type 5QM | |
| ALT1-28L-40-5k7-5QM | 5000 K | 70 CRI | 5127 lm | 135 | 38 W | Type 5QM | |
| ALT1-28L-40-5k7-5QN-CLR | 5000 K | 70 CRI | 4766 lm | 125 | 38 W | Type 5QN | |
| ALT1-28L-40-5k7-5QN | 5000 K | 70 CRI | 5096 lm | 134 | 38 W | Type 5QN | |
| ALT1-28L-40-5k7-5R-CLR | 5000 K | 70 CRI | 4725 lm | 124 | 38 W | Type 5R | |
| ALT1-28L-40-5k7-5R | 5000 K | 70 CRI | 5052 lm | 133 | 38 W | Type 5R | |
| ALT1-28L-40-5k7-5W-CLR | 5000 K | 70 CRI | 4725 lm | 124 | 38 W | Type 5W | |
| ALT1-28L-40-5k7-5W-HDL | 5000 K | 70 CRI | 4150 lm | 109 | 38.02 W | Type 5W | |
| ALT1-28L-40-5k7-5W | 5000 K | 70 CRI | 5052 lm | 133 | 38 W | Type 5W | |
| ALT1-28L-40-5k7-FR-CLR | 5000 K | 70 CRI | 4859 lm | 128 | 38 W | Type FR | |
| ALT1-28L-40-5k7-FR | 5000 K | 70 CRI | 5194 lm | 137 | 38 W | Type FR | |
| ALT1-28L-60-3K7-2-BC | 3000 K | 70 CRI | 4183 lm | 70 | 60 W | Type 2 | |
| ALT1-28L-60-3K7-3-BC | 3000 K | 70 CRI | 4204 lm | 70 | 60 W | Type 2 | |
| ALT1-28L-60-3K7-4-BC | 3000 K | 70 CRI | 5171 lm | 86 | 60 W | Type 4 | |
| ALT1-28L-60-3K7-4-CLR | 3000 K | 70 CRI | 6502 lm | 108 | 60 W | Type 4 | |
| ALT1-28L-60-3K7-4 | 3000 K | 70 CRI | 6951 lm | 116 | 60 W | Type 4 | |
| ALT1-28L-60-3K7-4W-BC | 3000 K | 70 CRI | 3954 lm | 66 | 60 W | Type 4W | |
| ALT1-28L-60-3K7-FR-BC | 3000 K | 70 CRI | 4810 lm | 80 | 60 W | Type FR | |
| ALT1-28L-60-3k7-2-CLR | 3000 K | 70 CRI | 6414 lm | 107 | 60 W | Type 2 | |
| ALT1-28L-60-3k7-2 | 3000 K | 70 CRI | 6857 lm | 114 | 60 W | Type 2 | |
| ALT1-28L-60-3k7-3-CLR | 3000 K | 70 CRI | 6506 lm | 108 | 60 W | Type 3 | |
| ALT1-28L-60-3k7-3-HDL | 3000 K | 70 CRI | 5532 lm | 92 | 60 W | Type 3 | |
| ALT1-28L-60-3k7-3 | 3000 K | 70 CRI | 6956 lm | 116 | 60 W | Type 3 | |
| ALT1-28L-60-3k7-4W-CLR | 3000 K | 70 CRI | 6468 lm | 108 | 60 W | Type 4W | |
| ALT1-28L-60-3k7-4W | 3000 K | 70 CRI | 6916 lm | 115 | 60 W | Type 4W | |
| ALT1-28L-60-3k7-5QM-CLR | 3000 K | 70 CRI | 6781 lm | 113 | 60 W | Type 5QM | |
| ALT1-28L-60-3k7-5QM | 3000 K | 70 CRI | 7250 lm | 121 | 60 W | Type 5QM | |
| ALT1-28L-60-3k7-5QN-CLR | 3000 K | 70 CRI | 6740 lm | 112 | 60 W | Type 5QN | |
| ALT1-28L-60-3k7-5QN | 3000 K | 70 CRI | 7206 lm | 120 | 60 W | Type 5QN | |
| ALT1-28L-60-3k7-5R-CLR | 3000 K | 70 CRI | 6682 lm | 111 | 60 W | Type 5R | |
| ALT1-28L-60-3k7-5R | 3000 K | 70 CRI | 7145 lm | 119 | 60 W | Type 5R | |
| ALT1-28L-60-3k7-5W-CLR | 3000 K | 70 CRI | 6682 lm | 111 | 60 W | Type 5W | |
| ALT1-28L-60-3k7-5W-HDL | 3000 K | 70 CRI | 5681 lm | 95 | 60 W | Type 5W | |
| ALT1-28L-60-3k7-5W | 3000 K | 70 CRI | 7144 lm | 119 | 60 W | Type 5W | |
| ALT1-28L-60-3k7-FR-CLR | 3000 K | 70 CRI | 6871 lm | 115 | 60 W | Type FR | |
| ALT1-28L-60-3k7-FR | 3000 K | 70 CRI | 7347 lm | 122 | 60 W | Type FR | |
| ALT1-28L-60-4K7-2-BC | 4000 K | 70 CRI | 4403 lm | 73 | 60 W | Type 2 | |
| ALT1-28L-60-4K7-3-BC | 4000 K | 70 CRI | 4424 lm | 74 | 60 W | Type 2 | |
| ALT1-28L-60-4K7-4-BC | 4000 K | 70 CRI | 5444 lm | 91 | 60 W | Type 4 | |
| ALT1-28L-60-4K7-4-CLR | 4000 K | 70 CRI | 6844 lm | 114 | 60 W | Type 4 | |
| ALT1-28L-60-4K7-4 | 4000 K | 70 CRI | 7317 lm | 122 | 60 W | Type 4 | |
| ALT1-28L-60-4K7-4W-BC | 4000 K | 70 CRI | 4161 lm | 69 | 60 W | Type 4W | |
| ALT1-28L-60-4K7-FR-BC | 4000 K | 70 CRI | 5064 lm | 84 | 60 W | Type FR | |
| ALT1-28L-60-4k7-2-CLR | 4000 K | 70 CRI | 6751 lm | 113 | 60 W | Type 2 | |
| ALT1-28L-60-4k7-2 | 4000 K | 70 CRI | 7217 lm | 120 | 60 W | Type 2 | |
| ALT1-28L-60-4k7-3-CLR | 4000 K | 70 CRI | 6848 lm | 114 | 60 W | Type 3 | |
| ALT1-28L-60-4k7-3-HDL | 4000 K | 70 CRI | 5822 lm | 97 | 60 W | Type 3 | |
| ALT1-28L-60-4k7-3 | 4000 K | 70 CRI | 7322 lm | 122 | 60 W | Type 3 | |
| ALT1-28L-60-4k7-4W-CLR | 4000 K | 70 CRI | 6807 lm | 113 | 60 W | Type 4W | |
| ALT1-28L-60-4k7-4W | 4000 K | 70 CRI | 7278 lm | 121 | 60 W | Type 4W | |
| ALT1-28L-60-4k7-5QM-CLR | 4000 K | 70 CRI | 7138 lm | 119 | 60 W | Type 5QM | |
| ALT1-28L-60-4k7-5QM | 4000 K | 70 CRI | 7631 lm | 127 | 60 W | Type 5QM | |
| ALT1-28L-60-4k7-5QN-CLR | 4000 K | 70 CRI | 7095 lm | 118 | 60 W | Type 5QN | |
| ALT1-28L-60-4k7-5QN | 4000 K | 70 CRI | 7585 lm | 126 | 60 W | Type 5QN | |
| ALT1-28L-60-4k7-5R-CLR | 4000 K | 70 CRI | 7034 lm | 117 | 60 W | Type 5R | |
| ALT1-28L-60-4k7-5R | 4000 K | 70 CRI | 7521 lm | 125 | 60 W | Type 5R | |
| ALT1-28L-60-4k7-5W-CLR | 4000 K | 70 CRI | 7032 lm | 117 | 60 W | Type 5W | |
| ALT1-28L-60-4k7-5W-HDL | 4000 K | 70 CRI | 5980 lm | 100 | 60 W | Type 5W | |
| ALT1-28L-60-4k7-5W | 4000 K | 70 CRI | 7520 lm | 125 | 60 W | Type 5W | |
| ALT1-28L-60-4k7-FR-CLR | 4000 K | 70 CRI | 7233 lm | 121 | 60 W | Type FR | |
| ALT1-28L-60-4k7-FR | 4000 K | 70 CRI | 7733 lm | 129 | 60 W | Type FR | |
| ALT1-28L-60-5K7-2-BC | 5000 K | 70 CRI | 4463 lm | 74 | 60 W | Type 2 | |
| ALT1-28L-60-5K7-3-BC | 5000 K | 70 CRI | 4484 lm | 75 | 60 W | Type 2 | |
| ALT1-28L-60-5K7-4-BC | 5000 K | 70 CRI | 5517 lm | 92 | 60 W | Type 4 | |
| ALT1-28L-60-5K7-4-CLR | 5000 K | 70 CRI | 6935 lm | 116 | 60 W | Type 4 | |
| ALT1-28L-60-5K7-4 | 5000 K | 70 CRI | 7415 lm | 124 | 60 W | Type 4 | |
| ALT1-28L-60-5K7-4W-BC | 5000 K | 70 CRI | 4217 lm | 70 | 60 W | Type 4W | |
| ALT1-28L-60-5K7-FR-BC | 5000 K | 70 CRI | 5132 lm | 86 | 60 W | Type FR | |
| ALT1-28L-60-5k7-2-CLR | 5000 K | 70 CRI | 6841 lm | 114 | 60 W | Type 2 | |
| ALT1-28L-60-5k7-2 | 5000 K | 70 CRI | 7314 lm | 122 | 60 W | Type 2 | |
| ALT1-28L-60-5k7-3-CLR | 5000 K | 70 CRI | 6940 lm | 116 | 60 W | Type 3 | |
| ALT1-28L-60-5k7-3-HDL | 5000 K | 70 CRI | 5900 lm | 98 | 60 W | Type 3 | |
| ALT1-28L-60-5k7-3 | 5000 K | 70 CRI | 7420 lm | 123 | 60.38 W | Type 3 | |
| ALT1-28L-60-5k7-4W-CLR | 5000 K | 70 CRI | 6900 lm | 115 | 60 W | Type 4W | |
| ALT1-28L-60-5k7-4W | 5000 K | 70 CRI | 7377 lm | 123 | 60 W | Type 4W | |
| ALT1-28L-60-5k7-5QM-CLR | 5000 K | 70 CRI | 7233 lm | 121 | 60 W | Type 5QM | |
| ALT1-28L-60-5k7-5QM | 5000 K | 70 CRI | 7733 lm | 129 | 60 W | Type 5QM | |
| ALT1-28L-60-5k7-5QN-CLR | 5000 K | 70 CRI | 7190 lm | 120 | 60 W | Type 5QN | |
| ALT1-28L-60-5k7-5QN | 5000 K | 70 CRI | 7687 lm | 128 | 60 W | Type 5QN | |
| ALT1-28L-60-5k7-5R-CLR | 5000 K | 70 CRI | 7128 lm | 119 | 60 W | Type 5R | |
| ALT1-28L-60-5k7-5R | 5000 K | 70 CRI | 7621 lm | 127 | 60 W | Type 5R | |
| ALT1-28L-60-5k7-5W-CLR | 5000 K | 70 CRI | 7128 lm | 119 | 60 W | Type 5W | |
| ALT1-28L-60-5k7-5W-HDL | 5000 K | 70 CRI | 6060 lm | 101 | 60 W | Type 5W | |
| ALT1-28L-60-5k7-5W | 5000 K | 70 CRI | 7620 lm | 127 | 60 W | Type 5W | |
| ALT1-28L-60-5k7-FR-CLR | 5000 K | 70 CRI | 7329 lm | 122 | 60 W | Type FR | |
| ALT1-28L-60-5k7-FR | 5000 K | 70 CRI | 7836 lm | 131 | 60 W | Type FR | |
| ALT1-28L-85-3K7-2-BC | 3000 K | 70 CRI | 5523 lm | 64 | 86 W | Type 2 | |
| ALT1-28L-85-3K7-3-BC | 3000 K | 70 CRI | 5550 lm | 65 | 86 W | Type 2 | |
| ALT1-28L-85-3K7-4-BC | 3000 K | 70 CRI | 6828 lm | 79 | 86 W | Type 4 | |
| ALT1-28L-85-3K7-4-CLR | 3000 K | 70 CRI | 8584 lm | 100 | 86 W | Type 4 | |
| ALT1-28L-85-3K7-4 | 3000 K | 70 CRI | 9177 lm | 107 | 86 W | Type 4 | |
| ALT1-28L-85-3K7-4W-BC | 3000 K | 70 CRI | 5219 lm | 61 | 86 W | Type 4W | |
| ALT1-28L-85-3K7-FR-BC | 3000 K | 70 CRI | 6350 lm | 74 | 86 W | Type FR | |
| ALT1-28L-85-3k7-2-CLR | 3000 K | 70 CRI | 8467 lm | 98 | 86 W | Type 2 | |
| ALT1-28L-85-3k7-2 | 3000 K | 70 CRI | 9054 lm | 105 | 86 W | Type 2 | |
| ALT1-28L-85-3k7-3-CLR | 3000 K | 70 CRI | 8589 lm | 100 | 86 W | Type 3 | |
| ALT1-28L-85-3k7-3-HDL | 3000 K | 70 CRI | 7303 lm | 85 | 86 W | Type 3 | |
| ALT1-28L-85-3k7-3 | 3000 K | 70 CRI | 9183 lm | 107 | 86 W | Type 3 | |
| ALT1-28L-85-3k7-4W-CLR | 3000 K | 70 CRI | 8538 lm | 99 | 86 W | Type 4W | |
| ALT1-28L-85-3k7-4W | 3000 K | 70 CRI | 9129 lm | 106 | 86 W | Type 4W | |
| ALT1-28L-85-3k7-5QM-CLR | 3000 K | 70 CRI | 8951 lm | 104 | 86 W | Type 5QM | |
| ALT1-28L-85-3k7-5QM | 3000 K | 70 CRI | 9571 lm | 111 | 86 W | Type 5QM | |
| ALT1-28L-85-3k7-5QN-CLR | 3000 K | 70 CRI | 8899 lm | 103 | 86 W | Type 5QN | |
| ALT1-28L-85-3k7-5QN | 3000 K | 70 CRI | 9514 lm | 111 | 86 W | Type 5QN | |
| ALT1-28L-85-3k7-5R-CLR | 3000 K | 70 CRI | 8823 lm | 103 | 86 W | Type 5R | |
| ALT1-28L-85-3k7-5R | 3000 K | 70 CRI | 9432 lm | 110 | 86 W | Type 5R | |
| ALT1-28L-85-3k7-5W-CLR | 3000 K | 70 CRI | 8822 lm | 103 | 86 W | Type 5W | |
| ALT1-28L-85-3k7-5W-HDL | 3000 K | 70 CRI | 7500 lm | 87 | 86 W | Type 5W | |
| ALT1-28L-85-3k7-5W | 3000 K | 70 CRI | 9432 lm | 110 | 86 W | Type 5W | |
| ALT1-28L-85-3k7-FR-CLR | 3000 K | 70 CRI | 9072 lm | 105 | 86 W | Type FR | |
| ALT1-28L-85-3k7-FR | 3000 K | 70 CRI | 9699 lm | 113 | 86 W | Type FR | |
| ALT1-28L-85-4K7-2-BC | 4000 K | 70 CRI | 5813 lm | 68 | 86 W | Type 2 | |
| ALT1-28L-85-4K7-3-BC | 4000 K | 70 CRI | 5842 lm | 68 | 86 W | Type 2 | |
| ALT1-28L-85-4K7-4-BC | 4000 K | 70 CRI | 7186 lm | 84 | 86 W | Type 4 | |
| ALT1-28L-85-4K7-4-CLR | 4000 K | 70 CRI | 9035 lm | 105 | 86 W | Type 4 | |
| ALT1-28L-85-4K7-4 | 4000 K | 70 CRI | 9660 lm | 112 | 86 W | Type 4 | |
| ALT1-28L-85-4K7-4W-BC | 4000 K | 70 CRI | 5493 lm | 64 | 86 W | Type 4W | |
| ALT1-28L-85-4K7-FR-BC | 4000 K | 70 CRI | 6684 lm | 78 | 86 W | Type FR | |
| ALT1-28L-85-4k7-2-CLR | 4000 K | 70 CRI | 8913 lm | 104 | 86 W | Type 2 | |
| ALT1-28L-85-4k7-2 | 4000 K | 70 CRI | 9530 lm | 111 | 86 W | Type 2 | |
| ALT1-28L-85-4k7-3-CLR | 4000 K | 70 CRI | 9041 lm | 105 | 86 W | Type 3 | |
| ALT1-28L-85-4k7-3-HDL | 4000 K | 70 CRI | 7686 lm | 89 | 86 W | Type 3 | |
| ALT1-28L-85-4k7-3 | 4000 K | 70 CRI | 9666 lm | 112 | 86 W | Type 3 | |
| ALT1-28L-85-4k7-4W-CLR | 4000 K | 70 CRI | 8987 lm | 105 | 86 W | Type 4W | |
| ALT1-28L-85-4k7-4W | 4000 K | 70 CRI | 9609 lm | 112 | 86 W | Type 4W | |
| ALT1-28L-85-4k7-5QM-CLR | 4000 K | 70 CRI | 9422 lm | 110 | 86 W | Type 5QM | |
| ALT1-28L-85-4k7-5QM | 4000 K | 70 CRI | 10074 lm | 117 | 86 W | Type 5QM | |
| ALT1-28L-85-4k7-5QN-CLR | 4000 K | 70 CRI | 9367 lm | 109 | 86 W | Type 5QN | |
| ALT1-28L-85-4k7-5QN | 4000 K | 70 CRI | 10014 lm | 116 | 86 W | Type 5QN | |
| ALT1-28L-85-4k7-5R-CLR | 4000 K | 70 CRI | 9287 lm | 108 | 86 W | Type 5R | |
| ALT1-28L-85-4k7-5R | 4000 K | 70 CRI | 9928 lm | 115 | 86 W | Type 5R | |
| ALT1-28L-85-4k7-5W-CLR | 4000 K | 70 CRI | 9285 lm | 108 | 86 W | Type 5W | |
| ALT1-28L-85-4k7-5W-HDL | 4000 K | 70 CRI | 7894 lm | 92 | 86 W | Type 5W | |
| ALT1-28L-85-4k7-5W | 4000 K | 70 CRI | 9927 lm | 115 | 86 W | Type 5W | |
| ALT1-28L-85-4k7-FR-CLR | 4000 K | 70 CRI | 9549 lm | 111 | 86 W | Type FR | |
| ALT1-28L-85-4k7-FR | 4000 K | 70 CRI | 10209 lm | 119 | 86 W | Type FR | |
| ALT1-28L-85-5K7-2-BC | 5000 K | 70 CRI | 5893 lm | 69 | 86 W | Type 2 | |
| ALT1-28L-85-5K7-3-BC | 5000 K | 70 CRI | 5920 lm | 69 | 86 W | Type 2 | |
| ALT1-28L-85-5K7-4-CLR | 5000 K | 70 CRI | 9156 lm | 106 | 86 W | Type 4 | |
| ALT1-28L-85-5K7-4 | 5000 K | 70 CRI | 9789 lm | 114 | 86 W | Type 4 | |
| ALT1-28L-85-5K7-4W-BC | 5000 K | 70 CRI | 5567 lm | 65 | 86 W | Type 4W | |
| ALT1-28L-85-5K7-FR-BC | 5000 K | 70 CRI | 6774 lm | 79 | 86 W | Type FR | |
| ALT1-28L-85-5k7-2-CLR | 5000 K | 70 CRI | 9032 lm | 105 | 86 W | Type 2 | |
| ALT1-28L-85-5k7-2 | 5000 K | 70 CRI | 9656 lm | 112 | 86 W | Type 2 | |
| ALT1-28L-85-5k7-3-CLR | 5000 K | 70 CRI | 9162 lm | 107 | 86 W | Type 3 | |
| ALT1-28L-85-5k7-3-HDL | 5000 K | 70 CRI | 7789 lm | 91 | 86 W | Type 3 | |
| ALT1-28L-85-5k7-3 | 5000 K | 70 CRI | 9795 lm | 114 | 85.83 W | Type 3 | |
| ALT1-28L-85-5k7-4W-CLR | 5000 K | 70 CRI | 9110 lm | 106 | 86 W | Type 4W | |
| ALT1-28L-85-5k7-4W | 5000 K | 70 CRI | 9739 lm | 113 | 86 W | Type 4W | |
| ALT1-28L-85-5k7-5QM-CLR | 5000 K | 70 CRI | 9550 lm | 111 | 86 W | Type 5QM | |
| ALT1-28L-85-5k7-5QM | 5000 K | 70 CRI | 10209 lm | 119 | 86 W | Type 5QM | |
| ALT1-28L-85-5k7-5QN-CLR | 5000 K | 70 CRI | 9492 lm | 110 | 86 W | Type 5QN | |
| ALT1-28L-85-5k7-5QN | 5000 K | 70 CRI | 10148 lm | 118 | 86 W | Type 5QN | |
| ALT1-28L-85-5k7-5R-CLR | 5000 K | 70 CRI | 9410 lm | 109 | 86 W | Type 5R | |
| ALT1-28L-85-5k7-5R | 5000 K | 70 CRI | 10060 lm | 117 | 86 W | Type 5R | |
| ALT1-28L-85-5k7-5W-CLR | 5000 K | 70 CRI | 9410 lm | 109 | 86 W | Type 5W | |
| ALT1-28L-85-5k7-5W-HDL | 5000 K | 70 CRI | 8000 lm | 93 | 86 W | Type 5W | |
| ALT1-28L-85-5k7-5W | 5000 K | 70 CRI | 10060 lm | 117 | 86 W | Type 5W | |
| ALT1-28L-85-5k7-FR-CLR | 5000 K | 70 CRI | 9676 lm | 113 | 86 W | Type FR | |
| ALT1-28L-85-5k7-FR | 5000 K | 70 CRI | 10345 lm | 120 | 86 W | Type FR | |
| ALT1-54L-120-3K7-2-BC | 3000 K | 70 CRI | 7314 lm | 60 | 122 W | Type 2 | |
| ALT1-54L-120-3K7-3-BC | 3000 K | 70 CRI | 7655 lm | 63 | 122 W | Type 2 | |
| ALT1-54L-120-3K7-4-BC | 3000 K | 70 CRI | 8897 lm | 73 | 122 W | Type 4 | |
| ALT1-54L-120-3K7-4W-BC | 3000 K | 70 CRI | 6838 lm | 56 | 122 W | Type 4W | |
| ALT1-54L-120-3K7-FR-BC | 3000 K | 70 CRI | 9577 lm | 79 | 122 W | Type FR | |
| ALT1-54L-120-3k7-2-CLR | 3000 K | 70 CRI | 12795 lm | 105 | 122 W | Type 2 | |
| ALT1-54L-120-3k7-2 | 3000 K | 70 CRI | 13679 lm | 112 | 122 W | Type 2 | |
| ALT1-54L-120-3k7-3-CLR | 3000 K | 70 CRI | 12813 lm | 105 | 122 W | Type 3 | |
| ALT1-54L-120-3k7-3-HDL | 3000 K | 70 CRI | 10893 lm | 89 | 122 W | Type 3 | |
| ALT1-54L-120-3k7-3 | 3000 K | 70 CRI | 13698 lm | 112 | 122 W | Type 3 | |
| ALT1-54L-120-3k7-4-CLR | 3000 K | 70 CRI | 12910 lm | 106 | 122 W | Type 4 | |
| ALT1-54L-120-3k7-4 | 3000 K | 70 CRI | 13803 lm | 113 | 122 W | Type 4 | |
| ALT1-54L-120-3k7-4W-CLR | 3000 K | 70 CRI | 12787 lm | 105 | 122 W | Type 4W | |
| ALT1-54L-120-3k7-4W | 3000 K | 70 CRI | 13671 lm | 112 | 122 W | Type 4W | |
| ALT1-54L-120-3k7-5QM-CLR | 3000 K | 70 CRI | 13434 lm | 110 | 122 W | Type 5QM | |
| ALT1-54L-120-3k7-5QM | 3000 K | 70 CRI | 14363 lm | 118 | 122 W | Type 5QM | |
| ALT1-54L-120-3k7-5QN-CLR | 3000 K | 70 CRI | 13467 lm | 110 | 122 W | Type 5QN | |
| ALT1-54L-120-3k7-5QN | 3000 K | 70 CRI | 14399 lm | 118 | 122 W | Type 5QN | |
| ALT1-54L-120-3k7-5R-CLR | 3000 K | 70 CRI | 13266 lm | 109 | 122 W | Type 5R | |
| ALT1-54L-120-3k7-5R | 3000 K | 70 CRI | 14184 lm | 116 | 122 W | Type 5R | |
| ALT1-54L-120-3k7-5W-CLR | 3000 K | 70 CRI | 13235 lm | 108 | 122 W | Type 5W | |
| ALT1-54L-120-3k7-5W-HDL | 3000 K | 70 CRI | 11251 lm | 92 | 122 W | Type 5W | |
| ALT1-54L-120-3k7-5W | 3000 K | 70 CRI | 14149 lm | 116 | 122 W | Type 5W | |
| ALT1-54L-120-3k7-FR-CLR | 3000 K | 70 CRI | 13459 lm | 110 | 122 W | Type FR | |
| ALT1-54L-120-3k7-FR | 3000 K | 70 CRI | 14391 lm | 118 | 122 W | Type FR | |
| ALT1-54L-120-4K7-2-BC | 4000 K | 70 CRI | 7697 lm | 63 | 122 W | Type 2 | |
| ALT1-54L-120-4K7-3-BC | 4000 K | 70 CRI | 8056 lm | 66 | 122 W | Type 2 | |
| ALT1-54L-120-4K7-4-BC | 4000 K | 70 CRI | 9365 lm | 77 | 122 W | Type 4 | |
| ALT1-54L-120-4K7-4W-BC | 4000 K | 70 CRI | 7198 lm | 59 | 122 W | Type 4W | |
| ALT1-54L-120-4K7-FR-BC | 4000 K | 70 CRI | 10081 lm | 83 | 122 W | Type FR | |
| ALT1-54L-120-4k7-2-CLR | 4000 K | 70 CRI | 13467 lm | 110 | 122 W | Type 2 | |
| ALT1-54L-120-4k7-2 | 4000 K | 70 CRI | 14398 lm | 118 | 122 W | Type 2 | |
| ALT1-54L-120-4k7-3-CLR | 4000 K | 70 CRI | 13487 lm | 111 | 122 W | Type 3 | |
| ALT1-54L-120-4k7-3-HDL | 4000 K | 70 CRI | 11465 lm | 94 | 122 W | Type 3 | |
| ALT1-54L-120-4k7-3 | 4000 K | 70 CRI | 14418 lm | 118 | 122 W | Type 3 | |
| ALT1-54L-120-4k7-4-CLR | 4000 K | 70 CRI | 13589 lm | 111 | 122 W | Type 4 | |
| ALT1-54L-120-4k7-4 | 4000 K | 70 CRI | 14528 lm | 119 | 122 W | Type 4 | |
| ALT1-54L-120-4k7-4W-CLR | 4000 K | 70 CRI | 13459 lm | 110 | 122 W | Type 4W | |
| ALT1-54L-120-4k7-4W | 4000 K | 70 CRI | 14390 lm | 118 | 122 W | Type 4W | |
| ALT1-54L-120-4k7-5QM-CLR | 4000 K | 70 CRI | 14140 lm | 116 | 122 W | Type 5QM | |
| ALT1-54L-120-4k7-5QM | 4000 K | 70 CRI | 15118 lm | 124 | 122 W | Type 5QM | |
| ALT1-54L-120-4k7-5QN-CLR | 4000 K | 70 CRI | 14175 lm | 116 | 122 W | Type 5QN | |
| ALT1-54L-120-4k7-5QN | 4000 K | 70 CRI | 15156 lm | 124 | 122 W | Type 5QN | |
| ALT1-54L-120-4k7-5R-CLR | 4000 K | 70 CRI | 13964 lm | 114 | 122 W | Type 5R | |
| ALT1-54L-120-4k7-5R | 4000 K | 70 CRI | 14929 lm | 122 | 122 W | Type 5R | |
| ALT1-54L-120-4k7-5W-CLR | 4000 K | 70 CRI | 13929 lm | 114 | 122 W | Type 5W | |
| ALT1-54L-120-4k7-5W-HDL | 4000 K | 70 CRI | 11842 lm | 97 | 122 W | Type 5W | |
| ALT1-54L-120-4k7-5W | 4000 K | 70 CRI | 14894 lm | 122 | 122 W | Type 5W | |
| ALT1-54L-120-4k7-FR-CLR | 4000 K | 70 CRI | 14167 lm | 116 | 122 W | Type FR | |
| ALT1-54L-120-4k7-FR | 4000 K | 70 CRI | 15147 lm | 124 | 122 W | Type FR | |
| ALT1-54L-120-5K7-2-BC | 5000 K | 70 CRI | 7801 lm | 64 | 122 W | Type 2 | |
| ALT1-54L-120-5K7-3-BC | 5000 K | 70 CRI | 8165 lm | 67 | 122 W | Type 2 | |
| ALT1-54L-120-5K7-4-BC | 5000 K | 70 CRI | 9490 lm | 78 | 122 W | Type 4 | |
| ALT1-54L-120-5K7-4W-BC | 5000 K | 70 CRI | 7294 lm | 60 | 122 W | Type 4W | |
| ALT1-54L-120-5K7-FR-BC | 5000 K | 70 CRI | 10215 lm | 84 | 122 W | Type FR | |
| ALT1-54L-120-5k7-2-CLR | 5000 K | 70 CRI | 13647 lm | 112 | 122 W | Type 2 | |
| ALT1-54L-120-5k7-2 | 5000 K | 70 CRI | 14591 lm | 120 | 122 W | Type 2 | |
| ALT1-54L-120-5k7-3-CLR | 5000 K | 70 CRI | 13667 lm | 112 | 122 W | Type 3 | |
| ALT1-54L-120-5k7-3-HDL | 5000 K | 70 CRI | 11619 lm | 95 | 122 W | Type 3 | |
| ALT1-54L-120-5k7-3 | 5000 K | 70 CRI | 14611 lm | 120 | 122 W | Type 3 | |
| ALT1-54L-120-5k7-4-CLR | 5000 K | 70 CRI | 13771 lm | 113 | 122 W | Type 4 | |
| ALT1-54L-120-5k7-4 | 5000 K | 70 CRI | 14723 lm | 121 | 122 W | Type 4 | |
| ALT1-54L-120-5k7-4W-CLR | 5000 K | 70 CRI | 13640 lm | 112 | 122 W | Type 4W | |
| ALT1-54L-120-5k7-4W | 5000 K | 70 CRI | 14583 lm | 120 | 122 W | Type 4W | |
| ALT1-54L-120-5k7-5QM-CLR | 5000 K | 70 CRI | 14330 lm | 117 | 122 W | Type 5QM | |
| ALT1-54L-120-5k7-5QM | 5000 K | 70 CRI | 15321 lm | 126 | 122 W | Type 5QM | |
| ALT1-54L-120-5k7-5QN-CLR | 5000 K | 70 CRI | 14365 lm | 118 | 122 W | Type 5QN | |
| ALT1-54L-120-5k7-5QN | 5000 K | 70 CRI | 15359 lm | 126 | 122 W | Type 5QN | |
| ALT1-54L-120-5k7-5R-CLR | 5000 K | 70 CRI | 14151 lm | 116 | 122 W | Type 5R | |
| ALT1-54L-120-5k7-5R | 5000 K | 70 CRI | 15129 lm | 124 | 122 W | Type 5R | |
| ALT1-54L-120-5k7-5W-CLR | 5000 K | 70 CRI | 14117 lm | 116 | 122 W | Type 5W | |
| ALT1-54L-120-5k7-5W-HDL | 5000 K | 70 CRI | 12001 lm | 98 | 122 W | Type 5W | |
| ALT1-54L-120-5k7-5W | 5000 K | 70 CRI | 15092 lm | 124 | 122 W | Type 5W | |
| ALT1-54L-120-5k7-FR-CLR | 5000 K | 70 CRI | 14356 lm | 118 | 122 W | Type FR | |
| ALT1-54L-120-5k7-FR | 5000 K | 70 CRI | 15349 lm | 126 | 122.13 W | Type FR | |
| ALT1-54L-155-3K7-2-BC | 3000 K | 70 CRI | 8792 lm | 56 | 156 W | Type 2 | |
| ALT1-54L-155-3K7-3-BC | 3000 K | 70 CRI | 9201 lm | 59 | 156 W | Type 2 | |
| ALT1-54L-155-3K7-4-BC | 3000 K | 70 CRI | 10696 lm | 69 | 156 W | Type 4 | |
| ALT1-54L-155-3K7-4W-BC | 3000 K | 70 CRI | 8221 lm | 53 | 156 W | Type 4W | |
| ALT1-54L-155-3K7-FR-BC | 3000 K | 70 CRI | 11513 lm | 74 | 156 W | Type FR | |
| ALT1-54L-155-3k7-2-CLR | 3000 K | 70 CRI | 15381 lm | 99 | 156 W | Type 2 | |
| ALT1-54L-155-3k7-2 | 3000 K | 70 CRI | 16444 lm | 105 | 156 W | Type 2 | |
| ALT1-54L-155-3k7-3-CLR | 3000 K | 70 CRI | 15402 lm | 99 | 156 W | Type 3 | |
| ALT1-54L-155-3k7-3-HDL | 3000 K | 70 CRI | 13094 lm | 84 | 156 W | Type 3 | |
| ALT1-54L-155-3k7-3 | 3000 K | 70 CRI | 16466 lm | 106 | 156 W | Type 3 | |
| ALT1-54L-155-3k7-4-CLR | 3000 K | 70 CRI | 15520 lm | 99 | 156 W | Type 4 | |
| ALT1-54L-155-3k7-4 | 3000 K | 70 CRI | 16593 lm | 106 | 156 W | Type 4 | |
| ALT1-54L-155-3k7-4W-CLR | 3000 K | 70 CRI | 15372 lm | 99 | 156 W | Type 4W | |
| ALT1-54L-155-3k7-4W | 3000 K | 70 CRI | 16435 lm | 105 | 156 W | Type 4W | |
| ALT1-54L-155-3k7-5QM-CLR | 3000 K | 70 CRI | 16150 lm | 104 | 156 W | Type 5QM | |
| ALT1-54L-155-3k7-5QM | 3000 K | 70 CRI | 17267 lm | 111 | 156 W | Type 5QM | |
| ALT1-54L-155-3k7-5QN-CLR | 3000 K | 70 CRI | 16190 lm | 104 | 156 W | Type 5QN | |
| ALT1-54L-155-3k7-5QN | 3000 K | 70 CRI | 17309 lm | 111 | 156 W | Type 5QN | |
| ALT1-54L-155-3k7-5R-CLR | 3000 K | 70 CRI | 15948 lm | 102 | 156 W | Type 5R | |
| ALT1-54L-155-3k7-5R | 3000 K | 70 CRI | 17051 lm | 109 | 156 W | Type 5R | |
| ALT1-54L-155-3k7-5W-CLR | 3000 K | 70 CRI | 15909 lm | 102 | 156 W | Type 5W | |
| ALT1-54L-155-3k7-5W-HDL | 3000 K | 70 CRI | 13525 lm | 87 | 156 W | Type 5W | |
| ALT1-54L-155-3k7-5W | 3000 K | 70 CRI | 17010 lm | 109 | 156 W | Type 5W | |
| ALT1-54L-155-3k7-FR-CLR | 3000 K | 70 CRI | 16180 lm | 104 | 156 W | Type FR | |
| ALT1-54L-155-3k7-FR | 3000 K | 70 CRI | 17299 lm | 111 | 156 W | Type FR | |
| ALT1-54L-155-4K7-2-BC | 4000 K | 70 CRI | 9254 lm | 59 | 156 W | Type 2 | |
| ALT1-54L-155-4K7-3-BC | 4000 K | 70 CRI | 9685 lm | 62 | 156 W | Type 2 | |
| ALT1-54L-155-4K7-4-BC | 4000 K | 70 CRI | 11258 lm | 72 | 156 W | Type 4 | |
| ALT1-54L-155-4K7-4W-BC | 4000 K | 70 CRI | 8652 lm | 55 | 156 W | Type 4W | |
| ALT1-54L-155-4K7-FR-BC | 4000 K | 70 CRI | 12119 lm | 78 | 156 W | Type FR | |
| ALT1-54L-155-4k7-2-CLR | 4000 K | 70 CRI | 16189 lm | 104 | 156 W | Type 2 | |
| ALT1-54L-155-4k7-2 | 4000 K | 70 CRI | 17309 lm | 111 | 156 W | Type 2 | |
| ALT1-54L-155-4k7-3-CLR | 4000 K | 70 CRI | 16212 lm | 104 | 156 W | Type 3 | |
| ALT1-54L-155-4k7-3-HDL | 4000 K | 70 CRI | 13783 lm | 88 | 156 W | Type 3 | |
| ALT1-54L-155-4k7-3 | 4000 K | 70 CRI | 17332 lm | 111 | 156 W | Type 3 | |
| ALT1-54L-155-4k7-4-CLR | 4000 K | 70 CRI | 16336 lm | 105 | 156 W | Type 4 | |
| ALT1-54L-155-4k7-4 | 4000 K | 70 CRI | 17465 lm | 112 | 156 W | Type 4 | |
| ALT1-54L-155-4k7-4W-CLR | 4000 K | 70 CRI | 16180 lm | 104 | 156 W | Type 4W | |
| ALT1-54L-155-4k7-4W | 4000 K | 70 CRI | 17299 lm | 111 | 156 W | Type 4W | |
| ALT1-54L-155-4k7-5QM-CLR | 4000 K | 70 CRI | 16998 lm | 109 | 156 W | Type 5QM | |
| ALT1-54L-155-4k7-5QM | 4000 K | 70 CRI | 18173 lm | 116 | 156 W | Type 5QM | |
| ALT1-54L-155-4k7-5QN-CLR | 4000 K | 70 CRI | 17041 lm | 109 | 156 W | Type 5QN | |
| ALT1-54L-155-4k7-5QN | 4000 K | 70 CRI | 18219 lm | 117 | 156 W | Type 5QN | |
| ALT1-54L-155-4k7-5R-CLR | 4000 K | 70 CRI | 16787 lm | 108 | 156 W | Type 5R | |
| ALT1-54L-155-4k7-5R | 4000 K | 70 CRI | 17947 lm | 115 | 156 W | Type 5R | |
| ALT1-54L-155-4k7-5W-CLR | 4000 K | 70 CRI | 16746 lm | 107 | 156 W | Type 5W | |
| ALT1-54L-155-4k7-5W-HDL | 4000 K | 70 CRI | 14236 lm | 91 | 156 W | Type 5W | |
| ALT1-54L-155-4k7-5W | 4000 K | 70 CRI | 17904 lm | 115 | 156 W | Type 5W | |
| ALT1-54L-155-4k7-FR-CLR | 4000 K | 70 CRI | 17030 lm | 109 | 156 W | Type FR | |
| ALT1-54L-155-4k7-FR | 4000 K | 70 CRI | 18208 lm | 117 | 156 W | Type FR | |
| ALT1-54L-155-5K7-2-BC | 5000 K | 70 CRI | 9378 lm | 60 | 156 W | Type 2 | |
| ALT1-54L-155-5K7-3-BC | 5000 K | 70 CRI | 9815 lm | 63 | 156 W | Type 2 | |
| ALT1-54L-155-5K7-4-BC | 5000 K | 70 CRI | 11409 lm | 73 | 156 W | Type 4 | |
| ALT1-54L-155-5K7-4W-BC | 5000 K | 70 CRI | 8768 lm | 56 | 156 W | Type 4W | |
| ALT1-54L-155-5K7-FR-BC | 5000 K | 70 CRI | 12280 lm | 79 | 156 W | Type FR | |
| ALT1-54L-155-5k7-2-CLR | 5000 K | 70 CRI | 16406 lm | 105 | 156 W | Type 2 | |
| ALT1-54L-155-5k7-2 | 5000 K | 70 CRI | 17541 lm | 112 | 156 W | Type 2 | |
| ALT1-54L-155-5k7-3-CLR | 5000 K | 70 CRI | 16430 lm | 105 | 156 W | Type 3 | |
| ALT1-54L-155-5k7-3-HDL | 5000 K | 70 CRI | 13967 lm | 90 | 156 W | Type 3 | |
| ALT1-54L-155-5k7-3 | 5000 K | 70 CRI | 17564 lm | 113 | 156 W | Type 3 | |
| ALT1-54L-155-5k7-4-CLR | 5000 K | 70 CRI | 16555 lm | 106 | 156 W | Type 4 | |
| ALT1-54L-155-5k7-4 | 5000 K | 70 CRI | 17699 lm | 113 | 156 W | Type 4 | |
| ALT1-54L-155-5k7-4W-CLR | 5000 K | 70 CRI | 16397 lm | 105 | 156 W | Type 4W |
