Altitude Area & Site Lighting

Altitude® is the perfect blend of form, performance, integration and quality. The low profile, one-piece die cast housing is offered in three proportional sizes for scalability to meet a broad range of site lighting applications.


Three proportional sizes for scalability to meet a broad range of site lighting applications. Lumen packages ranging from 3000 lumens to 50,000 lumens and lumens per watt from 135 to 148 lumens.

IES Distributions

The Altitude is available with nine distinct distribution patterns to illuminate a variety of applications.

Strike Optic Technology

Strike Optics enable precise optical control to maximize luminaire spacing and uniformity while minimizing house-side light trespass.

Visual Comfort

Optional diffuse lens offers exceptional performance while providing a visually comfortable environment. Available in Type III and Type V distributions for unparalleled performance and visual comfort.

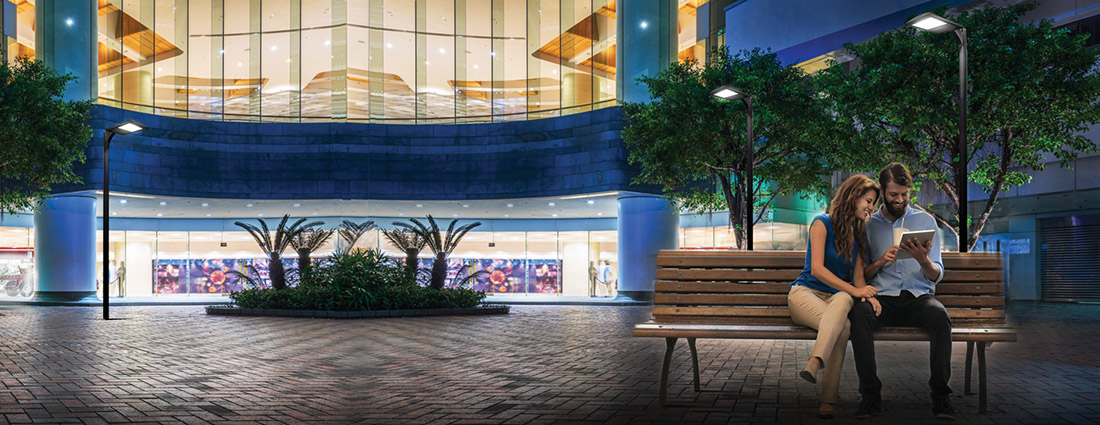

Altitude Area Lighting in Outdoor Lobby

Design Excellence

  • One piece, die-cast aluminum housing design for enhanced thermal performance.
  • Painted optic bezel matches luminaire finish for seamless appearance.
  • IP66 rated for worry-free performance in demanding outdoor applications.
  • Integral latch design for tool-free entry and easy access.
  • Standard 10kA 20kV surge suppression provides an enhanced level of protection against power spikes and surges for ultimate piece of mind and long-term luminaire operation.

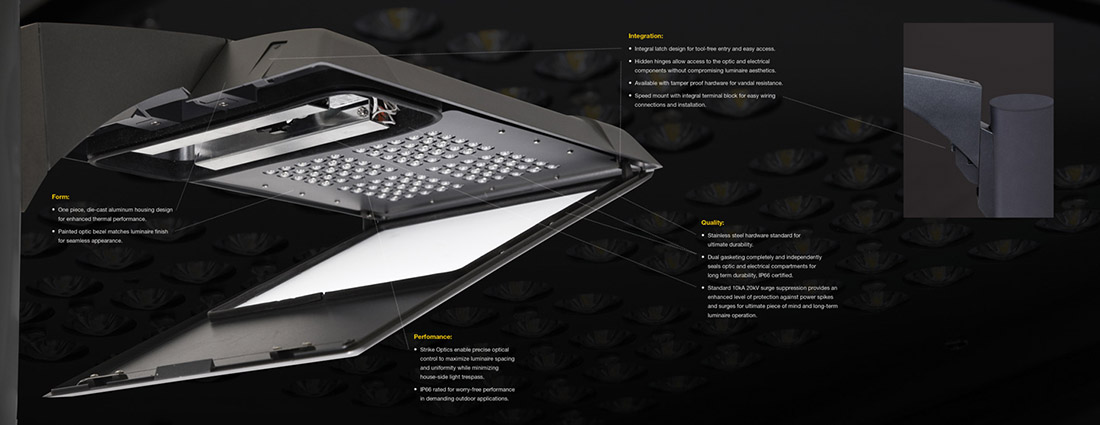

Close-up of Altitude Area Lighting Product

Control Integration

  • Current Control Solutions’ NX Distributed Intelligence™ platform delivers a lighting control solution which is capable of seamlessly connecting exterior and interior applications.
  • NX is capable of scaling from standalone fixture control applications to networked enterprise deployments.
  • NX operates using wired, wireless and hybrid connectivity with native BACnet™ support. Wireless setup and configuration of NX is simple and intuitive with the NX Mobile App via Bluetooth.

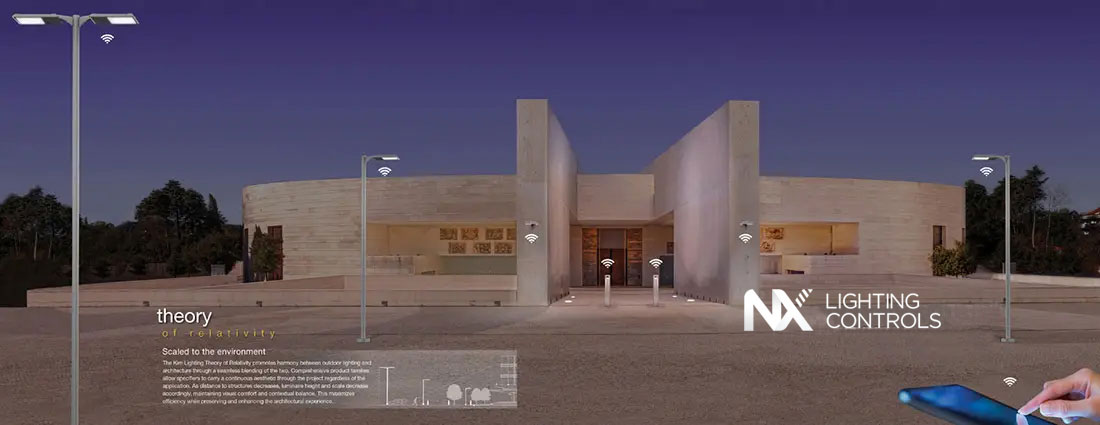

outdoor space showing fixture wireless connectivity

Strike Optic Technology

Strike Optics maximize target forward throw illumination and uniformity while minimizing backlight.

Typical Area/Site Luminaire
  • A typical Type IV Distribution
  • Significant backlight present up to 3 mounting heights behind pole, 20 - 30% backlight
Strike Optics
  • Type IV Distribution
  • Strike Optics reduce backlight to less than 2 mounting heights behind the pole while maintaining optimal curb line and forward throw, 9% backlight
Strike Optics + Backlight Control
  • Type IV Distribution
  • Combining Backlight Control with Strike Optics reduces backlight to less than 1 mounting height behind pole while maintaining optimal curb line and forward throw, 5% backlight

Altitude Area Lighting IES Distributions graphic

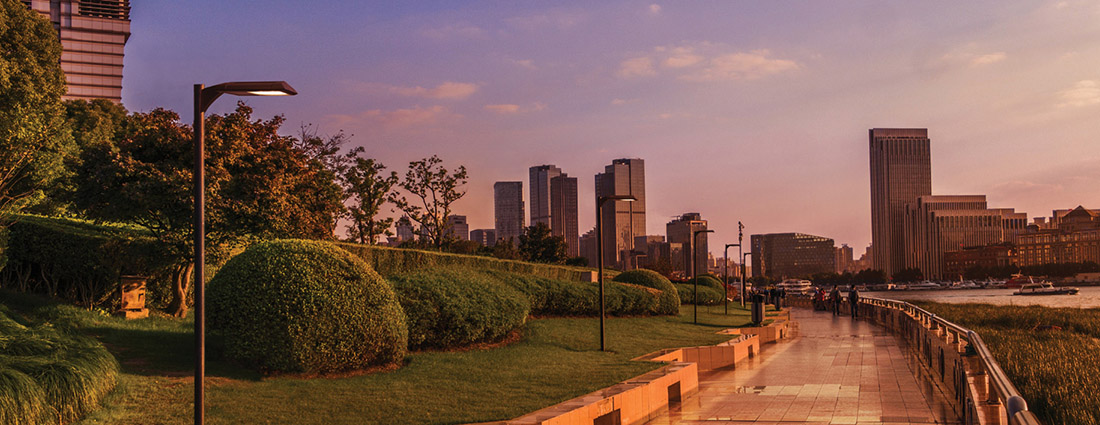

Pedestrian Parkway

Altitude Area Lighting in Outdoor Pedestrian Parkway
