PRESCOLITE

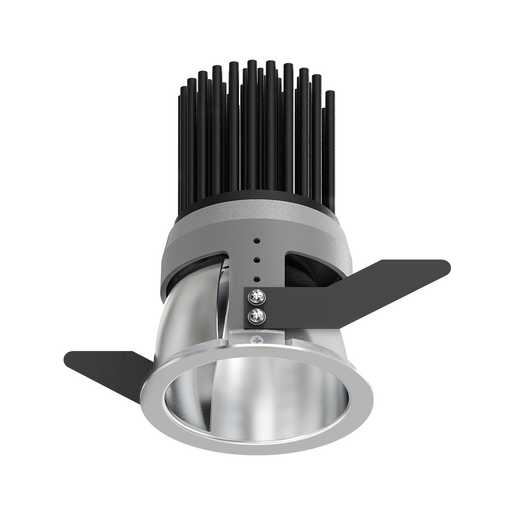

LITEISTRY™ LTR-3RW-RH Open

LITEISTRY™ offers a broad palette of architectural downlighting solutions with consistent aperture appearance, quiet ceiling design, and optical performance.

Features & Benefits

  • 3" architectural LED round remodel open wall wash delivering 600-2000 lm
  • Single, double and corner wall wash solutions
  • Provides uniform vertical illumination as well as room side light
  • For Remodel (non-IC), install from below applications
Where To Buy
SPEC SHEET

Specifications

Aperture
3
Aperture Shape
Round
Family Modules/Configurations
3
Lumen Range
600 - 2,000
Dimming Protocol
0-10V Dimming, DALI
CCT
2700, 3000, 3500, 4000, 5000
CRI
80, 90
Mounting Options
Recessed
Housing Options
Remodel
Wattage Range
8 - 25
Efficacy
75
Beam Angle
Wall Wash
Certifications
cCSAus, ENERGY STAR®
Ratings
Damp, Non-IC, IC, Chicago Plenum (CCEA), TAA (Buy American 52.225-11)
Lumen Maintenance Rating
L90 @ 55,000 hours
Warranty
5 year limited
FV Light Distribution
Wall Wash
Lumen Maintenance Rating
L90 @ 55,000 hours
Lumen Range
600 - 2,000
Wattage
8 -25

Product Documents

LTR-3RW-RH Specification Sheet
3873 KB
2024-02-13

Brochures / Catalogs

LITEISTRY Brochure
13376 KB
2024-02-13

Design / BIM Files / 3D Models

LTR-3RW-Open BIM file
848 KB
2024-02-13

Technical Documents

Photometry(0)

Clear Filters

Product Name Color Temp CRI Lumens LM/W Watts Dist. Type Resources
LTR-3RD-RH-SL10L-DM1_LTR-3RW-T-SL35K8WWS3500 K80 CRI901 lm7611.9 WOpen Single Wall Wash
LTR-3RD-RH-SL15L-DM1_LTR-3RW-T-SL35K8WWS3500 K80 CRI1304 lm7018.6 WOpen Single Wall Wash
LTR-3RD-RH-ML20L-DM1_LTR-3RW-T-ML35K8WWS3500 K80 CRI1824 lm7524.3 WOpen Single Wall Wash
LTR-3RD-RH-SL06L-DM1_LTR-3RW-T-SL35K8WWS3500 K80 CRI560 lm727.8 WOpen Single Wall Wash
