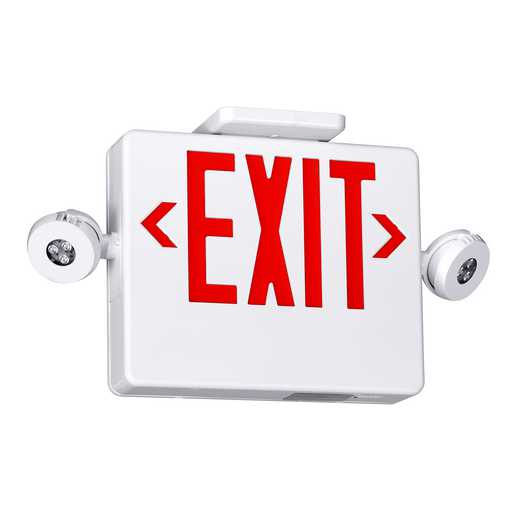

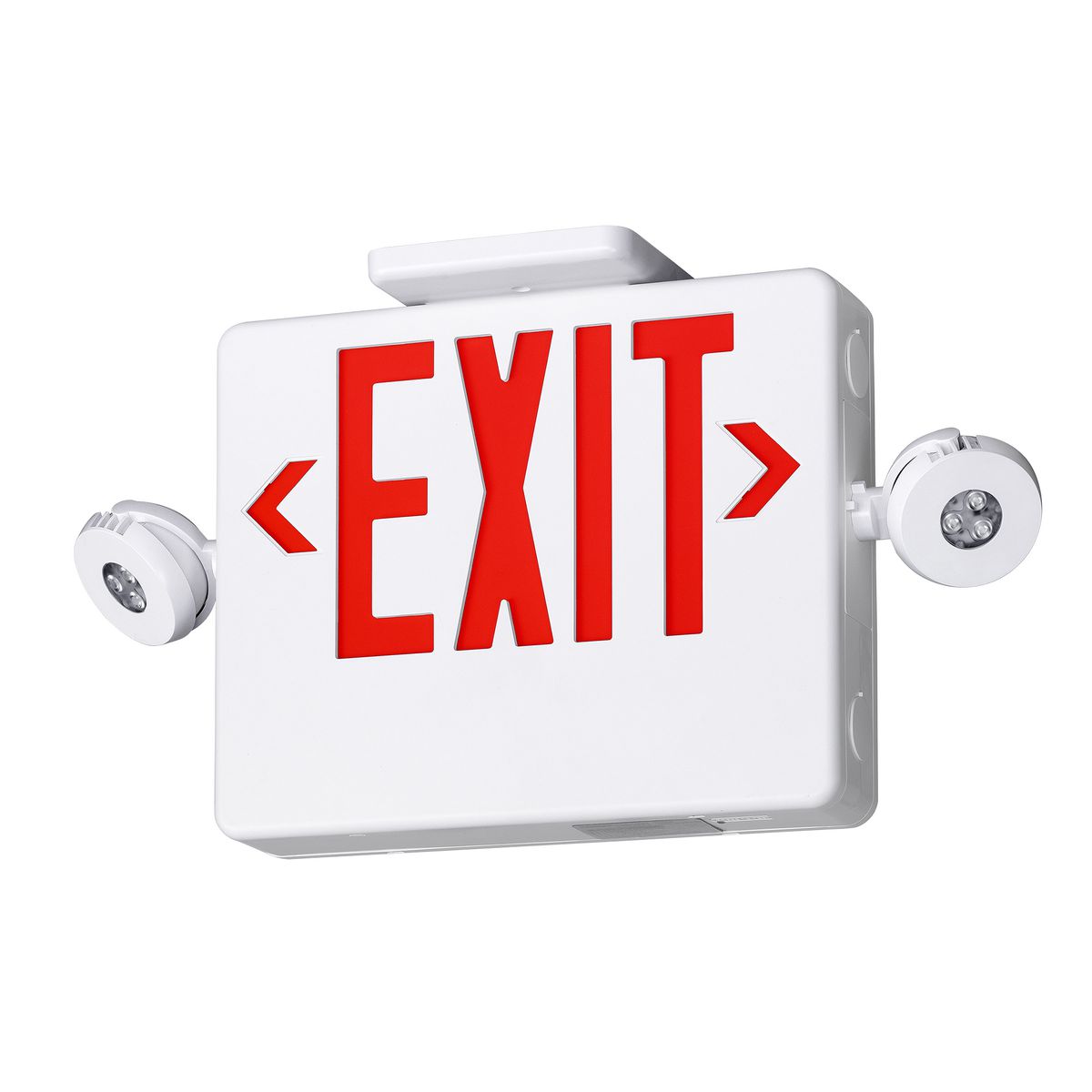

DUAL-LITE
EVCHL Series

Compact high lumen combination exit and emergency lighting unit for applications with higher mounting heights or that require a high lumen output solution.

Features & Benefits

  • Up to 85' spacing for multiple units when mounted at 7.5' or 9'
  • Full lumen output over 90 minutes of battery discharge
  • Models available without lampheads to support remote lamp-heads
  • Fully adjustable lamp-heads for flexibility in aiming
  • Includes additional faceplate for single or double-face application
  • Part of the Evolution (EV) Life Safety family

Specifications

Product Technology
Spectron® Self-Test/Self-Diagnostics, Remote Capacity
Voltage Offering
120;277;220-240
Battery Type
Lithium Iron Phosphate
Mounting Options
Ceiling, Wall, End
Material - Housing
Thermoplastic and die-cast aluminum
Color Offering
White, Black
Certifications
UL 924, Title 20
Ratings
NFPA 70, NFPA 101, Damp
Operating Temp
(68°F to 86°F) 20°C to 30
Warranty
3 year full, 5 year with Spectron®

Product Documents

665 KB
2022-11-18

Installation Guides

478 KB
2022-10-25

Photometry(0)

Clear Filters

Product Name Color Temp CRI Lumens LM/W Watts Dist. Type Resources
EVCHL ies
