COMPASS
CU2HL

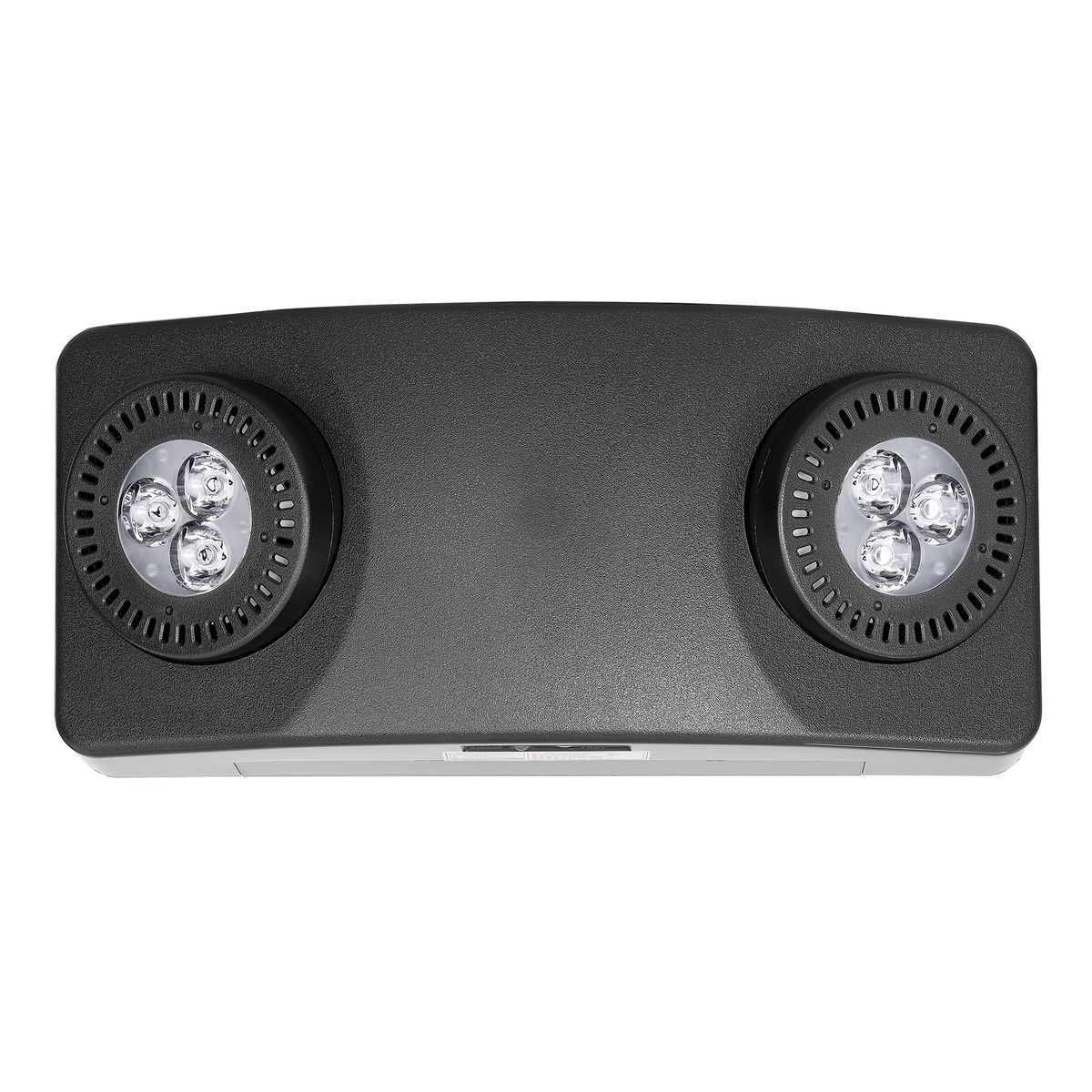

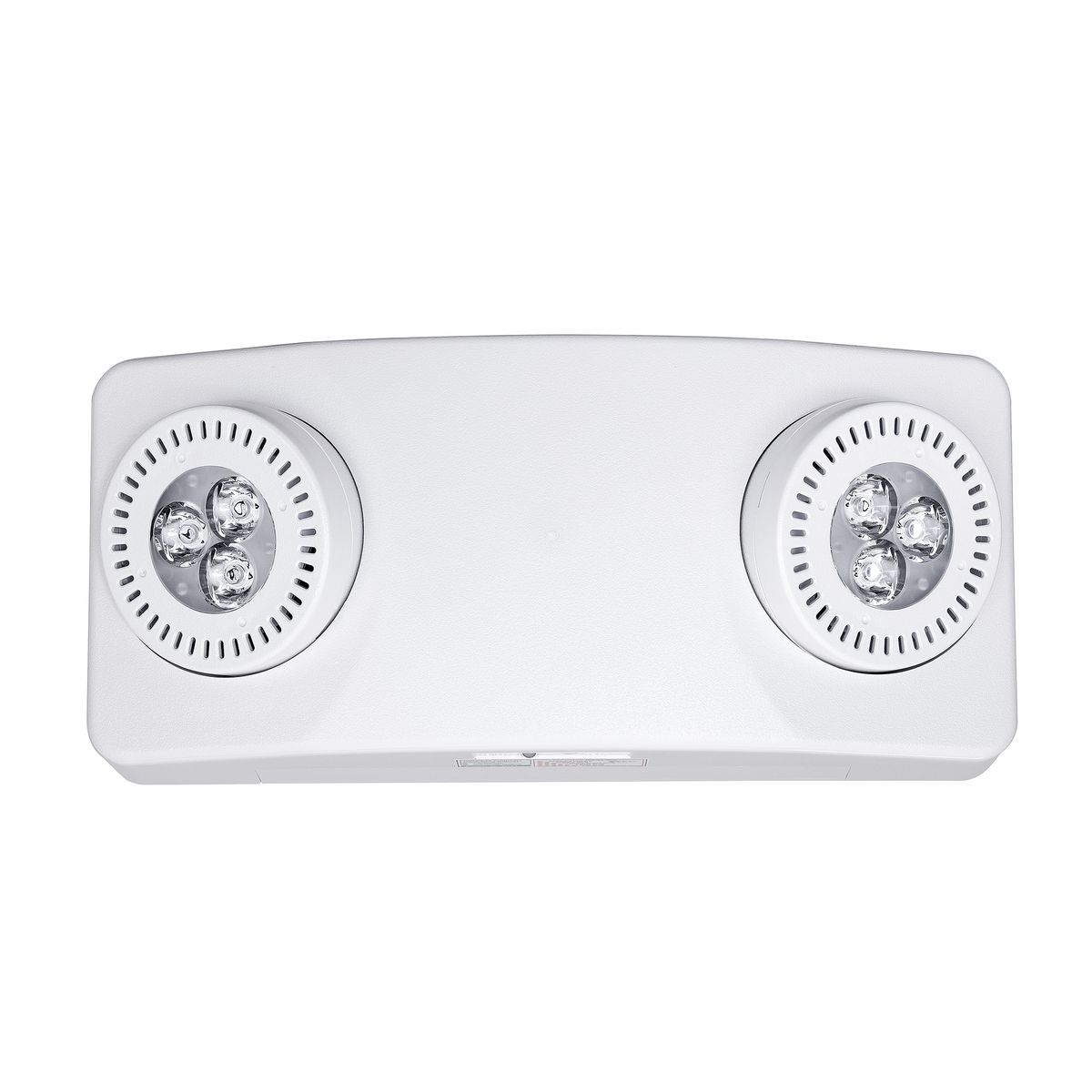

The CU2HL Series is a high lumen output emergency light using a longlife Lithium Iron Phosphate battery, and adjustable high-power LED lamp heads for incredible fixture spacing.

Features & Benefits

High lumen 2.7W units provide 55’ spacing and high lumen/high output 5.4W units have 110' spacing
Includes Self-Test/Self-Diagnostic models
Includes long-life Lithium Iron Phosphate battery at 9.6Vdc for UL recognized 90 minute emergency lighting
Battery recharge within 24 hours
Damp Location Listed 10°C to 40°C (50°F to 104°F)
Dual-Voltage 120 -277V AC, 50/60Hz input

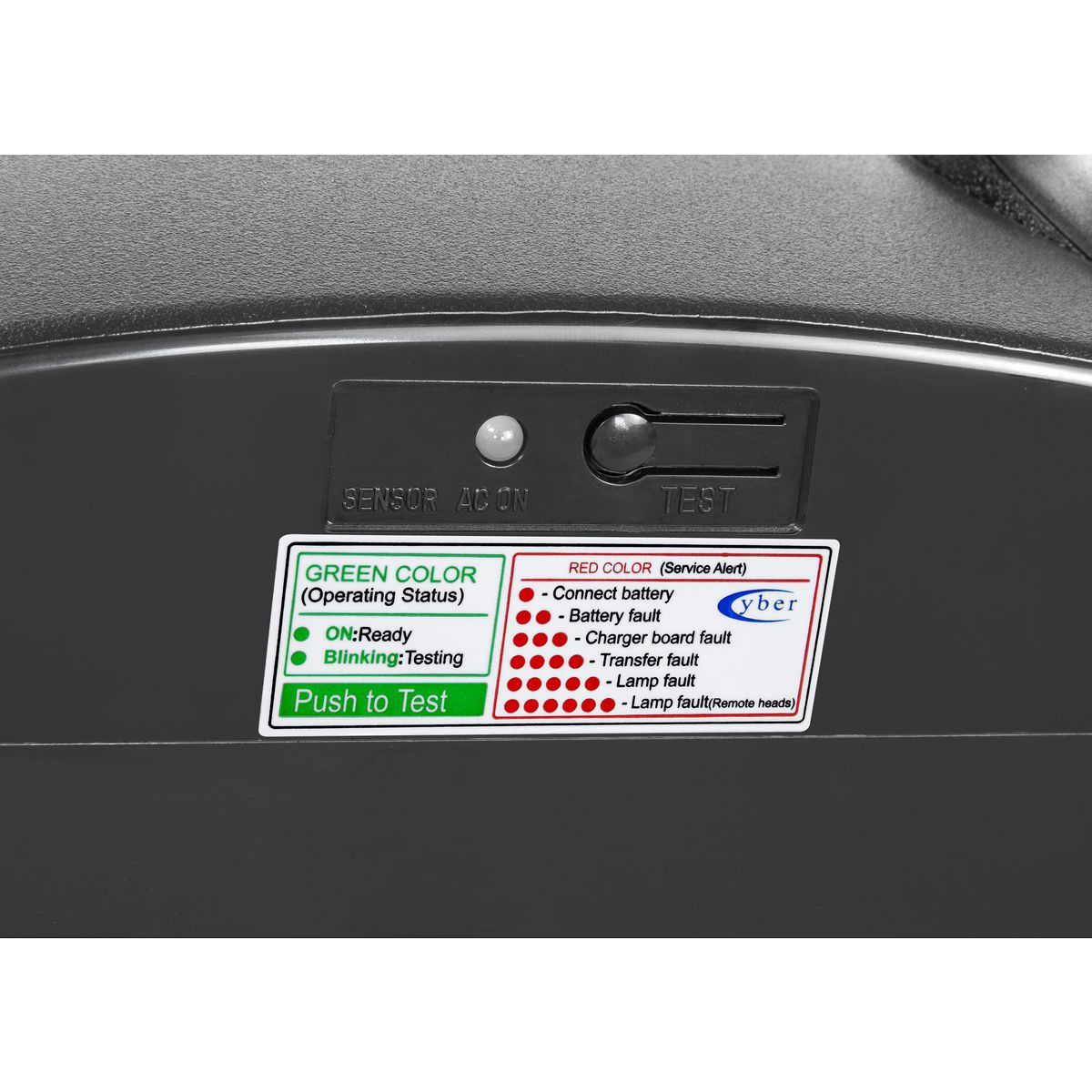

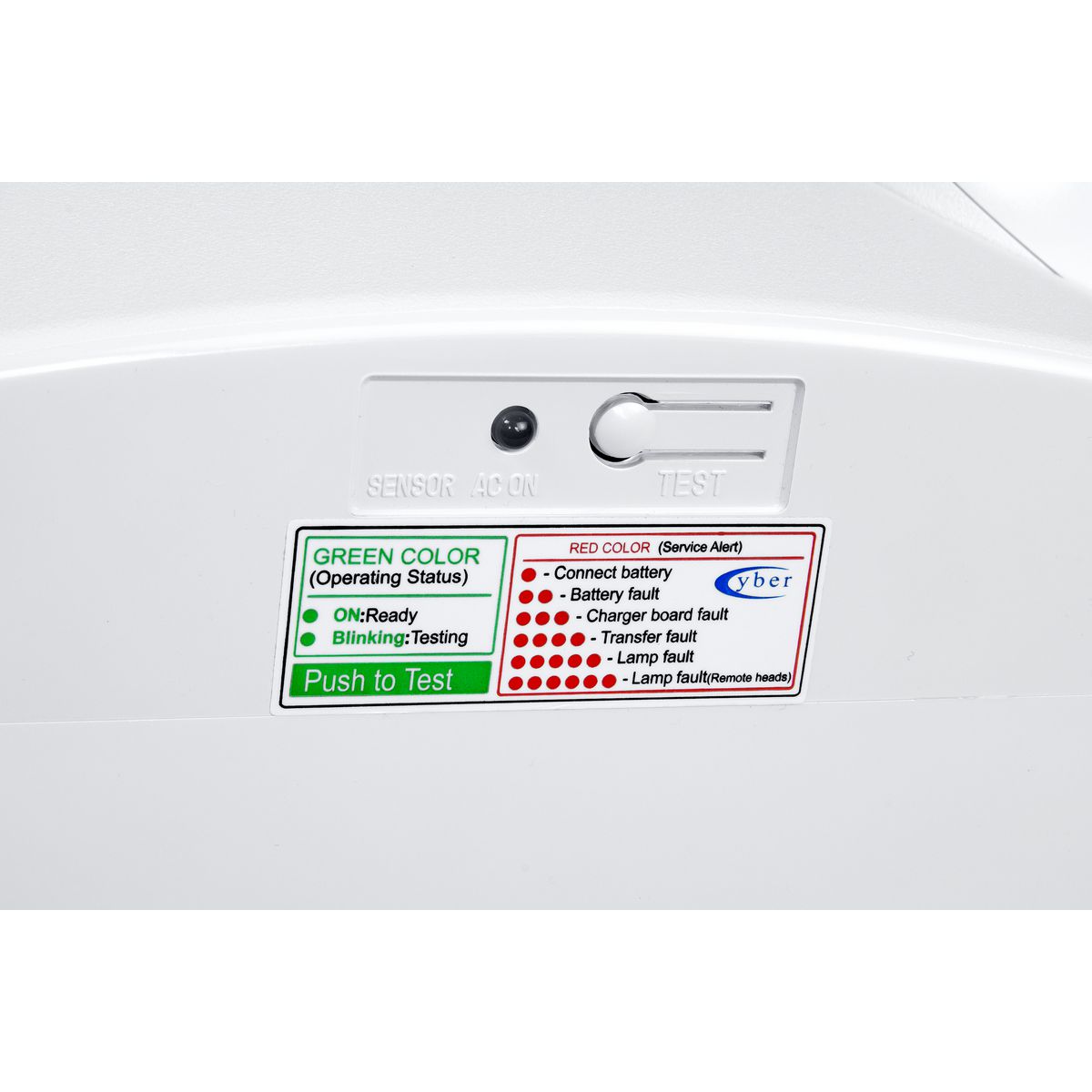

Test switch and AC-On indicator

Where To Buy

SPEC SHEET

Specifications

Product Technology

Self-Test/Self-Diagnostic

Battery Type

Lithium Iron Phosphate

Material - Housing

Thermoplastic

Color Offering

White, Black

Certifications

UL 924, Title 20

Ratings

NFPA 101, NFPA 70, OSHA, Damp

Operating Temperature

10°C to 40 °C

Warranty

2 year limited

Specifications

Product Technology	Self-Test/Self-Diagnostic
Battery Type	Lithium Iron Phosphate
Material - Housing	Thermoplastic
Color Offering	White, Black
Certifications	UL 924, Title 20
Ratings	NFPA 101, NFPA 70, OSHA, Damp
Operating Temperature	10°C to 40 °C
Warranty	2 year limited
