DUAL-LITE
EVC Series

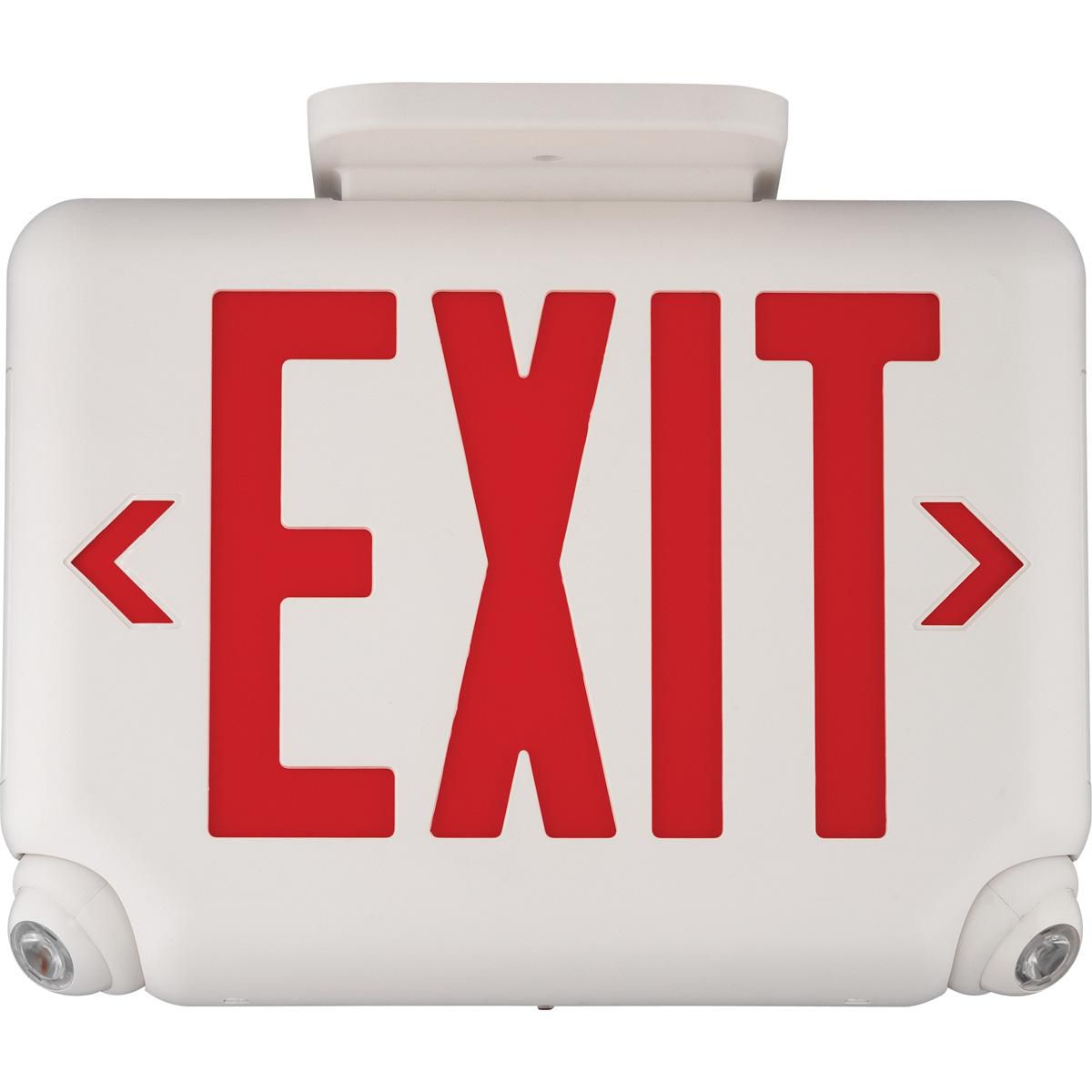

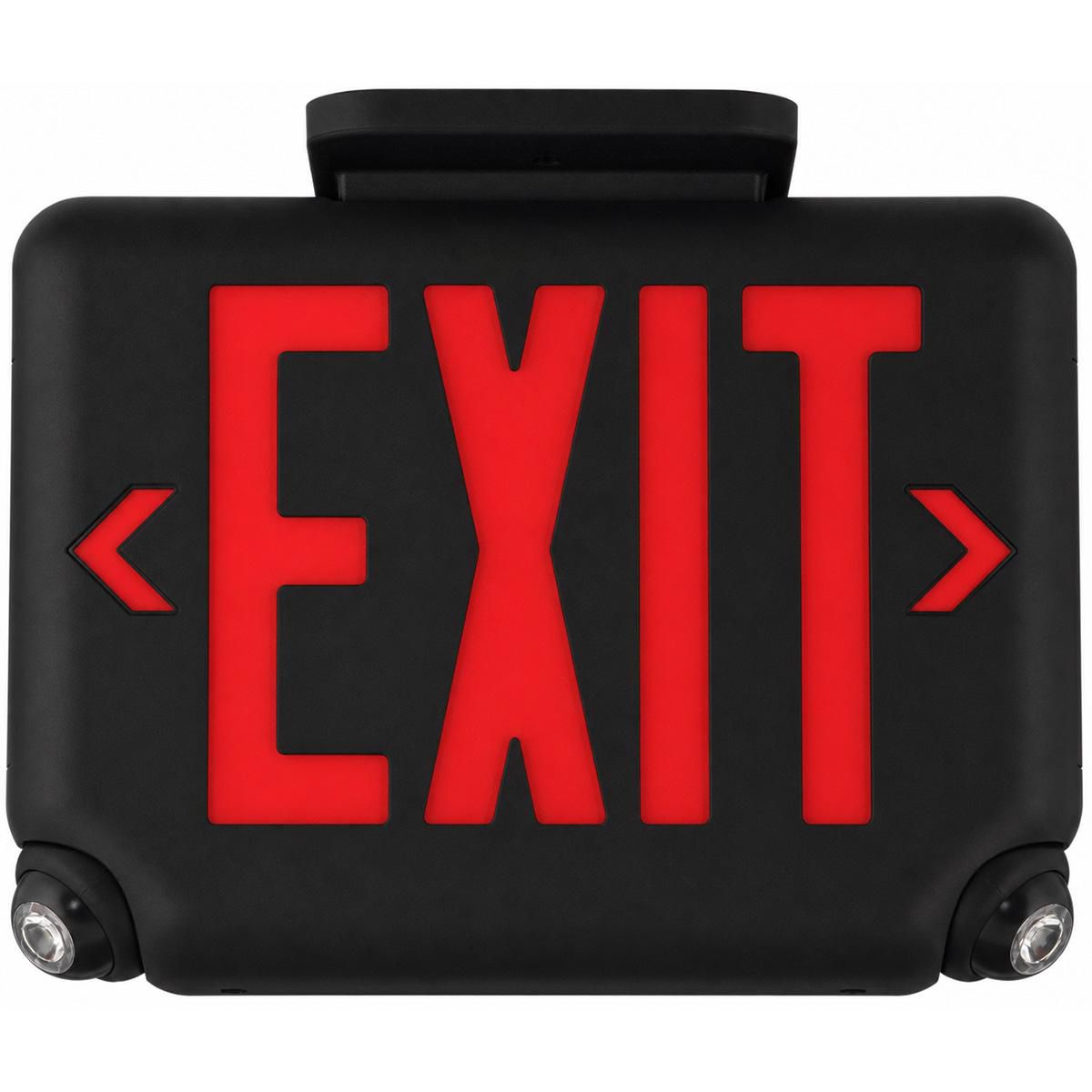

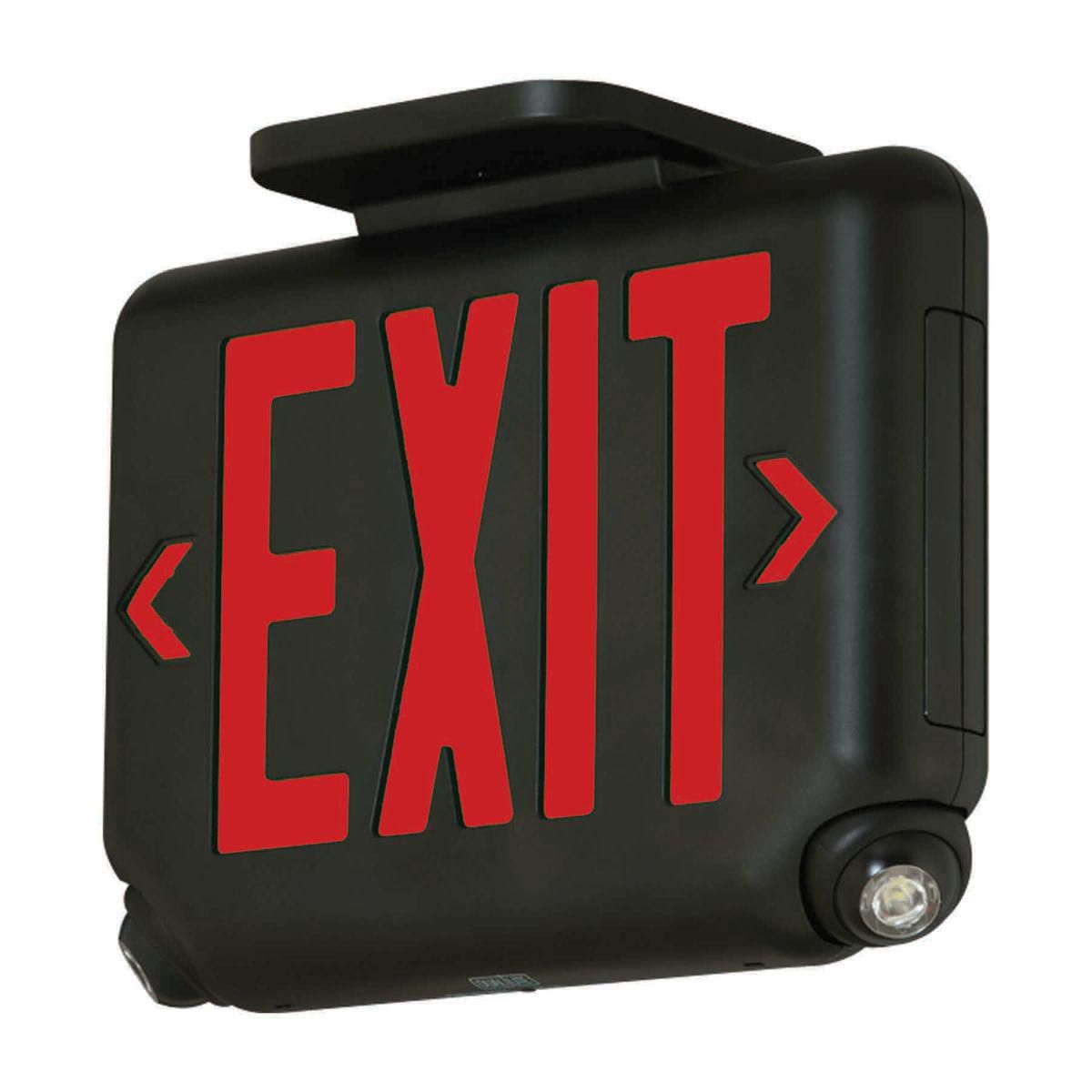

Sleek compact architectural LED combination exit and emergency lighting unit designed for fast installation and reliable service.

Features & Benefits

  • Fully aimable, dual-racheting high output LED lamp-heads
  • Models available with remote capacity, special wording, fire alarm panel, flasher module or audible flasher
  • Remote capacity models have a minimum run-time of 120 minutes when no remotes are installed
  • Accessories include EV indoor emergency unit, indoor and outdoor remotes and vandal resistant shield
  • Part of the Evolution (EV) Life Safety family
Where To Buy
SPEC SHEET

Specifications

Product Technology
Spectron® Self-Test/Self-Diagnostics, Remote Capacity
Battery Type
Lithium Iron Phosphate
Mounting Options
Ceiling, Wall, End
Material - Housing
Thermoplastic and die-cast aluminum
Color Offering
White, Black
Certifications
UL 924, Title 20
Ratings
NFPA 70, NFPA 101, Damp
Operating Temperature
(68°F to 86°F) 20°C to 30
Warranty
3 year full, 5 year with Spectron®

Product Documents

EVC Specification Sheet
1255 KB
2023-08-03

Brochures / Catalogs

EV Family Conversion Guide
5355 KB
2023-08-03
EV Family Brochure
2343 KB
2023-08-03
EVC Trifold Brochure
2625 KB
2023-08-03
EVC Brochure
3846 KB
2023-08-03

Design / BIM Files / 3D Models

EVC-Series BIM file
996 KB
2023-08-03

Technical Documents

Warranties

Photometry(0)

Clear Filters

Product Name Color Temp CRI Lumens LM/W Watts Dist. Type Resources
evc
Show All
