COLUMBIA LIGHTING
CCL

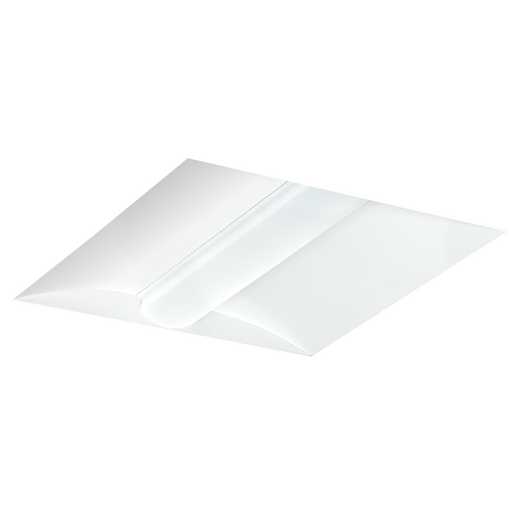

The CCL is a center-lensed troffer providing both design and value with an architectural appearance and is available in 2'x2' and 2'x4' sizes.

Features & Benefits

  • Fully constructed for rapid installation
  • Frosted acrylic lens
  • Recessed Mount
  • emergency battery backup is offered
  • 5-Wire Flex is available
Where To Buy
SPEC SHEET

Specifications

Product Technology
Switchable Technology
Voltage Offering
120-277
Lumen Range
2,600 - 6,400
Dimming Protocol
1-10V;10%
CCT Offering
3500, 5000
CRI Offering
80
Switchable Technology
Switchable CCT;Switchable Lumen
Mounting Options
Ceiling, Grid, Recessed, Surface, Suspended
Material - Housing
Steel
Wattage Range
21 - 51
Efficacy Range
108 - 140
Color Offering
White
Optics & Distributions
Lambertian
Certifications
CSA, UL 924, DLC 5.1 Standard
Ratings
TAA (Buy American 52.225-11), Damp
Warranty
5 year limited

Product Documents

CCL LSCS Specification Sheet
397 KB
2022-11-23

Brochures / Catalogs

Sell Sheets

CCL LSCS Sell Sheet
764 KB
2022-10-25

Design / BIM Files / 3D Models

CCL BIM file
600 KB
2022-10-10

Installation Guides

Warranties

Photometry(0)

Clear Filters

Product Name Color Temp CRI Lumens LM/W Watts Dist. Type Resources
CCL22-LSCS_LOW_4000K4000 K80 CRI3051 lm16119 WLambertian
CCL24-LSCS_HIGH_3500K3500 K80 CRI6572 lm14047.1 WLambertian
CCL22-LSCS_HIGH_3500K3500 K80 CRI4444 lm13732.5 WLambertian
CCL24-LSCS_LOW_4000K4000 K80 CRI4810 lm16629 WLambertian
CCL24-LSCS_LOW_5000K5000 K80 CRI4838 lm16329.6 WLambertian
CCL24-LSCS_MED_5000K5000 K80 CRI6157 lm15639.4 WLambertian
CCL24-LSCS_HIGH_4000K4000 K80 CRI7161 lm15945.1 WLambertian
CCL22-LSCS_LOW_3500K3500 K80 CRI2859 lm14719.5 WLambertian
CCL22-LSCS_LOW_5000K5000 K80 CRI3109 lm15919.5 WLambertian
CCL22-LSCS_MED_4000K4000 K80 CRI3544 lm15822.4 WLambertian
CCL22-LSCS_MED_5000K5000 K80 CRI3604 lm15723 WLambertian
CCL22-LSCS_HIGH_4000K4000 K80 CRI4840 lm15331.6 WLambertian
CCL24-LSCS_LOW_3500K3500 K80 CRI4509 lm15030 WLambertian
CCL24-LSCS_MED_3500K3500 K80 CRI5744 lm14439.9 WLambertian
CCL24-LSCS_MED_4000K4000 K80 CRI6213 lm16338.2 WLambertian
CCL24-LSCS_HIGH_5000K5000 K80 CRI7022 lm15146.5 WLambertian
CCL22-LSCS_HIGH_5000K5000 K80 CRI4810 lm14832.4 WLambertian
CCL22-LSCS_MED_3500K3500 K80 CRI3312 lm14422.7 WLambertian
