Nelo Commercial Indoor Pendant Lighting

Nelo

NELO is the culmination of Litecontrol’s five decades of architectural slot experience and superior optical capabilities coupled with a modern, open design architecture.

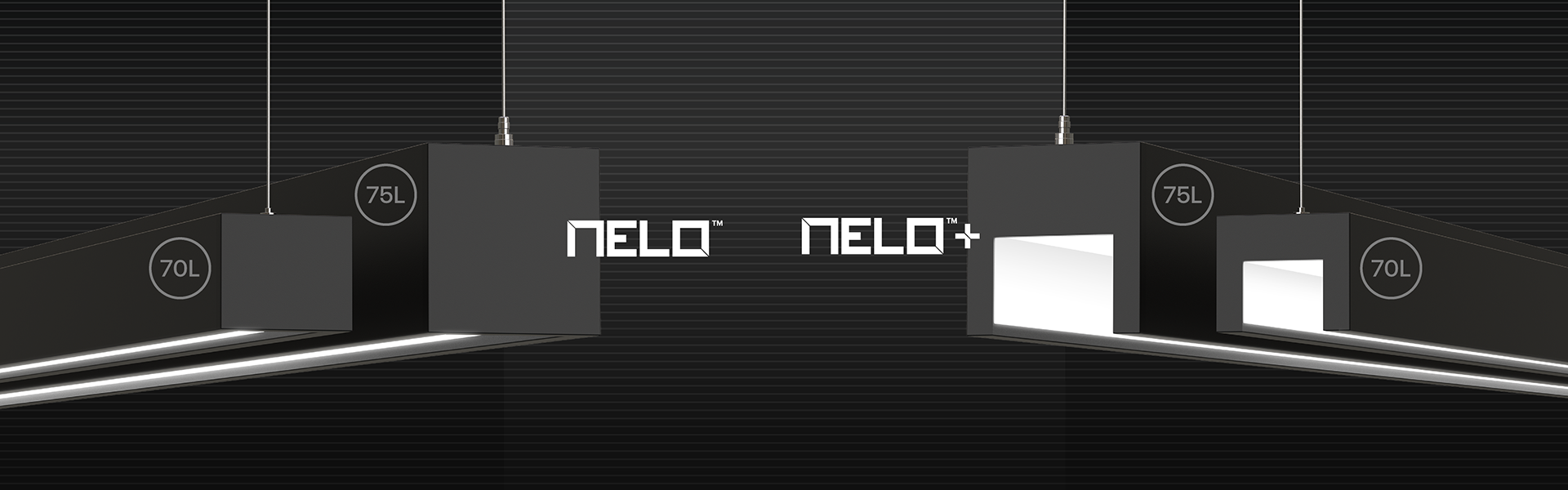

two sizes

NELO 70L
2.5" x 3" nominal profile with 1.8" aperture

NELO+ 75L
4" x 4" nominal profile with 2.8" aperture

two distributions

Direct
Lambertian downlight distribution

Indirect/Direct
Lambertian (STD) or extruded acrylic indirect low peak angle (LPA) uplight distribution

two endcaps

Open (ECO) and Solid (ECC) designs available

row joining

Patent pending Con-Join (conical joiner) system ensures both vertical & horizontal alignment of mating fixture lengths. Litecontrol’s Nelo fixture interlocking-tab design provides a reliable barrier to ensure any potential light leak is blocked.

remote enclosure

Nelo’s 70L features a remote driver and battery enclosure to maintain a miniature cross section.

optic

High-reflectance matte white reflector insert provides excellent optical efficiency and unsurpassed uniformity.

SpectraSync™ is an easy and intuitive white tuning solution offered in two modes to accommodate a variety of applications.

DIM TO WARM

Dim to Warm mimics the familiar warming effect that occurs with traditional incandescent sources as they are dimmed. (Available with 2200K-3000K)

TUNABLE WHITE

Tunable White offers users the ability to tailor CCT to their personal preference, enhancing task visibility, material and colors, or the aesthetics of the space. (Available with 2700K-5000K or 2700K-6500K)

Product Details

General

Aperture	1.8" in
Color Rendering Index (CRI)	80 CRI 90 CRI
Color Temperature	3000 K 3500 K 4000 K SpectraSync
Controls - Integral Sensors (Non-Networked)	Occupancy & Daylight Sensor
Controls - Networked	NX Distributed Intelligence
Dimming Protocol	0-10V Lutron EcoSystem
Dimming Range	1% 5%
Light Distribution	Direct
Light Source	LED
Mounting Type	Pendant
SpectraSync™ Color Tuning	Dim-to-Warm Tunable White
Warranty Length	LED boards - 5 years LED drivers (standard) - 5 years LED drivers (Lutron) - 3 years

Resources and Downloads

Product Name	Color Temp	CRI	Lumens	Lm/W	Watts	Dist. Type	Resources
70L-X-D-4-CX-35K-D030-ECC	3500 K	80 CRI	1200 lm	109.1	11 W	Direct: Lambertian	IES file Quick Design Tool
70L-X-D-4-CX-35K-D035-ECC	3500 K	80 CRI	1400 lm	107.7	13 W	Direct: Lambertian	IES file Quick Design Tool
70L-X-D-4-CX-35K-D040-ECC	3500 K	80 CRI	1600 lm	114.3	14 W	Direct: Lambertian	IES file Quick Design Tool
70L-X-D-4-CX-35K-D045-ECC	3500 K	80 CRI	1800 lm	120.0	15 W	Direct: Lambertian	IES file Quick Design Tool
70L-X-D-4-CX-35K-D050-ECC	3500 K	80 CRI	2000 lm	117.6	17 W	Direct: Lambertian	IES file Quick Design Tool
70L-X-D-4-CX-35K-D055-ECC	3500 K	80 CRI	2200 lm	115.8	19 W	Direct: Lambertian	IES file Quick Design Tool
70L-X-D-4-CX-35K-D060-ECC	3500 K	80 CRI	2400 lm	120.0	20 W	Direct: Lambertian	IES file Quick Design Tool
70L-X-D-4-CX-35K-D065-ECC	3500 K	80 CRI	2600 lm	118.2	22 W	Direct: Lambertian	IES file Quick Design Tool
70L-X-D-4-CX-35K-D070-ECC	3500 K	80 CRI	2800 lm	121.7	23 W	Direct: Lambertian	IES file Quick Design Tool
70L-X-D-4-CX-35K-D075-ECC	3500 K	80 CRI	3000 lm	120.0	25 W	Direct: Lambertian	IES file Quick Design Tool
70L-X-D-4-CX-35K-D080-ECC	3500 K	80 CRI	3200 lm	118.5	27 W	Direct: Lambertian	IES file Quick Design Tool
70L-X-D-4-CX-35K-D085-ECC	3500 K	80 CRI	3400 lm	117.2	29 W	Direct: Lambertian	IES file Quick Design Tool
70L-X-D-4-CX-35K-D090-ECC	3500 K	80 CRI	3600 lm	116.1	31 W	Direct: Lambertian	IES file Quick Design Tool
70L-X-D-4-CX-35K-D095-ECC	3500 K	80 CRI	3800 lm	115.2	33 W	Direct: Lambertian	IES file Quick Design Tool
70L-X-D-4-CX-35K-D100-ECC	3500 K	80 CRI	4000 lm	114.3	35 W	Direct: Lambertian	IES file Quick Design Tool
70L-X-D-4-CX-35K-D105-ECC	3500 K	80 CRI	4200 lm	116.7	36 W	Direct: Lambertian	IES file Quick Design Tool
70L-X-D-4-CX-35K-D110-ECC	3500 K	80 CRI	4400 lm	115.8	38 W	Direct: Lambertian	IES file Quick Design Tool
70L-X-D-4-CX-35K-D115-ECC	3500 K	80 CRI	4600 lm	115.0	40 W	Direct: Lambertian	IES file Quick Design Tool
70L-X-D-4-CX-35K-D120-ECC	3500 K	80 CRI	4800 lm	114.3	42 W	Direct: Lambertian	IES file Quick Design Tool
