EXO

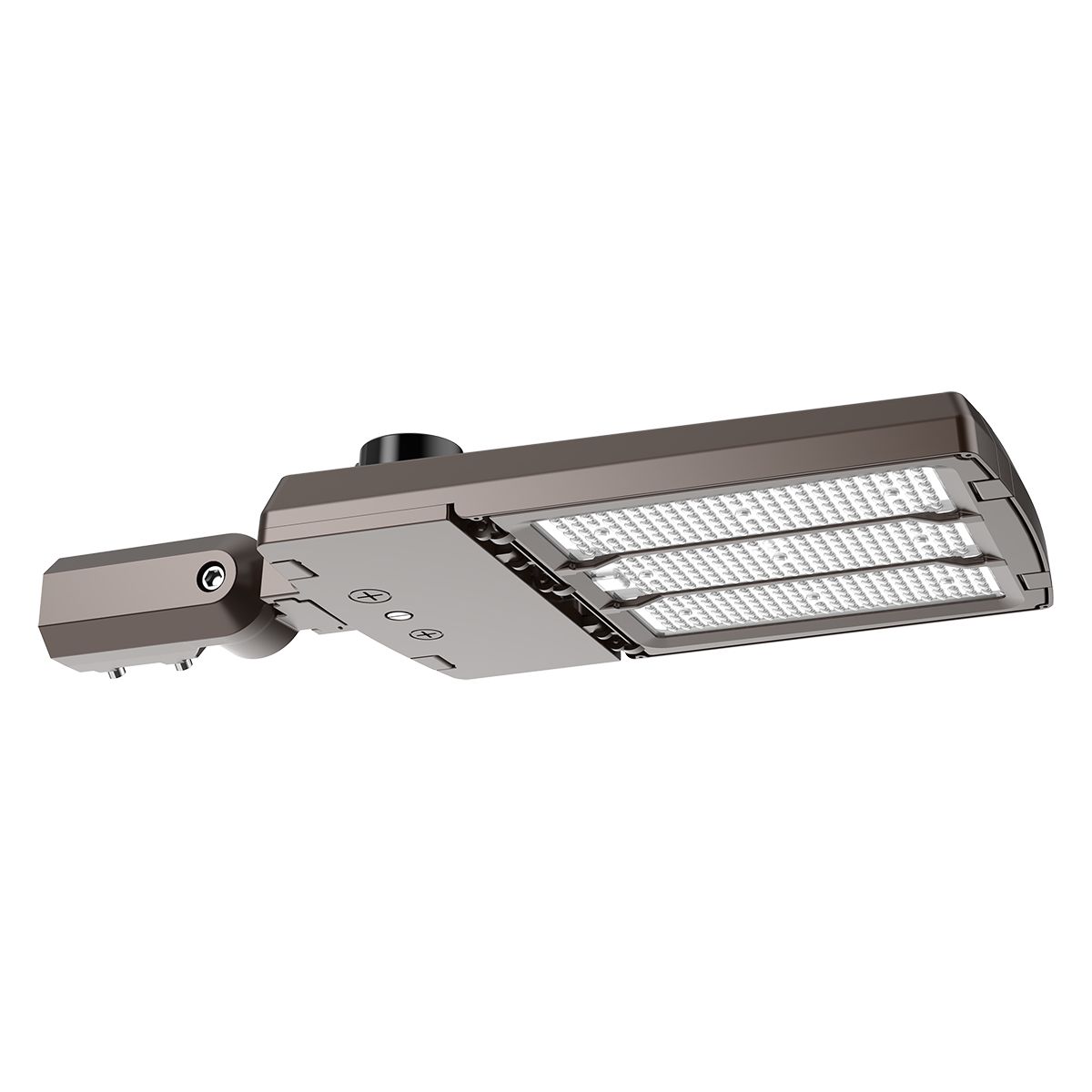

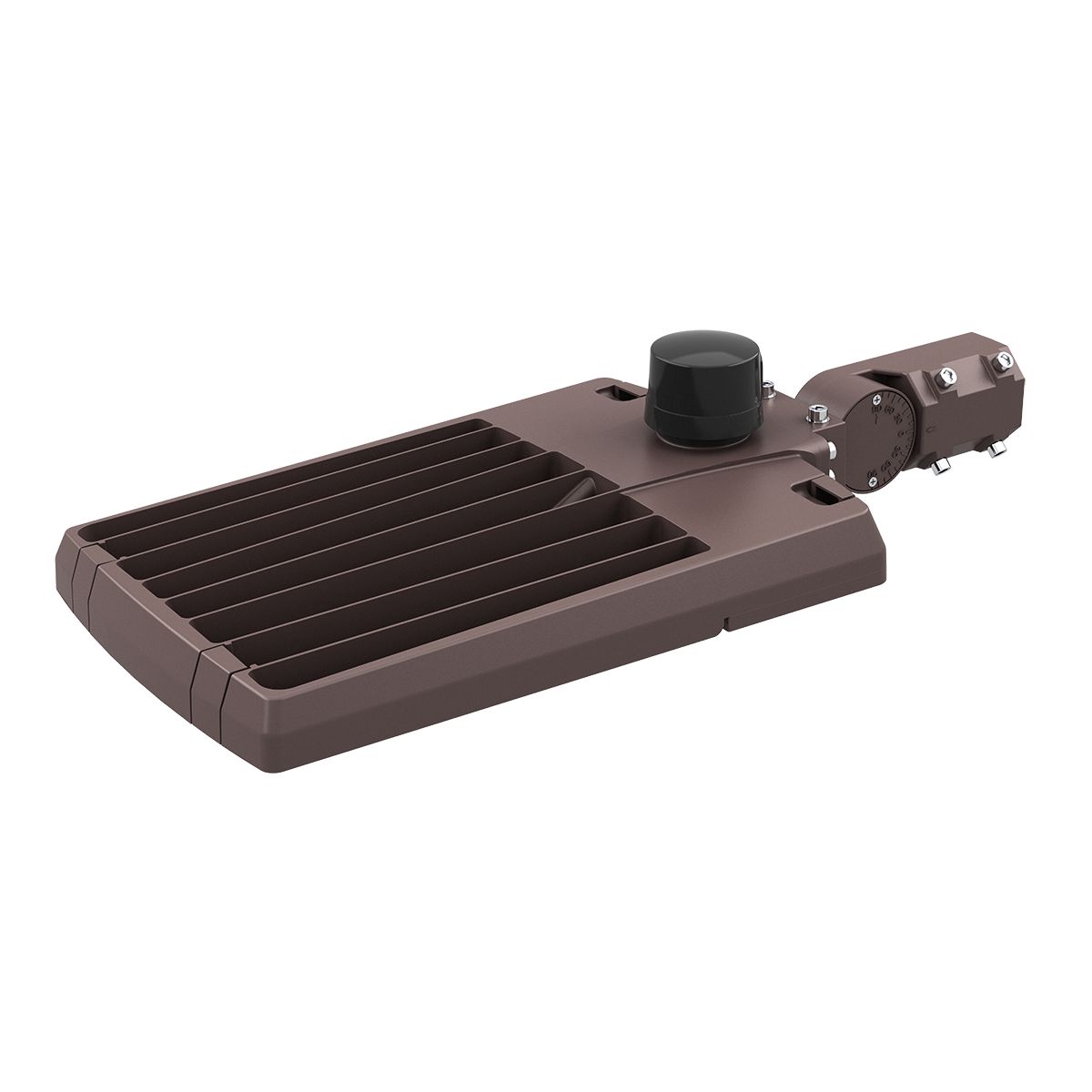

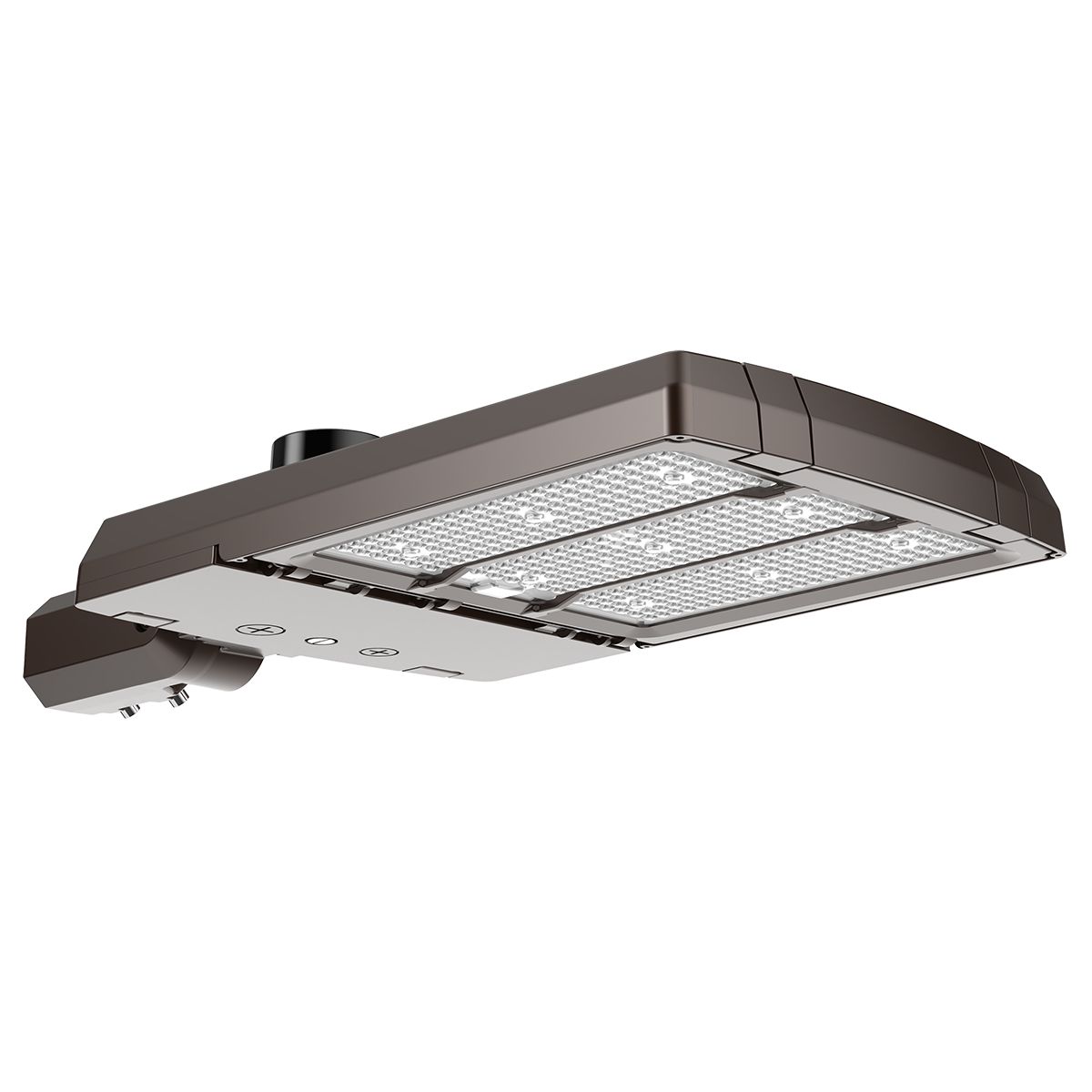

SGS Sling Site

Compact sleek design area/site lighter featuring arm or mast arm fitter, switchable wattage and CCT, ships with Type 3, Type 4, and Type 5 optics, which can easily be changed in the field.

Features & Benefits

Compact sleek design with multiple lumen output configurations and simple installation
Field switchable lumens (13,000 - 23,000)
Field switchable CCT (3000K, 4000K, 5000K)
Ships with Type 3, Type 4, and Type 5 optics, which can easily bechanged in the field
Mounting options include Arm for Round or Square Pole andKnuckle Slipfitter. Wall mountable with optional accessory
Field installable occupancy sensor available as an optional accessory
Default Configuration: 150W, 4000K, Type 3 Distribution

Where To Buy

SPEC SHEET

Specifications

Product Technology

LED

Lumen Range

13,000 - 23,000

Dimming Protocol

0-10V

Switchable Technology

Switchable CCT;Switchable Lumen;Switchable Wattage

Mounting Options

Arm, Wall, Pole, Mast Arm Fitter

Material - Housing

Die-cast

Color Offering

Dark Bronze

Beam Angle

Type 3, Type 4, Type 5

Certifications

cULus, IP65, 3G

Ratings

cULus, IP65, 3G

Lumen Range

13,000 - 23,000

Wattage

85 W - 150

Specifications

Product Technology	LED
Lumen Range	13,000 - 23,000
Dimming Protocol	0-10V
Switchable Technology	Switchable CCT;Switchable Lumen;Switchable Wattage
Mounting Options	Arm, Wall, Pole, Mast Arm Fitter
Material - Housing	Die-cast
Color Offering	Dark Bronze
Beam Angle	Type 3, Type 4, Type 5
Certifications	cULus, IP65, 3G
Ratings	cULus, IP65, 3G
Lumen Range	13,000 - 23,000
Wattage	85 W - 150

Product Documents

Spec Sheets

SGS Sling Site Spec Sheet

2444 KB

2024-11-06

Brochures / Catalogs

SGS Sling Site Brochure

33402 KB

2024-10-07

Technical Documents

HB03DPR Instruction Manual

1493 KB

2024-10-09

SGS Instruction Sheet

7938 KB

2024-10-07

Photometry(0)

Clear Filters

Product Name	Color Temp	CRI	Lumens	LM/W	Watts	Dist. Type	Resources
SGS-150-X-LSCS-UNVC_3000K_Type3_150W	3000 K	70 CRI	21711 lm	150	145.2 W	3	IES File Quick Design Tool
SGS-150-X-LSCS-UNVC_3000K_Type4_85W	3000 K	70 CRI	13257 lm	162	81.6 W	4	IES File Quick Design Tool
SGS-150-X-LSCS-UNVC_3000K_Type4_120W	3000 K	70 CRI	18014 lm	155	116 W	4	IES File Quick Design Tool
SGS-150-X-LSCS-UNVC_3000K_Type4_150W	3000 K	70 CRI	21747 lm	150	145.1 W	4	IES File Quick Design Tool
SGS-150-X-LSCS-UNVC_3000K_Type5_85W	3000 K	70 CRI	13032 lm	159	81.7 W	5	IES File Quick Design Tool
SGS-150-X-LSCS-UNVC_3000K_Type5_120W	3000 K	70 CRI	17711 lm	153	116 W	5	IES File Quick Design Tool
SGS-150-X-LSCS-UNVC_3000K_Type5_150W	3000 K	70 CRI	21338 lm	147	145.1 W	5	IES File Quick Design Tool
SGS-150-X-LSCS-UNVC_4000K_Type3_85W	4000 K	70 CRI	13972 lm	171	81.7 W	3	IES File Quick Design Tool
SGS-150-X-LSCS-UNVC_4000K_Type3_120W	4000 K	70 CRI	19011 lm	164	116 W	3	IES File Quick Design Tool
SGS-150-X-LSCS-UNVC_4000K_Type3_150W	4000 K	70 CRI	22905 lm	158	145.2 W	3	IES File Quick Design Tool
SGS-150-X-LSCS-UNVC_4000K_Type4_85W	4000 K	70 CRI	13986 lm	171	81.6 W	4	IES File Quick Design Tool
SGS-150-X-LSCS-UNVC_4000K_Type4_120W	4000 K	70 CRI	19005 lm	164	116 W	4	IES File Quick Design Tool
SGS-150-X-LSCS-UNVC_4000K_Type4_150W	4000 K	70 CRI	22944 lm	158	145.1 W	4	IES File Quick Design Tool
SGS-150-X-LSCS-UNVC_4000K_Type5_85W	4000 K	70 CRI	13749 lm	168	81.7 W	5	IES File Quick Design Tool
SGS-150-X-LSCS-UNVC_4000K_Type5_120W	4000 K	70 CRI	18685 lm	161	116 W	5	IES File Quick Design Tool
SGS-150-X-LSCS-UNVC_4000K_Type5_150W	4000 K	70 CRI	22512 lm	155	145.1 W	5	IES File Quick Design Tool
SGS-150-X-LSCS-UNVC_5000K_Type3_85W	5000 K	70 CRI	13826 lm	169	81.7 W	3	IES File Quick Design Tool
SGS-150-X-LSCS-UNVC_5000K_Type3_120W	5000 K	70 CRI	18813 lm	162	116 W	3	IES File Quick Design Tool
SGS-150-X-LSCS-UNVC_5000K_Type3_150W	5000 K	70 CRI	22666 lm	156	145.2 W	3	IES File Quick Design Tool
SGS-150-X-LSCS-UNVC_5000K_Type4_85W	5000 K	70 CRI	13840 lm	170	81.6 W	4	IES File Quick Design Tool
SGS-150-X-LSCS-UNVC_5000K_Type4_120W	5000 K	70 CRI	18807 lm	162	116 W	4	IES File Quick Design Tool
SGS-150-X-LSCS-UNVC_5000K_Type4_150W	5000 K	70 CRI	22704 lm	156	145.1 W	4	IES File Quick Design Tool
SGS-150-X-LSCS-UNVC_5000K_Type5_85W	5000 K	70 CRI	13605 lm	166	81.7 W	5	IES File Quick Design Tool
SGS-150-X-LSCS-UNVC_5000K_Type5_120W	5000 K	70 CRI	18490 lm	159	116 W	5	IES File Quick Design Tool
SGS-150-X-LSCS-UNVC_5000K_Type5_150W	5000 K	70 CRI	22277 lm	154	145.1 W	5	IES File Quick Design Tool
SGS-150-X-LSCS-UNVC_3000K_Type3_85W	3000 K	70 CRI	13244 lm	162	81.7 W	3	IES File Quick Design Tool
SGS-150-X-LSCS-UNVC_3000K_Type3_120W	3000 K	70 CRI	18020 lm	155	116 W	3	IES File Quick Design Tool
SGS-150-MAF-LSCS-85W-3K-5-HSS-BS-L	3000 K	80 CRI	6495 lm	79	85 W	5	IES File Quick Design Tool
SGS-150-MAF-LSCS-85W-3K-5-HSS-BS-R	3000 K	80 CRI	6495 lm	79	85 W	5	IES File Quick Design Tool
SGS-150-MAF-LSCS-85W-3K-5-HSS-BSS-270	3000 K	80 CRI	5644 lm	69	85 W	5	IES File Quick Design Tool
SGS-150-MAF-LSCS-85W-4K-3-HSS-B	4000 K	80 CRI	10460 lm	128	85 W	3	IES File Quick Design Tool
SGS-150-MAF-LSCS-85W-4K-3-HSS-BS-L	4000 K	80 CRI	9199 lm	113	85 W	3	IES File Quick Design Tool
SGS-150-MAF-LSCS-85W-4K-3-HSS-BS-R	4000 K	80 CRI	9199 lm	113	85 W	3	IES File Quick Design Tool
SGS-150-MAF-LSCS-85W-4K-3-HSS-BSS-270	4000 K	80 CRI	7997 lm	98	85 W	3	IES File Quick Design Tool
SGS-150-MAF-LSCS-85W-4K-4-HSS-B	4000 K	80 CRI	10630 lm	130	85 W	4	IES File Quick Design Tool
SGS-150-MAF-LSCS-85W-4K-4-HSS-BS-L	4000 K	80 CRI	9465 lm	116	85 W	4	IES File Quick Design Tool
SGS-150-MAF-LSCS-85W-4K-4-HSS-BS-R	4000 K	80 CRI	9465 lm	116	85 W	4	IES File Quick Design Tool
SGS-150-MAF-LSCS-85W-4K-4-HSS-BSS-270	4000 K	80 CRI	8333 lm	102	85 W	4	IES File Quick Design Tool
SGS-150-MAF-LSCS-85W-4K-5-HSS-B	4000 K	80 CRI	7778 lm	95	85 W	5	IES File Quick Design Tool
SGS-150-MAF-LSCS-85W-4K-5-HSS-BS-L	4000 K	80 CRI	6851 lm	84	85 W	5	IES File Quick Design Tool
SGS-150-MAF-LSCS-85W-4K-5-HSS-BS-R	4000 K	80 CRI	6851 lm	84	85 W	5	IES File Quick Design Tool
SGS-150-MAF-LSCS-85W-4K-5-HSS-BSS-270	4000 K	80 CRI	5953 lm	73	85 W	5	IES File Quick Design Tool
SGS-150-MAF-LSCS-85W-5K-3-HSS-B	5000 K	80 CRI	10355 lm	127	85 W	3	IES File Quick Design Tool
SGS-150-MAF-LSCS-85W-5K-3-HSS-BS-L	5000 K	80 CRI	9107 lm	111	85 W	3	IES File Quick Design Tool
SGS-150-MAF-LSCS-85W-5K-3-HSS-BS-R	5000 K	80 CRI	9107 lm	111	85 W	3	IES File Quick Design Tool
SGS-150-MAF-LSCS-85W-5K-3-HSS-BSS-270	5000 K	80 CRI	7917 lm	97	85 W	3	IES File Quick Design Tool
SGS-150-MAF-LSCS-85W-5K-4-HSS-B	5000 K	80 CRI	10524 lm	129	85 W	4	IES File Quick Design Tool
SGS-150-MAF-LSCS-85W-5K-4-HSS-BS-L	5000 K	80 CRI	9370 lm	115	85 W	4	IES File Quick Design Tool
SGS-150-MAF-LSCS-85W-5K-4-HSS-BS-R	5000 K	80 CRI	9370 lm	115	85 W	4	IES File Quick Design Tool
SGS-150-MAF-LSCS-85W-5K-4-HSS-BSS-270	5000 K	80 CRI	8249 lm	101	85 W	4	IES File Quick Design Tool
SGS-150-MAF-LSCS-85W-5K-5-HSS-B	5000 K	80 CRI	7700 lm	94	85 W	5	IES File Quick Design Tool
SGS-150-MAF-LSCS-85W-5K-5-HSS-BS-L	5000 K	80 CRI	6783 lm	83	85 W	5	IES File Quick Design Tool
SGS-150-MAF-LSCS-85W-5K-5-HSS-BS-R	5000 K	80 CRI	6783 lm	83	85 W	5	IES File Quick Design Tool
SGS-150-MAF-LSCS-85W-5K-5-HSS-BSS-270	5000 K	80 CRI	5894 lm	72	85 W	5	IES File Quick Design Tool
SGS-150-MAF-LSCS-120W-3K-3-HSS-B	3000 K	80 CRI	13492 lm	116	120 W	3	IES File Quick Design Tool
SGS-150-MAF-LSCS-120W-3K-3-HSS-BS-L	3000 K	80 CRI	11866 lm	102	120 W	3	IES File Quick Design Tool
SGS-150-MAF-LSCS-120W-3K-3-HSS-BS-R	3000 K	80 CRI	11866 lm	102	120 W	3	IES File Quick Design Tool
SGS-150-MAF-LSCS-120W-3K-3-HSS-BSS-270	3000 K	80 CRI	10315 lm	89	120 W	3	IES File Quick Design Tool
SGS-150-MAF-LSCS-120W-3K-4-HSS-B	3000 K	80 CRI	13712 lm	118	120 W	4	IES File Quick Design Tool
SGS-150-MAF-LSCS-120W-3K-4-HSS-BS-L	3000 K	80 CRI	12208 lm	105	120 W	4	IES File Quick Design Tool
SGS-150-MAF-LSCS-120W-3K-4-HSS-BS-R	3000 K	80 CRI	12208 lm	105	120 W	4	IES File Quick Design Tool
SGS-150-MAF-LSCS-120W-3K-4-HSS-BSS-270	3000 K	80 CRI	10748 lm	93	120 W	4	IES File Quick Design Tool
SGS-150-MAF-LSCS-120W-3K-5-HSS-B	3000 K	80 CRI	10033 lm	86	120 W	5	IES File Quick Design Tool
SGS-150-MAF-LSCS-120W-3K-5-HSS-BS-L	3000 K	80 CRI	8837 lm	76	120 W	5	IES File Quick Design Tool
SGS-150-MAF-LSCS-120W-3K-5-HSS-BS-R	3000 K	80 CRI	8837 lm	76	120 W	5	IES File Quick Design Tool
SGS-150-MAF-LSCS-120W-3K-5-HSS-BSS-270	3000 K	80 CRI	7679 lm	66	120 W	5	IES File Quick Design Tool
SGS-150-MAF-LSCS-120W-4K-3-HSS-B	4000 K	80 CRI	14232 lm	123	120 W	3	IES File Quick Design Tool
SGS-150-MAF-LSCS-120W-4K-3-HSS-BS-L	4000 K	80 CRI	12517 lm	108	120 W	3	IES File Quick Design Tool
SGS-150-MAF-LSCS-120W-4K-3-HSS-BS-R	4000 K	80 CRI	12517 lm	108	120 W	3	IES File Quick Design Tool
SGS-150-MAF-LSCS-120W-4K-3-HSS-BSS-270	4000 K	80 CRI	10881 lm	94	120 W	3	IES File Quick Design Tool
SGS-150-MAF-LSCS-120W-4K-4-HSS-B	4000 K	80 CRI	14464 lm	125	120 W	4	IES File Quick Design Tool
SGS-150-MAF-LSCS-120W-4K-4-HSS-BS-L	4000 K	80 CRI	12878 lm	111	120 W	4	IES File Quick Design Tool
SGS-150-MAF-LSCS-120W-4K-4-HSS-BS-R	4000 K	80 CRI	12878 lm	111	120 W	4	IES File Quick Design Tool
SGS-150-MAF-LSCS-120W-4K-4-HSS-BSS-270	4000 K	80 CRI	11338 lm	98	120 W	4	IES File Quick Design Tool
SGS-150-MAF-LSCS-120W-4K-5-HSS-B	4000 K	80 CRI	10583 lm	91	120 W	5	IES File Quick Design Tool
SGS-150-MAF-LSCS-120W-4K-5-HSS-BS-L	4000 K	80 CRI	9322 lm	80	120 W	5	IES File Quick Design Tool
SGS-150-MAF-LSCS-120W-4K-5-HSS-BS-R	4000 K	80 CRI	9322 lm	80	120 W	5	IES File Quick Design Tool
SGS-150-MAF-LSCS-120W-4K-5-HSS-BSS-270	4000 K	80 CRI	8100 lm	70	120 W	5	IES File Quick Design Tool
SGS-150-MAF-LSCS-120W-5K-3-HSS-B	5000 K	80 CRI	14090 lm	121	120 W	3	IES File Quick Design Tool
SGS-150-MAF-LSCS-120W-5K-3-HSS-BS-L	5000 K	80 CRI	12392 lm	107	120 W	3	IES File Quick Design Tool
SGS-150-MAF-LSCS-120W-5K-3-HSS-BS-R	5000 K	80 CRI	12392 lm	107	120 W	3	IES File Quick Design Tool
SGS-150-MAF-LSCS-120W-5K-3-HSS-BSS-270	5000 K	80 CRI	10772 lm	93	120 W	3	IES File Quick Design Tool
SGS-150-MAF-LSCS-120W-5K-4-HSS-B	5000 K	80 CRI	14319 lm	123	120 W	4	IES File Quick Design Tool
SGS-150-MAF-LSCS-120W-5K-4-HSS-BS-L	5000 K	80 CRI	12749 lm	110	120 W	4	IES File Quick Design Tool
SGS-150-MAF-LSCS-120W-5K-4-HSS-BS-R	5000 K	80 CRI	12749 lm	110	120 W	4	IES File Quick Design Tool
SGS-150-MAF-LSCS-120W-5K-4-HSS-BSS-270	5000 K	80 CRI	11225 lm	97	120 W	4	IES File Quick Design Tool
SGS-150-MAF-LSCS-120W-5K-5-HSS-B	5000 K	80 CRI	10477 lm	90	120 W	5	IES File Quick Design Tool
SGS-150-MAF-LSCS-120W-5K-5-HSS-BS-L	5000 K	80 CRI	9229 lm	80	120 W	5	IES File Quick Design Tool
SGS-150-MAF-LSCS-120W-5K-5-HSS-BS-R	5000 K	80 CRI	9229 lm	80	120 W	5	IES File Quick Design Tool
SGS-150-MAF-LSCS-120W-5K-5-HSS-BSS-270	5000 K	80 CRI	8019 lm	69	120 W	5	IES File Quick Design Tool
SGS-150-MAF-LSCS-150W-3K-3-HSS-B	3000 K	80 CRI	16256 lm	114	150 W	3	IES File Quick Design Tool
SGS-150-MAF-LSCS-150W-3K-3-HSS-BS-L	3000 K	80 CRI	14297 lm	100	150 W	3	IES File Quick Design Tool
SGS-150-MAF-LSCS-150W-3K-3-HSS-BS-R	3000 K	80 CRI	14297 lm	100	150 W	3	IES File Quick Design Tool
SGS-150-MAF-LSCS-150W-3K-3-HSS-BSS-270	3000 K	80 CRI	12428 lm	87	150 W	3	IES File Quick Design Tool
SGS-150-MAF-LSCS-150W-3K-4-HSS-B	3000 K	80 CRI	16520 lm	116	150 W	4	IES File Quick Design Tool
SGS-150-MAF-LSCS-150W-3K-4-HSS-BS-L	3000 K	80 CRI	14709 lm	103	150 W	4	IES File Quick Design Tool
SGS-150-MAF-LSCS-150W-3K-4-HSS-BS-R	3000 K	80 CRI	14709 lm	103	150 W	4	IES File Quick Design Tool
SGS-150-MAF-LSCS-150W-3K-4-HSS-BSS-270	3000 K	80 CRI	12950 lm	91	150 W	4	IES File Quick Design Tool
SGS-150-MAF-LSCS-150W-3K-5-HSS-B	3000 K	80 CRI	12088 lm	85	150 W	5	IES File Quick Design Tool
SGS-150-MAF-LSCS-150W-3K-5-HSS-BS-L	3000 K	80 CRI	10647 lm	75	150 W	5	IES File Quick Design Tool
SGS-150-MAF-LSCS-150W-3K-5-HSS-BS-R	3000 K	80 CRI	10647 lm	75	150 W	5	IES File Quick Design Tool
SGS-150-MAF-LSCS-150W-3K-5-HSS-BSS-270	3000 K	80 CRI	9252 lm	65	150 W	5	IES File Quick Design Tool
SGS-150-MAF-LSCS-150W-4K-3-HSS-B	4000 K	80 CRI	17147 lm	120	150 W	3	IES File Quick Design Tool
SGS-150-MAF-LSCS-150W-4K-3-HSS-BS-L	4000 K	80 CRI	15081 lm	106	150 W	3	IES File Quick Design Tool
SGS-150-MAF-LSCS-150W-4K-3-HSS-BS-R	4000 K	80 CRI	15081 lm	106	150 W	3	IES File Quick Design Tool
SGS-150-MAF-LSCS-150W-4K-3-HSS-BSS-270	4000 K	80 CRI	13110 lm	92	150 W	3	IES File Quick Design Tool
SGS-150-MAF-LSCS-150W-4K-4-HSS-B	4000 K	80 CRI	17427 lm	122	150 W	4	IES File Quick Design Tool
SGS-150-MAF-LSCS-150W-4K-4-HSS-BS-L	4000 K	80 CRI	15516 lm	109	150 W	4	IES File Quick Design Tool
SGS-150-MAF-LSCS-150W-4K-4-HSS-BS-R	4000 K	80 CRI	15516 lm	109	150 W	4	IES File Quick Design Tool
SGS-150-MAF-LSCS-150W-4K-4-HSS-BSS-270	4000 K	80 CRI	13660 lm	96	150 W	4	IES File Quick Design Tool
SGS-150-MAF-LSCS-150W-4K-5-HSS-B	4000 K	80 CRI	12751 lm	89	150 W	5	IES File Quick Design Tool
SGS-150-MAF-LSCS-150W-4K-5-HSS-BS-L	4000 K	80 CRI	11231 lm	79	150 W	5	IES File Quick Design Tool
SGS-150-MAF-LSCS-150W-4K-5-HSS-BS-R	4000 K	80 CRI	11231 lm	79	150 W	5	IES File Quick Design Tool
SGS-150-MAF-LSCS-150W-4K-5-HSS-BSS-270	4000 K	80 CRI	9759 lm	68	150 W	5	IES File Quick Design Tool
SGS-150-MAF-LSCS-150W-5K-3-HSS-B	5000 K	80 CRI	16976 lm	119	150 W	3	IES File Quick Design Tool
SGS-150-MAF-LSCS-150W-5K-3-HSS-BS-L	5000 K	80 CRI	14930 lm	105	150 W	3	IES File Quick Design Tool
SGS-150-MAF-LSCS-150W-5K-3-HSS-BS-R	5000 K	80 CRI	14930 lm	105	150 W	3	IES File Quick Design Tool
SGS-150-MAF-LSCS-150W-5K-3-HSS-BSS-270	5000 K	80 CRI	12979 lm	91	150 W	3	IES File Quick Design Tool
SGS-150-MAF-LSCS-150W-5K-4-HSS-B	5000 K	80 CRI	17252 lm	121	150 W	4	IES File Quick Design Tool
SGS-150-MAF-LSCS-150W-5K-4-HSS-BS-L	5000 K	80 CRI	15360 lm	107	150 W	4	IES File Quick Design Tool
SGS-150-MAF-LSCS-150W-5K-4-HSS-BS-R	5000 K	80 CRI	15360 lm	107	150 W	4	IES File Quick Design Tool
SGS-150-MAF-LSCS-150W-5K-4-HSS-BSS-270	5000 K	80 CRI	13524 lm	95	150 W	4	IES File Quick Design Tool
SGS-150-MAF-LSCS-150W-5K-5-HSS-B	5000 K	80 CRI	12623 lm	88	150 W	5	IES File Quick Design Tool
SGS-150-MAF-LSCS-150W-5K-5-HSS-BS-L	5000 K	80 CRI	11119 lm	78	150 W	5	IES File Quick Design Tool
SGS-150-MAF-LSCS-150W-5K-5-HSS-BS-R	5000 K	80 CRI	11119 lm	78	150 W	5	IES File Quick Design Tool
SGS-150-MAF-LSCS-150W-5K-5-HSS-BSS-270	5000 K	80 CRI	9662 lm	68	150 W	5	IES File Quick Design Tool
SGS-150-MAF-LSCS-85W-3K-3-HSS-B	3000 K	80 CRI	9916 lm	121	85 W	3	IES File Quick Design Tool
SGS-150-MAF-LSCS-85W-3K-3-HSS-BS-L	3000 K	80 CRI	8721 lm	107	85 W	3	IES File Quick Design Tool
SGS-150-MAF-LSCS-85W-3K-3-HSS-BS-R	3000 K	80 CRI	8721 lm	107	85 W	3	IES File Quick Design Tool
SGS-150-MAF-LSCS-85W-3K-3-HSS-BSS-270	3000 K	80 CRI	7581 lm	93	85 W	3	IES File Quick Design Tool
SGS-150-MAF-LSCS-85W-3K-4-HSS-B	3000 K	80 CRI	10077 lm	123	85 W	4	IES File Quick Design Tool
SGS-150-MAF-LSCS-85W-3K-4-HSS-BS-L	3000 K	80 CRI	8972 lm	110	85 W	4	IES File Quick Design Tool
SGS-150-MAF-LSCS-85W-3K-4-HSS-BS-R	3000 K	80 CRI	8972 lm	110	85 W	4	IES File Quick Design Tool
SGS-150-MAF-LSCS-85W-3K-4-HSS-BSS-270	3000 K	80 CRI	7899 lm	97	85 W	4	IES File Quick Design Tool
SGS-150-MAF-LSCS-85W-3K-5-HSS-B	3000 K	80 CRI	7374 lm	90	85 W	5	IES File Quick Design Tool
