BEACON

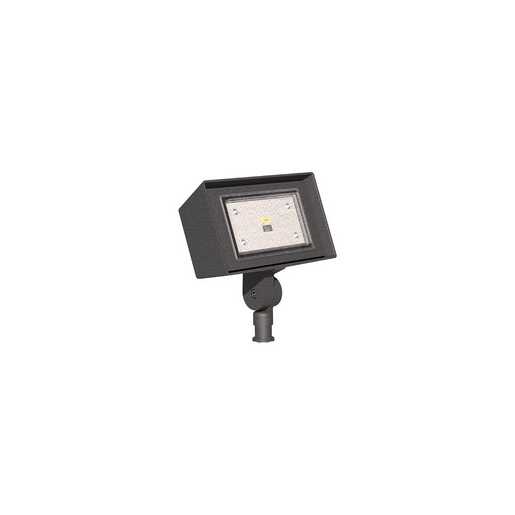

RFL2 Ratio Floodlight

Compact LED flood with a variety of NEMA distribution for lighting applications such as safety/security, accent, flag pole, columns, or signs.

Features & Benefits

  • 3000K, 4000K, 5000K (70 CRI)
  • 3,500 Lumens
  • 120-277V, 25W
  • Knuckle mount
  • Narrow, Medium Flood, Wide Flood Distribution
  • NX Lighting Controls and 7-Pin with networked controls
Where To Buy
SPEC SHEET

Specifications

Lumen Range
3,500
Dimming Protocol
0-10V Dimming
CCT Offering
3000, 4000, 5000
CRI Offering
70
Mounting Options
Knuckle
Color Offering
Black Matte Textured, Black Gloss Smooth, Dark Bronze Matte Textured, Dark Bronze Gloss Smooth, Graphite Matte Textured, Light Grey Gloss Smooth, Platinum Silver Smooth, White Matte Textured, White Gloss Smooth, Verde Green Textured
Ratings
TAA (Buy American 52.225-11), IP66
Operating Temp
-40 to 40

Product Documents

RFL2/RFL3 Ratio Spec Sheet
558 KB
2023-10-12

Brochures / Catalogs

Color Chart Brochure
2404 KB
2023-08-03
Ratio Family Brochure
25849 KB
2023-08-03

Design / BIM Files / 3D Models

RFL2 BIM file
708 KB
2023-08-03
RFL2 BIM file
712 KB
2023-08-03

Technical Documents

RFL2/RFL3 Instruction Sheet
517 KB
2023-08-03

Photometry(0)

Clear Filters

Product Name Color Temp CRI Lumens LM/W Watts Dist. Type Resources
RFL2-44L-25-3K7-M3000 K70 CRI3103 lm12025 WMedium Flood, 4x4
RFL2-44L-25-3K7-N3000 K70 CRI3285 lm12825 WNarrow, 2X2
RFL2-44L-25-3K7-W3000 K70 CRI3223 lm12325 WWide Flood, 6x6
RFL2-44L-25-4K7-M4000 K70 CRI3203 lm12425 WMedium Flood, 4x4
RFL2-44L-25-4K7-N4000 K70 CRI3391 lm13225 WNarrow, 2X2
RFL2-44L-25-4K7-W4000 K70 CRI3327 lm12725 WWide Flood, 6x6
RFL2-44L-25-5K7-M5000 K70 CRI3124 lm12125 WMedium Flood, 4x4
RFL2-44L-25-5K7-N5000 K70 CRI3308 lm12925 WNarrow, 2X2
RFL2-44L-25-5K7-W5000 K70 CRI3245 lm12425 WWide Flood, 6x6
