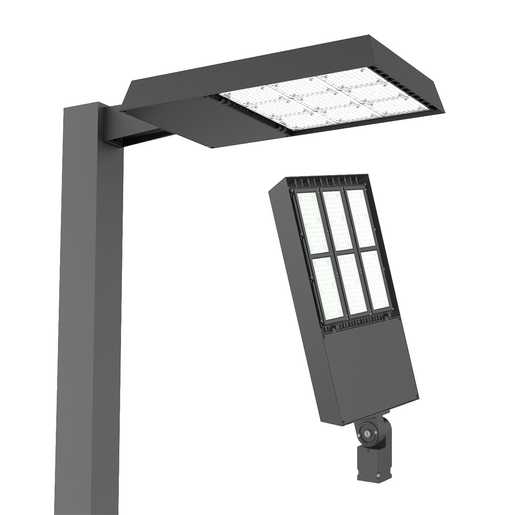

RAR3 Ratio

RAR3 is a new spin on a classic rectilinear form,bringing the traditional shoebox aesthetic into the next generation of LED lighting.

Features & Benefits

  • Featuring Micro Strike Optics which maximizes target zone illumination with minimal losses at the house-side, reducing light trespass issues
  • Compact and lightweight design with low EPA
  • Matching rectilinear form to Ratio Flood
  • Universal mounting block or mast arm option
  • Universal mounting block or mast arm option
  • 3G rated for high vibration applications including bridges and overpasses

Specifications

Lumen Range
15,001 - 50,000
Dimming Protocol
0-10V;10%-100%
CCT Offering
3000, 4000, 5000
CRI Offering
70
Mounting Options
Arm
Wattage Range
110 - 250
Color Offering
Black Matte Textured, Black Gloss Smooth, Dark Bronze Matte Textured, Dark Bronze Gloss Smooth, Graphite Matte Textured, Light Grey Gloss Smooth, Platinum Silver Smooth, White Matte Textured, White Gloss Smooth, Verde Green Textured, Light Grey Matte Textured
Optics & Distributions
Type II, Type III, Type IV, Type V
Controls & Sensors
Occupancy, Photocontrol, 7-pin ANSI C136.41 Dimming Receptacle, wiSCAPE
Ratings
TAA (Buy American 52.225-11)
Operating Temp
-40 to 40
Warranty
5 year limited

Product Documents

1762 KB
2022-07-27

Installation Guides

Photometry(0)

Clear Filters

Product Name Color Temp CRI Lumens LM/W Watts Dist. Type Resources
RAR3-540L-320-3K7-N3000 K70 CRI42681 lm133Narrow, 2X2
RAR3-720L-495-3K7-2-BC3000 K70 CRI44781 lm90Type II
RAR3-720L-455-4K7-4W4000 K70 CRI63816 lm141Type IV
RAR3-720L-495-5K7-5QW5000 K70 CRI71765 lm144Type V
RAR3-720L-415-3K7-3-BC3000 K70 CRI34683 lm83Type III
RAR3-540L-405-3K7-M3000 K70 CRI49529 lm121Medium Flood, 4x4
RAR3-540L-235-3K7-W3000 K70 CRI32005 lm135Wide Flood, 6x6
RAR3-720L-375-3K7-4-BC3000 K70 CRI28765 lm77Type IV
RAR3-720L-415-3K7-33000 K70 CRI59267 lm142Type III
RAR3-720L-575-4K7-24000 K70 CRI80364 lm138Type II
RAR3-540L-405-5K7-W5000 K70 CRI53762 lm132Wide Flood, 6x6
RAR3-540L-450-4K7-M4000 K70 CRI55703 lm123Medium Flood, 4x4
RAR3-720L-575-5K7-25000 K70 CRI80768 lm139Type II
RAR3-720L-375-5K7-35000 K70 CRI56126 lm151Type III
RAR3-540L-490-5K7-N5000 K70 CRI63831 lm130Narrow, 2X2
RAR3-540L-405-4K7-N4000 K70 CRI54534 lm134Narrow, 2X2
RAR3-720L-375-5K7-2-BC3000 K70 CRI36361 lm98Type II
RAR3-720L-535-3K7-5QW3000 K70 CRI72588 lm136Type V
RAR3-720L-455-3K7-4W3000 K70 CRI61250 lm135Type IV
RAR3-720L-495-4K7-3-BC3000 K70 CRI41973 lm84Type III
RAR3-540L-280-5K7-M5000 K70 CRI37434 lm134Medium Flood, 4x4
RAR3-540L-320-4K7-W4000 K70 CRI43550 lm135Wide Flood, 6x6
RAR3-720L-455-4K7-4-BC3000 K70 CRI35420 lm78Type IV
RAR3-720L-455-5K7-4W5000 K70 CRI64136 lm142Type IV
RAR3-720L-495-4K7-5QW4000 K70 CRI71407 lm143Type V
RAR3-720L-415-4K7-4-BC3000 K70 CRI33087 lm79Type IV
RAR3-540L-365-4K7-W4000 K70 CRI48528 lm133Wide Flood, 6x6
RAR3-540L-235-5K7-M5000 K70 CRI32198 lm136Medium Flood, 4x4
RAR3-720L-575-3K7-3-BC3000 K70 CRI45878 lm79Type III
RAR3-720L-415-4K7-34000 K70 CRI61749 lm148Type III
RAR3-720L-575-3K7-23000 K70 CRI77133 lm133Type II
RAR3-540L-450-5K7-N5000 K70 CRI59256 lm131Narrow, 2X2
RAR3-720L-375-3K7-23000 K70 CRI52717 lm141Type II
RAR3-720L-375-4K7-34000 K70 CRI55846 lm150Type III
RAR3-540L-490-4K7-M4000 K70 CRI59993 lm122Medium Flood, 4x4
RAR3-720L-535-4K7-5QW4000 K70 CRI75628 lm142Type V
RAR3-720L-415-5K7-4W5000 K70 CRI59896 lm143Type IV
RAR3-720L-495-5K7-4-BC3000 K70 CRI38687 lm78Type IV
RAR3-540L-280-3K7-W3000 K70 CRI37209 lm133Wide Flood, 6x6
RAR3-540L-365-3K7-M3000 K70 CRI44922 lm123Medium Flood, 4x4
RAR3-720L-455-3K7-3-BC3000 K70 CRI37129 lm82Type III
RAR3-720L-495-3K7-4W3000 K70 CRI66571 lm134Type IV
RAR3-720L-495-3K7-5QW3000 K70 CRI68536 lm138Type V
RAR3-720L-455-3K7-2-BC3000 K70 CRI41198 lm91Type II
RAR3-540L-365-3K7-N3000 K70 CRI47559 lm130Narrow, 2X2
RAR3-540L-280-3K7-N3000 K70 CRI37925 lm136Narrow, 2X2
RAR3-720L-535-3K7-2-BC3000 K70 CRI47426 lm89Type II
RAR3-720L-415-5K7-35000 K70 CRI62059 lm149Type III
RAR3-720L-535-5K7-25000 K70 CRI75236 lm141Type II
RAR3-540L-490-3K7-W3000 K70 CRI59822 lm122Wide Flood, 6x6
RAR3-720L-375-4K7-24000 K70 CRI54925 lm147Type II
RAR3-720L-375-3K7-33000 K70 CRI53601 lm144Type III
RAR3-540L-450-5K7-W5000 K70 CRI58138 lm129Wide Flood, 6x6
RAR3-720L-535-5K7-5QW5000 K70 CRI76010 lm143Type V
RAR3-720L-415-4K7-4W4000 K70 CRI59596 lm143Type IV
RAR3-720L-575-3K7-2-BC3000 K70 CRI50905 lm88Type II
RAR3-540L-235-5K7-N5000 K70 CRI34088 lm144Narrow, 2X2
RAR3-540L-365-4K7-N4000 K70 CRI49461 lm136Narrow, 2X2
RAR3-720L-415-5K7-2-BC3000 K70 CRI40215 lm96Type II
RAR3-720L-495-4K7-4W4000 K70 CRI69360 lm139Type IV
RAR3-720L-455-5K7-5QW5000 K70 CRI66029 lm146Type V
RAR3-720L-455-4K7-3-BC3000 K70 CRI38614 lm85Type III
RAR3-540L-320-5K7-M5000 K70 CRI42129 lm131Medium Flood, 4x4
RAR3-540L-280-4K7-W4000 K70 CRI38698 lm138Wide Flood, 6x6
RAR3-720L-495-4K7-4-BC3000 K70 CRI38502 lm77Type IV
RAR3-720L-455-3K7-33000 K70 CRI63463 lm140Type III
RAR3-720L-535-4K7-24000 K70 CRI74859 lm141Type II
RAR3-540L-405-4K7-W4000 K70 CRI53505 lm131Wide Flood, 6x6
RAR3-540L-490-5K7-M5000 K70 CRI60292 lm123Medium Flood, 4x4
RAR3-720L-375-5K7-25000 K70 CRI55201 lm148Type II
RAR3-720L-575-5K7-35000 K70 CRI82122 lm141Type III
RAR3-540L-450-4K7-N4000 K70 CRI58973 lm131Narrow, 2X2
RAR3-540L-405-5K7-N5000 K70 CRI54796 lm134Narrow, 2X2
RAR3-720L-575-3K7-5QW3000 K70 CRI77926 lm134Type V
RAR3-720L-415-3K7-4W3000 K70 CRI57201 lm137Type IV
RAR3-720L-375-3K7-3-BC3000 K70 CRI31359 lm84Type III
RAR3-540L-235-4K7-M4000 K70 CRI32044 lm135Medium Flood, 4x4
RAR3-540L-365-5K7-W5000 K70 CRI48761 lm134Wide Flood, 6x6
RAR3-720L-415-3K7-4-BC3000 K70 CRI31814 lm76Type IV
RAR3-720L-495-5K7-4W5000 K70 CRI69708 lm140Type IV
RAR3-720L-455-4K7-5QW4000 K70 CRI65699 lm145Type V
RAR3-720L-455-5K7-4-BC3000 K70 CRI35591 lm79Type IV
RAR3-540L-320-3K7-W3000 K70 CRI41875 lm130Wide Flood, 6x6
RAR3-540L-320-3K7-M3000 K70 CRI40315 lm125Medium Flood, 4x4
RAR3-720L-495-3K7-3-BC3000 K70 CRI40359 lm81Type III
RAR3-720L-455-4K7-34000 K70 CRI66121 lm146Type III
RAR3-720L-535-3K7-23000 K70 CRI71850 lm135Type II
RAR3-720L-415-3K7-2-BC3000 K70 CRI38483 lm92Type II
RAR3-540L-405-3K7-N3000 K70 CRI52437 lm129Narrow, 2X2
RAR3-540L-235-3K7-N3000 K70 CRI32620 lm137Narrow, 2X2
RAR3-720L-375-4K7-2-BC3000 K70 CRI36187 lm97Type II
RAR3-720L-415-3K7-23000 K70 CRI58290 lm139Type II
RAR3-720L-575-4K7-34000 K70 CRI81711 lm141Type III
RAR3-540L-450-3K7-M3000 K70 CRI53561 lm119Medium Flood, 4x4
RAR3-540L-450-3K7-W3000 K70 CRI55634 lm123Wide Flood, 6x6
RAR3-720L-575-4K7-5QW4000 K70 CRI81190 lm140Type V
RAR3-720L-375-5K7-4W5000 K70 CRI54169 lm145Type IV
RAR3-720L-375-4K7-4-BC3000 K70 CRI29916 lm80Type IV
RAR3-540L-490-5K7-W5000 K70 CRI62626 lm127Wide Flood, 6x6
RAR3-540L-405-4K7-M4000 K70 CRI51511 lm126Medium Flood, 4x4
RAR3-720L-375-5K7-3-BC3000 K70 CRI32770 lm88Type III
RAR3-720L-535-3K7-4W3000 K70 CRI70507 lm132Type IV
RAR3-720L-455-3K7-5QW3000 K70 CRI63058 lm139Type V
RAR3-720L-495-4K7-2-BC3000 K70 CRI46573 lm94Type II
RAR3-540L-280-5K7-N5000 K70 CRI39632 lm142Narrow, 2X2
RAR3-540L-320-4K7-N4000 K70 CRI44388 lm138Narrow, 2X2
RAR3-720L-455-5K7-2-BC3000 K70 CRI43051 lm95Type II
RAR3-720L-455-5K7-35000 K70 CRI66453 lm147Type III
RAR3-720L-495-5K7-25000 K70 CRI71036 lm143Type II
RAR3-720L-415-4K7-3-BC3000 K70 CRI36070 lm86Type III
RAR3-540L-365-5K7-M5000 K70 CRI46944 lm129Medium Flood, 4x4
RAR3-540L-235-4K7-W4000 K70 CRI33285 lm140Wide Flood, 6x6
RAR3-720L-575-3K7-4-BC3000 K70 CRI42083 lm72Type IV
RAR3-720L-415-4K7-24000 K70 CRI60731 lm145Type II
RAR3-720L-575-3K7-33000 K70 CRI78426 lm135Type III
RAR3-540L-450-5K7-M5000 K70 CRI55971 lm124Medium Flood, 4x4
RAR3-720L-575-5K7-5QW5000 K70 CRI81598 lm140Type V
RAR3-720L-375-4K7-4W4000 K70 CRI53899 lm145Type IV
RAR3-540L-490-4K7-N4000 K70 CRI63514 lm129Narrow, 2X2
RAR3-720L-535-4K7-4W4000 K70 CRI73460 lm138Type IV
RAR3-720L-415-5K7-5QW5000 K70 CRI61664 lm148Type V
RAR3-720L-495-5K7-3-BC3000 K70 CRI42175 lm85Type III
RAR3-540L-280-4K7-M4000 K70 CRI37255 lm133Medium Flood, 4x4
RAR3-540L-320-5K7-W5000 K70 CRI43760 lm136Wide Flood, 6x6
RAR3-720L-455-3K7-4-BC3000 K70 CRI34058 lm75Type IV
RAR3-720L-495-3K7-33000 K70 CRI68976 lm139Type III
RAR3-720L-495-4K7-24000 K70 CRI70680 lm142Type II
RAR3-720L-415-5K7-4-BC3000 K70 CRI33246 lm80Type IV
RAR3-540L-365-3K7-W3000 K70 CRI46661 lm128Wide Flood, 6x6
RAR3-540L-280-3K7-M3000 K70 CRI35822 lm128Medium Flood, 4x4
RAR3-720L-535-3K7-3-BC3000 K70 CRI42742 lm80Type III
RAR3-720L-415-5K7-25000 K70 CRI61036 lm146Type II
RAR3-720L-535-5K7-35000 K70 CRI76497 lm144Type III
RAR3-540L-490-3K7-N3000 K70 CRI60973 lm124Narrow, 2X2
RAR3-720L-375-3K7-5QW3000 K70 CRI53259 lm143Type V
RAR3-720L-375-3K7-4W3000 K70 CRI51732 lm139Type IV
RAR3-540L-490-3K7-M3000 K70 CRI57593 lm117Medium Flood, 4x4
RAR3-720L-535-5K7-4W5000 K70 CRI73830 lm139Type IV
RAR3-720L-415-4K7-5QW4000 K70 CRI61355 lm147Type V
RAR3-720L-535-3K7-4-BC3000 K70 CRI39207 lm74Type IV
RAR3-540L-235-5K7-W5000 K70 CRI33445 lm141Wide Flood, 6x6
RAR3-540L-365-4K7-M4000 K70 CRI46719 lm128Medium Flood, 4x4
RAR3-720L-415-5K7-3-BC3000 K70 CRI36243 lm87Type III
RAR3-720L-495-4K7-34000 K70 CRI71864 lm144Type III
RAR3-720L-495-3K7-23000 K70 CRI67839 lm136Type II
RAR3-720L-455-4K7-2-BC3000 K70 CRI42845 lm95Type II
RAR3-540L-320-5K7-N5000 K70 CRI44602 lm139Narrow, 2X2
RAR3-540L-280-4K7-N4000 K70 CRI39442 lm141Narrow, 2X2
RAR3-720L-495-5K7-2-BC3000 K70 CRI46797 lm94Type II
RAR3-720L-455-3K7-23000 K70 CRI62416 lm138Type II
RAR3-720L-535-4K7-34000 K70 CRI76114 lm143Type III
RAR3-540L-405-5K7-M5000 K70 CRI51758 lm127Medium Flood, 4x4
RAR3-540L-490-4K7-W4000 K70 CRI62315 lm127Wide Flood, 6x6
RAR3-720L-375-4K7-5QW4000 K70 CRI55489 lm149Type V
RAR3-720L-575-5K7-4W5000 K70 CRI79259 lm136Type IV
RAR3-540L-450-4K7-W4000 K70 CRI57860 lm128Wide Flood, 6x6
RAR3-720L-575-3K7-4W3000 K70 CRI75692 lm130Type IV
RAR3-720L-415-3K7-5QW3000 K70 CRI58889 lm141Type V
RAR3-720L-375-3K7-2-BC3000 K70 CRI34795 lm93Type II
RAR3-540L-235-4K7-N4000 K70 CRI33925 lm143Narrow, 2X2
RAR3-540L-365-5K7-N5000 K70 CRI49699 lm136Narrow, 2X2
RAR3-720L-415-4K7-2-BC3000 K70 CRI40023 lm96Type II
RAR3-720L-495-5K7-35000 K70 CRI72226 lm145Type III
RAR3-720L-455-5K7-25000 K70 CRI65358 lm145Type II
RAR3-720L-455-5K7-3-BC3000 K70 CRI38800 lm86Type III
RAR3-540L-320-4K7-M4000 K70 CRI41927 lm130Medium Flood, 4x4
RAR3-540L-280-5K7-W5000 K70 CRI38884 lm139Wide Flood, 6x6
RAR3-720L-495-3K7-4-BC3000 K70 CRI37021 lm74Type IV
RAR3-720L-455-4K7-24000 K70 CRI65030 lm144Type II
RAR3-720L-535-3K7-33000 K70 CRI73054 lm137Type III
RAR3-720L-375-5K7-4-BC3000 K70 CRI30060 lm81Type IV
RAR3-540L-405-3K7-W3000 K70 CRI51447 lm126Wide Flood, 6x6
RAR3-540L-235-3K7-M3000 K70 CRI30811 lm130Medium Flood, 4x4
RAR3-720L-375-4K7-3-BC3000 K70 CRI32613 lm88Type III
RAR3-720L-375-5K7-5QW5000 K70 CRI55768 lm150Type V
RAR3-720L-575-4K7-4W4000 K70 CRI78862 lm136Type IV
RAR3-540L-450-3K7-N3000 K70 CRI56705 lm126Narrow, 2X2
