NX LIGHTING CONTROLS

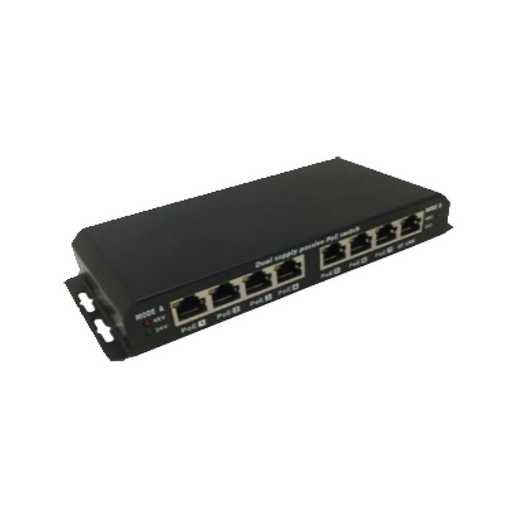

NX Lighting Controls PoE Switch

NX PoE Switch/Power Injector is a NX network accessory that provides for splitting the network from the NXAC into multiple segments

Features & Benefits

  • NX network accessory that provides for splitting the network from the NX Area Controller into multiple segments
  • 24V power is provided to the unit via a five amp computer style plug-in power supply
  • Provides seven powered RJ45 ports for connection of NX network devices
  • Limit of 64 NXHNB2 Network Bridge modules per segment ENERGY STAR® certified configurations
  • Expands the capacity of the NX Area Controller to 448 bridges suitable for large commercial and architectural interiors
Where To Buy
SPEC SHEET

Specifications

Brand
NX LIGHTING CONTROLS
Connectivity
Wired
Color Offering
Black
Mounting Options
Surface Mount
Construction Material
Industrial grade metal housing
Width
3.5
Certifications
CE, FCC, RoHS
Warranty
5 year limited

Product Documents

Brochures / Catalogs

NX Brochure
18503 KB
2022-10-28

Design / BIM Files / 3D Models

NXPOE7-24B BIM file
552 KB
2022-10-10
NX PoE Switch BIM file
552 KB
2022-10-10

Installation Guides
