LITECONTROL
SAE102 Linear Pendant Indirect/Direct SAE102-P-ID

A small-scale, modern, rectilinear pendant with an extremely versatile performance package.

Features & Benefits

  • DISCONTINUED
  • *** Substitute with STANCE Family ***
  • ********************************
  • Vi Technology for specifiable output/wattage
  • Continuous lens with flanged end casting to eliminate light leaks
  • Maximum color variation of 2 SDCM
  • Separately controlled direct & indirect distribution
  • Interlocking feature for row joining to eliminate light leak and facilitate ease of installation
Where To Buy
SPEC SHEET

Specifications

Product Technology
SpectraSync™ Color Tuning, Vi (Variable Intensity)
Dimming Protocol
0-10V Dimming, DALI, Lutron EcoSystem, Step-Dimming
CCT
2700, 3000, 3500, 4000, 5000
CRI
80, 90
Color Tuning
Dim-to-Warm, Tunable White
Mounting Options
Pendant
Wattage Range
Per foot: 3.5 - 9.1
Efficacy
104 - 136
Beam Angle
Indirect/Direct
Certifications
CSAus
Ratings
BAA (Buy American 52.225-9), TAA (Buy American 52.225-11)
Warranty
5 year limited
FV Light Distribution
Indirect, Direct
Controls Platform
NX Networked - Wired, NX Networked - Wireless
Wattage
7.0 - 18.1

Product Documents

SAE102-P Specification Sheet
1220 KB
2024-11-08

Brochures / Catalogs

NX Brochure
13294 KB
2024-11-27
SpectraSync FAQ
460 KB
2023-08-03
SAE Brochure
6342 KB
2023-08-03

Sell Sheets

SpectraSync Sell Sheet
2452 KB
2023-08-03

Design / BIM Files / 3D Models

SAE102-P BIM file
616 KB
2023-08-03

Technical Documents

Photometry(0)

Clear Filters

Product Name Color Temp CRI Lumens LM/W Watts Dist. Type Resources
SAE102-P-ID-STD-4-SOF-CX-35K-I050-D0403500 K80 CRI3600 lm13327 WIndirect/Direct: Lambertian
SAE102-P-ID-STD-4-SOF-CX-35K-I050-D0453500 K80 CRI3800 lm13129 WIndirect/Direct: Lambertian
SAE102-P-ID-STD-4-SOF-CX-35K-I050-D0503500 K80 CRI4000 lm12532 WIndirect/Direct: Lambertian
SAE102-P-ID-STD-4-SOF-CX-35K-I050-D0553500 K80 CRI4200 lm12733 WIndirect/Direct: Lambertian
SAE102-P-ID-STD-4-SOF-CX-35K-I050-D0603500 K80 CRI4400 lm12934 WIndirect/Direct: Lambertian
SAE102-P-ID-STD-4-SOF-CX-35K-I050-D0653500 K80 CRI4600 lm12437 WIndirect/Direct: Lambertian
SAE102-P-ID-STD-4-SOF-CX-35K-I050-D0703500 K80 CRI4800 lm12638 WIndirect/Direct: Lambertian
SAE102-P-ID-STD-4-SOF-CX-35K-I050-D0753500 K80 CRI5000 lm12839 WIndirect/Direct: Lambertian
SAE102-P-ID-STD-4-SOF-CX-35K-I050-D0803500 K80 CRI5200 lm12442 WIndirect/Direct: Lambertian
SAE102-P-ID-STD-4-SOF-CX-35K-I050-D0853500 K80 CRI5400 lm12643 WIndirect/Direct: Lambertian
SAE102-P-ID-STD-4-SOF-CX-35K-I050-D0903500 K80 CRI5600 lm11947 WIndirect/Direct: Lambertian
SAE102-P-ID-STD-4-SOF-CX-35K-I050-D0953500 K80 CRI5800 lm12148 WIndirect/Direct: Lambertian
SAE102-P-ID-STD-4-SOF-CX-35K-I055-D0403500 K80 CRI3800 lm13129 WIndirect/Direct: Lambertian
SAE102-P-ID-STD-4-SOF-CX-35K-I055-D0453500 K80 CRI4000 lm13330 WIndirect/Direct: Lambertian
SAE102-P-ID-STD-4-SOF-CX-35K-I055-D0503500 K80 CRI4200 lm12434 WIndirect/Direct: Lambertian
SAE102-P-ID-STD-4-SOF-CX-35K-I055-D0553500 K80 CRI4400 lm12934 WIndirect/Direct: Lambertian
SAE102-P-ID-STD-4-SOF-CX-35K-I055-D0603500 K80 CRI4600 lm12836 WIndirect/Direct: Lambertian
SAE102-P-ID-STD-4-SOF-CX-35K-I055-D0653500 K80 CRI4800 lm12339 WIndirect/Direct: Lambertian
SAE102-P-ID-STD-4-SOF-CX-35K-I055-D0703500 K80 CRI5000 lm12839 WIndirect/Direct: Lambertian
SAE102-P-ID-STD-4-SOF-CX-35K-I055-D0753500 K80 CRI5200 lm12741 WIndirect/Direct: Lambertian
SAE102-P-ID-STD-4-SOF-CX-35K-I055-D0803500 K80 CRI5400 lm12344 WIndirect/Direct: Lambertian
SAE102-P-ID-STD-4-SOF-CX-35K-I055-D0853500 K80 CRI5600 lm12445 WIndirect/Direct: Lambertian
SAE102-P-ID-STD-4-SOF-CX-35K-I055-D0903500 K80 CRI5800 lm11849 WIndirect/Direct: Lambertian
SAE102-P-ID-STD-4-SOF-CX-35K-I055-D0953500 K80 CRI6000 lm12050 WIndirect/Direct: Lambertian
SAE102-P-ID-STD-4-SOF-CX-35K-I060-D0403500 K80 CRI4000 lm13330 WIndirect/Direct: Lambertian
SAE102-P-ID-STD-4-SOF-CX-35K-I060-D0453500 K80 CRI4200 lm13132 WIndirect/Direct: Lambertian
SAE102-P-ID-STD-4-SOF-CX-35K-I060-D0503500 K80 CRI4400 lm12635 WIndirect/Direct: Lambertian
SAE102-P-ID-STD-4-SOF-CX-35K-I060-D0553500 K80 CRI4600 lm12836 WIndirect/Direct: Lambertian
SAE102-P-ID-STD-4-SOF-CX-35K-I060-D0603500 K80 CRI4800 lm12638 WIndirect/Direct: Lambertian
SAE102-P-ID-STD-4-SOF-CX-35K-I060-D0653500 K80 CRI5000 lm12540 WIndirect/Direct: Lambertian
SAE102-P-ID-STD-4-SOF-CX-35K-I060-D0703500 K80 CRI5200 lm12741 WIndirect/Direct: Lambertian
SAE102-P-ID-STD-4-SOF-CX-35K-I060-D0753500 K80 CRI5400 lm12643 WIndirect/Direct: Lambertian
SAE102-P-ID-STD-4-SOF-CX-35K-I060-D0803500 K80 CRI5600 lm12445 WIndirect/Direct: Lambertian
SAE102-P-ID-STD-4-SOF-CX-35K-I060-D0853500 K80 CRI5800 lm12646 WIndirect/Direct: Lambertian
SAE102-P-ID-STD-4-SOF-CX-35K-I060-D0903500 K80 CRI6000 lm12050 WIndirect/Direct: Lambertian
SAE102-P-ID-STD-4-SOF-CX-35K-I060-D0953500 K80 CRI6200 lm12251 WIndirect/Direct: Lambertian
SAE102-P-ID-STD-4-SOF-CX-35K-I065-D0403500 K80 CRI4200 lm13531 WIndirect/Direct: Lambertian
SAE102-P-ID-STD-4-SOF-CX-35K-I065-D0453500 K80 CRI4400 lm13333 WIndirect/Direct: Lambertian
SAE102-P-ID-STD-4-SOF-CX-35K-I065-D0503500 K80 CRI4600 lm12836 WIndirect/Direct: Lambertian
SAE102-P-ID-STD-4-SOF-CX-35K-I065-D0553500 K80 CRI4800 lm13037 WIndirect/Direct: Lambertian
SAE102-P-ID-STD-4-SOF-CX-35K-I065-D0603500 K80 CRI5000 lm12839 WIndirect/Direct: Lambertian
SAE102-P-ID-STD-4-SOF-CX-35K-I065-D0653500 K80 CRI5200 lm12741 WIndirect/Direct: Lambertian
SAE102-P-ID-STD-4-SOF-CX-35K-I065-D0703500 K80 CRI5400 lm12942 WIndirect/Direct: Lambertian
SAE102-P-ID-STD-4-SOF-CX-35K-I065-D0753500 K80 CRI5600 lm12744 WIndirect/Direct: Lambertian
SAE102-P-ID-STD-4-SOF-CX-35K-I065-D0803500 K80 CRI5800 lm12646 WIndirect/Direct: Lambertian
SAE102-P-ID-STD-4-SOF-CX-35K-I065-D0853500 K80 CRI6000 lm12847 WIndirect/Direct: Lambertian
SAE102-P-ID-STD-4-SOF-CX-35K-I065-D0903500 K80 CRI6200 lm12251 WIndirect/Direct: Lambertian
SAE102-P-ID-STD-4-SOF-CX-35K-I065-D0953500 K80 CRI6400 lm12352 WIndirect/Direct: Lambertian
SAE102-P-ID-STD-4-SOF-CX-35K-I070-D0403500 K80 CRI4400 lm13333 WIndirect/Direct: Lambertian
SAE102-P-ID-STD-4-SOF-CX-35K-I070-D0453500 K80 CRI4600 lm13534 WIndirect/Direct: Lambertian
SAE102-P-ID-STD-4-SOF-CX-35K-I070-D0503500 K80 CRI4800 lm12638 WIndirect/Direct: Lambertian
SAE102-P-ID-STD-4-SOF-CX-35K-I070-D0553500 K80 CRI5000 lm12839 WIndirect/Direct: Lambertian
SAE102-P-ID-STD-4-SOF-CX-35K-I070-D0603500 K80 CRI5200 lm13040 WIndirect/Direct: Lambertian
SAE102-P-ID-STD-4-SOF-CX-35K-I070-D0653500 K80 CRI5400 lm12643 WIndirect/Direct: Lambertian
SAE102-P-ID-STD-4-SOF-CX-35K-I070-D0703500 K80 CRI5600 lm12744 WIndirect/Direct: Lambertian
SAE102-P-ID-STD-4-SOF-CX-35K-I070-D0753500 K80 CRI5800 lm12945 WIndirect/Direct: Lambertian
SAE102-P-ID-STD-4-SOF-CX-35K-I070-D0803500 K80 CRI6000 lm12548 WIndirect/Direct: Lambertian
SAE102-P-ID-STD-4-SOF-CX-35K-I070-D0853500 K80 CRI6200 lm12749 WIndirect/Direct: Lambertian
SAE102-P-ID-STD-4-SOF-CX-35K-I070-D0903500 K80 CRI6400 lm12153 WIndirect/Direct: Lambertian
SAE102-P-ID-STD-4-SOF-CX-35K-I070-D0953500 K80 CRI6600 lm12254 WIndirect/Direct: Lambertian
SAE102-P-ID-STD-4-SOF-CX-35K-I075-D0403500 K80 CRI4600 lm13534 WIndirect/Direct: Lambertian
SAE102-P-ID-STD-4-SOF-CX-35K-I075-D0453500 K80 CRI4800 lm13735 WIndirect/Direct: Lambertian
SAE102-P-ID-STD-4-SOF-CX-35K-I075-D0503500 K80 CRI5000 lm12839 WIndirect/Direct: Lambertian
SAE102-P-ID-STD-4-SOF-CX-35K-I075-D0553500 K80 CRI5200 lm13339 WIndirect/Direct: Lambertian
SAE102-P-ID-STD-4-SOF-CX-35K-I075-D0603500 K80 CRI5400 lm13241 WIndirect/Direct: Lambertian
SAE102-P-ID-STD-4-SOF-CX-35K-I075-D0653500 K80 CRI5600 lm12744 WIndirect/Direct: Lambertian
SAE102-P-ID-STD-4-SOF-CX-35K-I075-D0703500 K80 CRI5800 lm12945 WIndirect/Direct: Lambertian
SAE102-P-ID-STD-4-SOF-CX-35K-I075-D0753500 K80 CRI6000 lm13046 WIndirect/Direct: Lambertian
SAE102-P-ID-STD-4-SOF-CX-35K-I075-D0803500 K80 CRI6200 lm12749 WIndirect/Direct: Lambertian
SAE102-P-ID-STD-4-SOF-CX-35K-I075-D0853500 K80 CRI6400 lm12850 WIndirect/Direct: Lambertian
SAE102-P-ID-STD-4-SOF-CX-35K-I075-D0903500 K80 CRI6600 lm12254 WIndirect/Direct: Lambertian
SAE102-P-ID-STD-4-SOF-CX-35K-I075-D0953500 K80 CRI6800 lm12455 WIndirect/Direct: Lambertian
SAE102-P-ID-STD-4-SOF-CX-35K-I080-D0403500 K80 CRI4800 lm14134 WIndirect/Direct: Lambertian
SAE102-P-ID-STD-4-SOF-CX-35K-I080-D0453500 K80 CRI5000 lm13936 WIndirect/Direct: Lambertian
SAE102-P-ID-STD-4-SOF-CX-35K-I080-D0503500 K80 CRI5200 lm13339 WIndirect/Direct: Lambertian
SAE102-P-ID-STD-4-SOF-CX-35K-I080-D0553500 K80 CRI5400 lm13540 WIndirect/Direct: Lambertian
SAE102-P-ID-STD-4-SOF-CX-35K-I080-D0603500 K80 CRI5600 lm13342 WIndirect/Direct: Lambertian
SAE102-P-ID-STD-4-SOF-CX-35K-I080-D0653500 K80 CRI5800 lm12945 WIndirect/Direct: Lambertian
SAE102-P-ID-STD-4-SOF-CX-35K-I080-D0703500 K80 CRI6000 lm13345 WIndirect/Direct: Lambertian
SAE102-P-ID-STD-4-SOF-CX-35K-I080-D0753500 K80 CRI6200 lm13247 WIndirect/Direct: Lambertian
SAE102-P-ID-STD-4-SOF-CX-35K-I080-D0803500 K80 CRI6400 lm12850 WIndirect/Direct: Lambertian
SAE102-P-ID-STD-4-SOF-CX-35K-I080-D0853500 K80 CRI6600 lm13250 WIndirect/Direct: Lambertian
SAE102-P-ID-STD-4-SOF-CX-35K-I080-D0903500 K80 CRI6800 lm12455 WIndirect/Direct: Lambertian
SAE102-P-ID-STD-4-SOF-CX-35K-I080-D0953500 K80 CRI7000 lm12755 WIndirect/Direct: Lambertian
SAE102-P-ID-STD-4-SOF-CX-35K-I085-D0403500 K80 CRI5000 lm14734 WIndirect/Direct: Lambertian
SAE102-P-ID-STD-4-SOF-CX-35K-I085-D0453500 K80 CRI5200 lm14436 WIndirect/Direct: Lambertian
SAE102-P-ID-STD-4-SOF-CX-35K-I085-D0503500 K80 CRI5400 lm13839 WIndirect/Direct: Lambertian
SAE102-P-ID-STD-4-SOF-CX-35K-I085-D0553500 K80 CRI5600 lm14040 WIndirect/Direct: Lambertian
SAE102-P-ID-STD-4-SOF-CX-35K-I085-D0603500 K80 CRI5800 lm13842 WIndirect/Direct: Lambertian
SAE102-P-ID-STD-4-SOF-CX-35K-I085-D0653500 K80 CRI6000 lm13345 WIndirect/Direct: Lambertian
SAE102-P-ID-STD-4-SOF-CX-35K-I085-D0703500 K80 CRI6200 lm13845 WIndirect/Direct: Lambertian
SAE102-P-ID-STD-4-SOF-CX-35K-I085-D0753500 K80 CRI6400 lm13647 WIndirect/Direct: Lambertian
SAE102-P-ID-STD-4-SOF-CX-35K-I085-D0803500 K80 CRI6600 lm13250 WIndirect/Direct: Lambertian
SAE102-P-ID-STD-4-SOF-CX-35K-I085-D0853500 K80 CRI6800 lm13650 WIndirect/Direct: Lambertian
SAE102-P-ID-STD-4-SOF-CX-35K-I085-D0903500 K80 CRI7000 lm12755 WIndirect/Direct: Lambertian
SAE102-P-ID-STD-4-SOF-CX-35K-I085-D0953500 K80 CRI7200 lm13155 WIndirect/Direct: Lambertian
SAE102-P-ID-STD-4-SOF-CX-35K-I090-D0403500 K80 CRI5200 lm13339 WIndirect/Direct: Lambertian
SAE102-P-ID-STD-4-SOF-CX-35K-I090-D0453500 K80 CRI5400 lm13540 WIndirect/Direct: Lambertian
SAE102-P-ID-STD-4-SOF-CX-35K-I090-D0503500 K80 CRI5600 lm12744 WIndirect/Direct: Lambertian
SAE102-P-ID-STD-4-SOF-CX-35K-I090-D0553500 K80 CRI5800 lm12945 WIndirect/Direct: Lambertian
SAE102-P-ID-STD-4-SOF-CX-35K-I090-D0603500 K80 CRI6000 lm13046 WIndirect/Direct: Lambertian
SAE102-P-ID-STD-4-SOF-CX-35K-I090-D0653500 K80 CRI6200 lm12749 WIndirect/Direct: Lambertian
SAE102-P-ID-STD-4-SOF-CX-35K-I090-D0703500 K80 CRI6400 lm12850 WIndirect/Direct: Lambertian
SAE102-P-ID-STD-4-SOF-CX-35K-I090-D0753500 K80 CRI6600 lm12951 WIndirect/Direct: Lambertian
SAE102-P-ID-STD-4-SOF-CX-35K-I090-D0803500 K80 CRI6800 lm12654 WIndirect/Direct: Lambertian
SAE102-P-ID-STD-4-SOF-CX-35K-I090-D0853500 K80 CRI7000 lm12755 WIndirect/Direct: Lambertian
SAE102-P-ID-STD-4-SOF-CX-35K-I090-D0903500 K80 CRI7200 lm12259 WIndirect/Direct: Lambertian
SAE102-P-ID-STD-4-SOF-CX-35K-I090-D0953500 K80 CRI7400 lm12360 WIndirect/Direct: Lambertian
SAE102-P-ID-STD-4-SOF-CX-35K-I095-D0403500 K80 CRI5400 lm13241 WIndirect/Direct: Lambertian
SAE102-P-ID-STD-4-SOF-CX-35K-I095-D0453500 K80 CRI5600 lm13043 WIndirect/Direct: Lambertian
SAE102-P-ID-STD-4-SOF-CX-35K-I095-D0503500 K80 CRI5800 lm12646 WIndirect/Direct: Lambertian
SAE102-P-ID-STD-4-SOF-CX-35K-I095-D0553500 K80 CRI6000 lm12847 WIndirect/Direct: Lambertian
SAE102-P-ID-STD-4-SOF-CX-35K-I095-D0603500 K80 CRI6200 lm12749 WIndirect/Direct: Lambertian
SAE102-P-ID-STD-4-SOF-CX-35K-I095-D0653500 K80 CRI6400 lm12551 WIndirect/Direct: Lambertian
SAE102-P-ID-STD-4-SOF-CX-35K-I095-D0703500 K80 CRI6600 lm12752 WIndirect/Direct: Lambertian
SAE102-P-ID-STD-4-SOF-CX-35K-I095-D0753500 K80 CRI6800 lm12654 WIndirect/Direct: Lambertian
SAE102-P-ID-STD-4-SOF-CX-35K-I095-D0803500 K80 CRI7000 lm12556 WIndirect/Direct: Lambertian
SAE102-P-ID-STD-4-SOF-CX-35K-I095-D0853500 K80 CRI7200 lm12657 WIndirect/Direct: Lambertian
SAE102-P-ID-STD-4-SOF-CX-35K-I095-D0903500 K80 CRI7400 lm12161 WIndirect/Direct: Lambertian
SAE102-P-ID-STD-4-SOF-CX-35K-I095-D0953500 K80 CRI7600 lm12362 WIndirect/Direct: Lambertian
SAE102-P-ID-STD-4-SOF-CX-35K-I100-D0403500 K80 CRI5600 lm13342 WIndirect/Direct: Lambertian
SAE102-P-ID-STD-4-SOF-CX-35K-I100-D0453500 K80 CRI5800 lm13244 WIndirect/Direct: Lambertian
SAE102-P-ID-STD-4-SOF-CX-35K-I100-D0503500 K80 CRI6000 lm12847 WIndirect/Direct: Lambertian
SAE102-P-ID-STD-4-SOF-CX-35K-I100-D0553500 K80 CRI6200 lm12948 WIndirect/Direct: Lambertian
SAE102-P-ID-STD-4-SOF-CX-35K-I100-D0603500 K80 CRI6400 lm12850 WIndirect/Direct: Lambertian
SAE102-P-ID-STD-4-SOF-CX-35K-I100-D0653500 K80 CRI6600 lm12752 WIndirect/Direct: Lambertian
SAE102-P-ID-STD-4-SOF-CX-35K-I100-D0703500 K80 CRI6800 lm12853 WIndirect/Direct: Lambertian
SAE102-P-ID-STD-4-SOF-CX-35K-I100-D0753500 K80 CRI7000 lm12755 WIndirect/Direct: Lambertian
SAE102-P-ID-STD-4-SOF-CX-35K-I100-D0803500 K80 CRI7200 lm12657 WIndirect/Direct: Lambertian
SAE102-P-ID-STD-4-SOF-CX-35K-I100-D0853500 K80 CRI7400 lm12858 WIndirect/Direct: Lambertian
SAE102-P-ID-STD-4-SOF-CX-35K-I100-D0903500 K80 CRI7600 lm12362 WIndirect/Direct: Lambertian
SAE102-P-ID-STD-4-SOF-CX-35K-I100-D0953500 K80 CRI7800 lm12463 WIndirect/Direct: Lambertian
SAE102-P-ID-STD-4-SOF-CX-35K-I105-D0403500 K80 CRI5800 lm13543 WIndirect/Direct: Lambertian
SAE102-P-ID-STD-4-SOF-CX-35K-I105-D0453500 K80 CRI6000 lm13345 WIndirect/Direct: Lambertian
SAE102-P-ID-STD-4-SOF-CX-35K-I105-D0503500 K80 CRI6200 lm12948 WIndirect/Direct: Lambertian
SAE102-P-ID-STD-4-SOF-CX-35K-I105-D0553500 K80 CRI6400 lm13149 WIndirect/Direct: Lambertian
SAE102-P-ID-STD-4-SOF-CX-35K-I105-D0603500 K80 CRI6600 lm13250 WIndirect/Direct: Lambertian
SAE102-P-ID-STD-4-SOF-CX-35K-I105-D0653500 K80 CRI6800 lm12853 WIndirect/Direct: Lambertian
SAE102-P-ID-STD-4-SOF-CX-35K-I105-D0703500 K80 CRI7000 lm13054 WIndirect/Direct: Lambertian
SAE102-P-ID-STD-4-SOF-CX-35K-I105-D0753500 K80 CRI7200 lm13155 WIndirect/Direct: Lambertian
SAE102-P-ID-STD-4-SOF-CX-35K-I105-D0803500 K80 CRI7400 lm12858 WIndirect/Direct: Lambertian
SAE102-P-ID-STD-4-SOF-CX-35K-I105-D0853500 K80 CRI7600 lm12959 WIndirect/Direct: Lambertian
SAE102-P-ID-STD-4-SOF-CX-35K-I105-D0903500 K80 CRI7800 lm12463 WIndirect/Direct: Lambertian
SAE102-P-ID-STD-4-SOF-CX-35K-I105-D0953500 K80 CRI8000 lm12564 WIndirect/Direct: Lambertian
SAE102-P-ID-STD-4-SOF-CX-35K-I110-D0403500 K80 CRI6000 lm13046 WIndirect/Direct: Lambertian
SAE102-P-ID-STD-4-SOF-CX-35K-I110-D0453500 K80 CRI6200 lm12948 WIndirect/Direct: Lambertian
SAE102-P-ID-STD-4-SOF-CX-35K-I110-D0503500 K80 CRI6400 lm12551 WIndirect/Direct: Lambertian
SAE102-P-ID-STD-4-SOF-CX-35K-I110-D0553500 K80 CRI6600 lm12752 WIndirect/Direct: Lambertian
SAE102-P-ID-STD-4-SOF-CX-35K-I110-D0603500 K80 CRI6800 lm12654 WIndirect/Direct: Lambertian
SAE102-P-ID-STD-4-SOF-CX-35K-I110-D0653500 K80 CRI7000 lm12556 WIndirect/Direct: Lambertian
SAE102-P-ID-STD-4-SOF-CX-35K-I110-D0703500 K80 CRI7200 lm12657 WIndirect/Direct: Lambertian
SAE102-P-ID-STD-4-SOF-CX-35K-I110-D0753500 K80 CRI7400 lm12559 WIndirect/Direct: Lambertian
SAE102-P-ID-STD-4-SOF-CX-35K-I110-D0803500 K80 CRI7600 lm12561 WIndirect/Direct: Lambertian
SAE102-P-ID-STD-4-SOF-CX-35K-I110-D0853500 K80 CRI7800 lm12662 WIndirect/Direct: Lambertian
SAE102-P-ID-STD-4-SOF-CX-35K-I110-D0903500 K80 CRI8000 lm12166 WIndirect/Direct: Lambertian
SAE102-P-ID-STD-4-SOF-CX-35K-I110-D0953500 K80 CRI8200 lm12267 WIndirect/Direct: Lambertian
SAE102-P-ID-STD-4-SOF-CX-35K-I115-D0403500 K80 CRI6200 lm12948 WIndirect/Direct: Lambertian
SAE102-P-ID-STD-4-SOF-CX-35K-I115-D0453500 K80 CRI6400 lm12850 WIndirect/Direct: Lambertian
SAE102-P-ID-STD-4-SOF-CX-35K-I115-D0503500 K80 CRI6600 lm12553 WIndirect/Direct: Lambertian
SAE102-P-ID-STD-4-SOF-CX-35K-I115-D0553500 K80 CRI6800 lm12654 WIndirect/Direct: Lambertian
SAE102-P-ID-STD-4-SOF-CX-35K-I115-D0603500 K80 CRI7000 lm12755 WIndirect/Direct: Lambertian
SAE102-P-ID-STD-4-SOF-CX-35K-I115-D0653500 K80 CRI7200 lm12458 WIndirect/Direct: Lambertian
SAE102-P-ID-STD-4-SOF-CX-35K-I115-D0703500 K80 CRI7400 lm12559 WIndirect/Direct: Lambertian
SAE102-P-ID-STD-4-SOF-CX-35K-I115-D0753500 K80 CRI7600 lm12760 WIndirect/Direct: Lambertian
SAE102-P-ID-STD-4-SOF-CX-35K-I115-D0803500 K80 CRI7800 lm12463 WIndirect/Direct: Lambertian
SAE102-P-ID-STD-4-SOF-CX-35K-I115-D0853500 K80 CRI8000 lm12564 WIndirect/Direct: Lambertian
SAE102-P-ID-STD-4-SOF-CX-35K-I115-D0903500 K80 CRI8200 lm12168 WIndirect/Direct: Lambertian
SAE102-P-ID-STD-4-SOF-CX-35K-I115-D0953500 K80 CRI8400 lm12269 WIndirect/Direct: Lambertian
SAE102-P-ID-STD-4-SOF-CX-35K-I120-D0403500 K80 CRI6400 lm13149 WIndirect/Direct: Lambertian
SAE102-P-ID-STD-4-SOF-CX-35K-I120-D0453500 K80 CRI6600 lm13250 WIndirect/Direct: Lambertian
SAE102-P-ID-STD-4-SOF-CX-35K-I120-D0503500 K80 CRI6800 lm12654 WIndirect/Direct: Lambertian
SAE102-P-ID-STD-4-SOF-CX-35K-I120-D0553500 K80 CRI7000 lm12755 WIndirect/Direct: Lambertian
SAE102-P-ID-STD-4-SOF-CX-35K-I120-D0603500 K80 CRI7200 lm12956 WIndirect/Direct: Lambertian
SAE102-P-ID-STD-4-SOF-CX-35K-I120-D0653500 K80 CRI7400 lm12559 WIndirect/Direct: Lambertian
SAE102-P-ID-STD-4-SOF-CX-35K-I120-D0703500 K80 CRI7600 lm12760 WIndirect/Direct: Lambertian
SAE102-P-ID-STD-4-SOF-CX-35K-I120-D0753500 K80 CRI7800 lm12861 WIndirect/Direct: Lambertian
SAE102-P-ID-STD-4-SOF-CX-35K-I120-D0803500 K80 CRI8000 lm12564 WIndirect/Direct: Lambertian
SAE102-P-ID-STD-4-SOF-CX-35K-I120-D0853500 K80 CRI8200 lm12665 WIndirect/Direct: Lambertian
SAE102-P-ID-STD-4-SOF-CX-35K-I120-D0903500 K80 CRI8400 lm12269 WIndirect/Direct: Lambertian
SAE102-P-ID-STD-4-SOF-CX-35K-I120-D0953500 K80 CRI8600 lm12370 WIndirect/Direct: Lambertian
Show All

Related Products

A small-scale, modern, rectilinear pendant with an extremely versatile performance package.
View Product
A small-scale, modern, rectilinear pendant with an extremely versatile performance package.
View Product
A small-scale, modern, rectilinear pendant with an extremely versatile performance package.
View Product
A small-scale, modern, rectilinear pendant with an extremely versatile performance package.
View Product

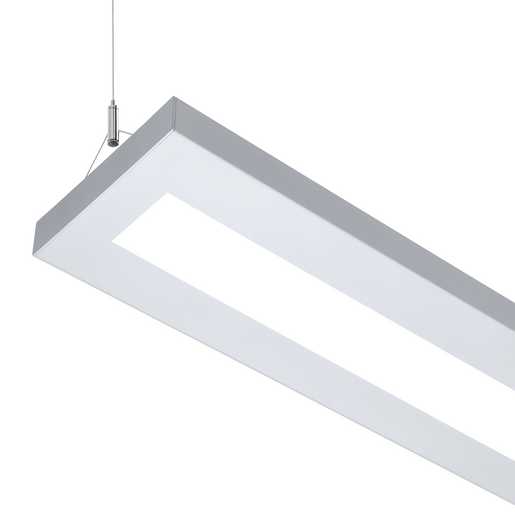

For educational environments and conference rooms, SAE103 provides both general and audio-visual lighting.
View Product
A classic rectilinear pendant that integrates into a wide-range of architectural styles.
View Product

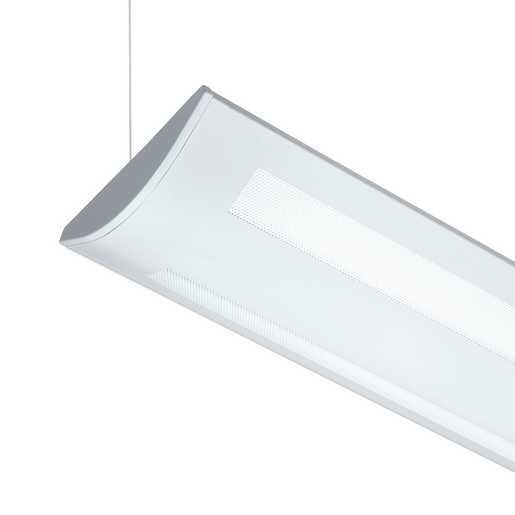

A graceful curved form providing indirect illumination for office and education applications.
View Product
A graceful curved form which compliments most architectural styles with indirect-direct or direct illumination.
View Product

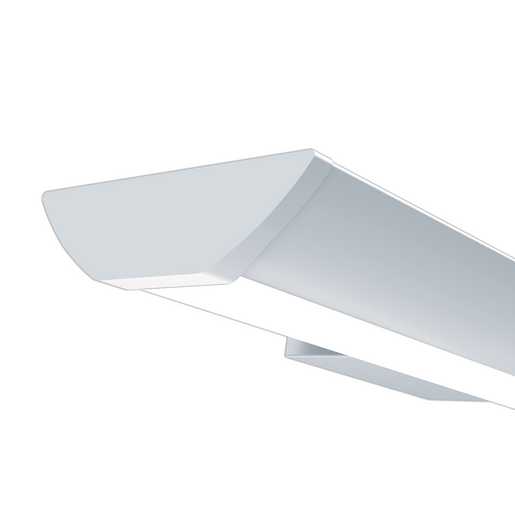

A classic rectilinear wall mount that integrates into a wide-range of architectural styles.
View Product

LOOKING TO PURCHASE?

Find an Agent


TALK TO AN EXPERT

Contact us
