LITECONTROL

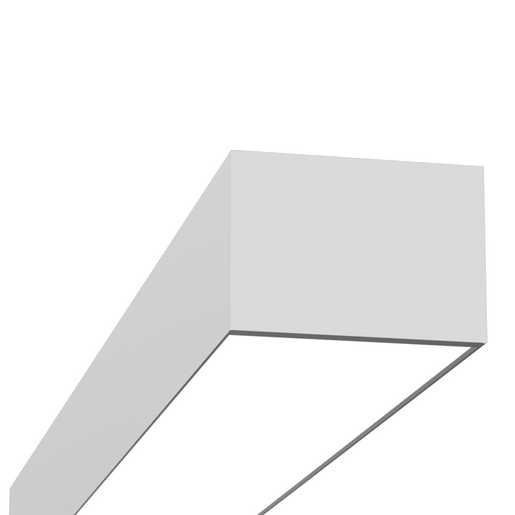

MOD™ 6L LED Pendant Indirect/Direct 6L-P-ID
The MODx™ family is an affordably-priced, full-featured offering with best-in-class attention to detail.

Features & Benefits
- Now available Contractor-Ready for faster and easier installation
- Variable Intensity technology provides specifiable uplight and downlight light levels
- End cap design eliminates visible diffuser seams/gaps
- 2 SDCM color variation
Specifications
Aperture
6
Product Technology
SpectraSync™ Color Tuning,
Vi (Variable Intensity)
Voltage Offering
120-277 V;347 V
Dimming Protocol
0-10V;Lutron EcoSystem Digital;DALI;DALI 2.0;0%;1%;5%;Step-Dimming
CCT Offering
2700,
3000,
3500,
4000,
5000
CRI Offering
80,
90
Color Tuning
Dim-to-Warm,
Tunable White
Mounting Options
Pendant
Wattage Range
5.7 - 23.5
Efficacy Range
110 - 128
Optics & Distributions
Indirect/Direct
Controls & Sensors
Occupancy,
Daylighting,
NX Lighting Controls
Certifications
CSA,
UL 924,
DLC Standard
Ratings
BAA (Buy American 52.225-9),
TAA (Buy American 52.225-11)
Warranty
5 year limited
Specifications
Aperture | 6 |
Product Technology | SpectraSync™ Color Tuning, Vi (Variable Intensity) |
Voltage Offering | 120-277 V;347 V |
Dimming Protocol | 0-10V;Lutron EcoSystem Digital;DALI;DALI 2.0;0%;1%;5%;Step-Dimming |
CCT Offering | 2700, 3000, 3500, 4000, 5000 |
CRI Offering | 80, 90 |
Color Tuning | Dim-to-Warm, Tunable White |
Mounting Options | Pendant |
Wattage Range | 5.7 - 23.5 |
Efficacy Range | 110 - 128 |
Optics & Distributions | Indirect/Direct |
Controls & Sensors | Occupancy, Daylighting, NX Lighting Controls |
Certifications | CSA, UL 924, DLC Standard |
Ratings | BAA (Buy American 52.225-9), TAA (Buy American 52.225-11) |
Warranty | 5 year limited |
Product Documents
Spec Sheets
Brochures / Catalogs
Sell Sheets
Design / BIM Files / 3D Models
Installation Guides
Photometry(0)
Clear FiltersProduct Name | Color Temp | CRI | Lumens | LM/W | Watts | Dist. Type | Resources |
---|---|---|---|---|---|---|---|
6L-P-ID-STD-4-SOF-X-CX-35K-I085-D080 | 3500 K | 80 CRI | 6600 lm | 112 | 59 W | Indirect/Direct: Lambertian | |
6L-P-ID-STD-4-SOF-X-CX-35K-I110-D035 | 3500 K | 80 CRI | 5800 lm | 114 | 51 W | Indirect/Direct: Lambertian | |
6L-P-ID-STD-4-SOF-X-CX-35K-I065-D060 | 3500 K | 80 CRI | 5000 lm | 114 | 44 W | Indirect/Direct: Lambertian | |
6L-P-ID-STD-4-SOF-X-CX-35K-I045-D035 | 3500 K | 80 CRI | 3200 lm | 114 | 28 W | Indirect/Direct: Lambertian | |
6L-P-ID-STD-4-SOF-X-CX-35K-I040-D035 | 3500 K | 80 CRI | 3000 lm | 115 | 26 W | Indirect/Direct: Lambertian | |
6L-P-ID-STD-4-SOF-X-CX-35K-I060-D060 | 3500 K | 80 CRI | 4800 lm | 114 | 42 W | Indirect/Direct: Lambertian | |
6L-P-ID-STD-4-SOF-X-CX-35K-I115-D035 | 3500 K | 80 CRI | 6000 lm | 113 | 53 W | Indirect/Direct: Lambertian | |
6L-P-ID-STD-4-SOF-X-CX-35K-I080-D080 | 3500 K | 80 CRI | 6400 lm | 112 | 57 W | Indirect/Direct: Lambertian | |
6L-P-ID-STD-4-SOF-X-CX-35K-I090-D095 | 3500 K | 80 CRI | 7400 lm | 110 | 67 W | Indirect/Direct: Lambertian | |
6L-P-ID-STD-4-SOF-X-CX-35K-I105-D035 | 3500 K | 80 CRI | 5600 lm | 114 | 49 W | Indirect/Direct: Lambertian | |
6L-P-ID-STD-4-SOF-X-CX-35K-I070-D060 | 3500 K | 80 CRI | 5200 lm | 113 | 46 W | Indirect/Direct: Lambertian | |
6L-P-ID-STD-4-SOF-X-CX-35K-I050-D035 | 3500 K | 80 CRI | 3400 lm | 117 | 29 W | Indirect/Direct: Lambertian | |
6L-P-ID-STD-4-SOF-X-CX-35K-I035-D035 | 3500 K | 80 CRI | 2800 lm | 112 | 25 W | Indirect/Direct: Lambertian | |
6L-P-ID-STD-4-SOF-X-CX-35K-I055-D055 | 3500 K | 80 CRI | 4400 lm | 113 | 39 W | Indirect/Direct: Lambertian | |
6L-P-ID-STD-4-SOF-X-CX-35K-I120-D040 | 3500 K | 80 CRI | 6400 lm | 112 | 57 W | Indirect/Direct: Lambertian | |
6L-P-ID-STD-4-SOF-X-CX-35K-I075-D080 | 3500 K | 80 CRI | 6200 lm | 113 | 55 W | Indirect/Direct: Lambertian | |
6L-P-ID-STD-4-SOF-X-CX-35K-I095-D095 | 3500 K | 80 CRI | 7600 lm | 110 | 69 W | Indirect/Direct: Lambertian | |
6L-P-ID-STD-4-SOF-X-CX-35K-I100-D030 | 3500 K | 80 CRI | 5200 lm | 116 | 45 W | Indirect/Direct: Lambertian | |
6L-P-ID-STD-4-SOF-X-CX-35K-I075-D060 | 3500 K | 80 CRI | 5400 lm | 115 | 47 W | Indirect/Direct: Lambertian | |
6L-P-ID-STD-4-SOF-X-CX-35K-I120-D065 | 3500 K | 80 CRI | 7400 lm | 112 | 66 W | Indirect/Direct: Lambertian | |
6L-P-ID-STD-4-SOF-X-CX-35K-I055-D035 | 3500 K | 80 CRI | 3600 lm | 116 | 31 W | Indirect/Direct: Lambertian | |
6L-P-ID-STD-4-SOF-X-CX-35K-I030-D100 | 3500 K | 80 CRI | 5200 lm | 106 | 49 W | Indirect/Direct: Lambertian | |
6L-P-ID-STD-4-SOF-X-CX-35K-I050-D055 | 3500 K | 80 CRI | 4200 lm | 114 | 37 W | Indirect/Direct: Lambertian | |
6L-P-ID-STD-4-SOF-X-CX-35K-I070-D080 | 3500 K | 80 CRI | 6000 lm | 111 | 54 W | Indirect/Direct: Lambertian | |
6L-P-ID-STD-4-SOF-X-CX-35K-I100-D095 | 3500 K | 80 CRI | 7800 lm | 110 | 71 W | Indirect/Direct: Lambertian | |
6L-P-ID-STD-4-SOF-X-CX-35K-I095-D030 | 3500 K | 80 CRI | 5000 lm | 116 | 43 W | Indirect/Direct: Lambertian | |
6L-P-ID-STD-4-SOF-X-CX-35K-I080-D060 | 3500 K | 80 CRI | 5600 lm | 114 | 49 W | Indirect/Direct: Lambertian | |
6L-P-D-4-BAT-X-CX-35K-D110 | 3500 K | 80 CRI | 4400 lm | 110 | 40 W | Direct: Batwing | |
6L-P-ID-STD-4-SOF-X-CX-35K-I115-D055 | 3500 K | 80 CRI | 6800 lm | 113 | 60 W | Indirect/Direct: Lambertian | |
6L-P-ID-STD-4-SOF-X-CX-35K-I060-D040 | 3500 K | 80 CRI | 4000 lm | 114 | 35 W | Indirect/Direct: Lambertian | |
6L-P-ID-STD-4-SOF-X-CX-35K-I035-D100 | 3500 K | 80 CRI | 5400 lm | 106 | 51 W | Indirect/Direct: Lambertian | |
6L-P-ID-STD-4-SOF-X-CX-35K-I045-D055 | 3500 K | 80 CRI | 4000 lm | 111 | 36 W | Indirect/Direct: Lambertian | |
6L-P-ID-STD-4-SOF-X-CX-35K-I065-D080 | 3500 K | 80 CRI | 5800 lm | 112 | 52 W | Indirect/Direct: Lambertian | |
6L-P-ID-STD-4-SOF-X-CX-35K-I105-D100 | 3500 K | 80 CRI | 8200 lm | 109 | 75 W | Indirect/Direct: Lambertian | |
6L-P-ID-STD-4-SOF-X-CX-35K-I085-D100 | 3500 K | 80 CRI | 7400 lm | 110 | 67 W | Indirect/Direct: Lambertian | |
6L-P-ID-STD-4-SOF-X-CX-35K-I085-D060 | 3500 K | 80 CRI | 5800 lm | 114 | 51 W | Indirect/Direct: Lambertian | |
6L-P-ID-STD-4-SOF-X-CX-35K-I120-D090 | 3500 K | 80 CRI | 8400 lm | 109 | 77 W | Indirect/Direct: Lambertian | |
6L-P-ID-STD-4-SOF-X-CX-35K-I110-D055 | 3500 K | 80 CRI | 6600 lm | 114 | 58 W | Indirect/Direct: Lambertian | |
6L-P-ID-STD-4-SOF-X-CX-35K-I065-D040 | 3500 K | 80 CRI | 4200 lm | 117 | 36 W | Indirect/Direct: Lambertian | |
6L-P-ID-STD-4-SOF-X-CX-35K-I040-D100 | 3500 K | 80 CRI | 5600 lm | 108 | 52 W | Indirect/Direct: Lambertian | |
6L-P-ID-STD-4-SOF-X-CX-35K-I040-D055 | 3500 K | 80 CRI | 3800 lm | 112 | 34 W | Indirect/Direct: Lambertian | |
6L-P-ID-STD-4-SOF-X-CX-35K-I060-D080 | 3500 K | 80 CRI | 5600 lm | 112 | 50 W | Indirect/Direct: Lambertian | |
6L-P-ID-STD-4-SOF-X-CX-35K-I110-D100 | 3500 K | 80 CRI | 8400 lm | 109 | 77 W | Indirect/Direct: Lambertian | |
6L-P-ID-STD-4-SOF-X-CX-35K-I080-D100 | 3500 K | 80 CRI | 7200 lm | 111 | 65 W | Indirect/Direct: Lambertian | |
6L-P-ID-STD-4-SOF-X-CX-35K-I090-D070 | 3500 K | 80 CRI | 6400 lm | 112 | 57 W | Indirect/Direct: Lambertian | |
6L-P-ID-STD-4-SOF-X-CX-35K-I105-D055 | 3500 K | 80 CRI | 6400 lm | 114 | 56 W | Indirect/Direct: Lambertian | |
6L-P-ID-STD-4-SOF-X-CX-35K-I070-D040 | 3500 K | 80 CRI | 4400 lm | 116 | 38 W | Indirect/Direct: Lambertian | |
6L-P-ID-STD-4-SOF-X-CX-35K-I045-D100 | 3500 K | 80 CRI | 5800 lm | 107 | 54 W | Indirect/Direct: Lambertian | |
6L-P-ID-STD-4-SOF-X-CX-35K-I035-D055 | 3500 K | 80 CRI | 3600 lm | 109 | 33 W | Indirect/Direct: Lambertian | |
6L-P-ID-STD-4-SOF-X-CX-35K-I055-D075 | 3500 K | 80 CRI | 5200 lm | 111 | 47 W | Indirect/Direct: Lambertian | |
6L-P-ID-STD-4-SOF-X-CX-35K-I115-D100 | 3500 K | 80 CRI | 8600 lm | 109 | 79 W | Indirect/Direct: Lambertian | |
6L-P-D-4-BAT-X-CX-35K-D065 | 3500 K | 80 CRI | 2600 lm | 113 | 23 W | Direct: Batwing | |
6L-P-ID-STD-4-SOF-X-CX-35K-I075-D100 | 3500 K | 80 CRI | 7000 lm | 109 | 64 W | Indirect/Direct: Lambertian | |
6L-P-D-4-BAT-X-CX-35K-D055 | 3500 K | 80 CRI | 2200 lm | 116 | 19 W | Direct: Batwing | |
6L-P-ID-STD-4-SOF-X-CX-35K-I095-D075 | 3500 K | 80 CRI | 6800 lm | 113 | 60 W | Indirect/Direct: Lambertian | |
6L-P-ID-STD-4-SOF-X-CX-35K-I100-D050 | 3500 K | 80 CRI | 6000 lm | 115 | 52 W | Indirect/Direct: Lambertian | |
6L-P-ID-STD-4-SOF-X-CX-35K-I075-D040 | 3500 K | 80 CRI | 4600 lm | 115 | 40 W | Indirect/Direct: Lambertian | |
6L-P-ID-STD-4-SOF-X-CX-35K-I120-D085 | 3500 K | 80 CRI | 8200 lm | 111 | 74 W | Indirect/Direct: Lambertian | |
6L-P-ID-STD-4-SOF-X-CX-35K-I050-D100 | 3500 K | 80 CRI | 6000 lm | 109 | 55 W | Indirect/Direct: Lambertian | |
6L-P-ID-STD-4-SOF-X-CX-35K-I030-D045 | 3500 K | 80 CRI | 3000 lm | 111 | 27 W | Indirect/Direct: Lambertian | |
6L-P-ID-STD-4-SOF-X-CX-35K-I030-D075 | 3500 K | 80 CRI | 4200 lm | 108 | 39 W | Indirect/Direct: Lambertian | |
6L-P-ID-STD-4-SOF-X-CX-35K-I050-D075 | 3500 K | 80 CRI | 5000 lm | 111 | 45 W | Indirect/Direct: Lambertian | |
6L-P-ID-STD-4-SOF-X-CX-35K-I070-D100 | 3500 K | 80 CRI | 6800 lm | 110 | 62 W | Indirect/Direct: Lambertian | |
6L-P-ID-STD-4-SOF-X-CX-35K-I100-D075 | 3500 K | 80 CRI | 7000 lm | 113 | 62 W | Indirect/Direct: Lambertian | |
6L-P-ID-STD-4-SOF-X-CX-35K-I095-D050 | 3500 K | 80 CRI | 5800 lm | 116 | 50 W | Indirect/Direct: Lambertian | |
6L-P-D-4-BAT-X-CX-35K-D030 | 3500 K | 80 CRI | 1200 lm | 120 | 10 W | Direct: Batwing | |
6L-P-ID-STD-4-SOF-X-CX-35K-I080-D040 | 3500 K | 80 CRI | 4800 lm | 117 | 41 W | Indirect/Direct: Lambertian | |
6L-P-D-4-BAT-X-CX-35K-D090 | 3500 K | 80 CRI | 3600 lm | 113 | 32 W | Direct: Batwing | |
6L-P-ID-STD-4-SOF-X-CX-35K-I115-D075 | 3500 K | 80 CRI | 7600 lm | 112 | 68 W | Indirect/Direct: Lambertian | |
6L-P-ID-STD-4-SOF-X-CX-35K-I055-D100 | 3500 K | 80 CRI | 6200 lm | 109 | 57 W | Indirect/Direct: Lambertian | |
6L-P-ID-STD-4-SOF-X-CX-35K-I035-D080 | 3500 K | 80 CRI | 4600 lm | 107 | 43 W | Indirect/Direct: Lambertian | |
6L-P-ID-STD-4-SOF-X-CX-35K-I045-D075 | 3500 K | 80 CRI | 4800 lm | 109 | 44 W | Indirect/Direct: Lambertian | |
6L-P-ID-STD-4-SOF-X-CX-35K-I065-D100 | 3500 K | 80 CRI | 6600 lm | 110 | 60 W | Indirect/Direct: Lambertian | |
6L-P-ID-STD-4-SOF-X-CX-35K-I105-D080 | 3500 K | 80 CRI | 7400 lm | 112 | 66 W | Indirect/Direct: Lambertian | |
6L-P-ID-STD-4-SOF-X-CX-35K-I090-D040 | 3500 K | 80 CRI | 5200 lm | 116 | 45 W | Indirect/Direct: Lambertian | |
6L-P-ID-STD-4-SOF-X-CX-35K-I085-D040 | 3500 K | 80 CRI | 5000 lm | 116 | 43 W | Indirect/Direct: Lambertian | |
6L-P-ID-STD-4-SOF-X-CX-35K-I100-D100 | 3500 K | 80 CRI | 8000 lm | 110 | 73 W | Indirect/Direct: Lambertian | |
6L-P-ID-STD-4-SOF-X-CX-35K-I110-D075 | 3500 K | 80 CRI | 7400 lm | 112 | 66 W | Indirect/Direct: Lambertian | |
6L-P-ID-STD-4-SOF-X-CX-35K-I060-D105 | 3500 K | 80 CRI | 6600 lm | 108 | 61 W | Indirect/Direct: Lambertian | |
6L-P-ID-STD-4-SOF-X-CX-35K-I040-D080 | 3500 K | 80 CRI | 4800 lm | 109 | 44 W | Indirect/Direct: Lambertian | |
6L-P-ID-STD-4-SOF-X-CX-35K-I040-D075 | 3500 K | 80 CRI | 4600 lm | 110 | 42 W | Indirect/Direct: Lambertian | |
6L-P-ID-STD-4-SOF-X-CX-35K-I060-D100 | 3500 K | 80 CRI | 6400 lm | 108 | 59 W | Indirect/Direct: Lambertian | |
6L-P-ID-STD-4-SOF-X-CX-35K-I110-D080 | 3500 K | 80 CRI | 7600 lm | 112 | 68 W | Indirect/Direct: Lambertian | |
6L-P-ID-STD-4-SOF-X-CX-35K-I060-D030 | 3500 K | 80 CRI | 3600 lm | 116 | 31 W | Indirect/Direct: Lambertian | |
6L-P-ID-STD-4-SOF-X-CX-35K-I085-D035 | 3500 K | 80 CRI | 4800 lm | 117 | 41 W | Indirect/Direct: Lambertian | |
6L-P-ID-STD-4-SOF-X-CX-35K-I090-D045 | 3500 K | 80 CRI | 5400 lm | 115 | 47 W | Indirect/Direct: Lambertian | |
6L-P-ID-STD-4-SOF-X-CX-35K-I105-D075 | 3500 K | 80 CRI | 7200 lm | 113 | 64 W | Indirect/Direct: Lambertian | |
6L-P-ID-STD-4-SOF-X-CX-35K-I065-D105 | 3500 K | 80 CRI | 6800 lm | 110 | 62 W | Indirect/Direct: Lambertian | |
6L-P-ID-STD-4-SOF-X-CX-35K-I045-D080 | 3500 K | 80 CRI | 5000 lm | 109 | 46 W | Indirect/Direct: Lambertian | |
6L-P-ID-STD-4-SOF-X-CX-35K-I035-D075 | 3500 K | 80 CRI | 4400 lm | 110 | 40 W | Indirect/Direct: Lambertian | |
6L-P-ID-STD-4-SOF-X-CX-35K-I055-D095 | 3500 K | 80 CRI | 6000 lm | 109 | 55 W | Indirect/Direct: Lambertian | |
6L-P-ID-STD-4-SOF-X-CX-35K-I115-D080 | 3500 K | 80 CRI | 7800 lm | 111 | 70 W | Indirect/Direct: Lambertian | |
6L-P-D-4-BAT-X-CX-35K-D085 | 3500 K | 80 CRI | 3400 lm | 113 | 30 W | Direct: Batwing | |
6L-P-ID-STD-4-SOF-X-CX-35K-I080-D035 | 3500 K | 80 CRI | 4600 lm | 118 | 39 W | Indirect/Direct: Lambertian | |
6L-P-D-4-BAT-X-CX-35K-D035 | 3500 K | 80 CRI | 1400 lm | 117 | 12 W | Direct: Batwing | |
6L-P-ID-STD-4-SOF-X-CX-35K-I095-D055 | 3500 K | 80 CRI | 6000 lm | 115 | 52 W | Indirect/Direct: Lambertian | |
6L-P-ID-STD-4-SOF-X-CX-35K-I100-D070 | 3500 K | 80 CRI | 6800 lm | 113 | 60 W | Indirect/Direct: Lambertian | |
6L-P-ID-STD-4-SOF-X-CX-35K-I070-D105 | 3500 K | 80 CRI | 7000 lm | 109 | 64 W | Indirect/Direct: Lambertian | |
6L-P-ID-STD-4-SOF-X-CX-35K-I120-D110 | 3500 K | 80 CRI | 9200 lm | 108 | 85 W | Indirect/Direct: Lambertian | |
6L-P-ID-STD-4-SOF-X-CX-35K-I050-D080 | 3500 K | 80 CRI | 5200 lm | 111 | 47 W | Indirect/Direct: Lambertian | |
6L-P-ID-STD-4-SOF-X-CX-35K-I030-D070 | 3500 K | 80 CRI | 4000 lm | 108 | 37 W | Indirect/Direct: Lambertian | |
6L-P-ID-STD-4-SOF-X-CX-35K-I030-D050 | 3500 K | 80 CRI | 3200 lm | 110 | 29 W | Indirect/Direct: Lambertian | |
6L-P-ID-STD-4-SOF-X-CX-35K-I050-D095 | 3500 K | 80 CRI | 5800 lm | 109 | 53 W | Indirect/Direct: Lambertian | |
6L-P-ID-STD-4-SOF-X-CX-35K-I120-D095 | 3500 K | 80 CRI | 8600 lm | 109 | 79 W | Indirect/Direct: Lambertian | |
6L-P-ID-STD-4-SOF-X-CX-35K-I075-D035 | 3500 K | 80 CRI | 4400 lm | 116 | 38 W | Indirect/Direct: Lambertian | |
6L-P-ID-STD-4-SOF-X-CX-35K-I100-D055 | 3500 K | 80 CRI | 6200 lm | 115 | 54 W | Indirect/Direct: Lambertian | |
6L-P-ID-STD-4-SOF-X-CX-35K-I095-D070 | 3500 K | 80 CRI | 6600 lm | 114 | 58 W | Indirect/Direct: Lambertian | |
6L-P-D-4-BAT-X-CX-35K-D050 | 3500 K | 80 CRI | 2000 lm | 118 | 17 W | Direct: Batwing | |
6L-P-ID-STD-4-SOF-X-CX-35K-I075-D105 | 3500 K | 80 CRI | 7200 lm | 109 | 66 W | Indirect/Direct: Lambertian | |
6L-P-D-4-BAT-X-CX-35K-D070 | 3500 K | 80 CRI | 2800 lm | 117 | 24 W | Direct: Batwing | |
6L-P-ID-STD-4-SOF-X-CX-35K-I115-D095 | 3500 K | 80 CRI | 8400 lm | 109 | 77 W | Indirect/Direct: Lambertian | |
6L-P-ID-STD-4-SOF-X-CX-35K-I055-D080 | 3500 K | 80 CRI | 5400 lm | 110 | 49 W | Indirect/Direct: Lambertian | |
6L-P-ID-STD-4-SOF-X-CX-35K-I035-D060 | 3500 K | 80 CRI | 3800 lm | 112 | 34 W | Indirect/Direct: Lambertian | |
6L-P-ID-STD-4-SOF-X-CX-35K-I045-D095 | 3500 K | 80 CRI | 5600 lm | 108 | 52 W | Indirect/Direct: Lambertian | |
6L-P-ID-STD-4-SOF-X-CX-35K-I070-D035 | 3500 K | 80 CRI | 4200 lm | 117 | 36 W | Indirect/Direct: Lambertian | |
6L-P-ID-STD-4-SOF-X-CX-35K-I105-D060 | 3500 K | 80 CRI | 6600 lm | 114 | 58 W | Indirect/Direct: Lambertian | |
6L-P-ID-STD-4-SOF-X-CX-35K-I090-D065 | 3500 K | 80 CRI | 6200 lm | 113 | 55 W | Indirect/Direct: Lambertian | |
6L-P-ID-STD-4-SOF-X-CX-35K-I080-D105 | 3500 K | 80 CRI | 7400 lm | 110 | 67 W | Indirect/Direct: Lambertian | |
6L-P-ID-STD-4-SOF-X-CX-35K-I110-D095 | 3500 K | 80 CRI | 8200 lm | 109 | 75 W | Indirect/Direct: Lambertian | |
6L-P-ID-STD-4-SOF-X-CX-35K-I060-D085 | 3500 K | 80 CRI | 5800 lm | 112 | 52 W | Indirect/Direct: Lambertian | |
6L-P-ID-STD-4-SOF-X-CX-35K-I040-D060 | 3500 K | 80 CRI | 4000 lm | 111 | 36 W | Indirect/Direct: Lambertian | |
6L-P-ID-STD-4-SOF-X-CX-35K-I040-D095 | 3500 K | 80 CRI | 5400 lm | 108 | 50 W | Indirect/Direct: Lambertian | |
6L-P-ID-STD-4-SOF-X-CX-35K-I065-D035 | 3500 K | 80 CRI | 4000 lm | 118 | 34 W | Indirect/Direct: Lambertian | |
6L-P-ID-STD-4-SOF-X-CX-35K-I110-D060 | 3500 K | 80 CRI | 6800 lm | 113 | 60 W | Indirect/Direct: Lambertian | |
6L-P-ID-STD-4-SOF-X-CX-35K-I090-D060 | 3500 K | 80 CRI | 6000 lm | 113 | 53 W | Indirect/Direct: Lambertian | |
6L-P-ID-STD-4-SOF-X-CX-35K-I085-D055 | 3500 K | 80 CRI | 5600 lm | 114 | 49 W | Indirect/Direct: Lambertian | |
6L-P-ID-STD-4-SOF-X-CX-35K-I085-D105 | 3500 K | 80 CRI | 7600 lm | 110 | 69 W | Indirect/Direct: Lambertian | |
6L-P-ID-STD-4-SOF-X-CX-35K-I105-D095 | 3500 K | 80 CRI | 8000 lm | 110 | 73 W | Indirect/Direct: Lambertian | |
6L-P-ID-STD-4-SOF-X-CX-35K-I065-D085 | 3500 K | 80 CRI | 6000 lm | 111 | 54 W | Indirect/Direct: Lambertian | |
6L-P-ID-STD-4-SOF-X-CX-35K-I045-D060 | 3500 K | 80 CRI | 4200 lm | 111 | 38 W | Indirect/Direct: Lambertian | |
6L-P-ID-STD-4-SOF-X-CX-35K-I035-D095 | 3500 K | 80 CRI | 5200 lm | 106 | 49 W | Indirect/Direct: Lambertian | |
6L-P-ID-STD-4-SOF-X-CX-35K-I060-D035 | 3500 K | 80 CRI | 3800 lm | 115 | 33 W | Indirect/Direct: Lambertian | |
6L-P-ID-STD-4-SOF-X-CX-35K-I115-D060 | 3500 K | 80 CRI | 7000 lm | 113 | 62 W | Indirect/Direct: Lambertian | |
6L-P-D-4-BAT-X-CX-35K-D105 | 3500 K | 80 CRI | 4200 lm | 114 | 37 W | Direct: Batwing | |
6L-P-ID-STD-4-SOF-X-CX-35K-I080-D055 | 3500 K | 80 CRI | 5400 lm | 115 | 47 W | Indirect/Direct: Lambertian | |
6L-P-ID-STD-4-SOF-X-CX-35K-I095-D035 | 3500 K | 80 CRI | 5200 lm | 116 | 45 W | Indirect/Direct: Lambertian | |
6L-P-ID-STD-4-SOF-X-CX-35K-I100-D090 | 3500 K | 80 CRI | 7600 lm | 112 | 68 W | Indirect/Direct: Lambertian | |
6L-P-ID-STD-4-SOF-X-CX-35K-I070-D085 | 3500 K | 80 CRI | 6200 lm | 111 | 56 W | Indirect/Direct: Lambertian | |
6L-P-ID-STD-4-SOF-X-CX-35K-I050-D060 | 3500 K | 80 CRI | 4400 lm | 113 | 39 W | Indirect/Direct: Lambertian | |
6L-P-ID-STD-4-SOF-X-CX-35K-I030-D095 | 3500 K | 80 CRI | 5000 lm | 106 | 47 W | Indirect/Direct: Lambertian | |
6L-P-ID-STD-4-SOF-X-CX-35K-I030-D030 | 3500 K | 80 CRI | 2400 lm | 109 | 22 W | Indirect/Direct: Lambertian | |
6L-P-ID-STD-4-SOF-X-CX-35K-I055-D030 | 3500 K | 80 CRI | 3400 lm | 117 | 29 W | Indirect/Direct: Lambertian | |
6L-P-ID-STD-4-SOF-X-CX-35K-I120-D070 | 3500 K | 80 CRI | 7600 lm | 112 | 68 W | Indirect/Direct: Lambertian | |
6L-P-ID-STD-4-SOF-X-CX-35K-I075-D055 | 3500 K | 80 CRI | 5200 lm | 116 | 45 W | Indirect/Direct: Lambertian | |
6L-P-ID-STD-4-SOF-X-CX-35K-I100-D035 | 3500 K | 80 CRI | 5400 lm | 115 | 47 W | Indirect/Direct: Lambertian | |
6L-P-ID-STD-4-SOF-X-CX-35K-I095-D090 | 3500 K | 80 CRI | 7400 lm | 110 | 67 W | Indirect/Direct: Lambertian | |
6L-P-ID-STD-4-SOF-X-CX-35K-I075-D085 | 3500 K | 80 CRI | 6400 lm | 112 | 57 W | Indirect/Direct: Lambertian | |
6L-P-ID-STD-4-SOF-X-CX-35K-I120-D035 | 3500 K | 80 CRI | 6200 lm | 113 | 55 W | Indirect/Direct: Lambertian | |
6L-P-ID-STD-4-SOF-X-CX-35K-I055-D060 | 3500 K | 80 CRI | 4600 lm | 112 | 41 W | Indirect/Direct: Lambertian | |
6L-P-ID-STD-4-SOF-X-CX-35K-I035-D040 | 3500 K | 80 CRI | 3000 lm | 111 | 27 W | Indirect/Direct: Lambertian | |
6L-P-ID-STD-4-SOF-X-CX-35K-I050-D030 | 3500 K | 80 CRI | 3200 lm | 114 | 28 W | Indirect/Direct: Lambertian | |
6L-P-ID-STD-4-SOF-X-CX-35K-I070-D055 | 3500 K | 80 CRI | 5000 lm | 114 | 44 W | Indirect/Direct: Lambertian | |
6L-P-ID-STD-4-SOF-X-CX-35K-I105-D040 | 3500 K | 80 CRI | 5800 lm | 114 | 51 W | Indirect/Direct: Lambertian | |
6L-P-ID-STD-4-SOF-X-CX-35K-I090-D085 | 3500 K | 80 CRI | 7000 lm | 111 | 63 W | Indirect/Direct: Lambertian | |
6L-P-ID-STD-4-SOF-X-CX-35K-I080-D085 | 3500 K | 80 CRI | 6600 lm | 112 | 59 W | Indirect/Direct: Lambertian | |
6L-P-ID-STD-4-SOF-X-CX-35K-I115-D030 | 3500 K | 80 CRI | 5800 lm | 114 | 51 W | Indirect/Direct: Lambertian | |
6L-P-ID-STD-4-SOF-X-CX-35K-I060-D065 | 3500 K | 80 CRI | 5000 lm | 114 | 44 W | Indirect/Direct: Lambertian | |
6L-P-ID-STD-4-SOF-X-CX-35K-I040-D040 | 3500 K | 80 CRI | 3200 lm | 114 | 28 W | Indirect/Direct: Lambertian | |
6L-P-ID-STD-4-SOF-X-CX-35K-I045-D030 | 3500 K | 80 CRI | 3000 lm | 115 | 26 W | Indirect/Direct: Lambertian | |
6L-P-ID-STD-4-SOF-X-CX-35K-I065-D055 | 3500 K | 80 CRI | 4800 lm | 114 | 42 W | Indirect/Direct: Lambertian | |
6L-P-ID-STD-4-SOF-X-CX-35K-I110-D040 | 3500 K | 80 CRI | 6000 lm | 113 | 53 W | Indirect/Direct: Lambertian | |
6L-P-ID-STD-4-SOF-X-CX-35K-I085-D075 | 3500 K | 80 CRI | 6400 lm | 112 | 57 W | Indirect/Direct: Lambertian | |
6L-P-ID-STD-4-SOF-X-CX-35K-I085-D085 | 3500 K | 80 CRI | 6800 lm | 111 | 61 W | Indirect/Direct: Lambertian | |
6L-P-ID-STD-4-SOF-X-CX-35K-I110-D030 | 3500 K | 80 CRI | 5600 lm | 114 | 49 W | Indirect/Direct: Lambertian | |
6L-P-ID-STD-4-SOF-X-CX-35K-I065-D065 | 3500 K | 80 CRI | 5200 lm | 113 | 46 W | Indirect/Direct: Lambertian | |
6L-P-ID-STD-4-SOF-X-CX-35K-I045-D040 | 3500 K | 80 CRI | 3400 lm | 113 | 30 W | Indirect/Direct: Lambertian | |
6L-P-ID-STD-4-SOF-X-CX-35K-I040-D030 | 3500 K | 80 CRI | 2800 lm | 112 | 25 W | Indirect/Direct: Lambertian | |
6L-P-ID-STD-4-SOF-X-CX-35K-I060-D055 | 3500 K | 80 CRI | 4600 lm | 115 | 40 W | Indirect/Direct: Lambertian | |
6L-P-ID-STD-4-SOF-X-CX-35K-I115-D040 | 3500 K | 80 CRI | 6200 lm | 113 | 55 W | Indirect/Direct: Lambertian | |
6L-P-D-4-BAT-X-CX-35K-D125 | 3500 K | 80 CRI | 5000 lm | 114 | 44 W | Direct: Batwing | |
6L-P-ID-STD-4-SOF-X-CX-35K-I080-D075 | 3500 K | 80 CRI | 6200 lm | 113 | 55 W | Indirect/Direct: Lambertian | |
6L-P-ID-STD-4-SOF-X-CX-35K-I090-D100 | 3500 K | 80 CRI | 7600 lm | 110 | 69 W | Indirect/Direct: Lambertian | |
6L-P-ID-STD-4-SOF-X-CX-35K-I105-D030 | 3500 K | 80 CRI | 5400 lm | 115 | 47 W | Indirect/Direct: Lambertian | |
6L-P-ID-STD-4-SOF-X-CX-35K-I070-D065 | 3500 K | 80 CRI | 5400 lm | 113 | 48 W | Indirect/Direct: Lambertian | |
6L-P-ID-STD-4-SOF-X-CX-35K-I050-D040 | 3500 K | 80 CRI | 3600 lm | 116 | 31 W | Indirect/Direct: Lambertian | |
6L-P-ID-STD-4-SOF-X-CX-35K-I035-D030 | 3500 K | 80 CRI | 2600 lm | 113 | 23 W | Indirect/Direct: Lambertian | |
6L-P-ID-STD-4-SOF-X-CX-35K-I055-D050 | 3500 K | 80 CRI | 4200 lm | 114 | 37 W | Indirect/Direct: Lambertian | |
6L-P-ID-STD-4-SOF-X-CX-35K-I120-D045 | 3500 K | 80 CRI | 6600 lm | 112 | 59 W | Indirect/Direct: Lambertian | |
6L-P-ID-STD-4-SOF-X-CX-35K-I075-D075 | 3500 K | 80 CRI | 6000 lm | 113 | 53 W | Indirect/Direct: Lambertian | |
6L-P-ID-STD-4-SOF-X-CX-35K-I095-D100 | 3500 K | 80 CRI | 7800 lm | 110 | 71 W | Indirect/Direct: Lambertian | |
6L-P-ID-STD-4-SOF-X-CX-35K-I095-D110 | 3500 K | 80 CRI | 8200 lm | 109 | 75 W | Indirect/Direct: Lambertian | |
6L-P-ID-STD-4-SOF-X-CX-35K-I075-D065 | 3500 K | 80 CRI | 5600 lm | 114 | 49 W | Indirect/Direct: Lambertian | |
6L-P-ID-STD-4-SOF-X-CX-35K-I120-D055 | 3500 K | 80 CRI | 7000 lm | 113 | 62 W | Indirect/Direct: Lambertian | |
6L-P-ID-STD-4-SOF-X-CX-35K-I055-D040 | 3500 K | 80 CRI | 3800 lm | 115 | 33 W | Indirect/Direct: Lambertian | |
6L-P-ID-STD-4-SOF-X-CX-35K-I030-D105 | 3500 K | 80 CRI | 5400 lm | 104 | 52 W | Indirect/Direct: Lambertian | |
6L-P-ID-STD-4-SOF-X-CX-35K-I050-D050 | 3500 K | 80 CRI | 4000 lm | 114 | 35 W | Indirect/Direct: Lambertian | |
6L-P-ID-STD-4-SOF-X-CX-35K-I070-D075 | 3500 K | 80 CRI | 5800 lm | 112 | 52 W | Indirect/Direct: Lambertian | |
6L-P-ID-STD-4-SOF-X-CX-35K-I100-D105 | 3500 K | 80 CRI | 8200 lm | 109 | 75 W | Indirect/Direct: Lambertian | |
6L-P-ID-STD-4-SOF-X-CX-35K-I090-D110 | 3500 K | 80 CRI | 8000 lm | 110 | 73 W | Indirect/Direct: Lambertian | |
6L-P-ID-STD-4-SOF-X-CX-35K-I080-D065 | 3500 K | 80 CRI | 5800 lm | 114 | 51 W | Indirect/Direct: Lambertian | |
6L-P-D-4-BAT-X-CX-35K-D115 | 3500 K | 80 CRI | 4600 lm | 110 | 42 W | Direct: Batwing | |
6L-P-ID-STD-4-SOF-X-CX-35K-I115-D050 | 3500 K | 80 CRI | 6600 lm | 114 | 58 W | Indirect/Direct: Lambertian | |
6L-P-ID-STD-4-SOF-X-CX-35K-I060-D045 | 3500 K | 80 CRI | 4200 lm | 117 | 36 W | Indirect/Direct: Lambertian | |
6L-P-ID-STD-4-SOF-X-CX-35K-I035-D105 | 3500 K | 80 CRI | 5600 lm | 106 | 53 W | Indirect/Direct: Lambertian | |
6L-P-ID-STD-4-SOF-X-CX-35K-I045-D050 | 3500 K | 80 CRI | 3800 lm | 112 | 34 W | Indirect/Direct: Lambertian | |
6L-P-ID-STD-4-SOF-X-CX-35K-I065-D075 | 3500 K | 80 CRI | 5600 lm | 112 | 50 W | Indirect/Direct: Lambertian | |
6L-P-ID-STD-4-SOF-X-CX-35K-I105-D105 | 3500 K | 80 CRI | 8400 lm | 109 | 77 W | Indirect/Direct: Lambertian | |
6L-P-ID-STD-4-SOF-X-CX-35K-I085-D095 | 3500 K | 80 CRI | 7200 lm | 111 | 65 W | Indirect/Direct: Lambertian | |
6L-P-ID-STD-4-SOF-X-CX-35K-I085-D065 | 3500 K | 80 CRI | 6000 lm | 113 | 53 W | Indirect/Direct: Lambertian | |
6L-P-ID-STD-4-SOF-X-CX-35K-I030-D060 | 3500 K | 80 CRI | 3600 lm | 109 | 33 W | Indirect/Direct: Lambertian | |
6L-P-ID-STD-4-SOF-X-CX-35K-I110-D050 | 3500 K | 80 CRI | 6400 lm | 114 | 56 W | Indirect/Direct: Lambertian | |
6L-P-ID-STD-4-SOF-X-CX-35K-I065-D045 | 3500 K | 80 CRI | 4400 lm | 116 | 38 W | Indirect/Direct: Lambertian | |
6L-P-ID-STD-4-SOF-X-CX-35K-I040-D105 | 3500 K | 80 CRI | 5800 lm | 105 | 55 W | Indirect/Direct: Lambertian | |
6L-P-ID-STD-4-SOF-X-CX-35K-I040-D050 | 3500 K | 80 CRI | 3600 lm | 113 | 32 W | Indirect/Direct: Lambertian | |
6L-P-ID-STD-4-SOF-X-CX-35K-I060-D075 | 3500 K | 80 CRI | 5400 lm | 113 | 48 W | Indirect/Direct: Lambertian | |
6L-P-ID-STD-4-SOF-X-CX-35K-I110-D105 | 3500 K | 80 CRI | 8600 lm | 109 | 79 W | Indirect/Direct: Lambertian | |
6L-P-ID-STD-4-SOF-X-CX-35K-I080-D095 | 3500 K | 80 CRI | 7000 lm | 111 | 63 W | Indirect/Direct: Lambertian | |
6L-P-ID-STD-4-SOF-X-CX-35K-I090-D075 | 3500 K | 80 CRI | 6600 lm | 112 | 59 W | Indirect/Direct: Lambertian | |
6L-P-ID-STD-4-SOF-X-CX-35K-I105-D050 | 3500 K | 80 CRI | 6200 lm | 115 | 54 W | Indirect/Direct: Lambertian | |
6L-P-ID-STD-4-SOF-X-CX-35K-I070-D045 | 3500 K | 80 CRI | 4600 lm | 115 | 40 W | Indirect/Direct: Lambertian | |
6L-P-ID-STD-4-SOF-X-CX-35K-I045-D105 | 3500 K | 80 CRI | 6000 lm | 107 | 56 W | Indirect/Direct: Lambertian | |
6L-P-ID-STD-4-SOF-X-CX-35K-I035-D050 | 3500 K | 80 CRI | 3400 lm | 110 | 31 W | Indirect/Direct: Lambertian | |
6L-P-ID-STD-4-SOF-X-CX-35K-I055-D070 | 3500 K | 80 CRI | 5000 lm | 111 | 45 W | Indirect/Direct: Lambertian | |
6L-P-ID-STD-4-SOF-X-CX-35K-I115-D105 | 3500 K | 80 CRI | 8800 lm | 109 | 81 W | Indirect/Direct: Lambertian | |
6L-P-ID-STD-4-SOF-X-CX-35K-I075-D095 | 3500 K | 80 CRI | 6800 lm | 110 | 62 W | Indirect/Direct: Lambertian | |
6L-P-D-4-BAT-X-CX-35K-D060 | 3500 K | 80 CRI | 2400 lm | 114 | 21 W | Direct: Batwing | |
6L-P-ID-STD-4-SOF-X-CX-35K-I095-D080 | 3500 K | 80 CRI | 7000 lm | 113 | 62 W | Indirect/Direct: Lambertian | |
6L-P-ID-STD-4-SOF-X-CX-35K-I100-D045 | 3500 K | 80 CRI | 5800 lm | 116 | 50 W | Indirect/Direct: Lambertian | |
6L-P-ID-STD-4-SOF-X-CX-35K-I075-D045 | 3500 K | 80 CRI | 4800 lm | 117 | 41 W | Indirect/Direct: Lambertian | |
6L-P-ID-STD-4-SOF-X-CX-35K-I120-D080 | 3500 K | 80 CRI | 8000 lm | 111 | 72 W | Indirect/Direct: Lambertian | |
6L-P-ID-STD-4-SOF-X-CX-35K-I050-D105 | 3500 K | 80 CRI | 6200 lm | 107 | 58 W | Indirect/Direct: Lambertian | |
6L-P-ID-STD-4-SOF-X-CX-35K-I030-D040 | 3500 K | 80 CRI | 2800 lm | 112 | 25 W | Indirect/Direct: Lambertian | |
6L-P-ID-STD-4-SOF-X-CX-35K-I030-D080 | 3500 K | 80 CRI | 4400 lm | 107 | 41 W | Indirect/Direct: Lambertian | |
6L-P-ID-STD-4-SOF-X-CX-35K-I050-D070 | 3500 K | 80 CRI | 4800 lm | 112 | 43 W | Indirect/Direct: Lambertian | |
6L-P-ID-STD-4-SOF-X-CX-35K-I070-D095 | 3500 K | 80 CRI | 6600 lm | 110 | 60 W | Indirect/Direct: Lambertian | |
6L-P-ID-STD-4-SOF-X-CX-35K-I100-D080 | 3500 K | 80 CRI | 7200 lm | 113 | 64 W | Indirect/Direct: Lambertian | |
6L-P-ID-STD-4-SOF-X-CX-35K-I095-D045 | 3500 K | 80 CRI | 5600 lm | 114 | 49 W | Indirect/Direct: Lambertian | |
6L-P-ID-STD-4-SOF-X-CX-35K-I080-D045 | 3500 K | 80 CRI | 5000 lm | 116 | 43 W | Indirect/Direct: Lambertian | |
6L-P-D-4-BAT-X-CX-35K-D095 | 3500 K | 80 CRI | 3800 lm | 112 | 34 W | Direct: Batwing | |
6L-P-ID-STD-4-SOF-X-CX-35K-I115-D070 | 3500 K | 80 CRI | 7400 lm | 112 | 66 W | Indirect/Direct: Lambertian | |
6L-P-ID-STD-4-SOF-X-CX-35K-I055-D105 | 3500 K | 80 CRI | 6400 lm | 108 | 59 W | Indirect/Direct: Lambertian | |
6L-P-ID-STD-4-SOF-X-CX-35K-I035-D085 | 3500 K | 80 CRI | 4800 lm | 107 | 45 W | Indirect/Direct: Lambertian | |
6L-P-ID-STD-4-SOF-X-CX-35K-I045-D070 | 3500 K | 80 CRI | 4600 lm | 112 | 41 W | Indirect/Direct: Lambertian | |
6L-P-ID-STD-4-SOF-X-CX-35K-I065-D095 | 3500 K | 80 CRI | 6400 lm | 110 | 58 W | Indirect/Direct: Lambertian | |
6L-P-ID-STD-4-SOF-X-CX-35K-I105-D085 | 3500 K | 80 CRI | 7600 lm | 112 | 68 W | Indirect/Direct: Lambertian | |
6L-P-ID-STD-4-SOF-X-CX-35K-I090-D035 | 3500 K | 80 CRI | 5000 lm | 116 | 43 W | Indirect/Direct: Lambertian | |
6L-P-ID-STD-4-SOF-X-CX-35K-I085-D045 | 3500 K | 80 CRI | 5200 lm | 116 | 45 W | Indirect/Direct: Lambertian | |
6L-P-ID-STD-4-SOF-X-CX-35K-I090-D030 | 3500 K | 80 CRI | 4800 lm | 117 | 41 W | Indirect/Direct: Lambertian | |
6L-P-ID-STD-4-SOF-X-CX-35K-I110-D070 | 3500 K | 80 CRI | 7200 lm | 113 | 64 W | Indirect/Direct: Lambertian | |
6L-P-ID-STD-4-SOF-X-CX-35K-I060-D110 | 3500 K | 80 CRI | 6800 lm | 108 | 63 W | Indirect/Direct: Lambertian | |
6L-P-ID-STD-4-SOF-X-CX-35K-I040-D085 | 3500 K | 80 CRI | 5000 lm | 109 | 46 W | Indirect/Direct: Lambertian | |
6L-P-ID-STD-4-SOF-X-CX-35K-I040-D070 | 3500 K | 80 CRI | 4400 lm | 110 | 40 W | Indirect/Direct: Lambertian | |
6L-P-ID-STD-4-SOF-X-CX-35K-I060-D095 | 3500 K | 80 CRI | 6200 lm | 109 | 57 W | Indirect/Direct: Lambertian | |
6L-P-ID-STD-4-SOF-X-CX-35K-I110-D085 | 3500 K | 80 CRI | 7800 lm | 111 | 70 W | Indirect/Direct: Lambertian | |
6L-P-ID-STD-4-SOF-X-CX-35K-I090-D090 | 3500 K | 80 CRI | 7200 lm | 111 | 65 W | Indirect/Direct: Lambertian | |
6L-P-ID-STD-4-SOF-X-CX-35K-I085-D030 | 3500 K | 80 CRI | 4600 lm | 118 | 39 W | Indirect/Direct: Lambertian | |
6L-P-ID-STD-4-SOF-X-CX-35K-I090-D050 | 3500 K | 80 CRI | 5600 lm | 114 | 49 W | Indirect/Direct: Lambertian | |
6L-P-ID-STD-4-SOF-X-CX-35K-I105-D070 | 3500 K | 80 CRI | 7000 lm | 113 | 62 W | Indirect/Direct: Lambertian | |
6L-P-ID-STD-4-SOF-X-CX-35K-I065-D110 | 3500 K | 80 CRI | 7000 lm | 108 | 65 W | Indirect/Direct: Lambertian | |
6L-P-ID-STD-4-SOF-X-CX-35K-I045-D085 | 3500 K | 80 CRI | 5200 lm | 108 | 48 W | Indirect/Direct: Lambertian | |
6L-P-ID-STD-4-SOF-X-CX-35K-I035-D070 | 3500 K | 80 CRI | 4200 lm | 111 | 38 W | Indirect/Direct: Lambertian | |
6L-P-ID-STD-4-SOF-X-CX-35K-I055-D090 | 3500 K | 80 CRI | 5800 lm | 109 | 53 W | Indirect/Direct: Lambertian | |
6L-P-ID-STD-4-SOF-X-CX-35K-I115-D085 | 3500 K | 80 CRI | 8000 lm | 111 | 72 W | Indirect/Direct: Lambertian | |
6L-P-D-4-BAT-X-CX-35K-D080 | 3500 K | 80 CRI | 3200 lm | 114 | 28 W | Direct: Batwing | |
6L-P-ID-STD-4-SOF-X-CX-35K-I080-D030 | 3500 K | 80 CRI | 4400 lm | 116 | 38 W | Indirect/Direct: Lambertian | |
6L-P-D-4-BAT-X-CX-35K-D040 | 3500 K | 80 CRI | 1600 lm | 114 | 14 W | Direct: Batwing | |
6L-P-ID-STD-4-SOF-X-CX-35K-I095-D060 | 3500 K | 80 CRI | 6200 lm | 115 | 54 W | Indirect/Direct: Lambertian | |
6L-P-ID-STD-4-SOF-X-CX-35K-I100-D065 | 3500 K | 80 CRI | 6600 lm | 114 | 58 W | Indirect/Direct: Lambertian | |
6L-P-ID-STD-4-SOF-X-CX-35K-I070-D110 | 3500 K | 80 CRI | 7200 lm | 109 | 66 W | Indirect/Direct: Lambertian | |
6L-P-ID-STD-4-SOF-X-CX-35K-I120-D105 | 3500 K | 80 CRI | 9000 lm | 108 | 83 W | Indirect/Direct: Lambertian | |
6L-P-ID-STD-4-SOF-X-CX-35K-I050-D085 | 3500 K | 80 CRI | 5400 lm | 110 | 49 W | Indirect/Direct: Lambertian | |
6L-P-ID-STD-4-SOF-X-CX-35K-I030-D065 | 3500 K | 80 CRI | 3800 lm | 109 | 35 W | Indirect/Direct: Lambertian | |
6L-P-ID-STD-4-SOF-X-CX-35K-I030-D055 | 3500 K | 80 CRI | 3400 lm | 110 | 31 W | Indirect/Direct: Lambertian | |
6L-P-ID-STD-4-SOF-X-CX-35K-I050-D090 | 3500 K | 80 CRI | 5600 lm | 110 | 51 W | Indirect/Direct: Lambertian | |
6L-P-ID-STD-4-SOF-X-CX-35K-I120-D100 | 3500 K | 80 CRI | 8800 lm | 109 | 81 W | Indirect/Direct: Lambertian | |
6L-P-ID-STD-4-SOF-X-CX-35K-I075-D030 | 3500 K | 80 CRI | 4200 lm | 117 | 36 W | Indirect/Direct: Lambertian | |
6L-P-ID-STD-4-SOF-X-CX-35K-I100-D060 | 3500 K | 80 CRI | 6400 lm | 114 | 56 W | Indirect/Direct: Lambertian | |
6L-P-ID-STD-4-SOF-X-CX-35K-I095-D065 | 3500 K | 80 CRI | 6400 lm | 114 | 56 W | Indirect/Direct: Lambertian | |
6L-P-D-4-BAT-X-CX-35K-D045 | 3500 K | 80 CRI | 1800 lm | 113 | 16 W | Direct: Batwing | |
6L-P-ID-STD-4-SOF-X-CX-35K-I075-D110 | 3500 K | 80 CRI | 7400 lm | 109 | 68 W | Indirect/Direct: Lambertian | |
6L-P-D-4-BAT-X-CX-35K-D075 | 3500 K | 80 CRI | 3000 lm | 115 | 26 W | Direct: Batwing | |
6L-P-ID-STD-4-SOF-X-CX-35K-I115-D090 | 3500 K | 80 CRI | 8200 lm | 111 | 74 W | Indirect/Direct: Lambertian | |
6L-P-ID-STD-4-SOF-X-CX-35K-I055-D085 | 3500 K | 80 CRI | 5600 lm | 110 | 51 W | Indirect/Direct: Lambertian | |
6L-P-ID-STD-4-SOF-X-CX-35K-I035-D065 | 3500 K | 80 CRI | 4000 lm | 111 | 36 W | Indirect/Direct: Lambertian | |
6L-P-ID-STD-4-SOF-X-CX-35K-I045-D090 | 3500 K | 80 CRI | 5400 lm | 108 | 50 W | Indirect/Direct: Lambertian | |
6L-P-ID-STD-4-SOF-X-CX-35K-I070-D030 | 3500 K | 80 CRI | 4000 lm | 118 | 34 W | Indirect/Direct: Lambertian | |
6L-P-ID-STD-4-SOF-X-CX-35K-I105-D065 | 3500 K | 80 CRI | 6800 lm | 113 | 60 W | Indirect/Direct: Lambertian | |
6L-P-ID-STD-4-SOF-X-CX-35K-I090-D055 | 3500 K | 80 CRI | 5800 lm | 114 | 51 W | Indirect/Direct: Lambertian | |
6L-P-ID-STD-4-SOF-X-CX-35K-I080-D110 | 3500 K | 80 CRI | 7600 lm | 109 | 70 W | Indirect/Direct: Lambertian | |
6L-P-ID-STD-4-SOF-X-CX-35K-I120-D030 | 3500 K | 80 CRI | 6000 lm | 113 | 53 W | Indirect/Direct: Lambertian | |
6L-P-ID-STD-4-SOF-X-CX-35K-I110-D090 | 3500 K | 80 CRI | 8000 lm | 111 | 72 W | Indirect/Direct: Lambertian | |
6L-P-ID-STD-4-SOF-X-CX-35K-I060-D090 | 3500 K | 80 CRI | 6000 lm | 111 | 54 W | Indirect/Direct: Lambertian | |
6L-P-ID-STD-4-SOF-X-CX-35K-I040-D065 | 3500 K | 80 CRI | 4200 lm | 111 | 38 W | Indirect/Direct: Lambertian | |
6L-P-ID-STD-4-SOF-X-CX-35K-I040-D090 | 3500 K | 80 CRI | 5200 lm | 108 | 48 W | Indirect/Direct: Lambertian | |
6L-P-ID-STD-4-SOF-X-CX-35K-I065-D030 | 3500 K | 80 CRI | 3800 lm | 119 | 32 W | Indirect/Direct: Lambertian | |
6L-P-ID-STD-4-SOF-X-CX-35K-I110-D065 | 3500 K | 80 CRI | 7000 lm | 113 | 62 W | Indirect/Direct: Lambertian | |
6L-P-ID-STD-4-SOF-X-CX-35K-I120-D060 | 3500 K | 80 CRI | 7200 lm | 113 | 64 W | Indirect/Direct: Lambertian | |
6L-P-ID-STD-4-SOF-X-CX-35K-I085-D050 | 3500 K | 80 CRI | 5400 lm | 115 | 47 W | Indirect/Direct: Lambertian | |
6L-P-ID-STD-4-SOF-X-CX-35K-I085-D110 | 3500 K | 80 CRI | 7800 lm | 110 | 71 W | Indirect/Direct: Lambertian | |
6L-P-ID-STD-4-SOF-X-CX-35K-I105-D090 | 3500 K | 80 CRI | 7800 lm | 111 | 70 W | Indirect/Direct: Lambertian | |
6L-P-ID-STD-4-SOF-X-CX-35K-I065-D090 | 3500 K | 80 CRI | 6200 lm | 111 | 56 W | Indirect/Direct: Lambertian | |
6L-P-ID-STD-4-SOF-X-CX-35K-I045-D065 | 3500 K | 80 CRI | 4400 lm | 110 | 40 W | Indirect/Direct: Lambertian | |
6L-P-ID-STD-4-SOF-X-CX-35K-I035-D090 | 3500 K | 80 CRI | 5000 lm | 106 | 47 W | Indirect/Direct: Lambertian | |
6L-P-ID-STD-4-SOF-X-CX-35K-I055-D110 | 3500 K | 80 CRI | 6600 lm | 108 | 61 W | Indirect/Direct: Lambertian | |
6L-P-ID-STD-4-SOF-X-CX-35K-I115-D065 | 3500 K | 80 CRI | 7200 lm | 113 | 64 W | Indirect/Direct: Lambertian | |
6L-P-D-4-BAT-X-CX-35K-D100 | 3500 K | 80 CRI | 4000 lm | 111 | 36 W | Direct: Batwing | |
6L-P-ID-STD-4-SOF-X-CX-35K-I080-D050 | 3500 K | 80 CRI | 5200 lm | 116 | 45 W | Indirect/Direct: Lambertian | |
6L-P-ID-STD-4-SOF-X-CX-35K-I095-D040 | 3500 K | 80 CRI | 5400 lm | 115 | 47 W | Indirect/Direct: Lambertian | |
6L-P-ID-STD-4-SOF-X-CX-35K-I100-D085 | 3500 K | 80 CRI | 7400 lm | 112 | 66 W | Indirect/Direct: Lambertian | |
6L-P-ID-STD-4-SOF-X-CX-35K-I070-D090 | 3500 K | 80 CRI | 6400 lm | 110 | 58 W | Indirect/Direct: Lambertian | |
6L-P-ID-STD-4-SOF-X-CX-35K-I050-D065 | 3500 K | 80 CRI | 4600 lm | 112 | 41 W | Indirect/Direct: Lambertian | |
6L-P-ID-STD-4-SOF-X-CX-35K-I030-D085 | 3500 K | 80 CRI | 4600 lm | 107 | 43 W | Indirect/Direct: Lambertian | |
6L-P-ID-STD-4-SOF-X-CX-35K-I030-D035 | 3500 K | 80 CRI | 2600 lm | 113 | 23 W | Indirect/Direct: Lambertian | |
6L-P-ID-STD-4-SOF-X-CX-35K-I050-D110 | 3500 K | 80 CRI | 6400 lm | 107 | 60 W | Indirect/Direct: Lambertian | |
6L-P-ID-STD-4-SOF-X-CX-35K-I120-D075 | 3500 K | 80 CRI | 7800 lm | 111 | 70 W | Indirect/Direct: Lambertian | |
6L-P-ID-STD-4-SOF-X-CX-35K-I075-D050 | 3500 K | 80 CRI | 5000 lm | 116 | 43 W | Indirect/Direct: Lambertian | |
6L-P-ID-STD-4-SOF-X-CX-35K-I100-D040 | 3500 K | 80 CRI | 5600 lm | 114 | 49 W | Indirect/Direct: Lambertian | |
6L-P-ID-STD-4-SOF-X-CX-35K-I095-D085 | 3500 K | 80 CRI | 7200 lm | 113 | 64 W | Indirect/Direct: Lambertian | |
6L-P-ID-STD-4-SOF-X-CX-35K-I075-D090 | 3500 K | 80 CRI | 6600 lm | 112 | 59 W | Indirect/Direct: Lambertian | |
6L-P-ID-STD-4-SOF-X-CX-35K-I115-D110 | 3500 K | 80 CRI | 9000 lm | 108 | 83 W | Indirect/Direct: Lambertian | |
6L-P-ID-STD-4-SOF-X-CX-35K-I055-D065 | 3500 K | 80 CRI | 4800 lm | 112 | 43 W | Indirect/Direct: Lambertian | |
6L-P-ID-STD-4-SOF-X-CX-35K-I035-D045 | 3500 K | 80 CRI | 3200 lm | 110 | 29 W | Indirect/Direct: Lambertian | |
6L-P-ID-STD-4-SOF-X-CX-35K-I045-D110 | 3500 K | 80 CRI | 6200 lm | 107 | 58 W | Indirect/Direct: Lambertian | |
6L-P-ID-STD-4-SOF-X-CX-35K-I070-D050 | 3500 K | 80 CRI | 4800 lm | 114 | 42 W | Indirect/Direct: Lambertian | |
6L-P-ID-STD-4-SOF-X-CX-35K-I105-D045 | 3500 K | 80 CRI | 6000 lm | 115 | 52 W | Indirect/Direct: Lambertian | |
6L-P-ID-STD-4-SOF-X-CX-35K-I090-D080 | 3500 K | 80 CRI | 6800 lm | 111 | 61 W | Indirect/Direct: Lambertian | |
6L-P-ID-STD-4-SOF-X-CX-35K-I080-D090 | 3500 K | 80 CRI | 6800 lm | 111 | 61 W | Indirect/Direct: Lambertian | |
6L-P-ID-STD-4-SOF-X-CX-35K-I110-D110 | 3500 K | 80 CRI | 8800 lm | 109 | 81 W | Indirect/Direct: Lambertian | |
6L-P-ID-STD-4-SOF-X-CX-35K-I060-D070 | 3500 K | 80 CRI | 5200 lm | 113 | 46 W | Indirect/Direct: Lambertian | |
6L-P-ID-STD-4-SOF-X-CX-35K-I040-D045 | 3500 K | 80 CRI | 3400 lm | 113 | 30 W | Indirect/Direct: Lambertian | |
6L-P-ID-STD-4-SOF-X-CX-35K-I040-D110 | 3500 K | 80 CRI | 6000 lm | 105 | 57 W | Indirect/Direct: Lambertian | |
6L-P-ID-STD-4-SOF-X-CX-35K-I065-D050 | 3500 K | 80 CRI | 4600 lm | 115 | 40 W | Indirect/Direct: Lambertian | |
6L-P-ID-STD-4-SOF-X-CX-35K-I110-D045 | 3500 K | 80 CRI | 6200 lm | 115 | 54 W | Indirect/Direct: Lambertian | |
6L-P-ID-STD-4-SOF-X-CX-35K-I030-D090 | 3500 K | 80 CRI | 4800 lm | 107 | 45 W | Indirect/Direct: Lambertian | |
6L-P-ID-STD-4-SOF-X-CX-35K-I085-D070 | 3500 K | 80 CRI | 6200 lm | 113 | 55 W | Indirect/Direct: Lambertian | |
6L-P-ID-STD-4-SOF-X-CX-35K-I085-D090 | 3500 K | 80 CRI | 7000 lm | 111 | 63 W | Indirect/Direct: Lambertian | |
6L-P-ID-STD-4-SOF-X-CX-35K-I105-D110 | 3500 K | 80 CRI | 8600 lm | 109 | 79 W | Indirect/Direct: Lambertian | |
6L-P-ID-STD-4-SOF-X-CX-35K-I065-D070 | 3500 K | 80 CRI | 5400 lm | 113 | 48 W | Indirect/Direct: Lambertian | |
6L-P-ID-STD-4-SOF-X-CX-35K-I045-D045 | 3500 K | 80 CRI | 3600 lm | 113 | 32 W | Indirect/Direct: Lambertian | |
6L-P-ID-STD-4-SOF-X-CX-35K-I035-D110 | 3500 K | 80 CRI | 5800 lm | 105 | 55 W | Indirect/Direct: Lambertian | |
6L-P-ID-STD-4-SOF-X-CX-35K-I060-D050 | 3500 K | 80 CRI | 4400 lm | 116 | 38 W | Indirect/Direct: Lambertian | |
6L-P-ID-STD-4-SOF-X-CX-35K-I115-D045 | 3500 K | 80 CRI | 6400 lm | 114 | 56 W | Indirect/Direct: Lambertian | |
6L-P-D-4-BAT-X-CX-35K-D120 | 3500 K | 80 CRI | 4800 lm | 109 | 44 W | Direct: Batwing | |
6L-P-ID-STD-4-SOF-X-CX-35K-I080-D070 | 3500 K | 80 CRI | 6000 lm | 113 | 53 W | Indirect/Direct: Lambertian | |
6L-P-ID-STD-4-SOF-X-CX-35K-I090-D105 | 3500 K | 80 CRI | 7800 lm | 110 | 71 W | Indirect/Direct: Lambertian | |
6L-P-ID-STD-4-SOF-X-CX-35K-I100-D110 | 3500 K | 80 CRI | 8400 lm | 109 | 77 W | Indirect/Direct: Lambertian | |
6L-P-ID-STD-4-SOF-X-CX-35K-I070-D070 | 3500 K | 80 CRI | 5600 lm | 112 | 50 W | Indirect/Direct: Lambertian | |
6L-P-ID-STD-4-SOF-X-CX-35K-I050-D045 | 3500 K | 80 CRI | 3800 lm | 115 | 33 W | Indirect/Direct: Lambertian | |
6L-P-ID-STD-4-SOF-X-CX-35K-I030-D110 | 3500 K | 80 CRI | 5600 lm | 104 | 54 W | Indirect/Direct: Lambertian | |
6L-P-ID-STD-4-SOF-X-CX-35K-I055-D045 | 3500 K | 80 CRI | 4000 lm | 114 | 35 W | Indirect/Direct: Lambertian | |
6L-P-ID-STD-4-SOF-X-CX-35K-I120-D050 | 3500 K | 80 CRI | 6800 lm | 111 | 61 W | Indirect/Direct: Lambertian | |
6L-P-ID-STD-4-SOF-X-CX-35K-I075-D070 | 3500 K | 80 CRI | 5800 lm | 114 | 51 W | Indirect/Direct: Lambertian | |
6L-P-ID-STD-4-SOF-X-CX-35K-I095-D105 | 3500 K | 80 CRI | 8000 lm | 110 | 73 W | Indirect/Direct: Lambertian |
Show All
Related Products

The MODx™ family is an affordably-priced, full-featured offering with best-in-class attention to detail.

The MODx™ family is an affordably-priced, full-featured offering with best-in-class attention to detail.

The MODx™ family is an affordably-priced, full-featured offering with best-in-class attention to detail.

The MODx™ family is an affordably-priced, full-featured offering with best-in-class attention to detail.

The MOD™ 6L LED Wall Direct (6L-W-D) is part of the MODx family, which is an affordably-priced, full-featured offering with best-in-class attention to detail.

The MODx™ family is an affordably-priced, full-featured offering with best-in-class attention to detail.
