NX LIGHTING CONTROLS

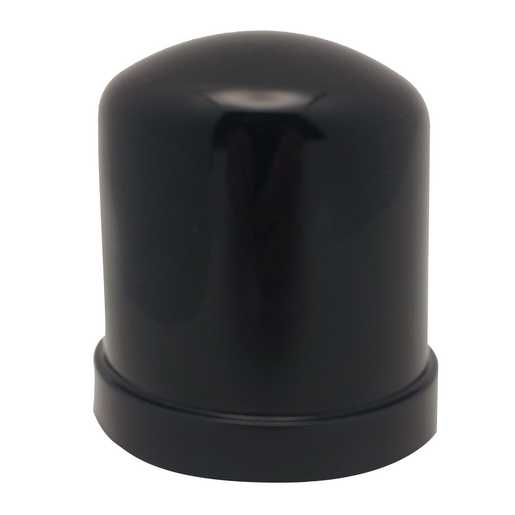

LightGRID+ External Fixture Module

The LightGRID+ External Fixture Module is a bidirectional wireless RF device that allows an individual fixture to be managed, monitored and metered.

Features & Benefits

  • On/Off lighting control with 0-10v full-range dimming
  • Compatible with ANSI C136.41 (7 & 5 pin) and Zhaga Book 18 twist-lock receptacles
  • Digital input available for low-voltage motion sensor, switch or external photocell control
  • Includes built-in, internal on/off photocell
  • Bidirectional long range wireless RF Mesh communications with military grade AES-128 (or AES-256) encryption
  • Multi-level grouping and multiple scenarios
  • Programmable state after blackout, with peak shaving options
  • Revenue-grade metering (+/- 0.5% accuracy) with multiple user-configurable alarms
  • Complete integration with LightGRID+ software
Where To Buy
SPEC SHEET

Specifications

Brand
NX LIGHTING CONTROLS
Connectivity
Wireless Networked
Color Offering
Black
Mounting Options
Fixture Attached, 5-Pin Twist-Lock Receptacle, 7-Pin Twist-Lock Receptacle
Product Technology
Wireless Networked
Dimming Output
0-10V Dimming
Operating Temp
-40° to 85
Certifications
FCC

Product Documents

Brochures / Catalogs

Design / BIM Files / 3D Models

WIR-RME BIM file
416 KB
2022-11-22

Technical Documents

Warranties

NX Lighting Controls
138 KB
2023-07-06
