NX LIGHTING CONTROLS

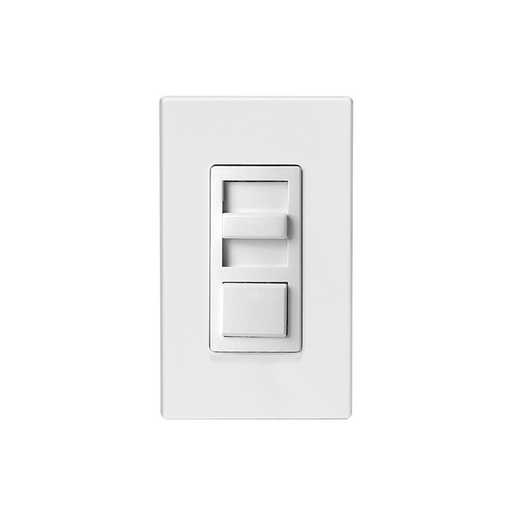

Preset Slide Dimmer

Preset Slide Dimmers provide smooth, slide-action, full-range dimming for dimmable LEDs and fluorescent loads.The Dimmer features an easy-to-use push button that provides ON/OFF switching.

Features & Benefits

  • No power pack required for controlling 0-10V drivers or ballasts
  • Linear slide bar for superior quality and dimming performance
  • Separate ON/OFF switch and dim bar to preserve preset light level
  • Can be used in single-pole or 3-way applications
  • Compatible with decorator-style wall plates
  • Fits easily into a standard wallbox and is suitable for multi-gang installations
Where To Buy
SPEC SHEET

Specifications

Brand
NX LIGHTING CONTROLS
Connectivity
Wired
Color Offering
White, Ivory, Light Almond, Gray, Black, Brown, Red
Mounting Options
Surface Mount
Recommended Mounting Height
Standard Wallbox
Product Technology
Dimming
Voltage Offering
120-277
Dimming Output
0-10V
Certifications
CSA
Warranty
5 year limited

Product Documents

Brochures / Catalogs

Wallbox Dimmers FAQ
99 KB
2022-10-25

Sell Sheets

Design / BIM Files / 3D Models

RSD BIM file
472 KB
2022-10-10

Installation Guides
