LITECONTROL
SAE201 Adjustable Concealed Cove SAE201-CC

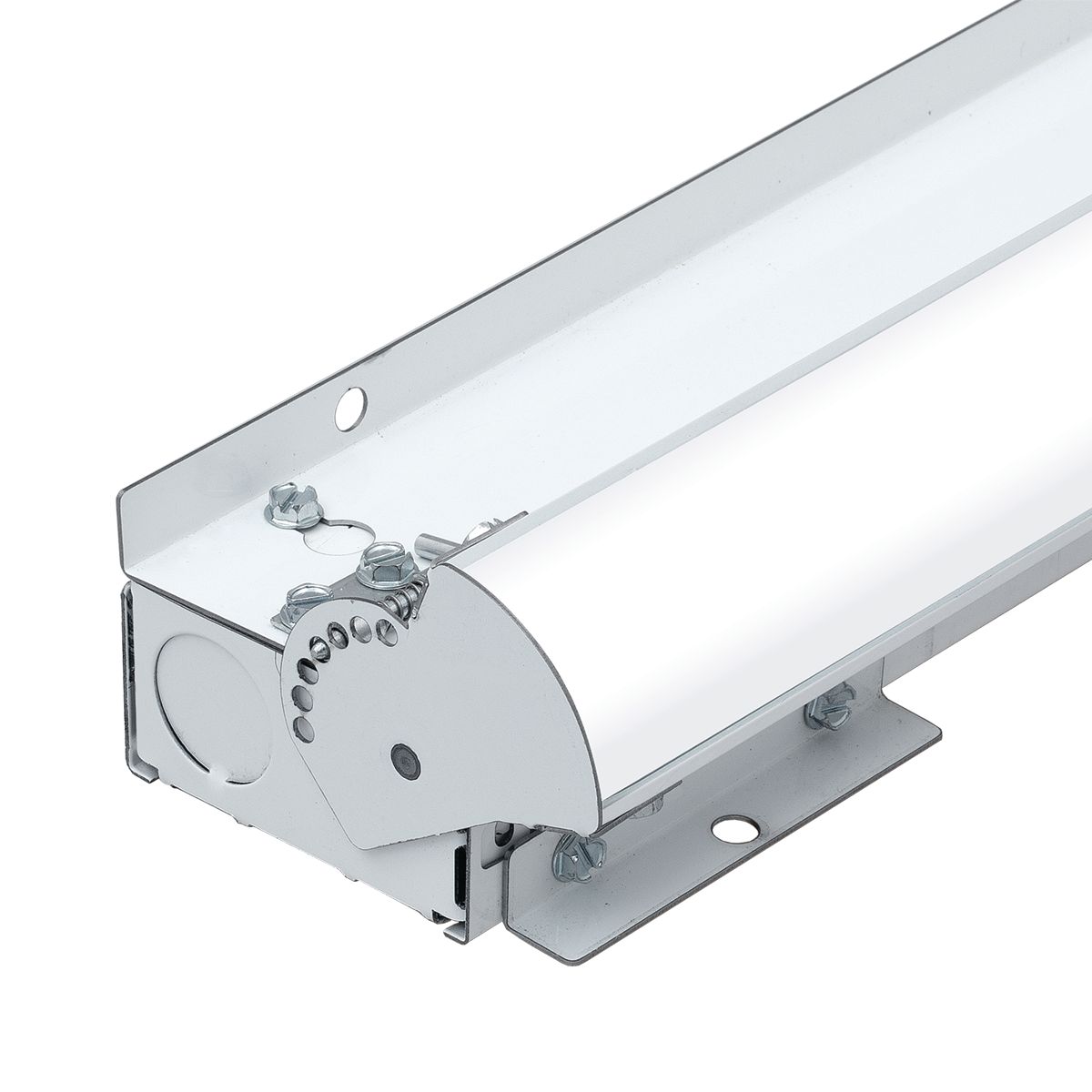

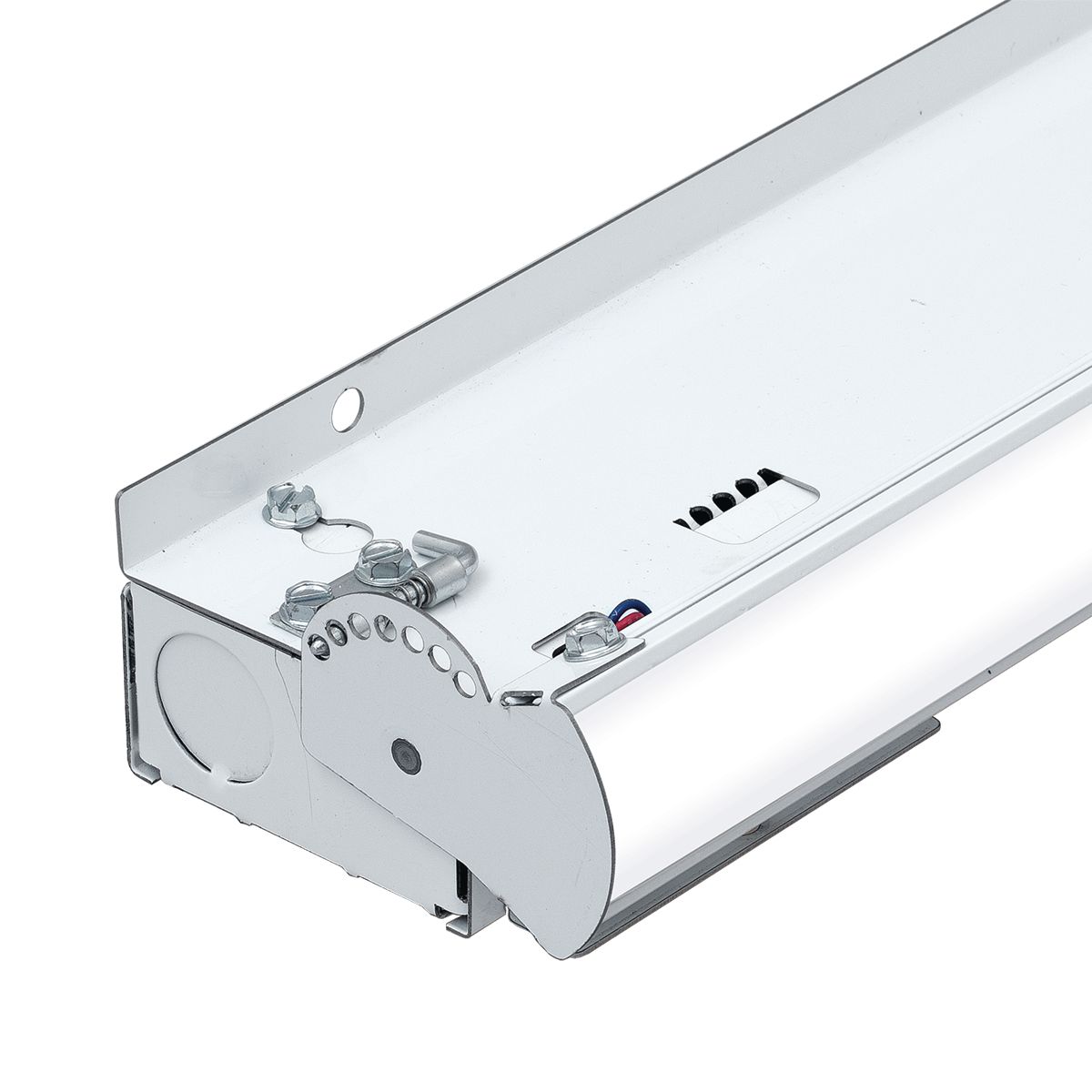

SAE201 is a versatile, concealed, architectural cove light with the flexibility to adjust beam angle pre or post installation.

Features & Benefits

  • Vi Technology for specifiable output/wattage
  • 90° adjustable lens range with 7 increments
  • Adjustable after install
  • Can be installed with flexible conduit for curved applications
  • Accommodates corners with optional Corner Wiring Kits
  • Fixture lengths of 1’, 2’, 3’ & 4’. (Contact Factory for longer lengths)
Where To Buy
SPEC SHEET

Specifications

Product Technology
SpectraSync™ Color Tuning, Vi (Variable Intensity)
Voltage Offering
120-277;347
Dimming Protocol
0-10V;Lutron EcoSystem Digital;DALI;DALI 2.0;0%;1%;5%;Step-Dimming
CCT Offering
2700, 3000, 3500, 4000, 5000
CRI Offering
80, 90
Color Tuning
Tunable White, Dim-to-Warm
Mounting Options
Cove
Wattage Range
Per foot: 7.3 - 12.8
Efficacy Range
118 - 125
Certifications
CSAus
Ratings
BAA (Buy American 52.225-9), TAA (Buy American 52.225-11)
Warranty
5 year limited

Product Documents

SAE201 Specification Sheet
1167 KB
2022-08-23

Brochures / Catalogs

SAE Brochure
6342 KB
2022-10-25
SpectraSync FAQ
460 KB
2022-11-17

Sell Sheets

SpectraSync Sell Sheet
2452 KB
2022-11-21

Design / BIM Files / 3D Models

SAE201 BIM file
1672 KB
2022-11-22

Installation Guides

SAE201 Instuction Sheet
292 KB
2022-07-25

Photometry(0)

Clear Filters

Product Name Color Temp CRI Lumens LM/W Watts Dist. Type Resources
SAE201-CC-AI-2-CX-35K-I060-75DEG3500 K80 CRI1200 lm12010 WIndirect: Asymmetric
SAE201-CC-AI-2-CX-35K-I090-45DEG3500 K80 CRI1800 lm12315 WIndirect: Asymmetric
SAE201-CC-AI-2-CX-35K-I115-90DEG3500 K80 CRI2300 lm12219 WIndirect: Asymmetric
SAE201-CC-AI-2-CX-35K-I150-90DEG3500 K80 CRI3000 lm11825 WIndirect: Asymmetric
SAE201-CC-AI-2-CX-35K-I145-75DEG3500 K80 CRI2900 lm12024 WIndirect: Asymmetric
SAE201-CC-AI-2-CX-35K-I125-45DEG3500 K80 CRI2500 lm12420 WIndirect: Asymmetric
SAE201-CC-AI-2-CX-35K-I095-75DEG3500 K80 CRI1900 lm12315 WIndirect: Asymmetric
SAE201-CC-AI-2-CX-35K-I055-45DEG3500 K80 CRI1100 lm1229 WIndirect: Asymmetric
SAE201-CC-AI-2-CX-35K-I065-90DEG3500 K80 CRI1300 lm11811 WIndirect: Asymmetric
SAE201-CC-AI-2-CX-35K-I080-90DEG3500 K80 CRI1600 lm12313 WIndirect: Asymmetric
SAE201-CC-AI-2-CX-35K-I110-75DEG3500 K80 CRI2200 lm12318 WIndirect: Asymmetric
SAE201-CC-AI-2-CX-35K-I160-45DEG3500 K80 CRI3200 lm11927 WIndirect: Asymmetric
SAE201-CC-AI-2-CX-35K-I140-45DEG3500 K80 CRI2800 lm12123 WIndirect: Asymmetric
SAE201-CC-AI-2-CX-35K-I130-75DEG3500 K80 CRI2600 lm12321 WIndirect: Asymmetric
SAE201-CC-AI-2-CX-35K-I165-90DEG3500 K80 CRI3300 lm11828 WIndirect: Asymmetric
SAE201-CC-AI-2-CX-35K-I100-90DEG3500 K80 CRI2000 lm12316 WIndirect: Asymmetric
SAE201-CC-AI-2-CX-35K-I075-45DEG3500 K80 CRI1500 lm12512 WIndirect: Asymmetric
SAE201-CC-AI-2-CX-35K-I075-75DEG3500 K80 CRI1500 lm12512 WIndirect: Asymmetric
SAE201-CC-AI-2-CX-35K-I105-45DEG3500 K80 CRI2100 lm12317 WIndirect: Asymmetric
SAE201-CC-AI-2-CX-35K-I165-75DEG3500 K80 CRI3300 lm11828 WIndirect: Asymmetric
SAE201-CC-AI-2-CX-35K-I130-90DEG3500 K80 CRI2600 lm12321 WIndirect: Asymmetric
SAE201-CC-AI-2-CX-35K-I135-90DEG3500 K80 CRI2700 lm12322 WIndirect: Asymmetric
SAE201-CC-AI-2-CX-35K-I160-75DEG3500 K80 CRI3200 lm11927 WIndirect: Asymmetric
SAE201-CC-AI-2-CX-35K-I110-45DEG3500 K80 CRI2200 lm12318 WIndirect: Asymmetric
SAE201-CC-AI-2-CX-35K-I080-75DEG3500 K80 CRI1600 lm12313 WIndirect: Asymmetric
SAE201-CC-AI-2-CX-35K-I070-45DEG3500 K80 CRI1400 lm12711 WIndirect: Asymmetric
SAE201-CC-AI-2-CX-35K-I050-90DEG3500 K80 CRI1000 lm1258 WIndirect: Asymmetric
SAE201-CC-AI-2-CX-35K-I095-90DEG3500 K80 CRI1900 lm12315 WIndirect: Asymmetric
SAE201-CC-AI-2-CX-35K-I170-90DEG3500 K80 CRI3400 lm11729 WIndirect: Asymmetric
SAE201-CC-AI-2-CX-35K-I125-75DEG3500 K80 CRI2500 lm12420 WIndirect: Asymmetric
SAE201-CC-AI-2-CX-35K-I145-45DEG3500 K80 CRI2900 lm12024 WIndirect: Asymmetric
SAE201-CC-AI-2-CX-35K-I155-45DEG3500 K80 CRI3100 lm11926 WIndirect: Asymmetric
SAE201-CC-AI-2-CX-35K-I115-75DEG3500 K80 CRI2300 lm12219 WIndirect: Asymmetric
SAE201-CC-AI-2-CX-35K-I085-90DEG3500 K80 CRI1700 lm12114 WIndirect: Asymmetric
SAE201-CC-AI-2-CX-35K-I060-90DEG3500 K80 CRI1200 lm12010 WIndirect: Asymmetric
SAE201-CC-AI-2-CX-35K-I060-45DEG3500 K80 CRI1200 lm12010 WIndirect: Asymmetric
SAE201-CC-AI-2-CX-35K-I090-75DEG3500 K80 CRI1800 lm12315 WIndirect: Asymmetric
SAE201-CC-AI-2-CX-35K-I120-45DEG3500 K80 CRI2400 lm12519 WIndirect: Asymmetric
SAE201-CC-AI-2-CX-35K-I150-75DEG3500 K80 CRI3000 lm11825 WIndirect: Asymmetric
SAE201-CC-AI-2-CX-35K-I145-90DEG3500 K80 CRI2900 lm12024 WIndirect: Asymmetric
SAE201-CC-AI-2-CX-35K-I120-90DEG3500 K80 CRI2400 lm12519 WIndirect: Asymmetric
SAE201-CC-AI-2-CX-35K-I095-45DEG3500 K80 CRI1900 lm12315 WIndirect: Asymmetric
SAE201-CC-AI-2-CX-35K-I055-75DEG3500 K80 CRI1100 lm1229 WIndirect: Asymmetric
SAE201-CC-AI-2-CX-35K-I065-75DEG3500 K80 CRI1300 lm11811 WIndirect: Asymmetric
SAE201-CC-AI-2-CX-35K-I085-45DEG3500 K80 CRI1700 lm12114 WIndirect: Asymmetric
SAE201-CC-AI-2-CX-35K-I110-90DEG3500 K80 CRI2200 lm12318 WIndirect: Asymmetric
SAE201-CC-AI-2-CX-35K-I155-90DEG3500 K80 CRI3100 lm11926 WIndirect: Asymmetric
SAE201-CC-AI-2-CX-35K-I140-75DEG3500 K80 CRI2800 lm12123 WIndirect: Asymmetric
SAE201-CC-AI-2-CX-35K-I130-45DEG3500 K80 CRI2600 lm12321 WIndirect: Asymmetric
SAE201-CC-AI-2-CX-35K-I170-45DEG3500 K80 CRI3400 lm11729 WIndirect: Asymmetric
SAE201-CC-AI-2-CX-35K-I100-75DEG3500 K80 CRI2000 lm12316 WIndirect: Asymmetric
SAE201-CC-AI-2-CX-35K-I050-45DEG3500 K80 CRI1000 lm1258 WIndirect: Asymmetric
SAE201-CC-AI-2-CX-35K-I070-90DEG3500 K80 CRI1400 lm12711 WIndirect: Asymmetric
SAE201-CC-AI-2-CX-35K-I075-90DEG3500 K80 CRI1500 lm12512 WIndirect: Asymmetric
SAE201-CC-AI-2-CX-35K-I105-75DEG3500 K80 CRI2100 lm12317 WIndirect: Asymmetric
SAE201-CC-AI-2-CX-35K-I165-45DEG3500 K80 CRI3300 lm11828 WIndirect: Asymmetric
SAE201-CC-AI-2-CX-35K-I135-45DEG3500 K80 CRI2700 lm12322 WIndirect: Asymmetric
SAE201-CC-AI-2-CX-35K-I135-75DEG3500 K80 CRI2700 lm12322 WIndirect: Asymmetric
SAE201-CC-AI-2-CX-35K-I160-90DEG3500 K80 CRI3200 lm11927 WIndirect: Asymmetric
SAE201-CC-AI-2-CX-35K-I105-90DEG3500 K80 CRI2100 lm12317 WIndirect: Asymmetric
SAE201-CC-AI-2-CX-35K-I080-45DEG3500 K80 CRI1600 lm12313 WIndirect: Asymmetric
SAE201-CC-AI-2-CX-35K-I070-75DEG3500 K80 CRI1400 lm12711 WIndirect: Asymmetric
SAE201-CC-AI-2-CX-35K-I050-75DEG3500 K80 CRI1000 lm1258 WIndirect: Asymmetric
SAE201-CC-AI-2-CX-35K-I100-45DEG3500 K80 CRI2000 lm12316 WIndirect: Asymmetric
SAE201-CC-AI-2-CX-35K-I170-75DEG3500 K80 CRI3400 lm11729 WIndirect: Asymmetric
SAE201-CC-AI-2-CX-35K-I125-90DEG3500 K80 CRI2500 lm12420 WIndirect: Asymmetric
SAE201-CC-AI-2-CX-35K-I140-90DEG3500 K80 CRI2800 lm12123 WIndirect: Asymmetric
SAE201-CC-AI-2-CX-35K-I155-75DEG3500 K80 CRI3100 lm11926 WIndirect: Asymmetric
SAE201-CC-AI-2-CX-35K-I115-45DEG3500 K80 CRI2300 lm12219 WIndirect: Asymmetric
SAE201-CC-AI-2-CX-35K-I085-75DEG3500 K80 CRI1700 lm12114 WIndirect: Asymmetric
SAE201-CC-AI-2-CX-35K-I065-45DEG3500 K80 CRI1300 lm11811 WIndirect: Asymmetric
SAE201-CC-AI-2-CX-35K-I055-90DEG3500 K80 CRI1100 lm1229 WIndirect: Asymmetric
SAE201-CC-AI-2-CX-35K-I090-90DEG3500 K80 CRI1800 lm12315 WIndirect: Asymmetric
SAE201-CC-AI-2-CX-35K-I120-75DEG3500 K80 CRI2400 lm12519 WIndirect: Asymmetric
SAE201-CC-AI-2-CX-35K-I150-45DEG3500 K80 CRI3000 lm11825 WIndirect: Asymmetric
