COLUMBIA LIGHTING

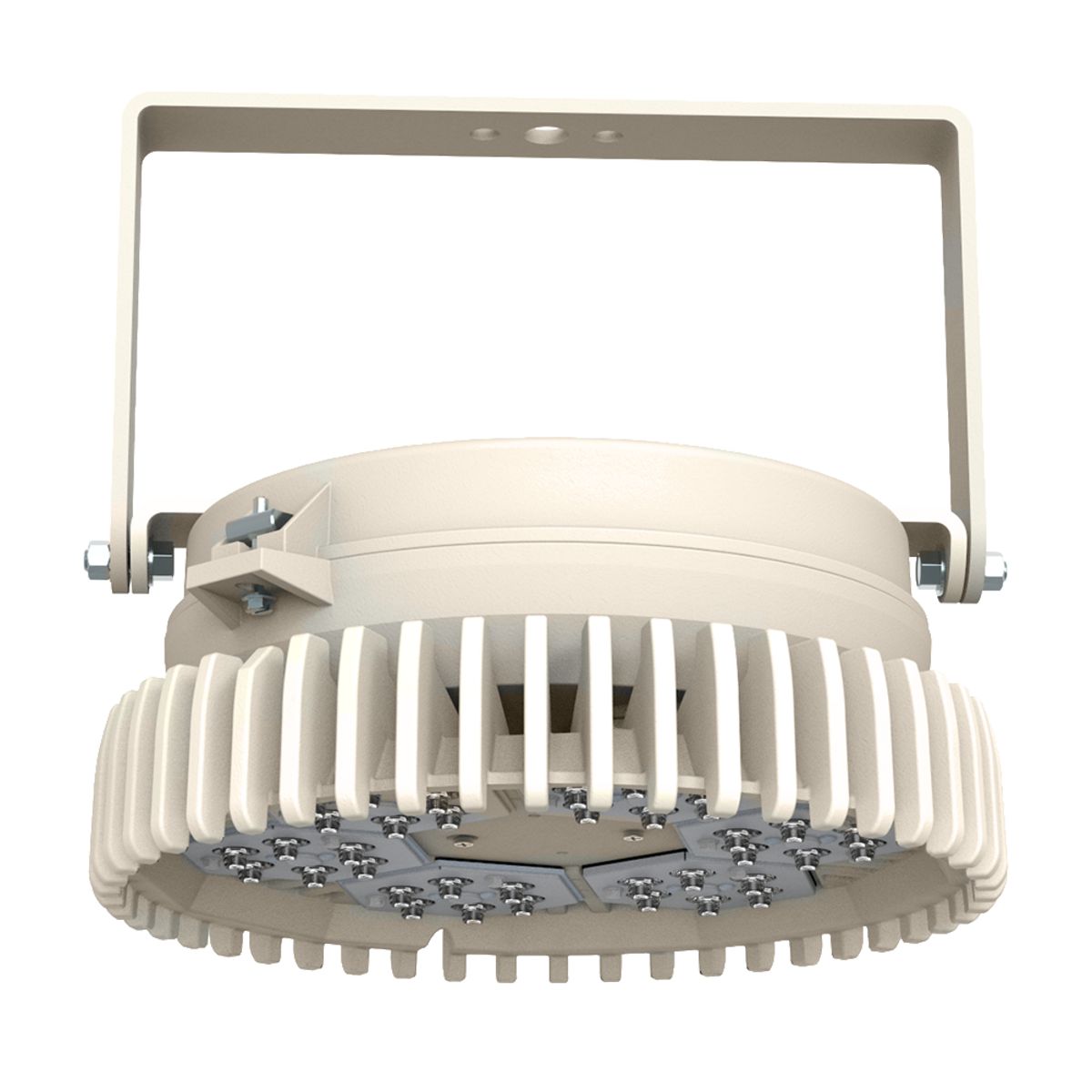

Kemlux III - KHL Flood

The Kemlux III - KHL Flood is a hazardous location fixture for C1D2 hazardous locations. Standard with Class I, Division 2, Groups A, B, C & D; T-code of T5.

Features & Benefits

  • Class I, Division 2 LED fixture series
  • Covers gas groups A, B, C and D with a T-Code of T5
  • Custom engineered LED optics
  • Three LED count options: 18, 24, 36
  • Modular design provides 6 mounting options
  • Copper-free (less than 0.4%) aluminum housing
  • All exposed hardware is stainless steel
  • Operating temperature of -40˚C to 40˚C
Where To Buy
SPEC SHEET

Specifications

Voltage Offering
120-277;347-480
Lumen Range
4,300 - 9,000
CCT Offering
5000
CRI Offering
70
Mounting Options
Yoke
Wattage Range
43 - 86
Efficacy Range
99 - 105
Color Offering
Tan
Optics & Distributions
Type V, Narrow
Certifications
CSA
Ratings
TAA (Buy American 52.225-11), IP65, IP66, IP67, Wet
Warranty
5 year limited

Product Documents

KHL Flood Specification Sheet
648 KB
2022-11-16

Brochures / Catalogs

Color Chart Brochure
2404 KB
2023-02-03

Design / BIM Files / 3D Models

KHL-Flood BIM file
1244 KB
2022-11-22

Photometry(0)

Clear Filters

Product Name Color Temp CRI Lumens LM/W Watts Dist. Type Resources
KXL-18L-X-5K-5M5000 K70 CRI4322 lm10043.3 WAmbient
KXL-24L-X-5K-5R5000 K70 CRI5895 lm10056.7 WAmbient
KXL-36L-X-5K-N5000 K70 CRI9019 lm10085.4 WAmbient
KXL-24L-X-5K-N5000 K70 CRI5998 lm10057.4 WAmbient
KXL-18L-X-5K-5R5000 K70 CRI4404 lm10042.8 WAmbient
KXL-24L-X-5K-5M5000 K70 CRI5711 lm10058.2 WAmbient
KXL-36L-X-5K-5R5000 K70 CRI8746 lm10085.3 WAmbient
KXL-36L-X-5K-5M5000 K70 CRI8470 lm10085.3 WAmbient
KXL-18L-X-5K-N5000 K70 CRI4417 lm10042.8 WAmbient
Show All
